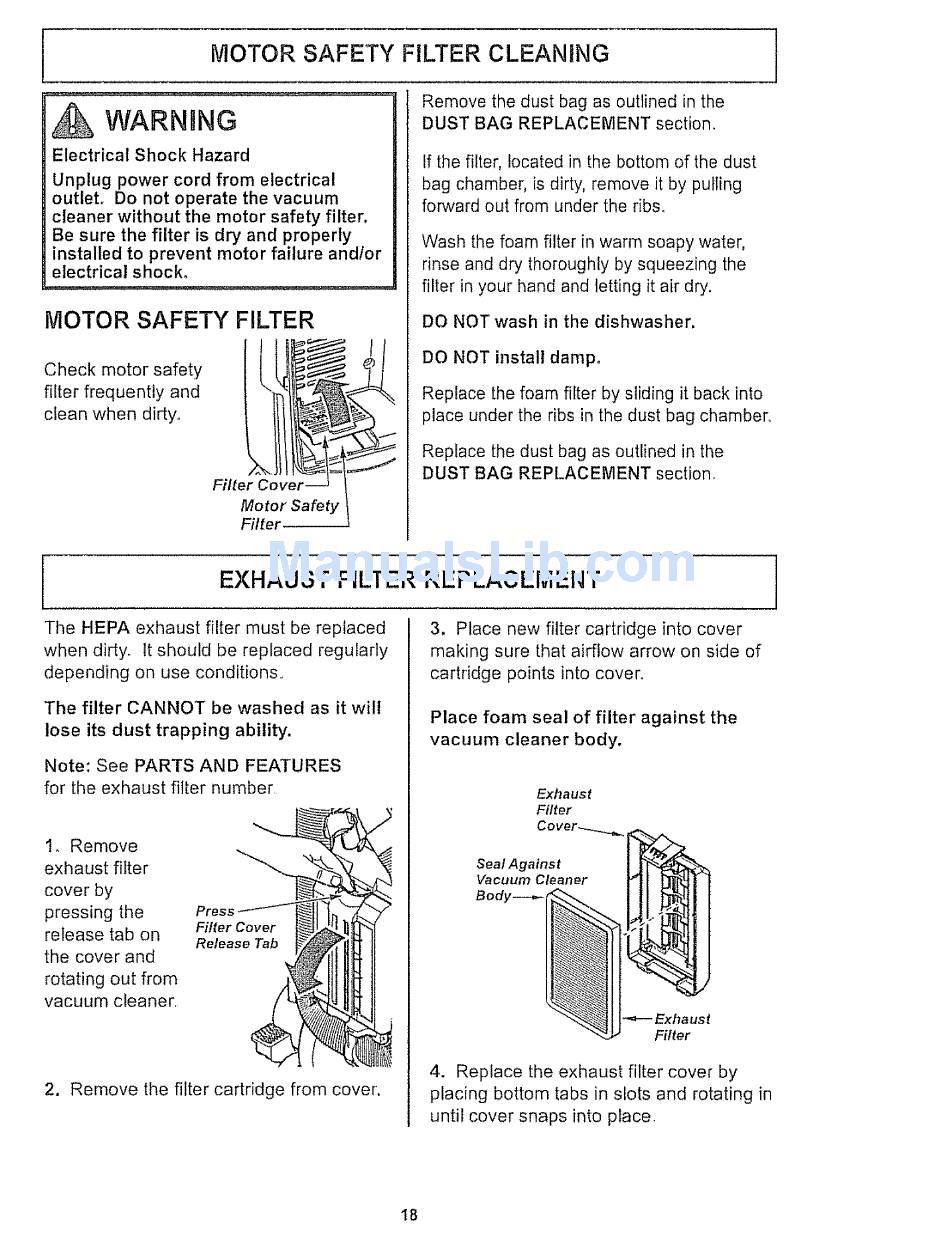

MOTOR SAFETY FILTER CLEANING
WARNRNG
Electrical
Shock
Hazard
Unplug
power cord from electrical
outlet,
Do not operate
the vacuum
cleaner
without
the motor
safety filter.
Be sure the filter
is dry and properly
installed
to prevent
motor failure
andlor
electrical
shock,
MOTOR SAFETY FILTER
Check motor safety
filter frequently
and
clean when
dirty°
Motor Safety
Filter .........
Remove the dust bag as outlined in the
DUST BAG REPLACEMENT
section,
If the filter, located in the bottom of the dust
bag chamber,
is dirty, remove it by pulling
forward out from under the ribs.
Wash the foam filter in warm soapy water,
rinse and dry thoroughly
by squeezing
the
filter in your hand and letting it air dry.
DO NOT wash in the dishwasher.
DO NOT install
damp.
Replace the foam filter by sliding it back into
place under the ribs in the dust bag chamber°
Replace the dust bag as outlined in the
DUST BAG REPLACEMENT
section,
EXHAUST
FILTER REPLACEMENT
The HEPA exhaust
filter must be replaced
when dirty_ It should
be replaced
regularly
depending
on use conditions
The filter
CANNOT
be washed
as it will
lose its dust
trapping
ability.
Note:
See PARTS AND FEATURES
for the exhaust
filter number
I.
Remove
exhaust
filter
cover by
pressing
the
release
tab on
the cover and
rotating out from
vacuum
cleaner,
Filter
Cover
Release
Tab
2. Remove
the filter cartridge
from cover.
3. Place new filter cartridge
into cover
making
sure that airflow
arrow on side of
cartridge
points into cover.
Place
foam seal of filter
against
the
vacuum
cleaner
body,
Exhaust
Filter
Seal Against
Vacuum
Cleaner
Body---_
Exhaust
Filter
4.
Replace
the exhaust
filter cover by
placing
bottom
tabs in slots and rotating in
until cover snaps into place,
18
