Dish Network 159263 User Manual

Dish network universal remote control user's manual
Hide thumbs
Table of Contents

Advertisement

Quick Links

Remote Control
Remote Control
User Guide
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 159263 and is the answer not in the manual?

Questions and answers

Related Manuals for Dish Network 159263

Summary of Contents for Dish Network 159263

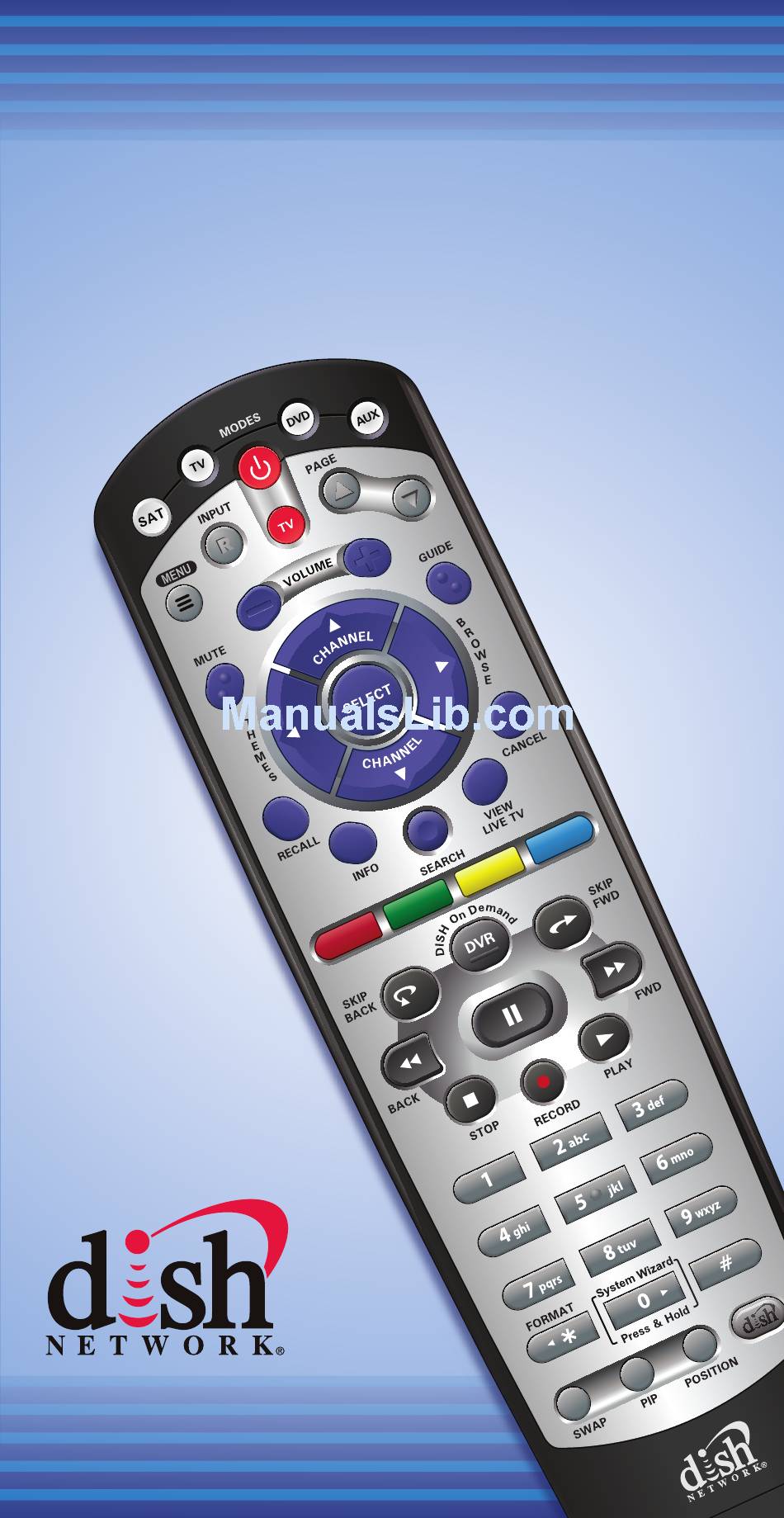

  • Page 1 Remote Control Remote Control User Guide User Guide...
  • Page 2 If you enter a “1” as the last number of your code, your remote is in Limited Mode (see page 3 for more details). Auxiliary Equipment Code To read out your remote codes, see page 8 for instructions.
  • Page 3 Learning and System Wizard Refer to page 9 for detailed instructions on Learning Refer to page 11 for detailed instructions on System Wizard...

  • Page 4: Insert The Batteries

    Install the Key Correctly Note: If you will be using the blue TV2 key that comes already installed in your remote, skip this step and proceed with the next step Pull the remote battery cover off. Insert the key face up and slide into place.

  • Page 5: Making The Remote Work With Your Receiver

    Quick Setup Making the Remote Work With Your Receiver If you installed this key, If you installed this continue with step on this page. key, go to page inside this guide. Verify the UHF antenna is installed on the back of the receiver.

  • Page 6: Program The Remote To Control Your Tv

    Quick Setup Program the Remote to Control Your TV To program the remote control to operate a TV, you can enter an Equipment Code (see instructions on page 3). Or, follow the steps below to scan the database of all Equipment Codes. Or teach your remote the commands for your TV (see instructions on page 9).

  • Page 7: Programming The Recover Button For Tv2 Operation

    Quick Setup Programming the Recover Button for TV2 Operation For TV2 Remote Controls on DISH Player-DVR 522, 625, 942 and ViP222, VIP222k, ViP622 DVR, ViP722 DVR, ViP722k DVR Receivers Programming your RECOVER button allows you to easily regain satellite programming if you accidentally change TV channels or inputs.

  • Page 8: If You Lose Your Picture

    Quick Setup/Operation Placing Your Remote in Limited Mode Limited Mode locks out all the TV mode operations except for TV power, Mute, and Volume. This prevents you from accidentally tuning away from satellite programming. Press & hold the TV Mode button until all Mode buttons light up.

  • Page 9: Remote Operation

    Remote Operation To use the features described in this section, make sure you are in SAT mode by pressing the SAT Mode button. Note: Some features may not be available depending on your receiver model. Press this button for Input SAT Mode Press once for Input, Press and hold...

  • Page 10: Tv Mode

    Picture-In-Picture (PIP) Buttons Display PIP features on some TVs with PIP capabilities Note: Remote operation is different on DISH Network TVs. See your DISH Network TV User's Guide for proper operation. Operation TV Mode TV Mode for instructions. Receiver Power &...

  • Page 11: Dvd Mode

    Remote Operation To use the features described in this section, make sure you are in DVD mode by pressing the DVD Mode button. You can use this mode to operate your VCR instead of a DVD player. Remote programming is required. See page 2 for instructions. DVD/VCR Power &...

  • Page 12: Table Of Contents

    Table of Contents Quick Setup Learning, System Wizard... C-1 Install the Key Correctly, UHF/IR Switch... C-2 Inserting the Batteries... C-2 Making the Remote Work with Your Receiver ... C-3 Programming the Remote to Control Your TV ... C-4 Programming the Recover Button for TV2 Operation... C-5 Placing Your Remote in Limited Mode...

  • Page 13: Remote Control Overview

    ONTROL Use this full-function remote control to operate the ViP®722k DVR and ViP222k DISH Network receivers. Also, you can program the remote control to operate most of the popular brands of audio/video equipment like a TV, a DVD player (or VCR), or a second DISH Network satellite receiver.

  • Page 14: How The Remote Communicates

    TVs, page C-8. • DVD players and VCRs, page C-9. • Other DISH Network satellite receivers, page C-7. • Stereo equipment (for example, an audio amplifier programmed in AUX mode) uses only these buttons: SELECT (to change inputs), MUTE, VOLUME, and POWER.

  • Page 15: Limited Mode

    player using code 765, follow the instructions to program the remote to operate the TV using code 765, and then repeat the instructions for the DVD using the same code. Put the remote in TV mode to use TV functions, or DVD mode to use the DVD player (or VCR) functions. IMITED You can program your remote control in Limited Mode to keep from accidentally changing the channel on your TV or VCR.
  • Page 16 Instructions For AUX mode only. Press 0 for a second TV, or 1 for a second DVD/VCR, or 2 for a tuner, amplifier, or audio receiver. Enter one of the three-digit equipment codes from the table using buttons on the number pad.

  • Page 17: Scanning For Equipment Codes

    CANNING FOR Instructions Turn the equipment on. Press and hold the mode button until all the other mode buttons light up, and then release the button. The mode button flashes. For AUX mode only. Press 0 for a second TV, 1 for a second DVD/VCR, or 2 for a tuner, amplifier, or audio receiver.

  • Page 18: Switching Between Tv And Amplifier Volume Control

    Instructions Turn the equipment back on and try some other buttons to make sure they work. If necessary, repeat this procedure until you’ve tried all the codes. WITCHING ETWEEN ONTROL When the remote control is set up to operate your TV, the MUTE and VOLUME buttons will adjust your TV volume.

  • Page 19: Mode

    ROGRAMMING THE ECEIVER IN If you have another DISH Network receiver installed, you can use this remote control in AUX mode to operate it along with your new receiver. When you program the remote control to operate the other receiver, the remote will send IR signals to that receiver, so the line of sight to the second receiver must be unobstructed.

  • Page 20: Reading Out Codes

    EADING These instructions explain how to check the remote control code you put in the remote control when you set it up. Be sure to write them in the spaces provided on the inside back cover. Instructions Press and hold the mode button for the equipment you want the remote control to operate.

  • Page 21: Learning From Another Device's Remote

    Place both your DISH Network remote and the original equipment’s remote control on a flat, stable surface. On the DISH Network remote, press and hold the mode button for your equipment for about three seconds until all the mode buttons light up, and then release it.
  • Page 22 (IR window) on the front, left-hand side of DISH’s remote, as shown below and on page C-1. On the DISH Network remote, press the button you want to teach. On the original equipment's remote control, press and hold the button you want learned.

  • Page 23: Using The System Wizard

    SING THE YSTEM By pressing and holding the 0 (zero) key on the DISH Network remote control for TV1 (or for TV2, if you have set it to IR only, as on page 14), you enter the System Wizard, viewable on TV1 (see page C-1).
  • Page 24 DJUST EMOTE You may see a screen asking you to adjust the physical configuration of the remote control. Configure the remote key (see page C-2) and the UHF/IR switch (see page 14) as shown on the screen, and then select Continue. ESOLVE DDRESS You may also see a screen noting that your remote control is not set to...

  • Page 25: Discrete Codes For Learning Remotes

    UHF/IR switch in the remote to IR only, as on page 14) and complete the following: Program the DISH Network remote to the desired remote address (see Changing the Remote and Receiver Address below). Hold the SAT mode button until all mode buttons light, then release the button.

  • Page 26: Changing Between Uhf And Ir Using The Uhf/Ir Switch

    Press POUND (#). If you entered the address correctly, the SAT button will flash three times. Write down the number you entered in the space provided on the inside back cover of this guide. Press RECORD. Make sure the Secondary Remote Address you see on the System Information screen is the same as the one you entered in step 3.
  • Page 27 ETTING DISH P LAYER Use these special instructions only if you are going to use the green 1 UHF Pro key to control the TV1 side of a DISH Player-DVR 522 or DISH Player-DVR 625. When you are finished setting up the remote control, you’ll be able to operate the TV1 side of your DISH Player-DVR 522 or 625 from long distances.
  • Page 28 Use the ARROW buttons to move the highlight to the TV1 remote address (the important—if you do not move the highlight, your remote control will change the receiver's TV2 remote address (the Addr box) and cause your Remote Control 1 to control the TV2 side of your receiver.

  • Page 29: Equipment Codes

    Dell 518 676 772 773 774 Denon 786 DiamondVision 546 643 659 Dimensia 503 645 830 DISH Network 742 763 Dixi 566 620 761 897 Dumont 501 627 711 813 Durabrand 533 627 682 733 834 843 627 654 657 658 664 680 727 778...
  • Page 30 TV C ODES ONTINUED Dwin 572 739 Electroband 652 795 797 798 807 Electrograph 507 Electrohome 573 627 651 652 654 709 728 795 807 Element 591 669 Emerson 528 534 536 541 573 590 618 627 636 642 646 654 655 657 658 662 664 682 683 733 777 816 832 834 846 899 Emprex 597...
  • Page 31 TV C ODES ONTINUED Mitsubishi 504 505 542 570 571 572 573 613 614 627 653 654 725 728 739 787 799 Mitsui 769 Monivision/Monovision 692 804 Montgomery Ward 675 Motorola 521 572 651 739 835 MTC 505 506 516 523 573 627 653 654 680 Multitech 657 682 Multivision 810...
  • Page 32 TV C ODES ONTINUED Silver 573 Simpson 525 Solavox 613 Sony 500 640 652 756 758 781 783 795 796 797 798 806 807 837 844 Soundesign 525 534 536 541 627 654 657 662 682 Spectricon 520 620 627 Squareview 694 733 841 846 SSS 505 541 573 627 657 662 682 Starlite 657 682...
  • Page 33 VCR C ODES Programming in AUX mode: Use these codes to program the VCR in the DVD mode on your remote control. If programming the VCR in AUX mode on your remote control, press 1 before entering the VCR code. Table continues on next page ABS 792 Adventura 588 594...
  • Page 34 VCR C ODES Motorola 554 MTC 544 594 Multitech 588 591 594 NEC 562 581 592 594 682 Nikko 676 678 Niveus Media 792 Noblex 675 Northgate 792 Olympus 554 Optimus 676 678 786 Optonica 585 Orion 550 Panasonic 554 614 628 770 777 780 781 782 783 784 786 787 788 799 809 810 Penney 675 676 678...
  • Page 35 DVD P LAYER Programming in AUX mode: Use these codes to program your remote control in DVD mode. If programming in AUX mode on your remote control, press 1 before entering the listed DVD Player code. Table continues on next page Accurian 602 Advent 572 Aiwa 694...
  • Page 36 DVD C ODES LogicLab 857 Logix 852 Lumatron 673 824 Luxman 844 Luxor 848 Magnavox 565 570 577 601 617 650 658 661 672 674 679 854 Malata 747 Marantz 565 577 Memorex 709 Microsoft 703 720 749 816 Mintek 710 Mitsubishi 767 Momitsu 748 NAD 673 824...

  • Page 37: Amplifier Codes

    UNER MPLIFIER Programming in AUX mode: Press 2 before entering the code for your tuner/amplifier or other audio device on your remote control. Table continues on next page Accuphase 690 Acoustic Research 703 853 Acurus 691 ADC 652 Adcom 690 Admiral 747 ADS 748 Aiwa 636 667 681 718 720 725 730...
  • Page 38 UNER MPLIFIER Left Coast 640 Lenoxx 736 Lexicon 724 LG 836 Linn 685 725 Liquid Video 739 Lloyds 717 Logitech 702 Luxman 704 LXI 716 Magnadyne 776 Magnavox 652 654 685 725 Marantz 640 645 685 725 764 Mark Levinson 705 McIntosh 706 MCS 719 Memorex 777...
  • Page 39 IGITAL IDEO Programming in AUX mode: Press 1 before entering the listed code to program your remote control in AUX mode. ABS 792 Alienware 792 Americast 917 Bang & Olufsen 794 BellSouth 917 CyberPower 792 Dell 792 Director 913 Gateway 792 General Instrument 913 GOI 722 Hewlett Packard 792...

  • Page 40: Tv/Vcr Combo Codes

    TV/VCR C OMBO Programming for combination equipment: Program the remote control in TV mode using the TV code and then in DVD mode (or in AUX—press 1 before entering the VCR code) using the VCR code. Magnavox Panasonic Samsung ODES TV Code Aiwa Bang &...

  • Page 41: Tv/Dvd Combo Codes

    TV/DVD C OMBO Programming for combination equipment: Program the remote control in TV mode using the TV code and then in DVD mode (or AUX—press 1 before entering the DVD code) using the DVD code. Audiovox Broksonic Magnavox Panasonic Polaroid Sylvania Toshiba TV/DVD/T...

  • Page 42: Dvd/Vcr Combo Codes

    DVD/VCR C OMBO Programming for combination equipment: Program the remote control in DVD mode using one of the listed DVD codes, and then in AUX mode, first pressing 1 and then using the listed VCR code. Panasonic TV/VCR/T UNER Panasonic TV/DVD/VCR C Programming for combination equipment: Program the remote control in TV mode using the TV code, then in DVD mode using the...

  • Page 43: Troubleshooting

    ROUBLESHOOTING What’s Happening While If you don’t press performing a a button for 20-30 remote control seconds in a procedure, the programming remote control sequence, the remote stops working. shuts off its programming function. When you press • The remote may a button on the not be in the mode remote control,...
  • Page 44 What’s Happening Your remote • The remote control control isn’t is in the wrong working mode. • You might be using the wrong remote control (TV1 or TV2). • Your batteries are worn out. • The remote control’s UHF/IR switch is in the wrong position When you press •...

  • Page 45: Limited Warranty

    DISH N ETWORK DISH Network offers two options if you need to replace your remote control; the Advanced Exchange Program and the Post Receipt Exchange Program. ’ XCHANGE...

  • Page 46: Accessory Warranty

    Post Receipt Exchange Program The Post Receipt Exchange Program does require that you send DISH Network the defective remote control at your cost to determine if the equipment is covered under warranty. To provide faster service, upon receipt of your equipment you will be shipped a replacement.

  • Page 47: Regulatory Factors

    EGULATORY This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: 1. this device may not cause harmful interference, and 2. this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this device may void your authority to operate this equipment.
  • Page 48 For all your customer needs, call the Customer Service Center at 1-800-333-DISH(3474) 159263...
