Summary of Contents for KitchenAid KSRS25RVWH - 25.4 cu. Ft. Refrigerator

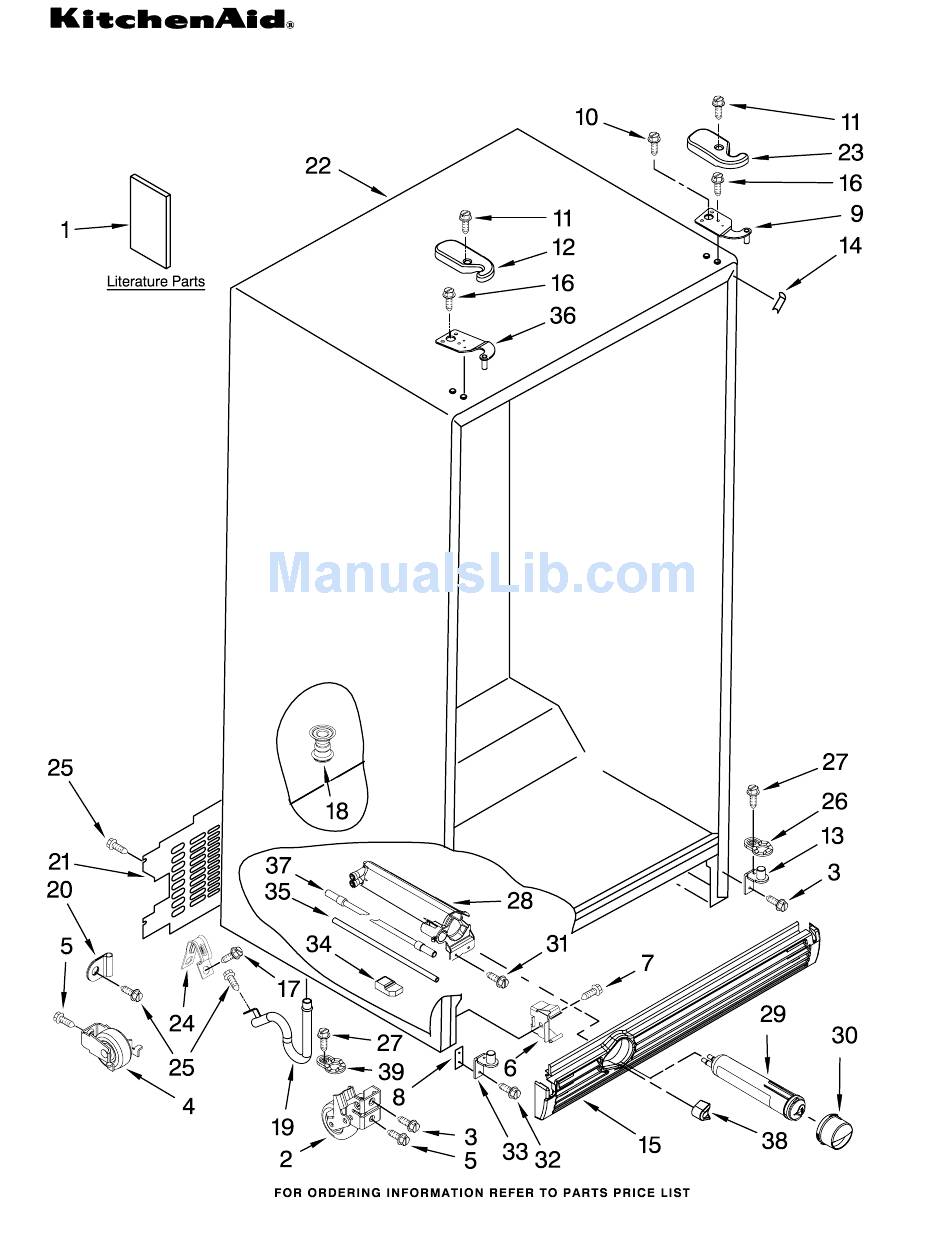

- Page 1 CABINET PARTS REFRIGERATOR For Models: KSRS25RVWH01, KSRS25RVBL01, KSRS25RVMS01, KSRS25RVMK01 (White) (Black) (Monochromatic Stainless) (Monochromatic Stainless) 3−08 Printed In U.S.A. (wam) Part No. W10199046 Rev. A...
-
Page 2: Cabinet Parts
CABINET PARTS For Models: KSRS25RVWH01, KSRS25RVBL01, KSRS25RVMS01, KSRS25RVMK01 (White) (Black) (Monochromatic Stainless) (Monochromatic Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Literature Parts 2155311 Door Closer, RC 13 W10138965 Bottom Hinge (RC) W10184947 Energy Guide 489483 Screw Filler, Wrapper W10162438 Owner’s Manual 2260507 Housing, Water 2304846 White... -
Page 3: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: KSRS25RVWH01, KSRS25RVBL01, KSRS25RVMS01, KSRS25RVMK01 (White) (Black) (Monochromatic Stainless) (Monochromatic Stainless) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2 W10175967 Escutcheon, Meat Pan Control 2182757 Slide Meat Pan Control 2257741 Louver 2319866 Shelf Ladder 489478 Screw 7 W10004810 Screw 2150331 Cover, Conduit 9 W10151376 Air Diffuser... -
Page 4: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Models: KSRS25RVWH01, KSRS25RVBL01, KSRS25RVMS01, KSRS25RVMK01 (White) (Black) (Monochromatic Stainless) (Monochromatic Stainless) Illus. Part DESCRIPTION 2195975 Frame Assembly (2) 2301023 Snack Bin Asm (Includes 24 & 25) 2301567 Cover, Crisper (Includes 11, 12, 16, 17, 19 & 20) 2196485 Stud Assembly 3400894 Screw 2301028 Glass, Meat Cover... -
Page 5: Freezer Liner Parts
FREEZER LINER PARTS For Models: KSRS25RVWH01, KSRS25RVBL01, KSRS25RVMS01, KSRS25RVMK01 (White) (Black) (Monochromatic Stainless) (Monochromatic Stainless) W10199046... - Page 6 FREEZER LINER PARTS For Models: KSRS25RVWH01, KSRS25RVBL01, KSRS25RVMS01, KSRS25RVMK01 (White) (Black) (Monochromatic Stainless) (Monochromatic Stainless) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 2301139 Basket, Tall 3400893 Screw 2301134K Front, Basket 2205837K Shelf (2) 2301140 Basket, Sloped 7 W10004810 Screw (12) 842534 Clip, Air Duct (2) 2198587 Cover, Emitter 2211746K Shelf, S/O Upper...
-
Page 7: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Models: KSRS25RVWH01, KSRS25RVBL01, KSRS25RVMS01, KSRS25RVMK01 (White) (Black) (Monochromatic Stainless) (Monochromatic Stainless) W10199046... - Page 8 MOTOR AND ICE CONTAINER PARTS For Models: KSRS25RVWH01, KSRS25RVBL01, KSRS25RVMS01, KSRS25RVMK01 (White) (Black) (Monochromatic Stainless) (Monochromatic Stainless) Illus. Part DESCRIPTION 1 W10139383 Ice Bin 2 W10140686 Crusher Bin 3 W10140642 Auger 2258220 Washer 1119007 Spacer, Flat (4) 6 W10139321 Cover, Crusher 2257024 Blade, Rotary 1119005 Spacer, Step (2) 2257020 Blade, Fixed...
-
Page 9: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: KSRS25RVWH01, KSRS25RVBL01, KSRS25RVMS01, KSRS25RVMK01 (White) (Black) (Monochromatic Stainless) (Monochromatic Stainless) W10199046... - Page 10 REFRIGERATOR DOOR PARTS For Models: KSRS25RVWH01, KSRS25RVBL01, KSRS25RVMS01, KSRS25RVMK01 (White) (Black) (Monochromatic Stainless) (Monochromatic Stainless) Illus. Part DESCRIPTION Refrigerator Door (Includes Item #6) 2303139W White 2303139B Black 2303139SAP Stainless Steel 2301486 Door Compartment (Includes 7) 2223434K Door Bin (4) 3400012 Screw 2219698 Stud, Handle Door Gasket, Magnetic...
-
Page 11: Freezer Door Parts
FREEZER DOOR PARTS For Models: KSRS25RVWH01, KSRS25RVBL01, KSRS25RVMS01, KSRS25RVMK01 (White) (Black) (Monochromatic Stainless) (Monochromatic Stainless) W10199046... - Page 12 FREEZER DOOR PARTS For Models: KSRS25RVWH01, KSRS25RVBL01, KSRS25RVMS01, KSRS25RVMK01 (White) (Black) (Monochromatic Stainless) (Monochromatic Stainless) Illus. Part DESCRIPTION Freezer Door (Includes #8 And Dispenser Front Parts) W10149807 White W10149763 Black W10149880 Stainless Steel Handle (Includes #15) 2319727W White 2319727B Black 2319727S Stainless 2223559K Trivet (3) 2219698 Stud, Handle...
-
Page 13: Dispenser Front Parts
DISPENSER FRONT PARTS For Models: KSRS25RVWH01, KSRS25RVBL01, KSRS25RVMS01, KSRS25RVMK01 (White) (Black) (Monochromatic Stainless) (Monochromatic Stainless) W10199046... - Page 14 DISPENSER FRONT PARTS For Models: KSRS25RVWH01, KSRS25RVBL01, KSRS25RVMS01, KSRS25RVMK01 (White) (Black) (Monochromatic Stainless) (Monochromatic Stainless) Illus. Part DESCRIPTION Housing, Dispenser (Not Serviced) 2 W10178851 Wire Assy, UI 2305202 Bracket, Motor 2305242 Connector, Door Bracket 2305262 Motor, Ice Door 2305258 Door, Ice 2305204 Support, Ice Door 4449745 Screw (4) 2305447 Clip, Wiring...
-
Page 15: Air Flow Parts
AIR FLOW PARTS For Models: KSRS25RVWH01, KSRS25RVBL01, KSRS25RVMS01, KSRS25RVMK01 (White) (Black) (Monochromatic Stainless) (Monochromatic Stainless) Illus. Part DESCRIPTION 2182120 Fan Scroll 2155590 Retainer Fan Motor 2313359 Air Duct, Upper 2198580 Air Duct Freezer 2321799 Bi−metal, Defrost 2315549 Fan Motor 2169142 Fan Blade 2188819 Thermister 2176759 Fan Grommet (2) 2304241 Gasket, Evaporator... -
Page 16: Control Parts
CONTROL PARTS For Models: KSRS25RVWH01, KSRS25RVBL01, KSRS25RVMS01, KSRS25RVMK01 (White) (Black) (Monochromatic Stainless) (Monochromatic Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 1 W10134300 Control Box 2162085 Light Socket 940014 Hole Plug 2219875 Switch 2255743 Light Bulb 1115374 Clip, Wiring 3196537 Screw (4) 2216115 Control Box Insert, Control... -
Page 17: Unit Parts
UNIT PARTS For Models: KSRS25RVWH01, KSRS25RVBL01, KSRS25RVMS01, KSRS25RVMK01 (White) (Black) (Monochromatic Stainless) (Monochromatic Stainless) W10199046... - Page 18 UNIT PARTS For Models: KSRS25RVWH01, KSRS25RVBL01, KSRS25RVMS01, KSRS25RVMK01 (White) (Black) (Monochromatic Stainless) (Monochromatic Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2169104 Insulation, Sound 2161302 Sleeve Drier 12825802 Fan, Blade 2172840 Wire Tie W10177049 Production 2324712 Condenser Assembly 489427 Screw W10143759 Service 489464 Screw...
-
Page 19: Icemaker Parts
ICEMAKER PARTS For Models: KSRS25RVWH01, KSRS25RVBL01, KSRS25RVMS01, KSRS25RVMK01 (White) (Black) (Monochromatic Stainless) (Monochromatic Stainless) W10199046... - Page 20 ICEMAKER PARTS For Models: KSRS25RVWH01, KSRS25RVBL01, KSRS25RVMS01, KSRS25RVMK01 (White) (Black) (Monochromatic Stainless) (Monochromatic Stainless) Illus. Part DESCRIPTION 2303216 Fitting and Water Tube 2208136 Clip−Water Tube 489290 Screw 628379 Clip, Fuse 489478 Screw (3) 6 W10159839 Smart Valve 2174358 Cover 488649 Screw 9 W10122527 Mold &...
- Page 21 OPTIONAL PARTS (NOT INCLUDED) For Models: KSRS25RVWH01, KSRS25RVBL01, KSRS25RVMS01, KSRS25RVMK01 (White) (Black) (Monochromatic Stainless) (Monochromatic Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION PAINT, PRESSURIZED SPRAY PAINT, BULK (1 qt.) ACCESSORIES (12 oz.) 2217192 Cleaner, Stainless 799340 Black Steel 350942 Primer, White 799344 White...
