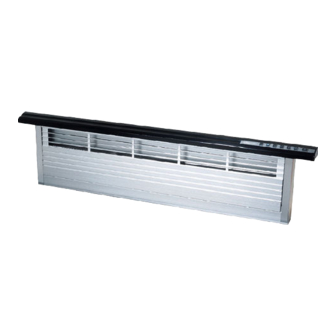

Dacor RV30 Planning Manual
30”, 36”, 46” wide, raised vent
Hide thumbs
Also See for RV30:
- Installation instructions manual (20 pages) ,
- Use and care manual (12 pages) ,
- Planning manual (2 pages)
Advertisement

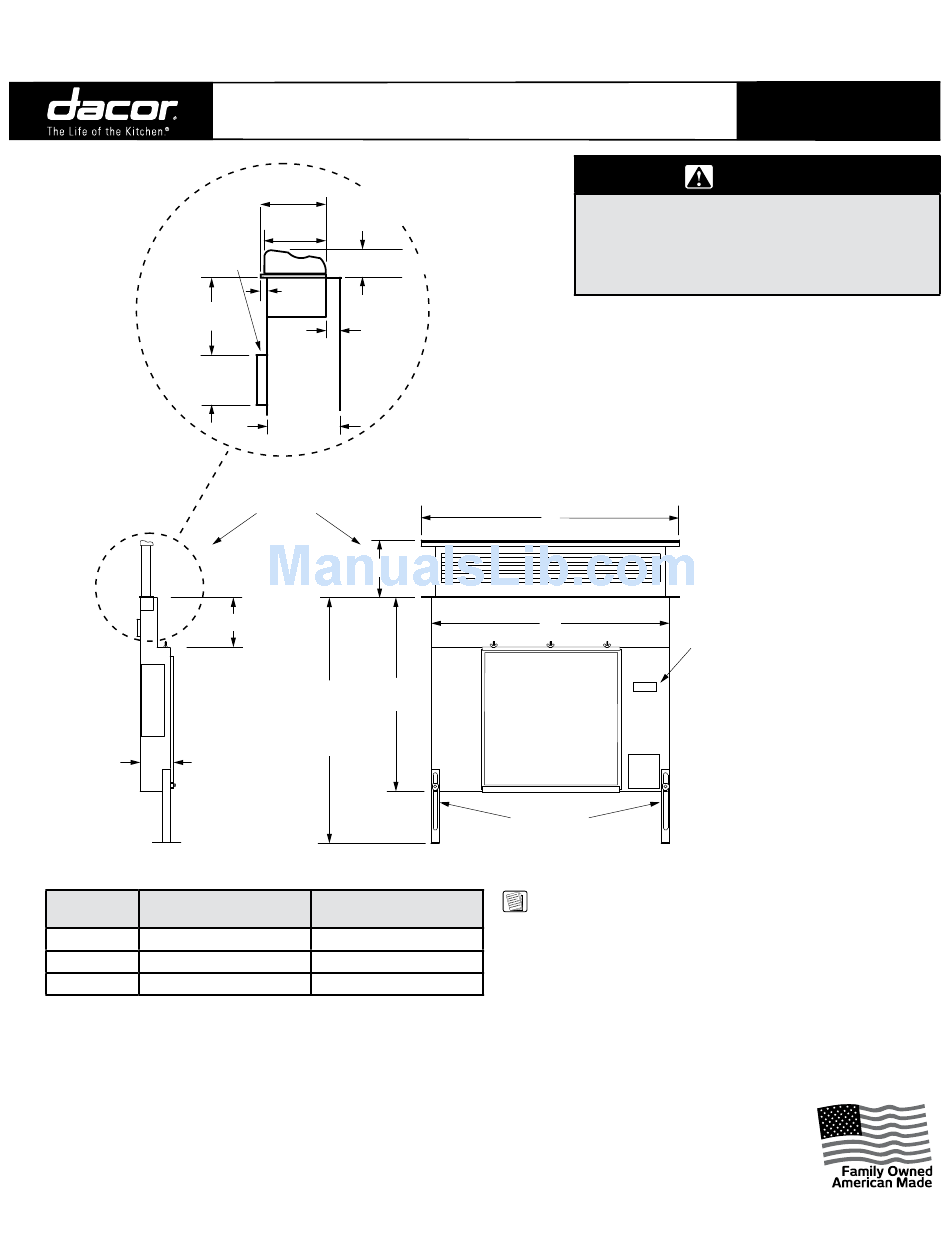

Document # PG08-003
1/2" (13 mm)
thick stiffener
across back
(79 mm)
(51 mm)
Model
A - Top Cap
Number
RV30
30" (762 mm)
RV36
36" (914 mm)
RV46
46" (1168 mm)
Specifications subject to change without notice.
Install all appliances according to accompanying installation instructions.
RV30, RV36, RV46
30", 36", 46" Wide,
1 15/16"
(49 mm)
Top cap with
vent down
1 13/16"
(46 mm)
15/16" (24 mm)
3/16"
(5 mm)
3 1/8"
9/16"
(14 mm)
2"
2 5/16"
(59 mm)
Vent shown
in raised
position
7 1/2" (191 mm)
7" (178 mm)
28"
(679 mm)
(711 mm)
to
34"
(864 mm)
4 5/8" (117 mm)
9 7/8" (251 mm)
with CABP3
blower installed
B - Chassis
Width
27 3/8" (695 mm)
33 3/8" (848 mm)
43 3/8" (1102 mm)
Raised Vent
All tolerances: +1/16", -0, (+1.6 mm, -0) unless otherwise stated
A
B
26 3/4"
Adjustable
anchor legs
Front View
NOTES:
Width
1.
Install these raised vents only with approved Dacor
cooktops. See the planning guide for the particular
appliance for proper applications and cutout information.
2.
This appliance must be install in conjunction with a
single Dacor approved cabinet, remote or in-line blower.
See following pages for approved blowers. For detailed
information on the remote and in-line blowers,
refer to the blower's installation instructions.
WArNINg
•
Observe all governing codes and ordinances
during planning and installation. Contact your
local building department for further information.
•
This appliance must be installed in accordance
with the accompanying installation instructions.
Product
data label
www.Dacor.com
Phone: (800) 793-0093
Revised 03/29/10 Page 1/7
PLANNING
GUIDE
8.7
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Dacor RV30
Summary of Contents for Dacor RV30
- Page 1 Model A - Top Cap B - Chassis NOTES: Number Width Width Install these raised vents only with approved Dacor RV30 30” (762 mm) 27 3/8” (695 mm) cooktops. See the planning guide for the particular RV36 36” (914 mm) 33 3/8”...
-
Page 2: Electrical Specifications
Raised Vent GUIDE Electrical Specifications general System Layout The vent system consists of the raised vent itself and a single Dacor WArNINg approved remote blower or internal cabinet blower. The electric service for the raised vent should be raised Vent... - Page 3 RV30, RV36, RV46 Document # PG08-003 Revised 03/29/10 Page 3/7 30”, 36”, 46” Wide, PLANNING Raised Vent GUIDE general System Layout (continued) REMP16 Series ■ The raised vent exhaust may be configured to vent through the Remote Blower bottom or through one of the sides. Allow room for the exhaust duct coming out of the unit.
- Page 4 RV30, RV36, RV46 Document # PG08-003 Revised 03/29/10 Page 4/7 30”, 36”, 46” Wide, PLANNING Raised Vent GUIDE general System Layout (continued) Cabinet back Outside wall Raised vent Cooktop Raised vent configured for bottom exhaust Wall cap on outside wall 3 1/4”...
-
Page 5: Planning The Duct Work
DO NOT install more than one blower. Even small differences between blower air flow rates can greatly reduce the air draw by the raised vent. You must install one of the Dacor blower models listed below for proper ■ You can increase the duct size over the duct run if desired. To prevent operation. - Page 6 RV30, RV36, RV46 Document # PG08-003 Revised 03/29/10 Page 6/7 30”, 36”, 46” Wide, PLANNING Raised Vent GUIDE Planning the Duct Work (continued) Raised vent Duct connection Countertop center line center line 14 3/8" (365 mm) 25 5/8"...
- Page 7 RV30, RV36, RV46 Document # PG08-003 Revised 03/29/10 Page 7/7 30”, 36”, 46” Wide, PLANNING Raised Vent GUIDE Calculating the Maximum Duct run Length Equivalent Number of Feet - Duct Elbows and Transitions ■ Do not use duct work that is smaller in cross-sectional area than the required duct sizes in the table to the right.
