Manual Operation

The Standby Switch (Switch 1) must be first turned 'ON' and
the AUTO/MAN (Switch 2) switch set to 'MANUAL' to operate
the manual controls - see Fig 6.
Note : When the fire is put in Manual mode the first time the
flame effect will come on indicated by the Bottom neon coming
on for 3 seconds - see Fig 7.

Manual Controls

Setting Operation
Flame Effect only Press the ' I ' button (Switch 3)
Flame Effect & Heat On Press the ' I ' button again (Switch 3)
To go to the previous settings press the ' O ' button (Switch
3).
To increase or decrease the brightness of the flames, use
the dimmer button (Switch 4). You can have any setting
between full brightness and the flames totally off. The heat
setting will remain the same.
To turn off the power the Standby Switch (Switch 1) must be
turned 'OFF'.
Note : Every time that manual mode is selected the previous
light and heat settings come on automatically.
MAN AUTO ON OFF

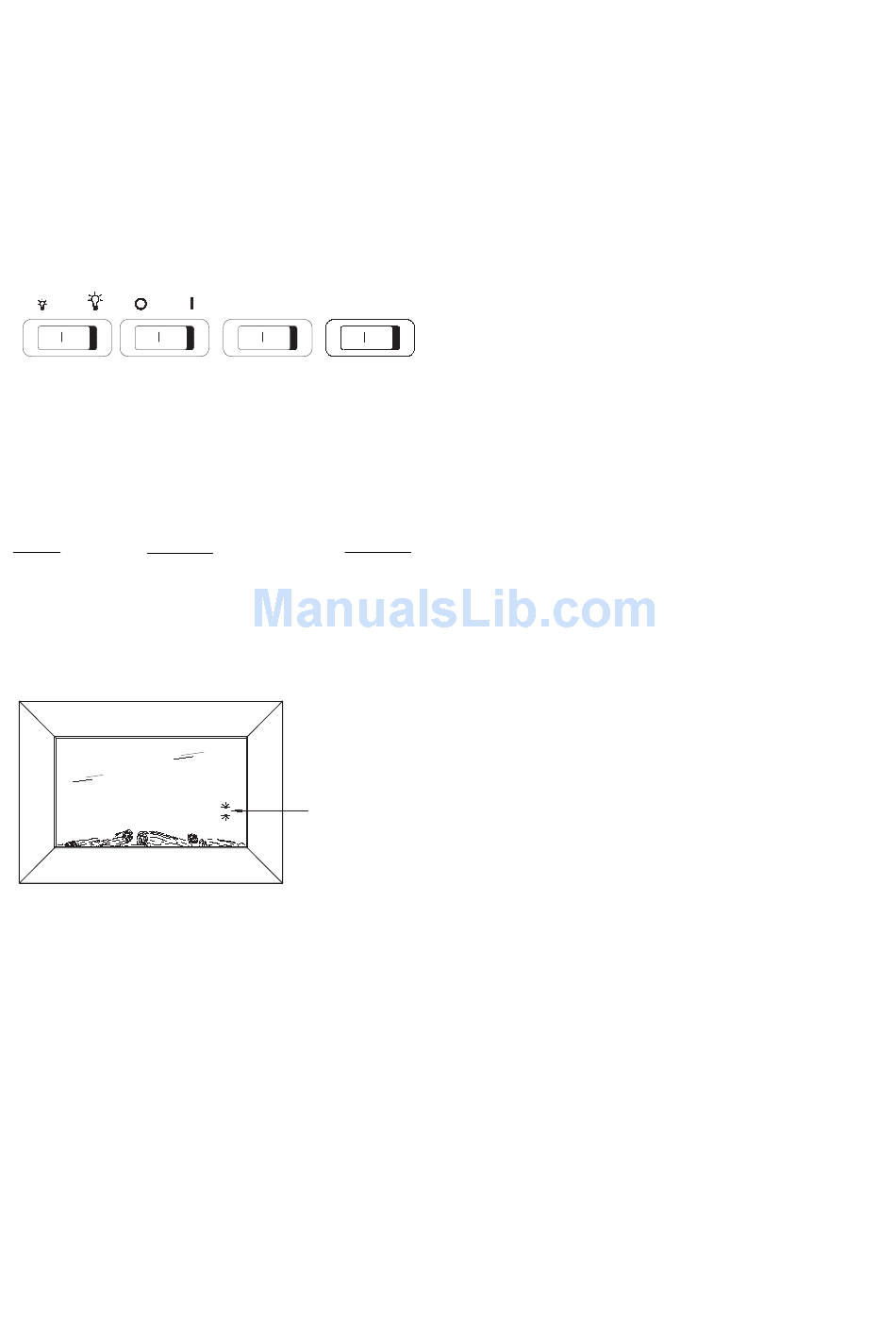

Fig. 6
Indication
Top Neon
Bottom Neon
Neons for
indicating
operation level
Fig. 7
