ACCESSORIES

4

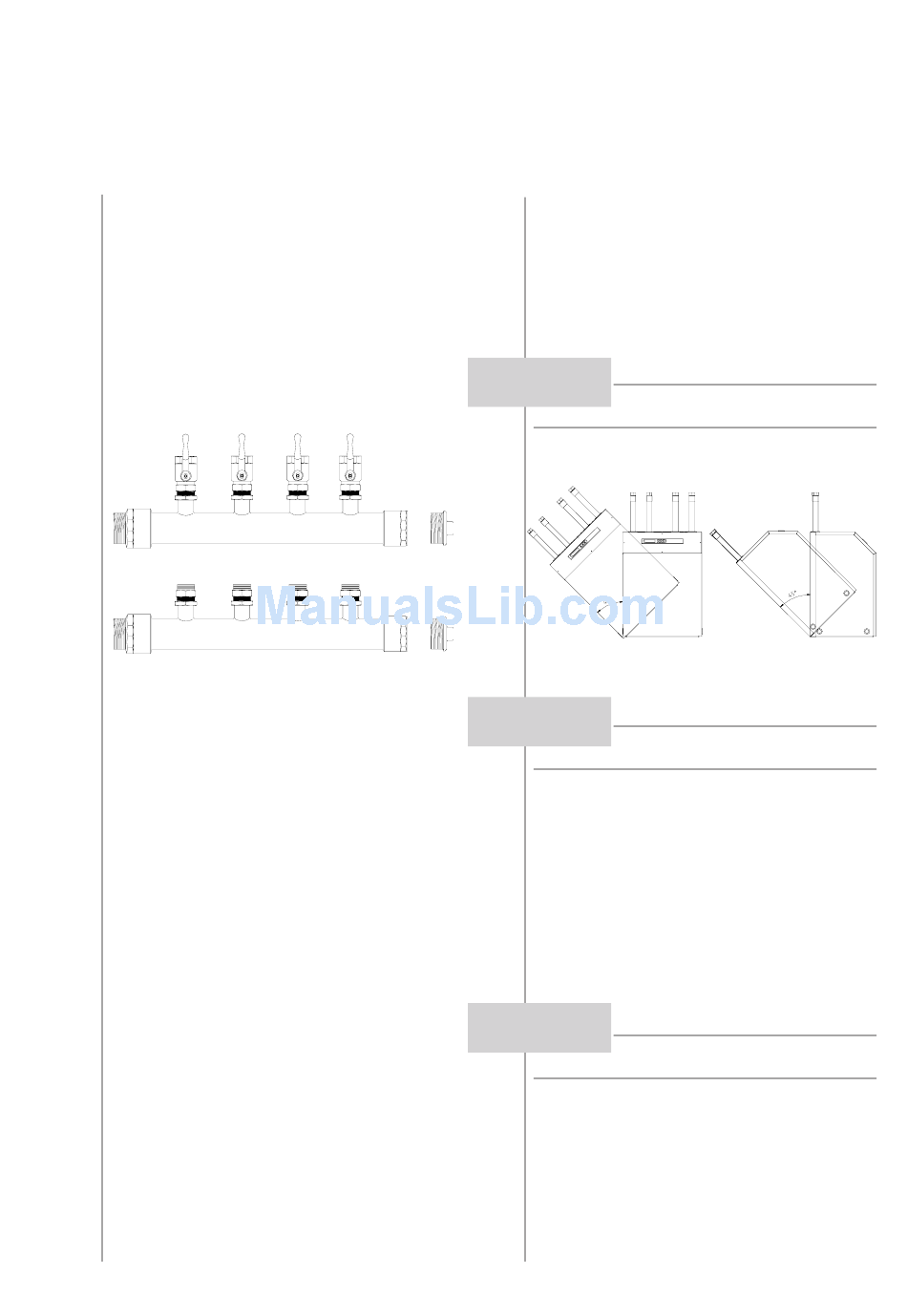

4.1 Brine Manifold

The brine manifold ties the individual collector loops
of the heat source system into a single main line
which is connected to the heat pump. Integrated ball
valves allow individual brine circuits to be shut off for
venting purposes.

TRANSPORT

5
A lift truck is suited for transporting the unit on a level
surface. If the heat pump needs to be transported
on an uneven surface or carried up or down stairs,
carrying straps may be used for this type of transport.
These straps may be passed directly underneath
the wooden pallet.
CAUTION!
The heat pump is not secured to the
wooden pallet.
CAUTION!
The heat pump must not be tilted
more than max. 45
For lifting the unit without pallet, the holes provided
in the sides of the frame should be used. The side
panel assemblies must be removed for this
purpose. A commercially available pipe can be used
as a carrying aid.
CAUTION!
Do not use the holes in the panel
assemblies for lifting the unit!
5
ACCESSORIES
TRANSPORT
°
(in either direction).
