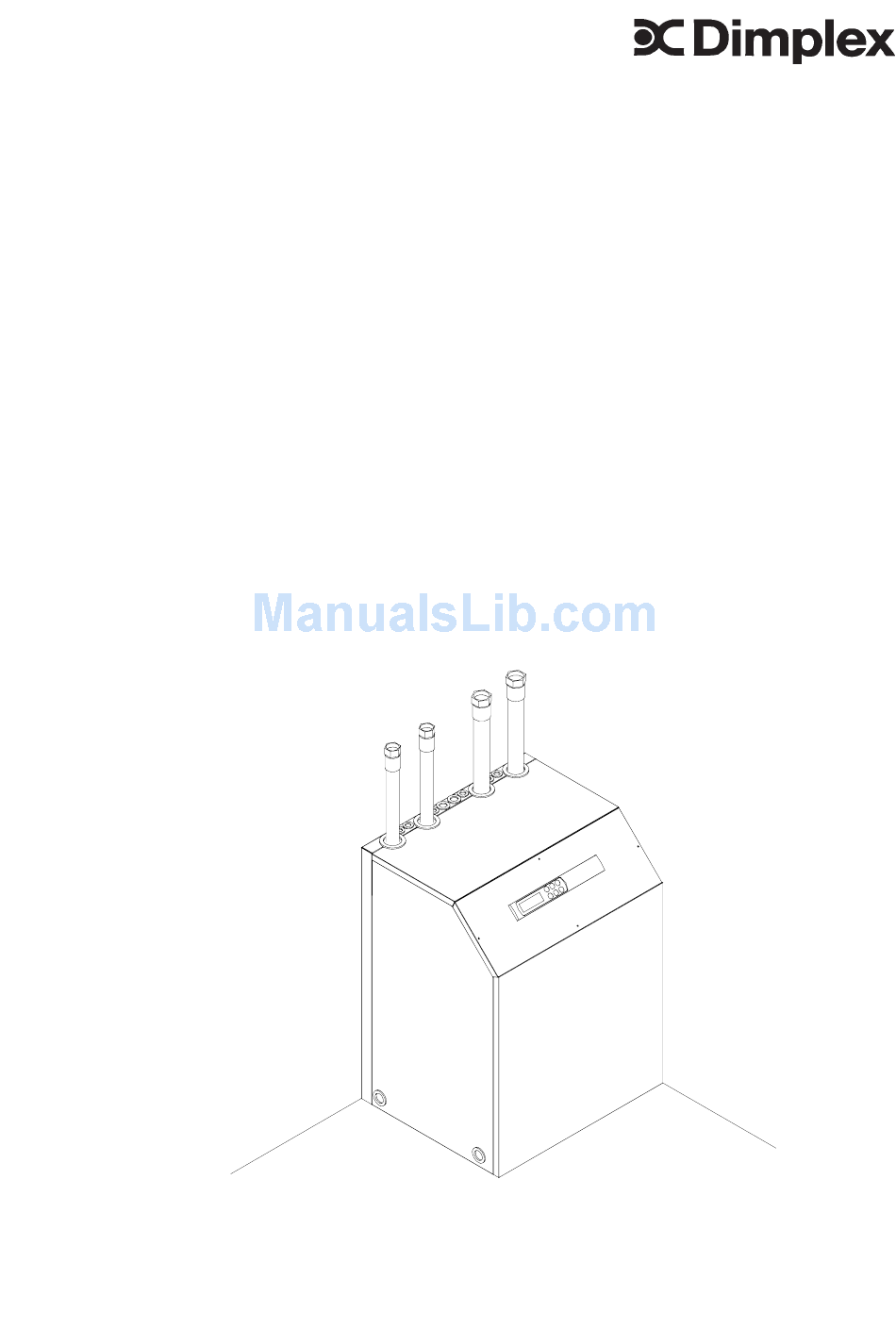

  • Page 1 MOUNTING and OPERATING MANUAL Brine-to-Water Heat Pump for Indoor Installation SI 5CS SI 7CS SI 9CS SI 11CS Order No.: 452230.67.01 SI 14CS SI 17CS SI 21CS FD 8404...

  • Page 2: Table Of Contents

    CONTENTS READ IMMEDIATELY Important Information Legal Provisions and Directives Energy-Efficient Use of the Heat Pump PURPOSE OF THE HEAT PUMP Application Principle of Operation BASELINE UNIT ACCESSORIES Brine Manifold TRANSPORT INSTALLATION General Information Sound Emissions MOUNTING General Connection on Heating Side...

  • Page 3: Read Immediately

    Flush the heating system prior to connecting the heat pump. CAUTION! The supplied strainer is to be fitted in the heat source inlet of the heat pump in order to protect the evaporator against contamina- tion. CAUTION! The brine must contain at least 25 % of a frost and corrosion protection agent on a monoethylene glycol or propylene glycol basis.

  • Page 4: Purpose Of The Heat Pump

    A circulating pump then conveys the warmed brine to the evaporator of the heat pump. There, the heat is given off to the refrigerant in the refrigeration cycle. When so doing, the brine cools so that it can again take up heat energy in the brine circuit.

  • Page 5: Accessories

    4.1 Brine Manifold The brine manifold ties the individual collector loops of the heat source system into a single main line which is connected to the heat pump. Integrated ball valves allow individual brine circuits to be shut off for venting purposes.

  • Page 6: Installation Mounting

    Provided the controllers and circulating pumps are ready for operation, the frost protection feature of the controller is active. If the heat pump is taken out of service or in the event of a power failure, the system has to be drained. In heat pump installations where...

  • Page 7: Connection On Heat Source Side

    CAUTION! The supplied strainer must be fitted in the heat source inlet of the heat pump in order to protect the evaporator against the ingress of impurities. In addition, a powerful vent must be installed at the highest point of the heat source system.

  • Page 8: General Information

    8.3 Commissioning Procedure The start-up of the heat pump is effected via the heat pump controller. CAUTION! Commissioning of the heat pump must be performed in accordance with the mounting and operating manual of the heat pump controller.

  • Page 9: Care/Cleaning

    9.3 Cleaning of Heat Source Side CAUTION! The supplied strainer is to be install- ed in the heat source inlet of the heat pump in order to protect the evaporator against conta- mination. The filter screen of the strainer should be cleaned one day after commissioning, thereafter every week.

  • Page 10: Malfunctions/ Troubleshooting

    MALFUNCTIONS/TROUBLESHOOTING DECOMMISSIONING MALFUNCTIONS/ TROUBLESHOOTING This heat pump is a quality product and is designed for trouble-free operation. In the event that a malfunction occurs nevertheless, you will be able to correct the problem yourself in most of the cases. Simply consult the Malfunctions and Trouble- shooting table contained in the operating manual of the heat pump controller.

  • Page 11: Appendix

    APPENDIX 12.1 Dimensioned Drawings 12.1.1 Dimens'ddrawing .. 5CS - 14CS 12.1.2 Dimens'd drawing .. 17CS - 21CS 13 12.2 Equipment Data 12.3 Performance Curves/Pressure Losses 12.3.1 Performance Curves .. 5CS 12.3.2 Pressure Losses .. 5CS 12.3.3 Performance Curves .. 7CS 12.3.4 Pressure Losses ..

  • Page 12: Appendix 11

    APPENDIX: 12.1 DIMENSIONED DRAWINGS 12.1.1 Dimensioned Drawing .. 5CS - 14CS...
  • Page 13 APPENDIX: 12.1 DIMENSIONED DRAWINGS 12.1.2 Dimensioned Drawings .. 17CS - 21 CS...

  • Page 14: Appendix: 12.2 Equipment Data

    APPENDIX: 12.2 EQUIPMENT DATA Equipment Data...

  • Page 15: Performance Curves .. 5Cs

    12.3.1 Performance Curves .. 5CS Heating capacity in [kW] Heizleistung in [kW] COP in the heating mode (incl. proportional pump energy) Leistungszahl im Heizbetrieb (incl. Der anteiligen Pumpenleistungen) Power consumption (incl. proportional pump power input) Leistungsaufnahme in [kW] (incl. Der anteiligen Pumpenleistungen) -10 -8 APPENDIX: 12.3 PERFORMANCE CURVES/PRESSURE LOSSES Conditions:...
  • Page 16 APPENDIX: 12.3 PERFORMANCE CURVES/PRESSURE LOSSES 12.3.2 Pressure Losses .. 5CS Pressure loss in [Pa] Druckverlust in [Pa] 40000 Pressure losses of evaporator 35000 Druckverluste Verdampfer ° at –5 C brine temperature bei Sole -5°C without brine accessories ohne Solezubehör 30000 Pressure loss 6.5 kPa at a Druckverlust 6,5 kPa bei rated brine flow rate of 1.2 m...

  • Page 17: Performance Curves .. 7Cs

    APPENDIX: 12.3 PERFORMANCE CURVES/PRESSURE LOSSES 12.3.3 Performance Curves .. 7CS Heating capacity in [kW] Heizleistung in [kW] COP in the heating mode (incl. proportional pump energy) Leistungszahl im Heizbetrieb (incl. Der anteiligen Pumpenleistungen) Power consumption (incl. proportional pump power input) Leistungsaufnahme in [kW] (incl.

  • Page 18: Pressure Losses .. 7Cs

    APPENDIX: 12.3 PERFORMANCE CURVES/PRESSURE LOSSES 12.3.4 Pressure Losses .. 7CS Pressure loss in [Pa] Druckverlust in [Pa] 40000 Pressure losses of evaporator 35000 Druckverluste Verdampfer ° at –5 C brine temperature bei Sole -5°C without brine accessories ohne Solezubehör 30000 Pressure loss 10 kPa at a Druckverlust 10 kPa bei rated brine flow rate of 1.7 m...

  • Page 19: Performance Curves .. 9Cs

    APPENDIX: 12.3 PERFORMANCE CURVES/PRESSURE LOSSES 12.3.5 Performance Curves .. 9CS Heating capacity in [kW] Heizleistung in [kW] COP in the heating mode (incl. proportional pump energy) Leistungszahl im Heizbetrieb (incl. Der anteiligen Pumpenleistungen) Power consumption (incl. proportional pump power input) Leistungsaufnahme in [kW] (incl.

  • Page 20: Pressure Losses .. 9Cs

    APPENDIX: 12.3 PERFORMANCE CURVES/DPRESSURE LOSSES 12.3.6 Pressure Losses .. 9CS Pressure loss in [Pa] Druckverlust in [Pa] 40000 Pressure losses of evaporator 35000 Druckverluste Verdampfer ° at –5 C brine temperature bei Sole -5°C without brine accessories ohne Solezubehör 30000 Pressure loss 16 kPa at a Druckverlust 16 kPa bei rated brine flow rate of 2.3 m...

  • Page 21: Performance Curves .. 11Cs

    APPENDIX: 12.3 PERFORMANCE CURVES/PRESSURE LOSSES 12.3.7 Performance Curves .. 11CS Heating capacity in [kW] Heizleistung in [kW] 24,0 22,0 20,0 18,0 16,0 14,0 12,0 10,0 COP in the heating mode (incl. proportional pump energy) Leistungszahl im Heizbetrieb (incl. Der anteiligen Pumpenleistungen) Power consumption (incl.

  • Page 22: Pressure Losses .. 11Cs

    APPENDIX: 12.3 PERFORMANCE CURVES/PRESSURE LOSSES 12.3.8 Pressure Losses .. 11CS Pressure loss in [Pa] Druckverlust in [Pa] 40000 Pressure losses of evaporator 35000 Druckverluste Verdampfer ° at –5 C brine temperature bei Sole -5°C without brine accessories ohne Solezubehör 30000 Pressure loss 13 kPa at a Druckverlust 13 kPa bei rated brine flow rate of 3.0 m...

  • Page 23: Performance Curves .. 14Cs

    APPENDIX: 12.3 PERFORMANCE CURVES/PRESSURE LOSSES 12.3.9 Performance Curves .. 14CS Heating capacity in [kW] Heizleistung in [kW] COP in the heating mode (incl. proportional pump energy) Leistungszahl im Heizbetrieb (incl. Der anteiligen Pumpenleistungen) Power consumption (incl. proportional pump power input) Leistungsaufnahme in [kW] (incl.

  • Page 24: Pressure Losses .. 14Cs

    APPENDIX: 12.3 PERFORMANCE CURVES/PRESSURE LOSSES 12.3.10 Pressure Losses .. 14CS Pressure loss in [Pa] Druckverlust in [Pa] 30000 Pressure losses of evaporator Druckverluste Verdampfer ° at –5 C brine temperature 25000 bei Sole -5°C without brine accessories ohne Solezubehör Pressure loss 13 kPa at a Druckverlust 13 kPa bei rated brine flow rate of 3.5 m 20000...

  • Page 25: Performance Curves .. 17Cs

    APPENDIX: 12.3 PERFORMANCE CURVES/PRESSURE LOSSES 12.3.11 Performance Curves .. 17CS Heating capacity in [kW] Heizleistung in [kW] COP in the heating mode (incl. proportional pump energy) Leistungszahl im Heizbetrieb (incl. Der anteiligen Pumpenleistungen) Power consumption (incl. proportional pump power input) Leistungsaufnahme in [kW] (incl.

  • Page 26: Pressure Losses .. 17Cs

    APPENDIX: 12.3 PERFORMANCE CURVES/PRESSURE LOSSES 12.3.12 Pressure Losses .. 17CS Pressure loss in [Pa] Druckverlust in [Pa] 24000 22000 Pressure losses of evaporator Druckverluste Verdampfer ° at –5 C brine temperature 20000 bei Sole -5°C without brine accessories ohne Solezubehör 18000 Pressure loss 9 kPa at a Druckverlust 9 kPa bei...

  • Page 27: Performance Curves .. 21Cs

    12.3.13 Performance Curves .. 21CS Heating capacity in [kW] Heizleistung in [kW] COP in the heating mode (incl. proportional pump energy) Leistungszahl im Heizbetrieb (incl. Der anteiligen Pumpenleistungen) Power consumption (incl. proportional pump power input) Leistungsaufnahme in [kW] (incl. Der anteiligen Pumpenleistungen) -10 -8 APPENDIX: 12.3 PERFORMANCE CURVES/PRESSURE LOSSES Conditions:...

  • Page 28: Pressure Losses .. 21Cs

    APPENDIX: 12.3 PERFORMANCE CURVES/PRESSURE LOSSES 12.3.14 Pressure Losses .. 21CS Pressure loss in [Pa] Druckverlust in [Pa] 24000 22000 Pressure losses of evaporator Druckverluste Verdampfer ° at –5 C brine temperature 20000 bei Sole -5°C without brine accessories ohne Solezubehör 18000 Pressure loss 12 kPa at a Druckverlust 12 kPa bei...

  • Page 29: Appendix: 12.4 Wiring Diagrams

    APPENDIX: 12.4 WIRING DIAGRAMS 12.4.1 Control .. 5CS to .. 17CS...
  • Page 30 APPENDIX: 12.4 WIRING DIAGRAMS 12.4.2 Load .. 5CS to .. 17CS...
  • Page 31 APPENDIX: 12.4 WIRING DIAGRAMS 12.4.3 Terminal Diagram .. 5CS to .. 17CS...

  • Page 32: Legend .. 5Cs To .. 17Cs

    Hot water circulating pump M19* Swimming pool circulating pump M21* Mixer heating circuit 1 M22* Mixer heating circuit 2 Heat pump controller Soft start control (not fitted in SI 5CS and SI 7CS appliances) N10* Remote control station N11* Relay module External sensor...
  • Page 33 APPENDIX: 12.4 WIRING DIAGRAMS 12.4.5 Control .. 21CS...
  • Page 34 APPENDIX: 12.4 WIRING DIAGRAMS 12.4.6 Load .. 21CS...
  • Page 35 APPENDIX: 12.4 WIRING DIAGRAMS 12.4.7 Terminal Diagram .. 21CS...

  • Page 36: Legend .. 21Cs

    Hot water circulating pump M19* Swimming pool water circulating pump M21* Mixer main circuit M22* Mixer heating circuit 2 Heat pump controller Soft start board N10* Remote control station N11* Relay module Power protection switch, brine pump Power protection switch, compressor...

  • Page 37: Appendix: 12.5 Hydraulic Block Diagram

    APPENDIX: 12.5 HYDRAULIC BLOCK DIAGRAM Hydraulic Block Diagram...

  • Page 38: Declaration Of Conformity

    Water-to-water heat pumps for indoor installation withR407C Type(s): Harmonized EN Standards: SI 5CS SI 7CS SI 9CS SI 11CS SI 14CS SI 17CS SI 21CS Requirements of category II WI 9CS WI 14CS WI 22CS WI 27CS Order No.:...
