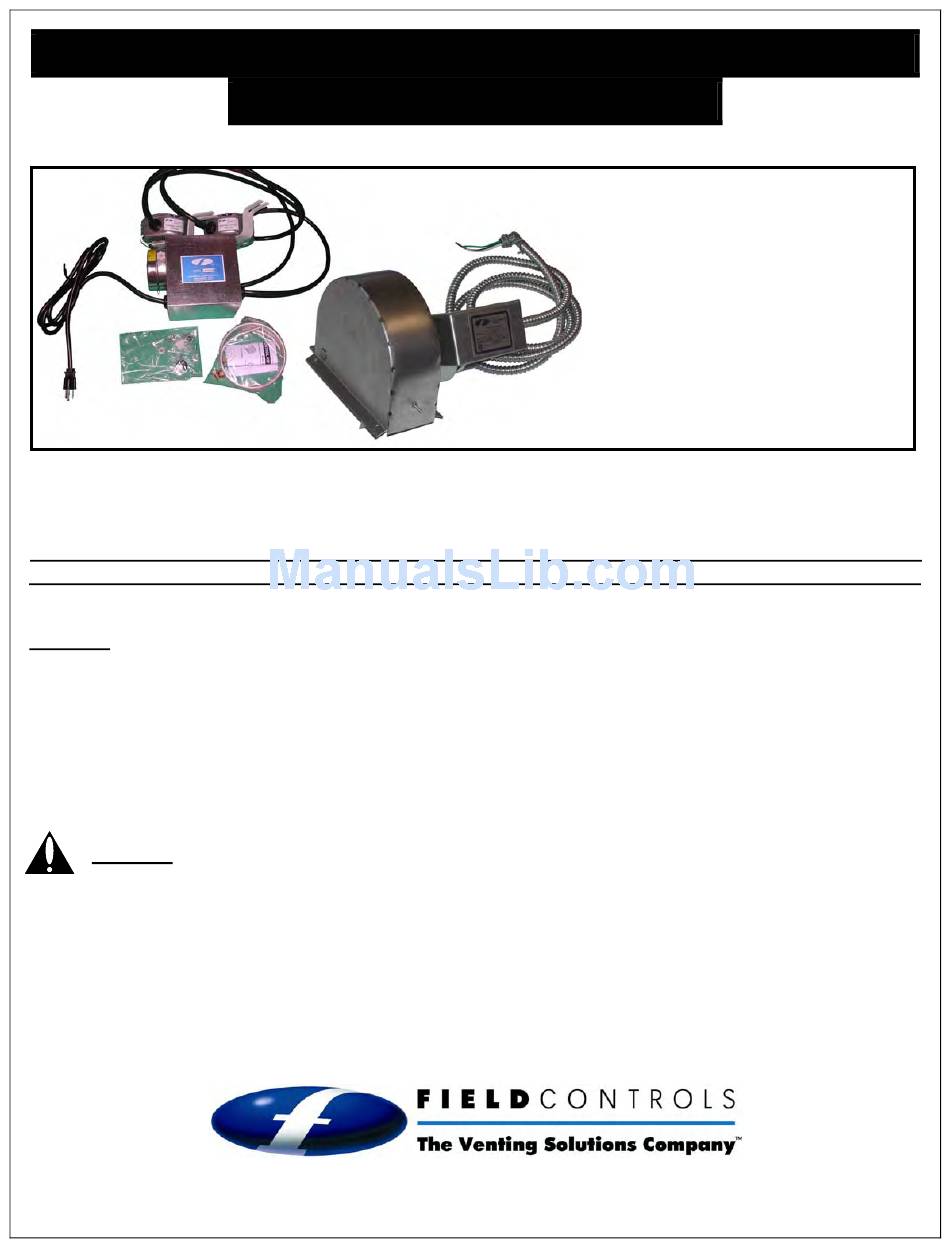

DRAFT INDUCER KIT WITH PRE-WIRED CONTROL AND
This draft inducer kit is designed for installation on vent systems serving gas-fired
appliances having a 24V automatic damper and draft hood. The control and thermal
safety switches are pre-wired for easy field installation via the modular damper
control harness connector.
CAUTION: Draft inducers are designed to increase draft in venting applications where inadequate natural draft exists.
This device is NOT designed for sidewall venting applications. The vent to which the inducer is to be mounted is to be
installed in accordance with NFPA 54 or other local codes.
This device MUST be installed by a qualified agency in accordance with the manufacturers installation
instructions.
The definition of a qualified agency is: any individual, firm, corporation or company which either in person or through a
representative is engaged in, and is responsible for, the installation and operation of gas appliances, who is experienced
in such work, familiar with all the precautions required, and has complied with the requirements of the authority having
jurisdiction.
WARNING: The fan proving pressure switch MUST be adjusted according to the procedure, given in these
instructions, before placing the appliance into service.
Appliances should have a maximum measure flue gas temperature of 750°F at the desired location of the draft inducer.
The installer MUST write or imprint his name, phone number, and date of installation on the tag provided with this device.
The tag MUST be attached to the draft inducer. Recording burner and draft inducer operation information (draft level,
efficiency, etc) is recommended as a guide for future service.
THERMAL SAFETY SWITCHES
Model: DI PAK 24
DO NOT DESTROY
THESE INSTRUCTIONS MUST REMAIN WITH EQUIPMENT

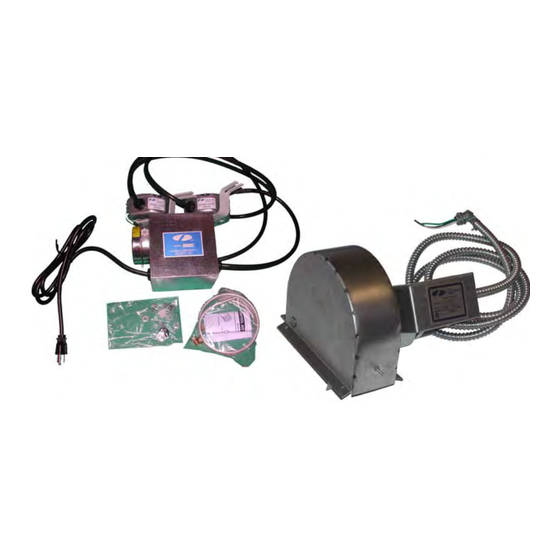

Kit Includes:
2630 Airport Road · Kinston, NC 28504
Phone: 252-522-3031· Fax: 252-522-0214
www.fieldcontrols.com
•
DI-2 Draft Inducer with pre-wired
power cable
•
CK-41P control box with pre-
wired power cable
•
FTS Thermal Safety Switches,
pre-wired to CK-41P
•
5' of ¼" Aluminum tubing
•
Miscellaneous mounting and
connection hardware
Advertisement
Related Manuals for Field Controls 46477500
Summary of Contents for Field Controls 46477500
- Page 1 DRAFT INDUCER KIT WITH PRE-WIRED CONTROL AND THERMAL SAFETY SWITCHES Model: DI PAK 24 Kit Includes: • DI-2 Draft Inducer with pre-wired power cable • CK-41P control box with pre- wired power cable • FTS Thermal Safety Switches, pre-wired to CK-41P •...
- Page 2 MOUNTING THE CONTROL BOX (Figure 1) 1. Remove the kit from the packaging and inspect for shipping damage. 2. Place the pre-wired control box/thermal safety switch assembly on top of the water heater. 3. Select a location for mounting the control box, so that the water heater’s damper cable will reach the socket provided inside the control box, and the control box damper cable will reach the damper...
- Page 3 INSTALL THE DI-SERIES DRAFT INDUCER ON THE VENT PIPE (Figure 4) 1. Refer to the included DI instruction manual for this procedure. Set the draft adjustment plate on the draft Pressure inducer to maximum setting before installing Sensing NOTE: The draft inducer proving switch (DIP-1) is not required; Port a proving switch is provided on the control box.
- Page 4 140°F, the switch should activate and shut the burner off. Allow to cool and manually reset the thermal safety switch. Repeat this procedure for the other thermal safety switch. INTERNAL WIRING DIAGRAM REPLACEMENT PARTS Description Part Number DI-2 46075300 FTS-4 01170004 Pressure Switch 46273100 RJR-5 46080200 P/N 46477500 Rev B 10/06 Page 4...
