Install the Universal Access Server (continued)

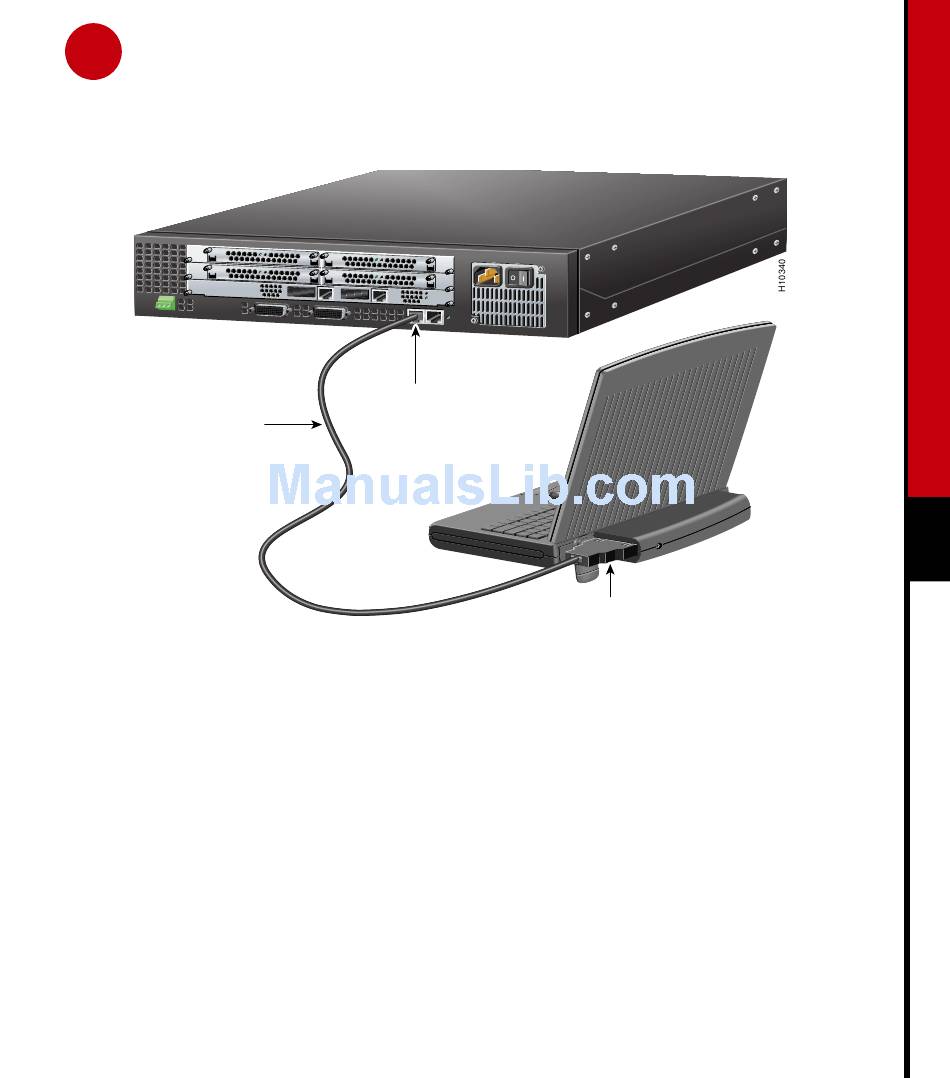

RJ-45-to-RJ-45
rollover cable
Connect to a Console for Local
Administrative Access
You will need an RJ-45-to-RJ-45 rollover cable and
a terminal adapter (RJ-45-to-DB-9 or
RJ-45-to-DB-25) to connect a console. These cables
and adapters are included. Take these steps:
Step 1
Connect one of the adapters, labeled
TERMINAL, to the communications port
(usually labeled COM) on your
PC or terminal. (This communications
port is also known as a console.)
Universal access server
Console port (RJ-45)
(labeled CONSOLE)
Step 2
Step 3
Step 4
PC
(laptop)
RJ-45-to-DB-9 or
RJ-45-to-DB-25 adapter
(labeled TERMINAL)
Connect one end of the RJ-45-to-RJ-45
rollover cable to the adapter.
Connect the other end of the
RJ-45-to-RJ-45 rollover cable to the port
labeled CONSOLE on the rear panel of
the access server.
Configure your PC terminal emulation
software or terminal for 9600 baud, 8
data bits, no parity, and 1 stop bit.
