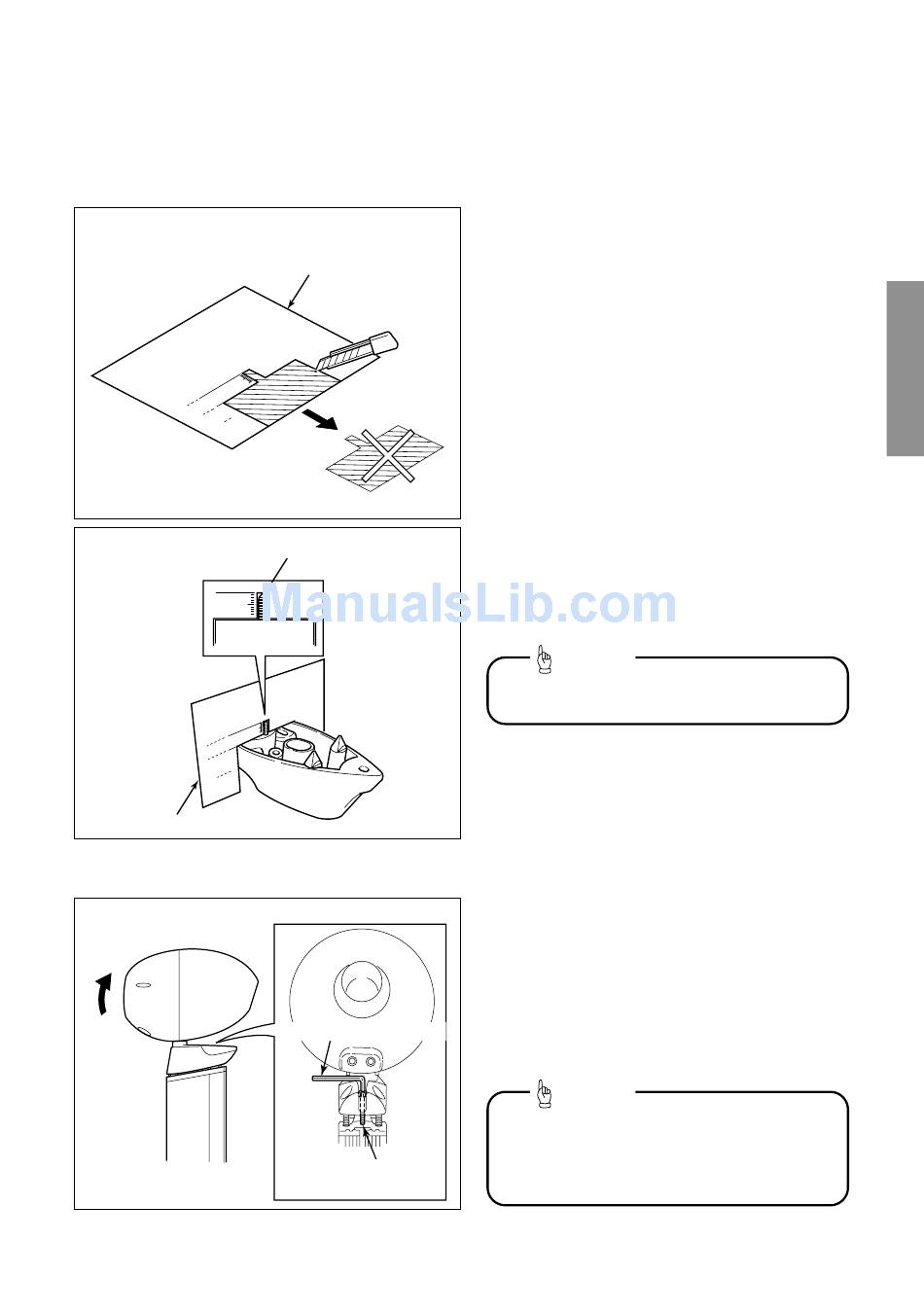

Eclipse TD712Z Owner's Manual page 7

3 Setting the angle adjustment screw at 0 degrees
Template
4 Adjusting the speaker angle
Upward adjustment
Template
Angle adjustment screw
Hexagonal wrench
Angle adjustment
screw
ADVICE
When adjusting the speaker angle, follow these
instructions and start from a 0 degrees position.
Using the hexagonal wrench, loosen the
hexagonal socket head bolts (3 places).
Using the hexagonal wrench, turn the angle
adjustment screw.
When finished, use the hexagonal wrench to
tighten the hexagonal socket head bolts.
To secure the speaker, first tighten the two rear
bolts, then tighten the front bolt.
ADVICE
When the top surface of the stand and the
bottom surface of the speaker are flush, they
should be level. It is possible to adjust the
speaker upwards by 10 degrees.
