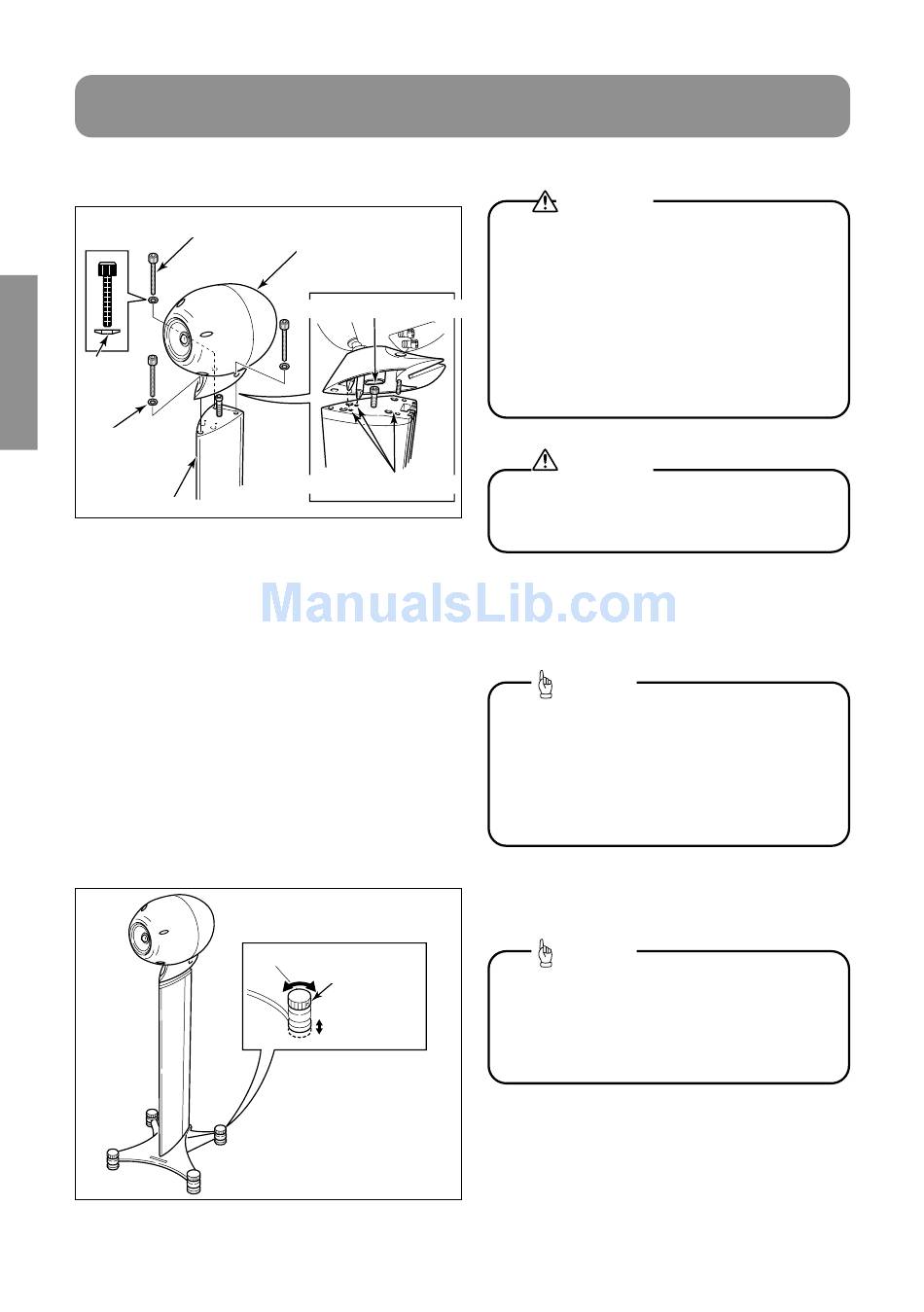

Assembly Instructions

1 Speaker Fitting
Hexagonal socket head bolts x 3
Washer 3
Stand
For the installation, insert the washer
convex surface is facing down.
Feet adjustment
12cm speaker
Align speaker with stand
Align speaker with stand
so the
Feet
CAUTION
Before securing the speaker to the stand,
follow the instructions in "[3] Setting the angle
adjustment screw at 0 degrees" and use the
cardboard gauge to measure the height of the
angle adjustment screw and ensure the angle
is set at 0 degrees.
When placing the speaker, be careful not to
touch the cone paper. Damage to the
speaker may result.
When mounting the speaker on to the stand,
be careful not mount it tilted as damage to the
surfaces may result.
Place the stand in the desired location.
CAUTION
The assembly of this unit must be done on a
flat, hard surface.
If the stand is placed in such a way that it
obstructs free passage, injury may result.
As shown in the diagram, mount the speaker
on the stand, constantly checking the
alignment.
Using the hexagonal wrench with the hexagonal
socket head bolts and washers, fasten the speaker
to the stand (3 places).
ADVICE
Fasten the hexagonal socket head bolts by hand
first before using the hexagonal wrench to fasten
them securely. To secure the speaker, first tighten
the two rear bolts, then tighten the front bolt.
You must use the attached hexagonal socket
head bolts (x 3) to fasten the speaker.
The washers must be used with the convex side
facing down.
As shown in the diagram, turn the feet to
adjust.
ADVICE
Initially, turn the four feet in an anti-clockwise
direction as far as they will go and place the unit
on the floor.
Then, turn each foot individually in a clockwise
direction until they touch the bottom foot – then
stop.
