TR9$
Quick Installation
Guide
IndustrialPOE L2 ManagedSwitches

Advertisement

loading
Need help?

Need help?

Do you have a question about the TI-PG1284i and is the answer not in the manual?

Questions and answers

Summary of Contents for TRENDnet TI-PG1284i

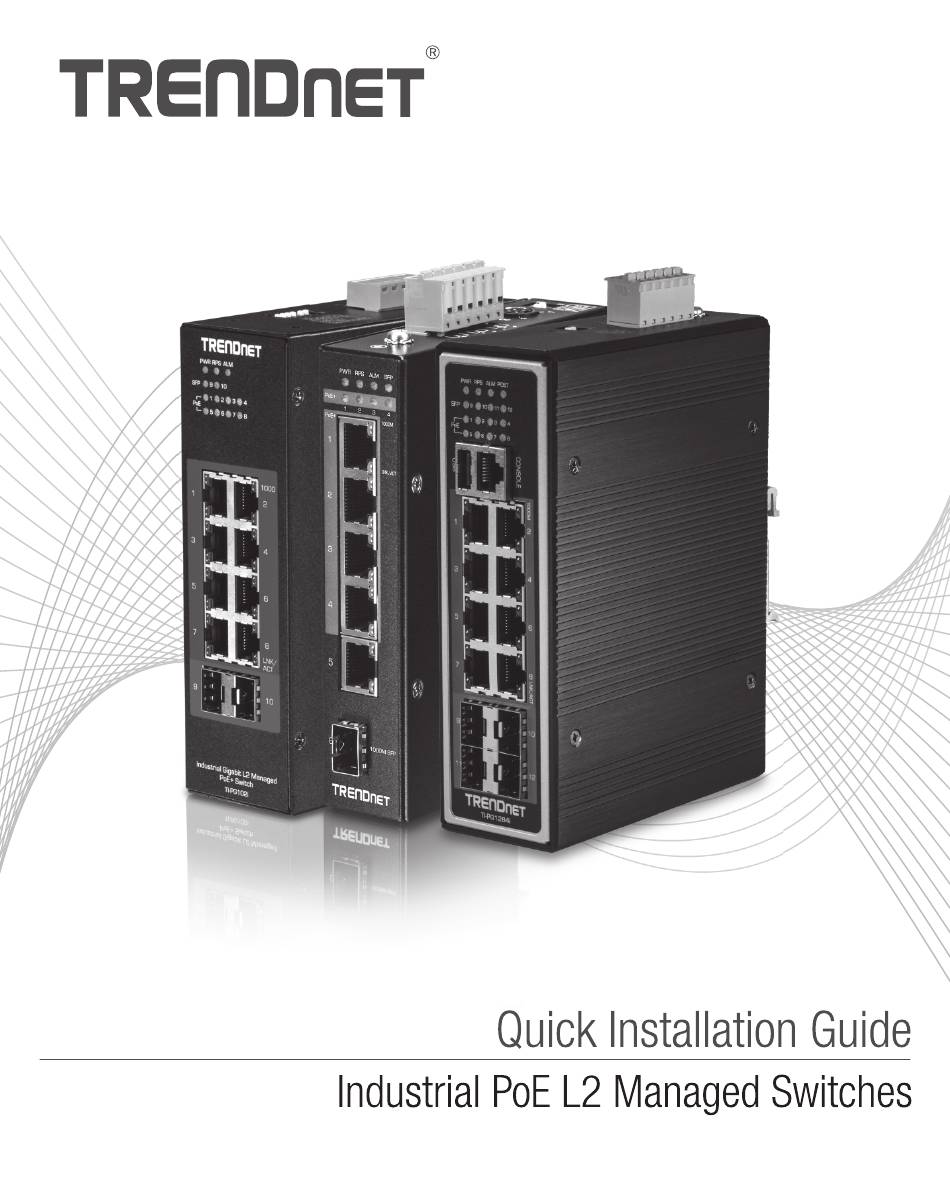

  • Page 1 TR9$ Quick Installation Guide IndustrialPOE L2 ManagedSwitches...
  • Page 2 Table of Contents 1 English I. Before You Start 2. Quick Reference 3. Hardware Installation 4. Hardware Configuration 5. Additional Information 6. LED Indicators...
  • Page 3 1. Before You Start Package Contents • TI-PGI 284i/Tl-PG541 i/Tl-PG102i/Tl-PG102i-WTl-BG62i • Quick Installation Guide • Console cable Minimum Requirements • Power supply (ex. model Tl-S48048, Tl-S24048) • Networked computer • RJ-45 Network Cable Optional Equipment mm DIN-Rail • SFPmodules (e.g.TI-MGBSX,TI-MGBSIO,Tl-MGBS40) 2.
  • Page 4 3. Hardware Installation Note: The maximum amount of power available is 30 Watts per port. If a power overload has occurred, the switch will prioritize the distribution of power by port (from lowest to highest). That is, port 1 will receive the highest priority and port 8 will receive the lowest priority. The ports with lower priority will have its POE function disabled until more than 7.5 watts of power becomes available.
  • Page 5 3. Rotate the TI-PGI 284i/Tl-PG541 i/Tl-PG102i/Tl-PG102i-M/Tl-BG62i downward towards rail to lock it into place. Youwill know it is secure when you hear a click. Mounting the unit Releasing the unit 4. To remove the unit, pull down to clear the bottom of the DIN-Rail and rotate away from the rail.
  • Page 6 Optional: The switch chassis can also be connected to a known grounding point for additional safety and protection (grounding wire is not included). Safety Note • Turn off the power before connecting any module or wire. The correct power supply voltage (48 - 57 V DC)is listed on the product label.
  • Page 7 4. Hardware Configuration 2. Assign a Static IPaddress to your computer's network adapter in the subnet of 192.168.10.x (e.g. 192.168.10.25) and a subnet mask of 255.255.255.0. 3. Open your web browser, type the IPaddress of the switch in the address bar, and then press Enter.
  • Page 8 5. Click Basic Settings and then click General Settings. Basic Settings General Settings 6. Configure the switch to match the requirements of your network. Then click Apply. 7. Click Save. Save TRF-nnnrr 8. Connect a network source and devices to the switch. Check the LEDs to confirm connections are established.
  • Page 9 5. Additional Information Redundant power inputs Tl-PG1284im-PG541i Tl-PG102i/Tl-PG102i-M 48-57VDC 24-57VDC KOJ Læ Terminal Block Terminal Block Redundant Power Input: "Terminal Block (PWR)"as primary power and "Terminal Block (RPS)" for secondary power source, to be a redundant power Input. DIP Switch (Tl-PG1284im-PG541 i) ON:Primary power alarm enabled OFF:Primary power alarm disabled ON:Redundantpower alarm enabled...
  • Page 10 DIP Switch (Tl-PG102i/Tl-PG102i-M) PWR RPS Switch Status Function Disablealarm relay for PWRpower input Enablealarm relayfor power failure on PWRpower input Disablealarm relay for RPSpower input Enablealarm relayfor power failure on RPSpower input Storm control managedby switch configuration Enablestorm control (Broadcastand DLFrate set to 300pps)Takes precedenceover storm control switch configuration 802.1p QoS managedby switch configuration Enable802.1p QoSon ports I and 2 (SetCoSpriority to tag...
  • Page 11 6. LED Indicators Tl-PG1284im-PG541i PWR (Green) ON: Terminal block PWR is connected OFF: Terminal block PWR failure RPS(Green) ON: Terminal block RPS is connected OFF: Terminal block RPS failure ALM (Red) ON: PWR/RPSfailure OFF:No alarm setup POST(Green) ON:Devicesystem ready Blinking: System is getting ready OFF:Devicesystem not ready 10/100/1000 Mbps ON:Network speed at 1000 Mbps...
  • Page 12 SFP 9-10 No linkJSFP is disconnected SFP link is established Blinking Data transmission Note: To download the latest version of the user's guide, please go to http://www.trendnet.com/support and select the Tl-PG12Ui/Tl-PG541 i/Tl-PG102i/ TI-PGI 02i-WTI-BG62i within the Products Download dropdown list.
  • Page 13 6-Port Industrial Glgabit L2 Managed PoE++ DIN-Rail Switch Trade Name: TRENDnet TRENDnet hereby declare that the product is in compliance with the essential requirements and other relevant provisions under our sole responsibility. EN 55032: 2015 + AC: 2016 Class A (Tl-PG1284i, Tl-PG102i, Tl-PG102i-M)
  • Page 14 Trade Name: TRENDnet TRENDnet hereby declare that the product is in compliance with the essential requirements and other relevant provisions under our sole responsibility. EN 55032: 2015 + AC: 2016 Class A (Tl-PG1284i, Tl-PG102i, Tl-PG102i-M) EN 55024: 2010 + A1: 2015 (Tl-PG1284, Tl-PG102i, Tl-PG102i-M)
  • Page 15 If you haveany questionsregardingthe product installation,pleasecontact ourTechnicalSupport. Product Warranty Registration Toll free US/Canada: 1-855-373-4741 Pleasetake a momentto registeryour Regionalphonenumbers available productonline. Goto TRENDnet's websiteat: at www.trendnet.com/support www.trendnetcom/register TRENDnet 20675 Manhattan Place Torrance, CA90501 Copyright 0 2021. All Rights Reserved.TRENDnet. TI-PGI284i/Tl-PG541 i /Tl-PG102i/Tl-PG102i-WTl-BG62i(V2) / 05.26.2021...
