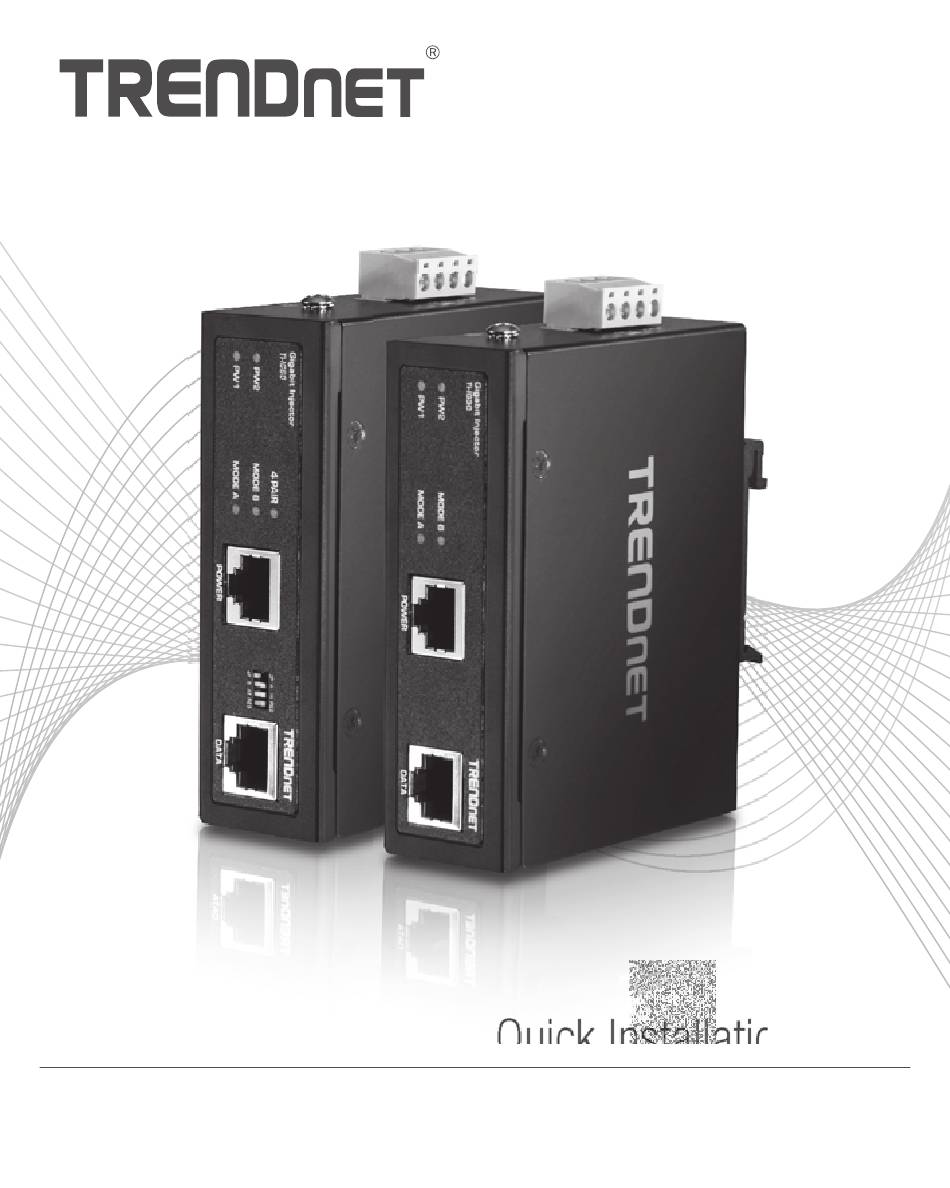

- Page 1 Quick Installation Guide TI-IG30/TI-IG60...
- Page 2 Table of Content English 1. Before You Start 2. Quick Reference 3. Hardware Installation 4. Additional information...
- Page 3 1. Before You Start Package Contents TI-IG30/TI-IG60 Ÿ Quick Installation Guide Ÿ Removable terminal block Ÿ DIN-rail mount Ÿ Wall mount kit Ÿ Minimum Requirements Existing network Ÿ Power Supply (TI-S12048) Ÿ 2. Quick Reference TV-IP450PI TI-S12048 TEG-S80g...
- Page 4 3. Hardware Installation The PoE+ injector can be placed on a desktop, wall, or mounted to a DIN-Rail. DIN-rail Mounting Instructions 1. Attach the DIN-Rail mount to the PoE+ injector. 2. Position the unit in front of the DIN-Rail and hook the mount bracket over the top of the rail. 3.
- Page 5 Wall Mounting Instructions 1. Attach the wall mount plates to PoE+ injector. 2. Mount the switch. Safety Note Turn off the power before connecting any module or wire. The correct power supply voltage Ÿ (48 - 56 V DC) is listed on the product label. Check the voltage of your power source to make sure that you are using the correct part.
- Page 6 Applying Power 1. Connect the power supply (sold separately) to the included terminal block (as shown below) and secure with the screws. Note: Polarities must match. 2. Attach the terminal block to the unit, connect the neutral wire to the ground, and supply power to the power adapter.

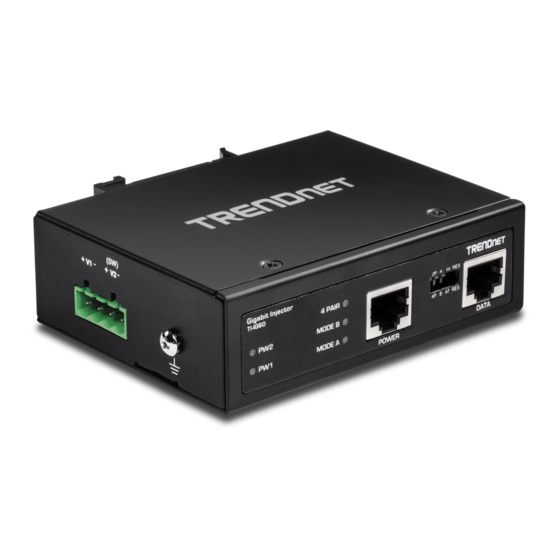

- Page 7 4. Additional information DIP Switch (TI-IG60 ONLY) Dip 1 2 pair 30w 4 pair 60w Dip 2 Mode A End-Span is selected (Default) Mode B Mid-Span is selected Dip 3 High power 36w IEEE802.3 at 30w Dip 4 Reserved (default)
- Page 8 Hardened Industrial 60 Watt Gigabit PoE+ Injector Trade Name: TRENDnet TRENDnet hereby declare that the product is in compliance with the essential requirements and other relevant provisions under our sole responsibility. Safety EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 + A2: 2013...
- Page 9 каждого продукта на сайте компании TRENDnet. Garantia Limitada A TRENDnet garante seus produtos contra defeitos de material e mão de obra sob condições normais de uso e serviço. Os períodos de garantia específicos estão listados em cada uma das páginas dos respectivos produtos no site da TRENDnet.
- Page 10 Product Warranty Registration If you have any questions regarding the product Please take a moment to register your installation, please contact our Technical Support. product online. Go to TRENDnet’s website at: Toll free US/Canada: 1-866-845-3673 www.trendnet.com/register Regional phone numbers available at www.trendnet.com/support...
