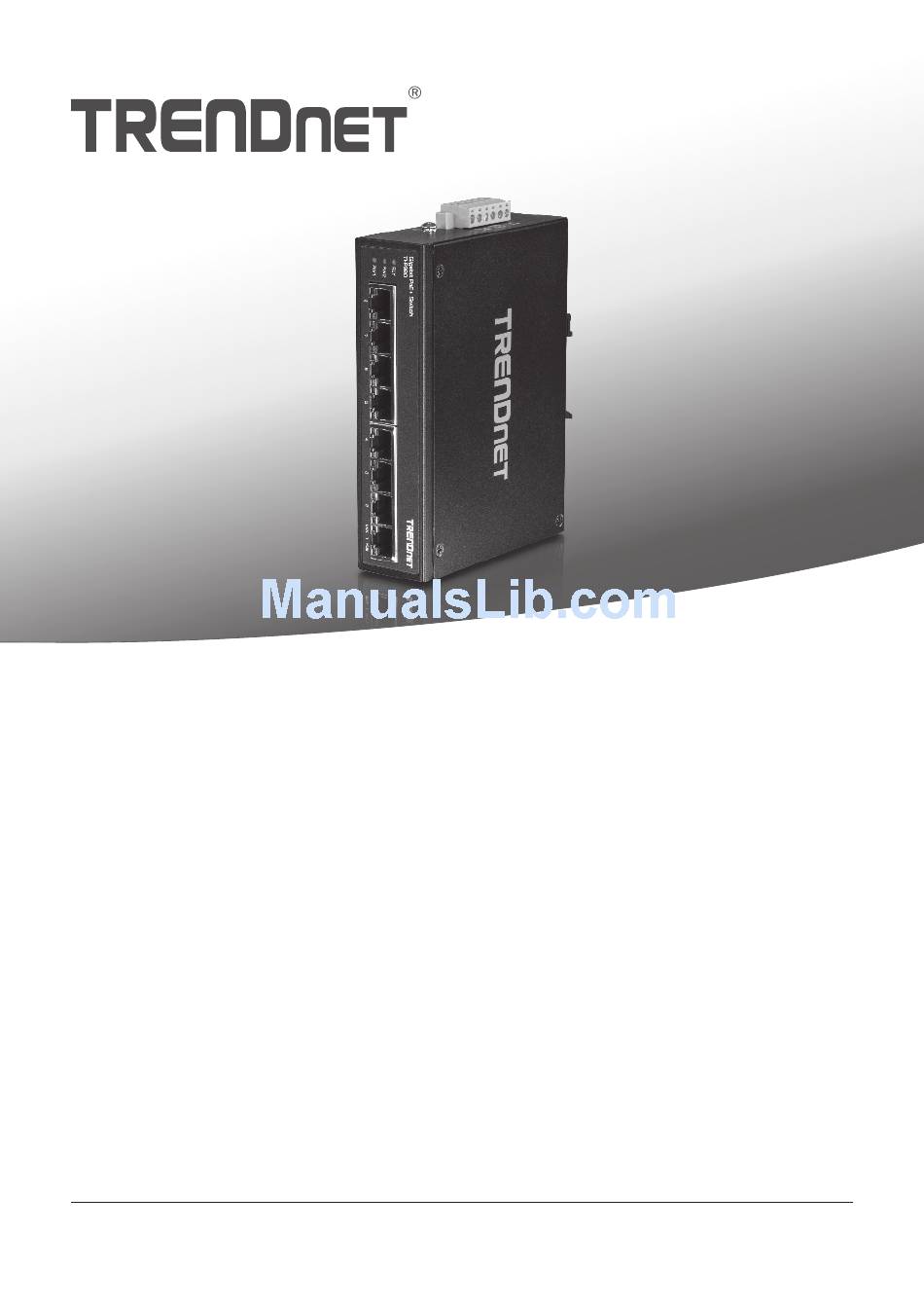

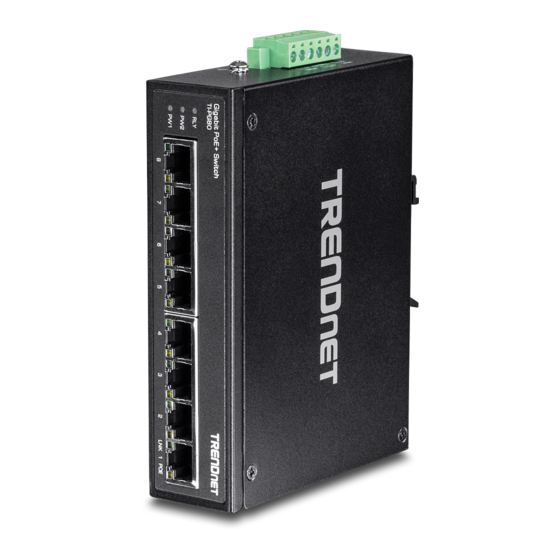

- Page 1 Quick Installation Guide TI-PG80...
-
Page 2: Package Contents
1. Before You Start Package Contents ŸTI-PG80 ŸQuick Installation Guide ŸRemovable terminal block ŸDIN-rail mount ŸWall mount plates Minimum Requirements ŸExisting network ŸPower source (TI-S24048) 2. Quick Reference TV-IP322WI TV-IP310PI... - Page 3 3. Hardware Installation ŸThe TI-PG80 can be placed on a desktop, wall, or mounted to a DIN-rail. DIN-rail Mounting Instructions 1. Attach the DIN-rail mount bracket to the switch. 2. Position the switch in front of the DIN-rail and hook the mount bracket over the top of the rail.
- Page 4 Wall Mounting Instructions 1. Attach the wall mount plates to the switch. 2. Mount the switch. Safety Note ŸTurn off the power before connecting any module or wire. The correct power supply voltage (48 - 56 V DC) is listed on the product label. Check the voltage of your power source to make sure that you are using the correct part.
- Page 5 Applying Power 1. Connect the power supply (sold separately) to the included terminal block (as shown below) and secure with the screws. Note: Polarities must match. 2. Attach the terminal block to the unit, secure with the included screws, connect the neutral wire to the ground, and supply power to the power adapter.
- Page 6 8-Port Hardened Industrial Gigabit PoE+ DIN-Rail Switch TRENDnet Trade Name: TRENDnet hereby declare that the product is in compliance with the essential requirements and other relevant provisions under our sole responsibility. Safety EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 + A2: 2013...
- Page 7 Produktseite auf der Website von TRENDnet genannt. Garantía limitada TRENDnet garantiza que sus productos carecen de defectos en el material y la fabricación, en condiciones de uso y funcionamiento normales. Los periodos específicos de garantía figuran en cada una de las páginas de producto del sitio web de TRENDnet.
- Page 8 TI-PG80 Обмежена гарантія TRENDnet надає гарантію на свою продукцію щодо відсутності дефектів матеріалів та роботи за умови її належного використання та обслуговування. Конкретні гарантійні періоди перелічені на сторінці кожного виробу на сайті компанії TRENDnet. Certifications Applies to PoE Products Only: This product is...
