Dimension One Spas Companion Specifications page 2

2006 Companion Specifications
Electrical
Inlet
21 in [54 cm]
Electrical
Inlet
3 1/2 in [9 cm]
Note: 1. Subject to change without notice.
2. Engineering specs may differ slightly from brochure.
3. For E-Z lifter installation allow 18" (45.7cm) clearance on the backside of the spa.
4. Alternative cabinets may add significant weight. Ask your dealer for exact details.
Caution:
Due to manufacturing tolerances there could be some
minor differences between the actual spa and the drawing above.
If site planning is critical to such tolerances, be sure to measure your actual spa.
Doc-1523 Rev -A Rev Date: 10/31/05
2006 Companion

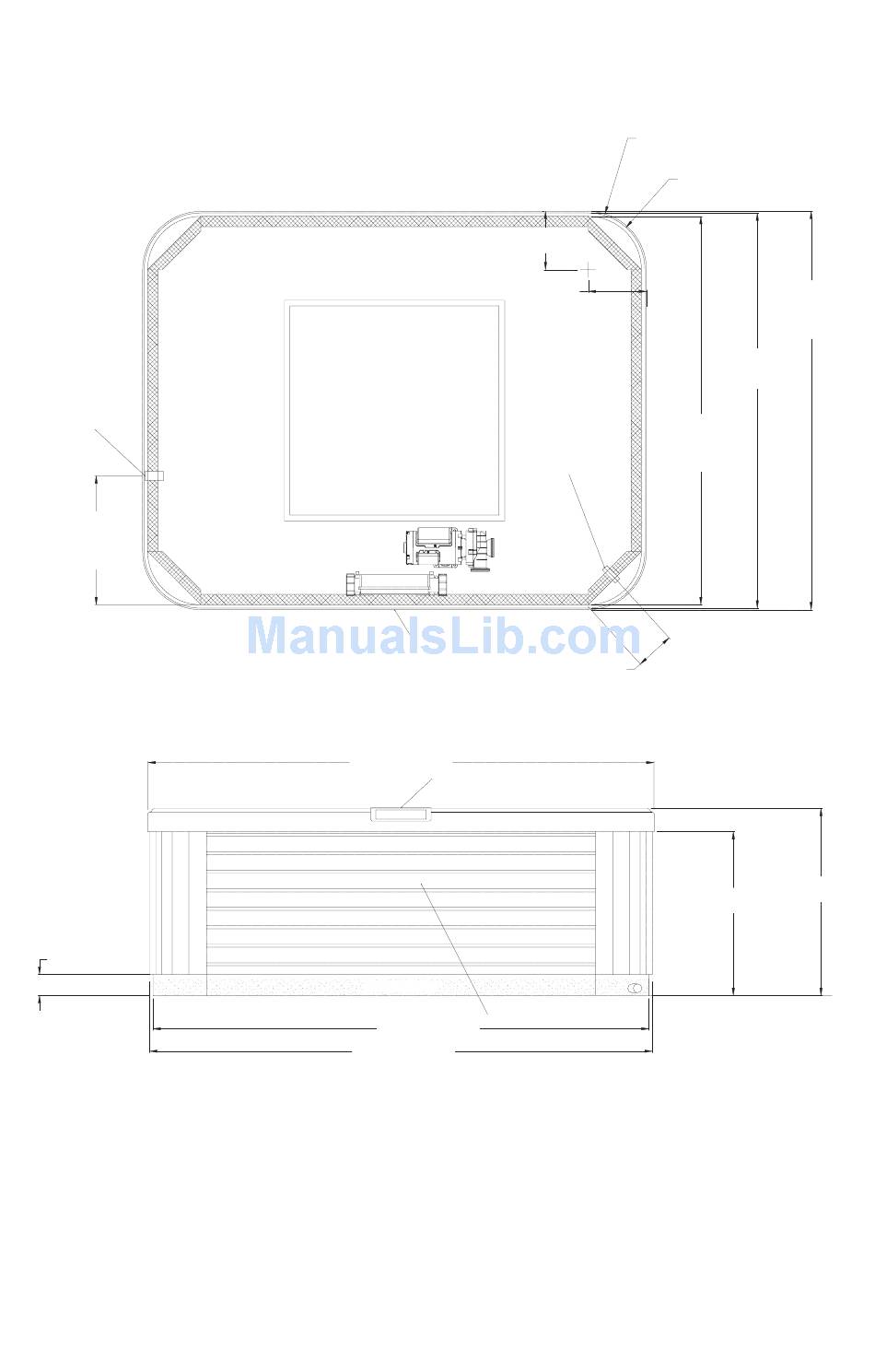

Architectural Specification
Top View of Spa
THIS 3 FOOT SQUARE AREA,
ON BOTTOM OF SPA, TO BE
SUPPORTED CONSISTENT WITH
THE EDGES OF SPA BASE.
Control Panel
Front of Spa
84 in [213 cm]
Control Panel
Spa Lip
Front View of Spa
Pedestal Base
82 in [209 cm]
83 in [212 cm]
Specification, 2006, Companion
R10 in [R24 cm]
10 in [24 cm]
10 in [24 cm]
64 in [163 cm]
Hose Bib/
Water Drain
6 in [16 cm]
Hose Bib/
Water Drain
Door Extends
Under Spa Lip
Dimension One Spas
Spa Shell
R9 in [R24 cm]
Skirt Corner
66 in [168 cm]
Spa Shell
See Caution
65 in [166 cm]
Skirt
Pedestal
Base
31 in [79 cm]
27 in [69 cm]
Page 2 of 2
