DRAPER
IMPORTANT:
PLEASE
GENERAL
Read all these instructions before operating this product and save these instructions.
This manual has been compiled by Draper Tools and is an integrated part of the product with which it is enclosed and
should be kept with it for future references.
This manual describes the purpose for which the product has been designed and contains all the necessary information
to ensure its correct and safe use. We recommend that this manual is read before any operation or, before performing
any kind of adjustment to the product and prior to any maintenance tasks. By following all the general safety instructions
contained in this manual, it will ensure both product and operator safety, together with longer life of the product itself.
All photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.
Whilst every effort has been made to ensure accuracy of information contained in this manual, the Draper Tools policy of
continuous improvement determines the right to make modifications without prior warning.
Diesel
Stock
READ
THESE
INSTRUCTIONS
EFFECTIVE
USE OF THIS
INFORMATION
INSTRUCTIONS
Space Heaters
No.39076
Part
19749
39077
19750
39275
39277
CAREFULLY
TO ENSURE
PRODUCT.
FOR
No.
DSH51
DSH71
DSH71
SS
DSH102
DSHI
OZSS
DSH170
THE
SAFE AND
Advertisement
Related Manuals for Draper DSH51
Summary of Contents for Draper DSH51

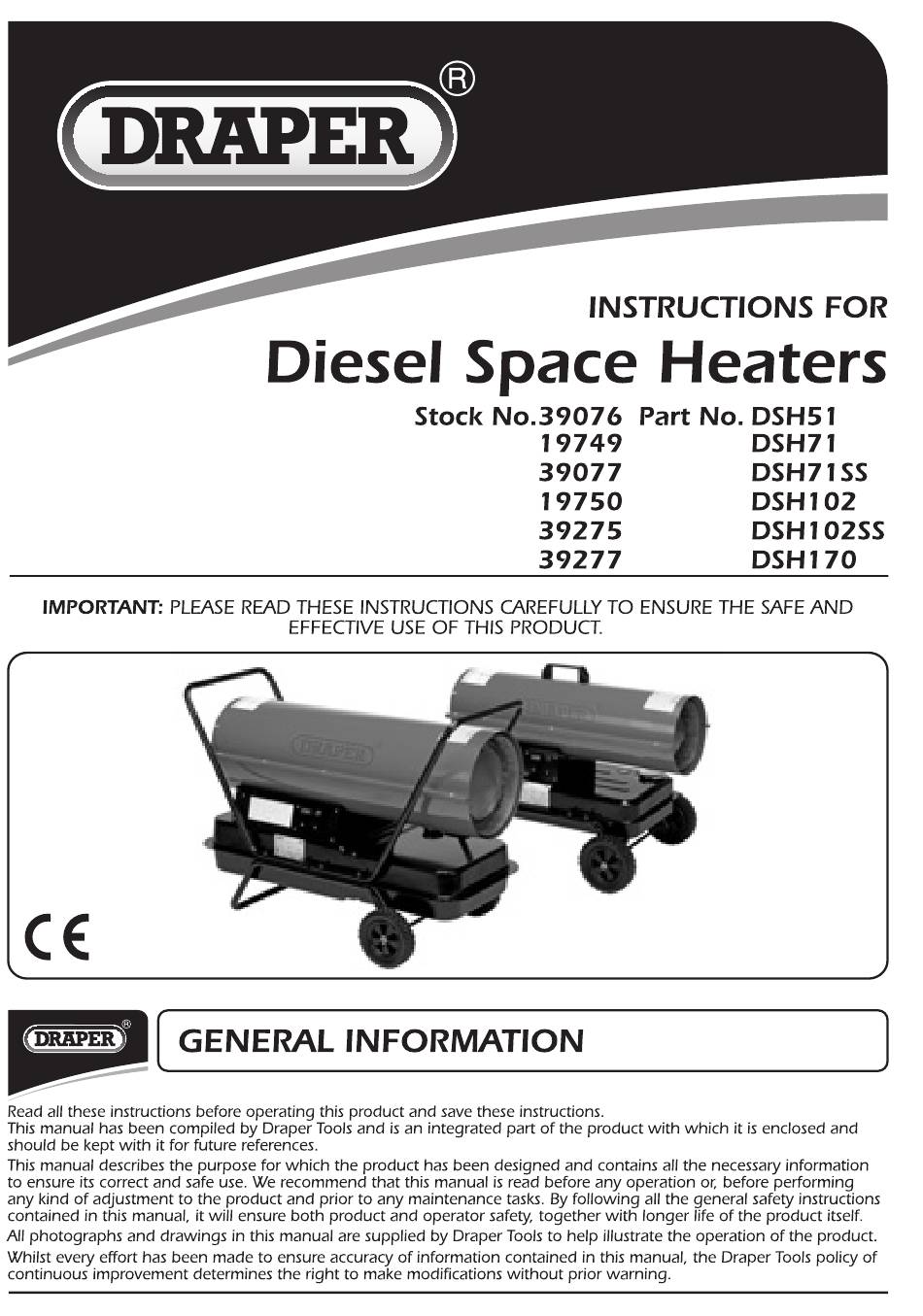

- Page 1 Read all these instructions before operating this product and save these instructions. This manual has been compiled by Draper Tools and is an integrated part of the product with which it is enclosed and should be kept with it for future references.
- Page 2 This guarantee applies in lieu of any other guarantee expressed or implied and variations of its terms authorised. Your Draper guarantee is not effective unless you can produce upon request a dated receipt or invoice to verify your proof of purchase within the 12 month period. Please note that this guarantee...
- Page 3 SPECIFICATION The Draper Tools policy of continuous improvement determines the right to change specification without notice. Stock 39076 19749 . 39077 Part DSH51 DSH7 . DSH71SS Rated voltage . 230V-50Hz 230V-50Hz . 230V-50Hz Rated input 150W 150W 150W Speed 2800rpm .
- Page 4 POWER SUPPLY DRAPER CAUTION: Risk of electric shock. Do not open. This appliance is supplied with a moulded 3 pin mains plug for your safety. The value of the fuse fitted is marked on the pin face of the plug. Should the fuse need replacing, ensure the...
- Page 5 GENERAL SAFETY INSTRUCTIONS General Heater Safety Warnings WARNING: Read all safety warnings and all Dress properly. Do not wear loose clothing instructions. Failure to follow the warnings and jewellery. Keep your hair, clothing and gloves instructions may result in electric shock, fire and/or serious away from moving parts.
- Page 6 ADDITIONAL SAFETY INFORMATION DRAPER WARNING: CAUTION: leave heater switched Due to the high surface and exhaust unattended. This unit is NOT designed temperatures, adults and children must as a standalone heater and must only observe clearances avoid burns be operated...
- Page 7 GETTING KNOW YOUR SPACE HEATER DRAPER DSH71 shown Handles. Fuel cap. Wheel support frame. Power cord. Main switch. Fuel tank. Temperature display. Temperature control. Fuel gauge. Thermostat/sensor. UNPACKING: After removing the packing material, make sure the product is in perfect condition and that there are no visible damaged parts.
- Page 8 ASSEMBLY DRAPER Wheels and handles are supplied in the Slide the wheel then large washer onto the shipping carton along with the relevent axle and hold in place with the remaining fixings (where supplied). nut. I ). Assemble the wheels onto the wheel...
- Page 9 OPERATING INSTRUCTIONS Once the fan has stopped, disconnect PREPARING OPERATION: power cord from the mains supply. NOTE: Check the heater for possible shipping DO NOT leave permanently connected damage. If any is found, immediately notify the mains supply or operate unattended the dealer.
- Page 10 STORING, TRANSPORTING OR SHIPPING DRAPER CAUTION: Replace fuel cap or drain plug if required. Fuel tank MUST be empty before Properly dispose of old and dirty fuel in line with local disposal regulations. Check with shipping or transportation. local automotive service station that recycles old oil.
- Page 11 MAINTENANCE The air pressure has been properly set at the NOZZLE: Accumulation of dirt from fuel carbon factory. If the air pressure is out of from the compressor vanes will eventually fill adjustment, it will most likely be caused by dirty air filters, a partially blocked fuel nozzle, up the passages in the fuel jet nozzle, resulting in reduction of fuel and air flow.
- Page 12 TROUBLESHOOTING DRAPER The heater is equipped with a self diagnostic devices. During normal operation the warning lamp is illuminated. If the warning lamp flashes, check the following: If the power supply is correct as specified; If the fuel used is correct as specified;...
- Page 13 SOLENOID VALVE DISPOSAL DRAPER At the end of the machineS working life, or when it can no longer be repaired, ensure that it is disposed of according to national regulations. Contact your local authority for details of collection schemes in your area.
- Page 14 EXPLANATION SYMBOLS/PICTOGRAMS DRAPER Do not dispose of WEEE* as unsorted municipal waste. Waste Electrical & Electronic Equipment. -13-...
- Page 15 NOTES _ 14-...
- Page 16 Sales Fax: (023) 8049 4209 General Enquiries: (023) 8026 6355 Service/Warranty Repair Agent For aftersales servicing or warranty repairs, please contact the Draper Tools Helpline for details of an agent in your local area. YOUR DRAPER STOCKIST PJKCI 70610 OPublished by Draper Tools Limited.
