Draper DSH-IR-B Instructions For Use Manual

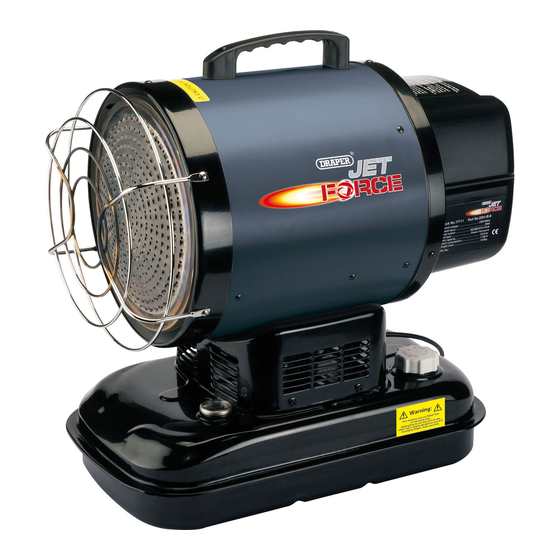

Infra-red diesel space heater
Hide thumbs
Table of Contents

Advertisement

Quick Links

INSTRUCTIONS FOR
Infra-Red
Diesel Space Heater
Stock No.17111
Part No.DSH-IR-B
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY TO ENSURE THE SAFE AND
EFFECTIVE USE OF THIS PRODUCT.
GENERAL INFORMATION
These instructions accompanying the product are the original instructions. This document is part of the product, keep it
for the life of the product passing it on to any subsequent holder of the product. Read all these instructions before
assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been designed, and
contains all the necessary information to ensure its correct and safe use. By following all the general safety instructions
contained in this manual, it will ensure both product and operator safety, together with longer life of the product itself.
AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper Tools
policy of continuous improvement determines the right to make modifications without prior warning.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DSH-IR-B and is the answer not in the manual?

Questions and answers

Related Manuals for Draper DSH-IR-B

Summary of Contents for Draper DSH-IR-B

  • Page 1 AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.

  • Page 2: Title Page

    Commercial copying, redistribution, hiring or lending is prohibited. No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written permission from Draper Tools Limited. In all cases this copyright notice must remain intact.

  • Page 3: Table Of Contents

    CONTENTS 2.1 CONTENTS PAGE CONTENT PAGE TITLE PAGE INTRODUCTION ....................2 REVISION HISTORY....................2 UNDERSTANDING THIS MANUAL ...............2 COPYRIGHT NOTICE....................2 CONTENTS CONTENTS ......................3 GUARANTEE GUARANTEE ......................4 INTRODUCTION SCOPE ........................5 SPECIFICATION ......................5 HANDLING & STORAGE ..................5 HEALTH & SAFETY INFORMATION GENERAL HEATER SAFETY WARNINGS ...............6-7 CONNECTION TO THE POWER SUPPLY..............8 TECHNICAL DESCRIPTION IDENTIFICATION ....................9...

  • Page 4: Guarantee

    This guarantee applies in lieu of any other guarantee expressed or implied and variations of its terms are not authorised. Your Draper guarantee is not effective unless you can produce upon request a dated receipt or invoice to verify your proof of purchase within the guarantee period.

  • Page 5: Introduction

    This heater is designed to be used in open and, semi-open areas by means of combustion of Diesel or Kerosene fuel, and is electrically operated. Any other application is considered mis-use. 4.2 SPECIFICATION Stock no ........................... 17111 Part no ......................... DSH-IR-B Motor: Rated voltage ...................... 230V~ Rated frequency ....................50Hz Rated input ......................94W Heat output ....................

  • Page 6: Health & Safety Information

    HEALTH & SAFETY INFORMATION WARNING: DO NOT place the heater on combustible or heat sensitive surfaces due to the nature of infra-red radiant heating the area in front of the heater will also become hot. 5.1 GENERAL HEATER SAFETY WARNINGS WARNING: Read all safety warnings and all instructions.
  • Page 7 HEALTH & SAFETY INFORMATION WARNING: Heater must be stood on - Get fresh air at once! Some people are more affected by carbon non-combustible surface (eg concrete) as the infra-red emitter will heat the area directly monoxide than others. These include in front of the machine.

  • Page 8: Connection To The Power Supply

    HEALTH & SAFETY INFORMATION 5.2 CONNECTION TO THE POWER SUPPLY CAUTION: Risk of electric shock. Do not open. This appliance is supplied with a moulded 3 pin mains plug for your safety. The value of the fuse fitted is marked on the pin face of the plug. Should the fuse need replacing, ensure the substitute is of the correct rating, approved to BS1362 and ASTA or BS Kite marked.

  • Page 9: Technical Description

    TECHNICAL DESCRIPTION 6.1 IDENTIFICATION Infra-red panel Power switch Grill Power cable Handle (carry) Fuel cap Lamp Fuel tank Thermostat dial Fuel gauge Temp window...

  • Page 10: Unpacking & Checking

    Lay the contents out and check them against the parts list provided. If any part is damaged or missing; please contact the Draper Helpline (the telephone number appears on the Title page) and do not attempt to use the product.

  • Page 11: Preparing The Heater

    PREPARING THE HEATER 8.2 FUELS Use only standard clean Diesel or Kerosene heater oil according to EN 267. WARNING: Never use petrol, oil, used oils, naphtha, paint thinners, alcohol or other highly flammable fuels. Using incorrect fuel may cause danger of explosion and death. IMPORTANT: Be sure fuel tank is clean.

  • Page 12: Operating The Heater

    OPERATING THE HEATER 9.1 TO START HEATER - FIG. 4 WARNING: Ensure the heater is stood on a NON-COMBUSTIBLE SURFACE! i. Fill fuel tank with appropriate fuel. ii. Fit fuel cap. iii. Plug power cable into mains supply. Extension Cable Wire Size Requirements: 6 to 10 feet (1.8 to 3 metres) long, use 1.0mm gauge cable.

  • Page 13: Storing, Transporting Or Shipping

    OPERATING THE HEATER 9.6 STORING, TRANSPORTING OR SHIPPING CAUTION: Fuel tank MUST be empty before shipping or transportation. 9.7 DRAINING THE FUEL TANK: Place a suitable size container under the heater - remove the fuel cap and empty out fuel. If any debris is noted in old fuel, add 1 or 2 litres of clean fuel into tank, wash around and drain again.

  • Page 14: Maintenance

    10. MAINTENANCE WARNING: Do not repair the product when the heater is hot or the power supply is connected. 10.1 CLEAN FUEL TANK Clean the tank every 200 hours or when necessary. When cleaning, use diesel or kerosene not water and after cleaning dry completely. 10.2 CLEAN FILTER Clean by rinsing out with kerosene or diesel etc twice a year.
  • Page 15 10. MAINTENANCE 10.5 CLEAN IGNITION PLUG - FIG. 4 Ignition plug should be cleaned or its gap should be adjusted every 600 hours of use or when necessary. Clean by a wire brush after taking the ignition plug out of the burner. Electrode gap should be between 3.5~3.7mm.

  • Page 16: Clean Photocell

    10. MAINTENANCE 10.8 MACHINE ERROR CODES. Machine error codes appear in the temperature indication window. CODE REASON CORRECTIVE ACTION Power supply switch Machine switch in “on” Turn off the power supply then turn off the switch, and turn on the manipulation error.

  • Page 17: Disposal

    11. DISPOSAL 11.1 DISPOSAL - At the end of the machine’s working life, or when it can no longer be repaired, ensure that it is disposed of according to national regulations. - Contact your local authority for details of collection schemes in your area. In all circumstances: •...

  • Page 18: Explanation Of Symbols

    12. EXPLANATION OF SYMBOLS WEEE Do not dispose of Waste Electrical & Electronic Equipment in with domestic rubbish...
  • Page 19 NOTES...
  • Page 20 - Sales Desk: (023) 8049 4333 - General Enquiries: (023) 8026 6355 - Service/Warranty Repair Agent For aftersales servicing or warranty repairs, please contact the Draper Tools Helpline for details of an agent in your local area. YOUR DRAPER STOCKIST DKMC0516...
