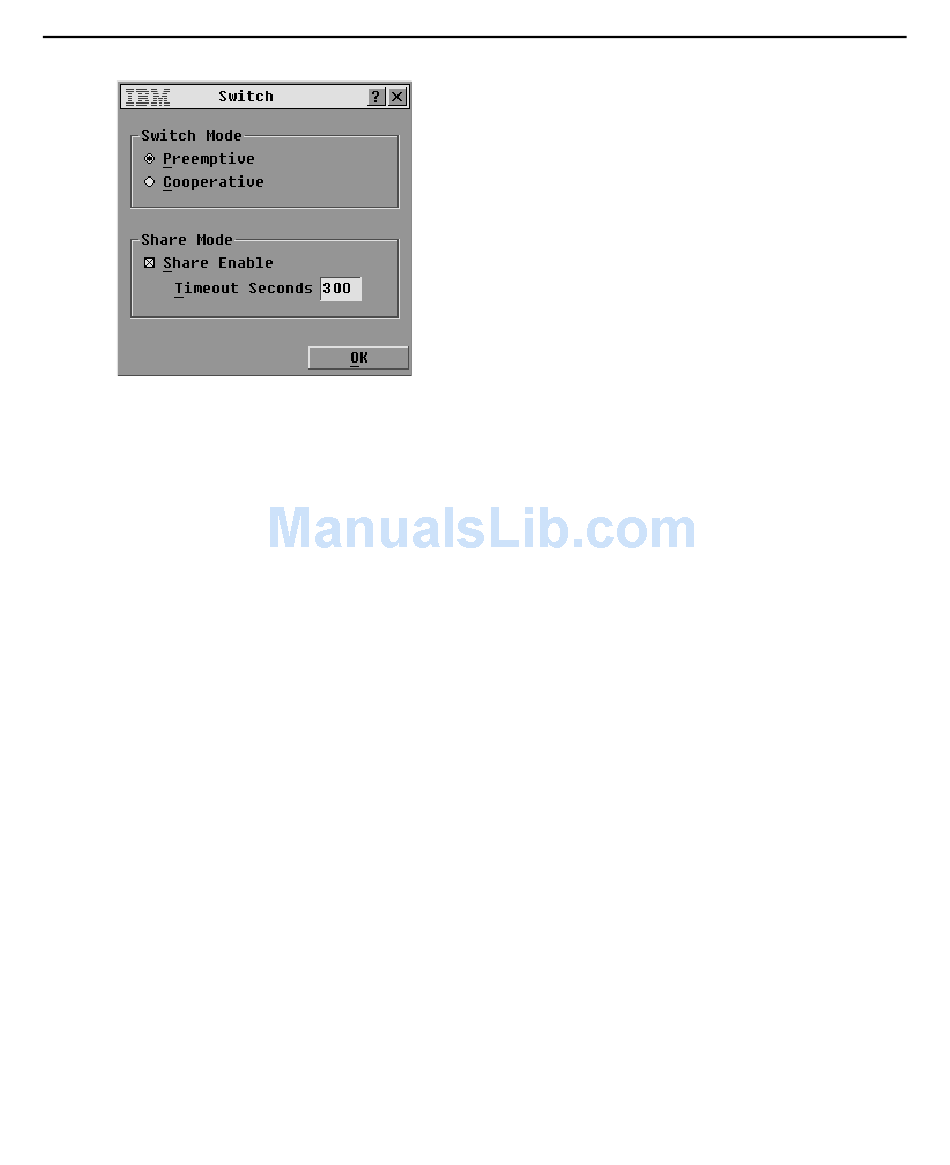

Figure 3.25: Switch window

Setting switch mode and share mode
1. Access the Switch window. If needed, see "Accessing the Switch window" on page 50.
2. Select either Preemptive or Cooperative as the switch mode.
3. Select Share Enable if desired, then specify the share time-out period in seconds.
4. Click OK to save the settings and return to the Setup window.
-or-
Click X or press Esc to exit without saving the settings.

Setting the Language when a Non-English Keyboard is Used

Use the Keyboard window to set the keyboard language when a non-English keyboard is connected
to a local user station and servers with USB ports are connected to the switch.
Setting the keyboard language
1. Access the Setup window. If needed, see "Accessing the Setup window" on page 30.
2. Click Keyboard. The Keyboard window opens.
Chapter 3: Using the OSCAR Interface 51
