INSTALLATION

MANUAL

2021 CANON INC.

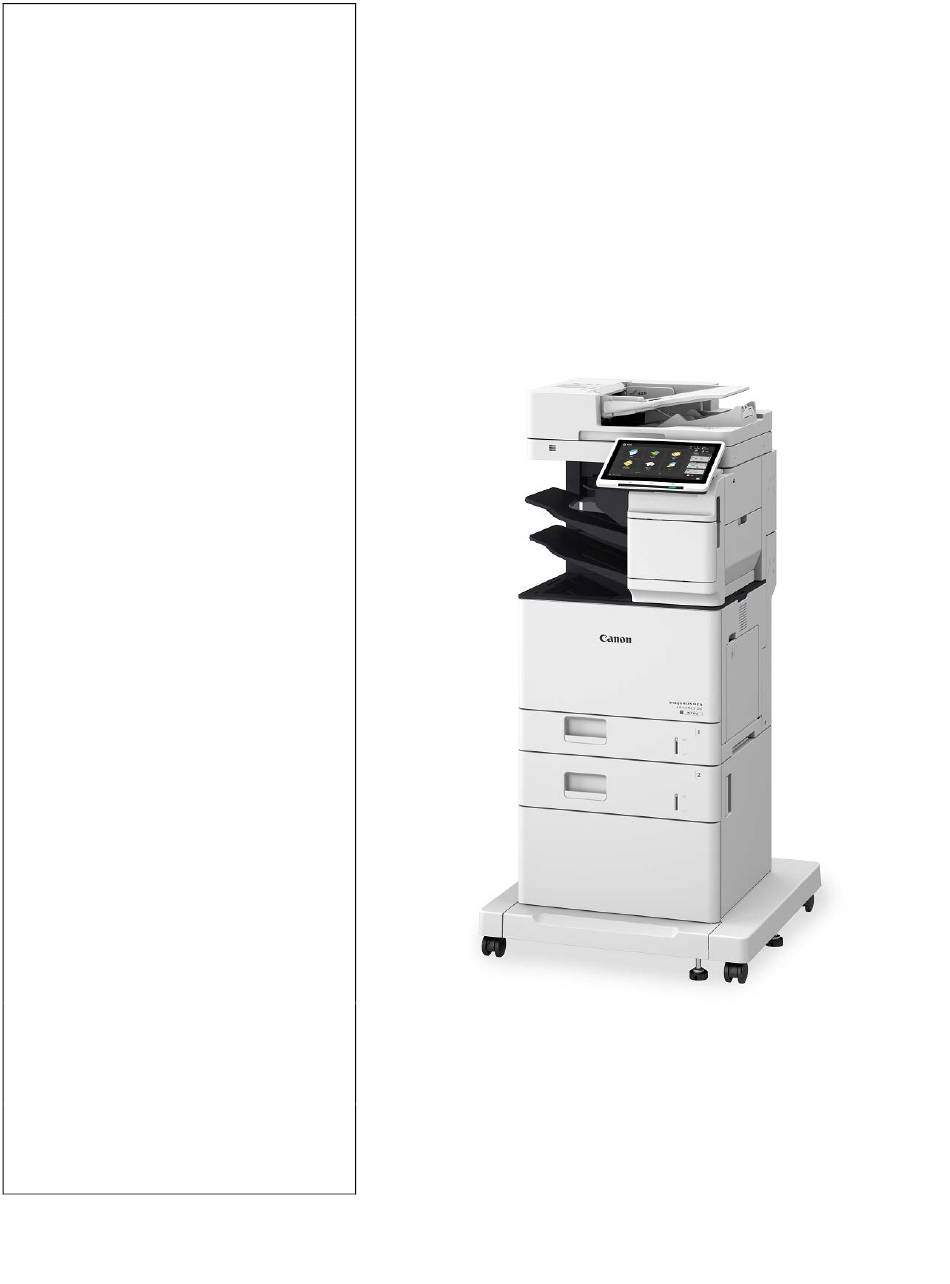

imageRUNNER

ADVANCE DX

717iFZ/717iF

617iFZ/617iF

527iFZ/527iF

Canon

June 30, 2021

Rev. 1

CANON imageRUNNER ADVANCE DX 717iFZ Series Rev. 1 PRINTED IN U.S.A.

Need help?

Do you have a question about the imageRUNNER ADVANCE DX 717iFZ and is the answer not in the manual?

Questions and answers

Summary of Contents for Canon imageRUNNER ADVANCE DX 717iFZ

Page 1 ADVANCE DX 717iFZ/717iF 617iFZ/617iF 527iFZ/527iF INSTALLATION MANUAL Canon June 30, 2021 Rev. 1 CANON imageRUNNER ADVANCE DX 717iFZ Series Rev. 1 PRINTED IN U.S.A. COPYRIGHT 2021 CANON INC. ©...
Page 2 When changes occur in applicable products or in the contents of this manual, Canon will release technical information as the need arises. In the event of major changes in the contents of this manual over a long or short period, Canon will issue a new edition of this manual.
Page 3 Important Notices Copyright The copyright of this document belongs to Canon Inc. This document may not be copied, reproduced or translated into another language, in whole or in part, without the prior consent of Canon Inc. Copyright CANON INC. 2021 Caution Use of this manual should be strictly supervised to avoid disclosure of confidential information.
Page 4 Contents Contents Safety Precautions....................1 Toner Safety............................2 About Toner............................2 Handling Adhered Toner........................2 Points to Note at Installation........................2 Points to Note Before Servicing......................2 Essential Items to Be Performed Before Installation.................2 Points to Note when turning ON/OFF the main power................2 illustrations............................3 1. Product Lineup....................4 Host Machine Options.........................
Page 5 Contents Installation Outline Drawing......................... 94 Checking the Contents........................94 Installation Procedure..........................96 Setting after Installation........................117 Revision......................118...
Page 6 Safety Precautions Toner Safety..........2 Points to Note at Installation....2...
Page 7 Safety Precautions Toner Safety About Toner Toner is a nontoxic matter composed of plastic, iron and a trace of pigments. CAUTION: Never throw toner in flames to avoid explosion. Handling Adhered Toner • Use dry tissue paper to wipe off toner adhered to skin or clothes and wash in water. •...
Page 8 Safety Precautions 1. When a message prompting to turn OFF and then ON the main power appears, turn OFF and then ON the main power switch. 2. If a message prompting the user to update the version appears, press [Update] to automatically update the version of this equipment.
Page 9 Product Lineup Host Machine Options......5...
Page 10 1. Product Lineup Host Machine Options Product name Condition “NFC KIT-E1/E2” on page 23 “Copy Card Reader-F1/Copy Card Reader Attach- It is required when installing Copy Card Reader-F1. ment-B5” on page 46 “Copy Card Reader-F1/Copy Card Reader Attach- Copy Card Reader Attachment-B5 is required. ment-B5”...
Page 11 1. Product Lineup License Products At the time of installation, obtain the license number according to the license certificate included. Then, enter the obtained license number from the Control Panel of the machine. The applicable functions are enabled. There is no physically required installation. Product name Condition Remote Fax Kit-A1...
Page 12 Host Machine Installation of the Host Machine ... 8...
Page 13 2. Host Machine Installation of the Host Machine Host Machine can be installed by the user. See "Getting Started" for details of the installation procedures. Operation when using uniFLOW Online When using uniFLOW Online*, follow the setup procedures on the uniFLOW* Online First Steps Guide (http://www.nt-ware.com/ uFO_FS).
Page 14 2. Host Machine ■ Installation Procedure ● Removing the Covers...
Page 15 2. Host Machine...
Page 16 2. Host Machine ● Installing the IC Card Reader Refer to the table below and install according to the "Reference Procedure" for the IC card reader. NOTE: The installation procedure depends on the shape of the IC card reader. TYPE Shape of IC card reader Reference Procedure “...
Page 17 2. Host Machine...
Page 18 2. Host Machine NOTE: Be sure to adjust the number of cushions according to the thickness of the Card Reader.
Page 19 2. Host Machine NOTE: Go to "Subsequent Work".“Subsequent Work” on page 15 ● Installing the IC Card Reader （For TYPE 2）...
Page 20 2. Host Machine NOTE: Go to "Subsequent Work".“Subsequent Work” on page 15 ● Subsequent Work NOTE: Use the screws removed in "Removing the Covers".
Page 21 2. Host Machine NOTE: Wind　the cable counterclockwise to store it as needed. NOTE: When installing with the Connection Kit for Bluetooth LE at the same time...
Page 22 2. Host Machine...
Page 23 2. Host Machine CAUTION: Align the White Plate to the Index.
Page 24 2. Host Machine CAUTION: If the White Plate is pressed from top to bottom, it is placed on the Index Sheet, so be sure to press it from bottom to top.
Page 25 2. Host Machine CAUTION: Check that the White Plate is not placed on the Index Sheet with this equipment closed. • Be sure that there is no gap between the White Plate and the Index Sheet. • The gap between the White Plate and the Index Sheet must be 0.3 mm or less as a reference. White Plate White Plate Reader Unit...
Page 26 2. Host Machine Connect the power plug of the host machine to the outlet. Turn ON the Main Power Supply Switch.
Page 27 Host Machine Options NFC KIT-E1/E2........23 Copy Card Reader-F1/Copy Card Reader Attachment-B5....46 Copy Control Interface Kit-A1..... 70 Super G3 FAX Board-AY1....81 Connection Kit-A2/A3 for Bluetooth LE............ 94...
Page 28 3. Host Machine Options NFC KIT-E1/E2 Points to Note at Installation • Do not touch the sensor and PCB components of the Control panel. • The parts removed in "Removing the Control Panel" will be used in "Installing the Control Panel". •...
Page 29 3. Host Machine Options Checking the Contents NOTE: The required parts differ depending on the host machine to which this equipment is installed. Use A, B, G, H, I and J for this product. <NFC KIT-E1> TP; M3x6 Small 1x Small 1x Large 1x...
Page 30 3. Host Machine Options <NFC KIT-E2> Small 1x TP; M3x6 Small 1x Small 1x Large 1x Large 1x <Others> • Guides are included...
Page 31 3. Host Machine Options Installation procedure ■ Removing the Control Panel CAUTION: Be sure to place 5 or more sheets of paper to prevent damage.
Page 32 3. Host Machine Options...
Page 33 3. Host Machine Options...
Page 34 3. Host Machine Options...
Page 35 3. Host Machine Options ■ Installing the NFC Kit...
Page 36 3. Host Machine Options NOTE: The removed parts will be used in step 8.
Page 37 3. Host Machine Options NOTE: The removed part will be used in the next step.
Page 38 3. Host Machine Options NOTE: Use the part removed in the previous step.
Page 39 3. Host Machine Options NOTE: Use the part removed in step 3.
Page 40 3. Host Machine Options NOTE: Position the NFC Cover by aligning it with the marking line to install. NOTE: Install the cable to the NFC PCB as shown in the figure.
Page 41 3. Host Machine Options TP; M3x6 TP; M3x6...
Page 42 3. Host Machine Options Small 1x...
Page 43 3. Host Machine Options CAUTION: Be sure to use appropriate type of screws when installing the removed screws.
Page 44 3. Host Machine Options ■ Installing the Control Panel...
Page 45 3. Host Machine Options...
Page 46 3. Host Machine Options NOTE: Be sure to turn the Cover in the direction of the arrow to install.
Page 47 3. Host Machine Options...
Page 48 3. Host Machine Options NOTE: Store the excess cable under the Reader.
Page 49 3. Host Machine Options...
Page 50 3. Host Machine Options Setting after Installation 1. Connect the power plug of the host machine to the outlet. 2. Turn ON the main power switch. 3. Eenter service mode and set the value to "1". COPIER > FUNCTION > INSTALL > NFC-USE NOTE: When [System Manager Information Settings] is set, it is required to log in as a system manager in accordance with instructions of the user administrator.
Page 51 3. Host Machine Options Copy Card Reader-F1/Copy Card Reader Attachment-B5 Points to Note at Installation • To install this equipment, the Copy Card Reader Attachment is required. • Pictures and illustrations used in this procedure are from the model without the Finisher. Procedures that are not separately described are same for the model with the Finisher.
Page 52 3. Host Machine Options < Copy Card Reader Attachment-B5> M3x6 Screw,w/washer; M3x14 M3x12 Binding; M4x6 M4x12...
Page 53 3. Host Machine Options Installation Outline Drawing <When the Finisher is not installed> <When the Finisher is installed> Essential Items to Be Performed Before Installation • Turn OFF the main power of the host machine, and disconnect the power plug from the outlet. WARNING: •...
Page 54 3. Host Machine Options Installation Procedure <Only in the case of 120 V products>...
Page 55 3. Host Machine Options <When the Finisher is installed>...
Page 56 3. Host Machine Options...
Page 57 3. Host Machine Options CAUTION: When handling the HDD, be careful not to vibrate or drop it. NOTE: The removed screws will be used in step 9.
Page 58 3. Host Machine Options NOTE: The removed screw will be used in step 9.
Page 59 3. Host Machine Options...
Page 60 3. Host Machine Options CAUTION: Do not allow the Relay Cable to contact the metal part of the Controller Box. The Relay Cable touching the metal part of the Controller Box causes malfunctioning. NOTE: Use the screws removed in steps 4 and 5.
Page 61 3. Host Machine Options CAUTION: When handling the HDD, be careful not to vibrate or drop it.
Page 62 3. Host Machine Options <When the Finisher is installed>...
Page 63 3. Host Machine Options...
Page 64 3. Host Machine Options...
Page 65 3. Host Machine Options RS Tightening; M4x10 Boss...
Page 66 3. Host Machine Options CAUTION: Be sure that the core is inside the Edge Saddle.
Page 67 3. Host Machine Options <When the Finisher is installed> <When the Finisher is installed>...
Page 68 3. Host Machine Options <When the Finisher is not installed> Screw,w/washer; M3x14 <When the Finisher is installed> Screw,w/washer; M3x14...
Page 69 3. Host Machine Options <When the Finisher is not installed> TP; M3x6 <When the Finisher is installed> TP; M3x6...
Page 70 3. Host Machine Options CAUTION: To prevent the connector from being disconnected, be sure to place the tie-wrap of the Card Reader External Relay Harness inside of the Connector Cover. TP; M3x6...
Page 71 3. Host Machine Options <When the Finisher is not installed>...
Page 72 3. Host Machine Options <When the Finisher is installed> <When the Finisher is not installed>...
Page 73 3. Host Machine Options <When the Finisher is installed> <Only in the case of 120 V products>...
Page 74 3. Host Machine Options Checking after Installation 1. Connect the power plug of the host machine to the power outlet. 2. Turn the main power switch ON. 3. Check the model of the Card Reader in service mode. (Default: 0 "Card Reader-F1") COPIER >...
Page 75 3. Host Machine Options Copy Control Interface Kit-A1 Checking the Contents Installation Outline Drawing...
Page 76 3. Host Machine Options Essential Items to Be Performed Before Installation • Turn OFF the main power of the host machine, and disconnect the power plug from the outlet. WARNING: • If performing work without disconnecting the power plug of the host machine, it may cause electrical shock. •...
Page 77 3. Host Machine Options <When the Finisher is installed>...
Page 78 3. Host Machine Options...
Page 79 3. Host Machine Options CAUTION: When handling the HDD, be careful not to vibrate or drop it.
Page 80 3. Host Machine Options CAUTION: Be sure to install the D-SUB Support Plate so that the side with protrusions faces the direction as shown in the figure. Inside...
Page 81 3. Host Machine Options CAUTION: • Be careful not to drop the screws and washers. Dropping them may result in damage, so be sure to pick them up. • Be sure to install the CC-VI Cable in the orientation shown in the figure.
Page 82 3. Host Machine Options CAUTION: When handling the HDD, be careful not to vibrate or drop it.
Page 83 3. Host Machine Options <When the Finisher is installed>...
Page 84 3. Host Machine Options...
Page 85 3. Host Machine Options <Only in the case of 120 V products> Turn ON the Main Power Switch.
Page 86 3. Host Machine Options Super G3 FAX Board-AY1 Checking before Installation ■ Points to Note when Installing • Although the figure shows a model without the Finisher, the same procedure applies to the one with the Finisher. • Although pictures or illustrations used for explanation may differ from the actual products, the procedure is the same. ■...
Page 87 3. Host Machine Options ■ Essential Items to Be Performed Before Installation • Turn OFF the main power of the host machine, and disconnect the power plug from the outlet. WARNING: • If performing work without disconnecting the power plug of the host machine, it may cause electrical shock. •...
Page 88 3. Host Machine Options CAUTION: When handling the HDD, be careful not to vibrate or drop it.
Page 89 3. Host Machine Options ● Installing the Fax Unit NOTE: Remove the packing tape if any. CAUTION: • When installing the FAX Unit, be careful not to trap the 2 Cables of the FAX Unit. • Do not directly touch the speaker [A] of the FAX Unit. •...
Page 90 3. Host Machine Options...
Page 91 3. Host Machine Options CAUTION: • Fix the tie-wrap between the wire saddles [A] and [B]. • Fix the tie-wrap on the right side of the wire saddle [C].
Page 92 3. Host Machine Options ● Installing the Covers CAUTION: When handling the HDD, be careful not to vibrate or drop it.
Page 93 3. Host Machine Options...
Page 94 3. Host Machine Options <When the Finisher is installed>...
Page 95 3. Host Machine Options ● Subsequent Work NOTE: This step is only for Taiwan. Approval Label...
Page 96 3. Host Machine Options CAUTION: Do not insert a screwdriver into the hole when removing the Small Cover.
Page 97 3. Host Machine Options NOTE: • This step is only for Europe. • Do not connect the telephone cord (2 core) to PTT plugs. • Connect the PTT cable (6 core) to the PTT Plug appropriate for the country/region. NOTE: Connect one end of the PTT cable or the Telephone Cord (whichever appropriate for the country/region) to the modular jack on the host machine and the other end to the modular jack on the wall.
Page 98 3. Host Machine Options Turn ON the Main Power Switch. ■ Operation Check ● Type Setting 1. From the following service mode, check that the type setting of Fax board is set to the correct location (country/ region) and press OK. FAX >...
Page 99 3. Host Machine Options Connection Kit-A2/A3 for Bluetooth LE Points to Note at Installation • When installing the IC Card Reader Installation Kit at the same time, install this equipment first. Installation Outline Drawing Checking the Contents NOTE: The required parts differ depending on the host machine to which this equipment is installed. Use A, C, D, G and H for this product.
Page 100 3. Host Machine Options • Connection Kit-A2 for Bluetooth LE With Finisher; Long Type P Tightening; W Sems; TP; M3x6 M3x8 M3x6 Without Finisher; Short Type for US for CN, KR for TW • Connection Kit-A3 for Bluetooth LE With Finisher; Long Type 17.9 mm P Tightening;...
Page 101 3. Host Machine Options <Others> • Guides are included Installation Procedure...
Page 102 3. Host Machine Options <When the Finisher is installed>...
Page 103 3. Host Machine Options...
Page 104 3. Host Machine Options...
Page 105 3. Host Machine Options...
Page 106 3. Host Machine Options...
Page 107 3. Host Machine Options CAUTION: Be sure to install the Grounding Wire in the correct orientation. P Tightening; M3x8...
Page 108 3. Host Machine Options With Finisher; Without Finisher; Long Type Short Type P Tightening; M3x8...
Page 109 3. Host Machine Options...
Page 110 3. Host Machine Options...
Page 111 3. Host Machine Options CAUTION: Align the White Plate with the Index.
Page 112 3. Host Machine Options CAUTION: If the White Plate is pressed from top to bottom, it is placed on the Index Sheet, so be sure to press it from bottom to top.
Page 113 3. Host Machine Options CAUTION: Check that the White Plate is not placed on the Index Sheet with this equipment closed. • Be sure that there is no gap between the White Plate and the Index Sheet. • The gap between the White Plate and the Index Sheet must be 0.3 mm or less as a reference. White Plate White Plate Reader Unit...
Page 114 3. Host Machine Options NOTE: Pull out the Grounding Wire that was passed through the hole in step 18, and connect it. CAUTION: Be sure to install the Grounding Wire in the correct orientation. W Sems; M3x6...
Page 115 3. Host Machine Options NOTE: Pull out the cable that was passed through the hole in step 18.
Page 116 3. Host Machine Options <When the Finisher is not installed>...
Page 117 3. Host Machine Options <When the Finisher is installed>...
Page 118 3. Host Machine Options...
Page 119 3. Host Machine Options <When the Finisher is installed>...
Page 120 3. Host Machine Options...
Page 121 3. Host Machine Options 10 mm...
Page 122 3. Host Machine Options NOTE: Affixing the Approval Label is not required in countries/regions other than the following. <For US> Affix it over the number on the Wireless LAN Approval Label. Setting after Installation 1. Connect the power plug of the host machine to the outlet. 2.
Page 123 Revision Revision Rev. Product name Reference Category Details Remarks Installation manual First Edition...
