CIB UNIGAS LG550 Manual Of Installation - Use - Maintenance

Hide thumbs Also See for LG550:

page of 138

/ 138
Bookmarks

Quick Links

Download this manual

LG550

NG550

NGX550

LGX550

IDEA Series

Gas burners

MANUAL OF INSTALLATION - USE - MAINTENANCE

BURNERS - BRUCIATORI - BRULERS - BRENNER - QUEMADORES - ГОРЕЛКИ

M039119CE Rev. 5.3 11/2021

Need help?

Do you have a question about the LG550 and is the answer not in the manual?

Questions and answers

Summary of Contents for CIB UNIGAS LG550

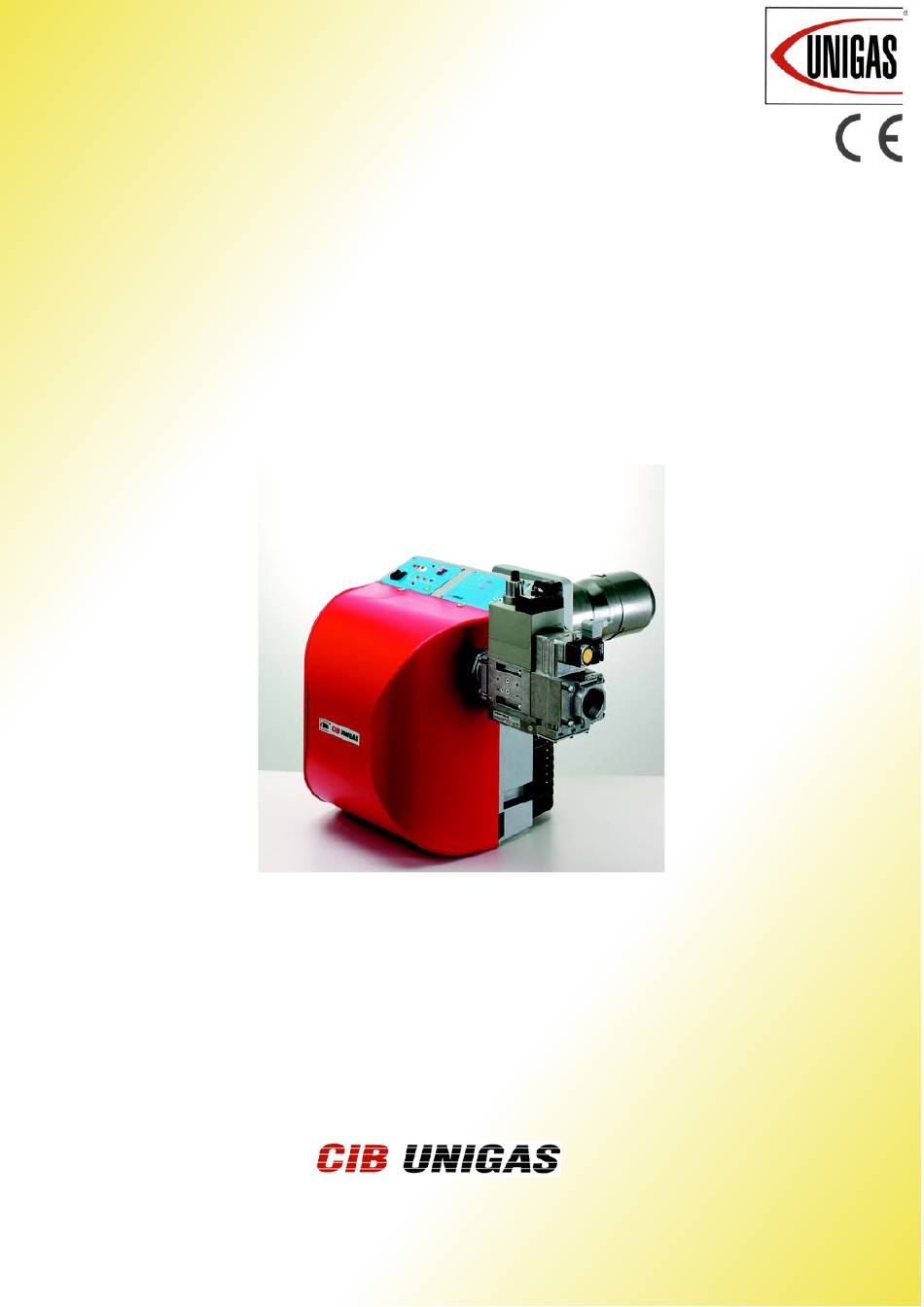

Page 1 LG550 NG550 NGX550 LGX550 IDEA Series Gas burners MANUAL OF INSTALLATION - USE - MAINTENANCE BURNERS - BRUCIATORI - BRULERS - BRENNER - QUEMADORES - ГОРЕЛКИ M039119CE Rev. 5.3 11/2021...
Page 2 DANGERS, WARNINGS AND NOTES OF CAUTION THIS MANUAL IS SUPPLIED AS AN INTEGRAL AND ESSENTIAL PART OF THE PRODUCT AND MUST BE DELIVERED TO THE USER. INFORMATION INCLUDED IN THIS SECTION ARE DEDICATED BOTH TO THE USER AND TO PERSONNEL FOLLOWING PRODUCT INSTALLATION AND MAINTENANCE.
Page 3 3b) FIRING WITH GAS, LIGHT OIL OR OTHER FUELS DIRECTIVES AND STANDARDS Gas burners GENERAL European directives  The burner shall be installed by qualified personnel and in compliance -Regulation 2016/426/UE (appliances burning gaseous fuels) with regulations and provisions in force; wrong installation can cause -2014/35/UE (Low Tension Directive) injuries to people and animals, or damage to property, for which the -2014/30/UE (Electromagnetic compatibility Directive)
Page 4 Burner data plate Type Model Gas - Light oil burners For the following information, please refer to Year European Directives the data plate: S.Number -Regulation 2016/426/UE (appliances burning gaseous fuels) Output burner type and burner model: must be  Oil Flow -2014/35/UE (Low Tension Directive) reported in any communication with the Fuel...
Page 5 PART I: INSTALLATION PART I: INSTALLATION GENERAL FEATURES This series burners are characterised by high performaces and width in the performance curves, when the pressure in the combustion chamber is high. They are also provided with other important functional features: there are plugs which can be easily connected to the boiler and to the detecting probes, a pressure plug in the combustion chamber, all mechanical components are mounted on a plate which can be quickly taken off for maintenance.
Page 6 PART I: INSTALLATION BURNERS SPECIFICATIONS Type NG550 Model (4) (5) NG - Natural gas burner (1) BURNER TYPE LG - L.P.G. burner NGX - Low NOx burners LGX - Natural gas Low NOx burners M - Natural gas (2) FUEL L - LPG TN - Single stage AB - Double stage...
Page 7 PART I: INSTALLATION Specifications NG550 NG550 NG550 NG550 LG550 LG550 LG550 LG550 BURNERS M-.TN... M-.TN.. M-.TN.. M-.TN.. M-.TN.. L-.TN.. L-.TN.. L-.TN.. L-.TN... 0.25 0.32 0.40 0.50 0.25 0.32 0.40 0.50 245 - 570 Output min-max kW Natural gas L.P.G. Fuel...
Page 8 PART I: INSTALLATION Low NOx burners NGX550 NGX550 NGX550 NGX550 LGX550 LGX550 LGX550 LGX550 BURNERS M-.xx... M-.xx... M-.xx... M-.xx... L-.xx... L-.xx... L-.xx... L-.xx... 0.25 0.32 0.40 0.50 0.25 0.32 0.40 0.50 132 - 490 Output min-max kW Natural gas Fuel 3B/P Gas category (see next paragraph)
Page 9 This value must be lower or equal to the pgas value, calcula- ted before. Power kW Potenza / Output (kW) Performance curves NG550 - LG550 Single stage NG550 - LG550 Double-stage/Progressive 100 150 200 250 300 350 400 450 500 550 600 650...
Page 10 Rp 2" (50) R p 2" ( 50) Gas rate Stm Gas rate Stm L.P.G. Burners  LG550 L-TN..25 Single stage LG550 L-TN..32/40/50 Single stage Rp 1"¼ (32) Rp 1"½ (40) Rp 2" (50) Rp 1" (25) Gas rate Stm...
Page 11 PART I: INSTALLATION LG550 L-PR.. Double-stage/Progressive LG550 L-PR.. Double-stage/Progressive Rp 1"¼ (32) Rp 1"½ (40) Rp 1" (25) Rp 2" (50) Gas rate Stm Gas rate Stm Low NOx burners  NGX550 Double-stage/Progressive Rp 1" (25) Rp 1"¼ (32) Rp 1"½ (40) Rp 2"...
Page 12 A(S*) A(L*) B(S*) B(L*) ±5mm ±5mm 25/32 165 178 384 384 M10 247 NG/LG550 165 178 384 384 M10 247 165 178 384 384 M10 247 * S = measure referred to burners fitted with standard blast tube L = measure referred to burners fitted with extended blast tubeOMU...
Page 13 Low NOx Burner Recommended boiler drilling jig and burner flange A(S*) A(L*) B(S*) B(L*) Omin ±5mm ±5mm 176 198 384 241 384 M10 247 NGX550 - LGX550 176 198 384 241 384 M10 247 176 198 384 241 384 M10 247 * S = measure referred to burners fitted with standard blast tube L = measure referred to burners fitted with extended blast tube...
Page 14 PART I: INSTALLATION MOUNTINGS AND CONNECTIONS Packing urners are despatched in cardboard packages whose dimensions are: 1030mm x 530mm x 570mm (L x P x H) Packing cases of this type are affected by humidity; the maximum number of cases to be stacked is showed outside the packing. The following are placed in each packing case.
Page 15 PART I: INSTALLATION GAS TRAIN CONNECTIONS This paragraph shows the gas train components which are included in the delivery and those which must be fitted by the customer. The diagram complies with regulations in force DANGER! Incorrect motor rotation can seriously damage property and injure people.ATTENTION: BEFORE EXE- CUTING THE CONNECTIONS TO THE GAS PIPE NETWORK, BE SURE THAT THE MANUAL CUTOFF VALVES ARE CLOSED.
Page 16 PART I: INSTALLATION MULTIBLOC DUNGS MB-DLE 405..412 Fig. 3 Fig. 4 Fig. 5 Fig. 6 MULTIBLOC DUNGS MB-DLE 415..420 Mounting 1. Loosen screws A and B do not unscrew (Fig. 3 - Fig. 4). 2. unscrew screws C and D (Fig. 3 - Fig. 4). 3.
Page 17 PART I: INSTALLATION Gas Proving System VPS504 (Option) The VPS504 check the operation of the seal of the gas shut off valves. This check, carried out as soon as the boiler thermostat gives a start signal to the burner, creates, by means of the diaphragm pump inside it, a pressure in the test space of 20 mbar higher than the supply pressure.
Page 18 PART I: INSTALLATION Take the gas pipe TR off and put it in the new position fixing the screws VT1 and VT2VT1 VT2 (Fig. 15). UNLOCKED LOCKED Fig. 13 Fig. 14 Fig. 15 Fig. 17 Fig. 16 Unscrew the V, rotate the head of 180 ° along its axis as shown in( Fig. 16), until the hole F is found. Fit the screw again(Fig. 16 - Fig.
Page 19 PART I: INSTALLATION ELECTRICAL CONNECTIONS Respect the basic safety rules. make sure of the connection to the earthing system. do not reverse the phase and neutral connections. fit a differential thermal magnet switch adequate for connection to the mains. ATTENTION: before executing the electrical connections, pay attention to turn the plant’s switch to OFF and be sure that the burner’s main switch is in 0 position (OFF) too.
Page 20 PART I: INSTALLATION Single stage burner connectors:  Fig. 23 - 7-poles connector Fig. 24 - Electric motor 3-pole connector Progressive burner connectors  Fig. 25 - 7-poles and 4-poles connectors Fig. 26 - Electric motor 3-poles connector BURNER IN LOW FLAME SIGNALLING LAMP LOW FLAME TIME METER FAN MOTOR HIGH FLAME TIME METER...
Page 21 PART I: INSTALLATION LOW FLAME TIME METER LINE FUSE FOR FAN MOTOR LINE FUSE AUXILIARY FUSE BURNER LINE SWITCH FAN MOTOR LINE SWITCH FAN MOTOR REMOTE CONTACTOR SIEMENS RWF40 MODULATION REGULATOR BURNER LOCKOUT SIGNALLING LAMP BURNER IN LOW FLAME SIGNALLING LAMP FAN MOTOR SD-0÷10V VOLTAGE SIGNAL...
Page 22 PART I: INSTALLATION Combustion head pressure curves vs. the gas flow rate Curves are referred to pressure= 0mbar in the combustion head! The curves referred to the gas pressure in the combustion head, depending on the gas flow rate, are referred to the burner in the com- bustion stage (percentage of residual O in the flues as shown in the “Recommended combustion values”...
Page 23 NG550 NGX550 Gas rate Stm LG550 L.P.G. L.P.G. rate Stm ATTENTION: before starting the burner up, be sure that the manual cutoff valves are open and check that the pres- sure upstream the gas train complies the value quoted on paragraph “Technical specifications”. Be sure that the mains switch is closed.
Page 24 PART I: INSTALLATION Keys Valve group Cover Gas proving system Control panel Blast tube To perform the adjustments, unscrew the fixing screws and remove the burner cover.
Page 25 PART I: INSTALLATION Startup Output The start-up heat output shall not exceed 120 kW (single stage burners) or 1/3 of nominal output (double-stage, progressive or fully modulating burners). In order to comply with these requirements, burners are provided with butterfly valve and/or slow-opening safety valve.
Page 26 PART I: INSTALLATION go on adjusting air and gas flow rates: check, continuosly, the flue gas analisys, as to avoid combustion with little air; dose the air according to the gas flow rate change following the steps quoted below; drive the burner to high flame stage, by means of the thermostat TAB (except single-stage models). acting on the pressure stabiliser of the valves group, adjust the gas flow rate in the VS T(VR) high flame stage as to meet the values requested by the boiler/utilisation:...
Page 27 PART I: INSTALLATION is towards the operator. As far as the reduced output operation, progressively move the combusiton head towards the “MIN” position, rotating clockwise the VRT screw (Fig. 33). The ID index shows how much the combustion head moved. Fig.
Page 28 PART I: INSTALLATION While the burner is operating at the maximum output, test the gas pressure on the pressure port of the minimum gas pressure  switch. Slowly close the manual cutoff valve (placed upstream the pressure switch, see gas train installation diagram), until the detected ...
Page 29 PART II: OPERATION PART II: OPERATION LIMITATIONS OF USE THE BURNER IS AN APPLIANCE DESIGNED AND CONSTRUCTED TO OPERATE ONLY AFTER BEING CORRECTLY CONNEC- TED TO A HEAT GENERATOR (E.G. BOILER, HOT AIR GENERATOR, FURNACE, ETC.), ANY OTHER USE IS TO BE CONSIDE- RED IMPROPER AND THEREFORE DANGEROUS.
Page 30 PART II: OPERATION Fig. 37 - Progressive burners only Keys Mains switch ON - OFF Lockout signalling lamp Reset button for control box Gas pressure switch consent signalling lamp High flame operation signalling lamp (or air damper opening during pre-purge stage) Low flame operation signalling lamp Ignition transformer in operation signalling light EV2 opening signalling lamp...
Page 31 PART II: OPERATION OPERATION .BEFORE STARTING UP THE BURNER, BE SURE THAT THE MAIN SWITCH IS ON AND THE MANUAL SHUTOFF VALVES ARE OPEN. READ CAREFULLY THE “WARNINGS” NOTES ON THIS MANUAL. Set to ON position the mains switch A on the burner electrical board front panel. ...
Page 32 PART III: MAINTENANCE PART III: MAINTENANCE At least once a year carry out the maintenance operations listed below. In the case of seasonal servicing, it is recommended to carry out the maintenance at the end of each heating season; in the case of continuous operation the maintenance is carried out every 6 months.
Page 33 PART III: MAINTENANCE Removing the filter in the MULTIBLOC DUNGS MB-DLE 415 - 420 B01 1” 1/2 - 2” Check the filter at least once a year!  Change the filter if the pressure difference between pressure connection 1 and 2 (Fig. 41-Fig. 42) p> 10 mbar. ...
Page 34 PART III: MAINTENANCE scratchbrush. LOCKED UNLOCKED Fig. 45 Fig. 46 Fig. 44 Fig. 47 Fig. 48 Fig. 49 Replacing the electrodes .To remove the electrodes, proceed as follows once the combustion head is removed (see “Removing and cleaning the combustion head”...
Page 35 PART III: MAINTENANCE Electrodes position setting ATTENTION: avoid the ignition and detection electrodes to contact metallic parts (blast tube, head, etc.), otherwise the boiler’s opera- tion would be compromised. Check the electrodes position after any intervention on the combustion head. The gap between the ignition electrode and the ground is 4 ÷...
Page 36 BURNER EXPLODED VIEW POSITION DESCRIPTION POSITION DESCRIPTION EXTENDED BLAST TUBE CONTROL BOX GENERATOR GASKET IGNITION TRANSFORMER THREADED GAS PIPE ACTUATOR FLANGE AIR PRESSURE SWITCH FLANGE OUTPUT CONTROLLER GAS PROVING SYSTEM PRINTED CIRCUIT BOARD COVER FIXING SCREW FRONT CONTROL PANEL AIR INTAKE FRONT CONTROL PANEL AIR INTAKE LIGHT...
Page 38 PART III: MAINTENANCE ELECTRICAL WIRING DIAGRAMS Wiring diagram 18-163 - Complete key LOW FLAME TIME METER HIGH FLAME TIME METER FLAME DETECTION ELECTRODE EV1,2 GAS ELECTRO-VALVES (OR VALVES GROUP) FAN MOTOR LINE FUSE LINE FUSE LINE FUSE AUXILIARY FUSE BURNER LINE SWITCH FAN MOTOR LINE SWITCH FAN MOTOR CONTACTOR BURNER IN HIGH FLAME INDICATOR LIGHT...
Page 46 APPENDIX SIEMENS LME11/21/22 CONTROL BOX The series of equipment LME.. is used for the starup and supervisione of START-UP PROGRAM 1- or 2- stage gas burners. The series LME.. is interchangeable with the series LGB.. and LMG.., all diagrams and accessories are interchangea- As far as the startup program, see its time diagram: ble.
Page 47 LME11 control sequence LME21 control sequence B´ B´ SB / R SB / R W / GP W / GP (LR) BV2 7101d05/0206 Control sequence Waiting time LME22 control sequence Purge time B´ TSA Ignition safety time SB / R W / GP Preignition time Postignition time...
Page 48 LME11 connection diagram Connection diagram Error message (alarm) Fuel valve PC control RESET EK2 Remote lockout reset button Flame signal Gas pressure switch Air pressure switch Load controller K2/1 K2/2 Fan motor Control thermostat/pressurestat R / W Safety limit thermostat Limit thermostat /pressure switch Ignition transformer 7101 24 /0606...
Page 49 CONTROL PROGRAM IN THE EVENT OF FAULT CONTROL BOX LOCKED If a fault occurs, all outputs will immediately be deactivated (in less In the event of lockout, the LME.. remains locked and the red signal lamp than 1s). (LED) will light up.The burner control can immediately be reset. This state After an interruption of power, a restart will be made with the full pro- is also mantained in the case fo mains failure.
Page 52 C.I.B. UNIGAS S.p.A. Via L.Galvani, 9 - 35011 Campodarsego (PD) - ITALY Tel. +39 049 9200944 - Fax +39 049 9200945/9201269 web site: www.cibunigas.it - e-mail: cibunigas@cibunigas.it Note: specifications and data subject to change. Errors and omissions exceptd.
Page 53 CIB UNIGAS 600V CONTROLLER USER’S MANUAL COD. M12925CA Rel 1.2 08/2014 SOFTWARE VERSION 1.0x code 80379 / Edition 01 - 06/2012 1 • INSTALLATION 2 • TECHNICAL SPECIFICATIONS Display 2x4 digit green, high display 10 and 7mm Keys 4 of mechanical type (Man/Aut, INC, DEC, F) •...
Page 54 3 • DESCRIPTION OF FACEPLATE Function indicators Indication of output states Indicates modes of operation OUT 1 (AL1); OUT 2 (OPEN); OUT 3 (CLOSED) MAN/AUTO = OFF (automatic control) ON (manual control) PV Display: Indication of process variable Error Indication: LO, HI, Sbr, Err PRE-HEATING = ON (running) LO= the value of process variable is <...
Page 55 5 • “EASY” PROGRAMMING and CONFIGURATION S4 Jumper THE EASY CONFIGURATION (Pro=0...12) IS SUITABLE FOR (CPU) VERSIONS WITH AL1/OPEN/CLOSED LEVEL 1 MENU P.V. / S.V. Process variable P.V. / S.V. (PV display) Work Setpoint (SV display) or control output value with controller in manual Password Local Setpoint...
Page 56 • InFo Display Information display Software version 0 No Error Self diagnostic 1 Lo error code 2 Hi 3 ERR 4 SBR OUTPUT 2 OUTPUT 3 SERIAL COMMUNICATION 0 = None 0 = None 0 = None +8 error OUT2 card recognition 1 = Relay 1 = Relay +16 error OUT3 card recognition...
Page 57 • InP Input settings S, R range 0...1750°C; error < 0.2% f.s. (t > 300°C) / for other sp. r 0 default (remote setpoint present) Def. remote setpoint range; error < 0.5% f.s. error < 0.2% f.s. (t > -150°C) range 44...1800°C;...
Page 58 • Out Output settings Select a1. r reference signal for alarm1 AL.1.r AL.x.r Variable to be compared PV (process variable) AL.1.t AL.x.t Direct (high limit) Absolute or Normal 2/3 for a1. t Inverse (low limit) relative to Symmetrical alarm 1 active setpoint (window) direct...
Page 59 • Prot Protection code Prot Display Modification SP, Hy.P, Hy.n, AL.2, AL.3, PoS, OuP, INF SP, Hy.P , Hy.n, AL.2, AL.3, PoS SP, Hy.P, Hy.n, AL.2, AL.3, PoS, OuP, INF SP, OuP, INF + 4 to disable InP, Out + 8 to disable CFG + 16 to disable SW “power-up - power down”...
Page 60 ld. 1 Function of LEDs Val. Function none MAN/AUTO controller ld. 2 HOLD Selftuning enabled Autotuning enabled ld. 3 Error present Softstart running Set point gradient running Pre-heating running + 16 LED flashes if active • Lin Custom linearization for main input Step 0 beginning Display limits s.
Page 61 7 • CONSENT FOR BURNER AL1 Obtain burner consent by configuring alarm 1 as inverse deviation with positive hysteresis Hy.P and negative hysteresis Hy.n 8 • PRE-HEATING FUNCTION Enable the pre-heating function by setting parameters GS.0, Ht.0, GS.1 other than zero. It consists of three phases that are activated sequentially at firing: - Ramp 0 phase Enabled by setting GS.0 >...
Page 62 9 • ADJUSTMENT WITH MOTORIZED VALVE In an adjustment process the adjustment valve has the function of varying fuel delivery (frequently corresponding to the thermal energy introduced into the process) in relation to the signal coming from the controller. For this purpose it is provided with an actuator able to modify its opening value, overcoming the resistances produced by the fluid passing inside it.
Page 63 Valve control modes With the controller in manual, the setting of parameter At.y ≥ 8 allows direct control of the valve open and close commands through the keyboard Increments and Decrements on the front seats. V0 - for floating valve without potentiometer Model V0 have similar behaviour: every manoeuvre request greater than the minimum impulse t.Lo is sent to the actuator by means of the OPEN/CLOSE relays;...
Page 64 11 • MANUAL TUNING A) Enter the setpoint at its working value. B) Set the proportional band at 0.1% (with on-off type setting). C) Switch to automatic and observe the behavior of the variable. It will be similar to that in the figure: Process D) The PID parameters are calculated s follows: Proportional band Variable...
Page 65 15 • ACCESSORIES • Interface for instrument configuration Kit for PC via the USB port (Windows environment) for GEFRAN instruments configuration: KIT PC USB / RS485 o TTL Lets you read or write all of the parameters • A single software for all models •...
Page 67 21/06/2012 rev. 0 Set-up for 600V RRR0-1-T73 regulator Set up for temperature probe Pt100 (ex Siemens QAE2120 130°C max.) The regulator comes out of the factory preset with the corresponding values of the Siemens RWF40.000 and RWF50.2x Verify wiring of the sensor Regulation of the set-point = 80 It can be modified by using arrows "up"...
Page 68 A1.r … A1.t 3 (operating mode AL1 =inverse-relative-normal) … rL.1 2 (AL1) rL.2 18 (open) rL.3 19 (close) A.ty 9 (type of servocontrol command) Ac.t 12 (servocontrol running time: SQN72.4…/STA12..=12; SQM40.265=30) t_Lo t_Hi t.on t.oF dE.b 0,1 (dead zone in % of end scale) 99 then push and keep pushed F until visualization of Hrd …...
Page 69 Set up for temperature probe Pt100 for high temperature (350°C max.) Verify wiring of the sensor Regulation of the set-point = 80 It can be modified by using arrows "up" and "down". By pushing F you go to parameters: Hy.P 10 (hysteresis positive for output 1 terminals 21-22 (ex Q13-Q14) Hy.n -5 (hysteresis negative for output 1 terminals 21-22 (ex Q13-Q14)
Page 70 A1.r … A1.t 3 (mode AL1 =inverse-relative-normal) … rL.1 2 (AL1) rL.2 18 (open) rL.3 19 (close) A.ty 9 (type of servocontrol command) Ac.t 12 (servocontrol running time: SQN72.4…/STA12..=12; SQM40.265=30) t_Lo t_Hi t.on t.oF dE.b 0,1 (dead zone in % of end scale) 99 then push and keep pushed F until visualization of Hrd …...
Page 71 Set up for pressure transmitter 2 wires signal 4÷20mA With pressure transmitters first we need to enable their power supply: remove the part as shown below, then, on the CPU unit, move the bridge from Pt100 to +Vt IN/OUT cards Signal selection on terminal 3 Verify wiring of the sensor...
Page 72 …. 44 (4÷20mA) … dP_S 2 (decimals num.) Transmitter 1,6bar 3bar 10bar 16bar 25bar 40bar Lo.S 0,00 0,00 0,00 0,00 0,00 0,00 min. sensor scale Hi.S 1,60 3,00 10,00 16,00 25,00 40,00 max sensor scale offset of input correction Lo.L 0,00 0,00 0,00...
Page 73 Set -up for thermocouples type Verify wiring of the sensor Regulation of the set-point = 80 It can be modified by using arrows "up" and "down". By pushing F you go to parameters: Hy.P 10 (hysteresis positive for output 1 terminals 21-22 (ex Q13-Q14) Hy.n -5 (hysteresis negative for output 1 terminals 21-22 (ex Q13-Q14) Keep pushing F until you see PASS, release F and through the arrows set 99, push F and visualize Pro...
Page 74 A1.r … A1.t 3 (mode AL1 =inverse-relative-normal) … rL.1 2 (AL1) rL.2 18 (open) rL.3 19 (close) A.ty 9 (type of servocontrol command) Ac.t 12 (servocontrol running time: SQN72.4…/STA12..=12; SQM40.265=30) t_Lo t_Hi t.on t.oF dE.b 0,1 (dead zone in % of end scale) 99 then push and keep pushed F until visualization of Hrd …...
Page 77 RWF50.2x & RWF50.3x User manual M12922CB Rel.1.0 07/2012...
Page 78 DEVICE INSTALLATION Install the device using the relevant tools as shown in the figure. To wire the device and sensors, follow the instructions on the burner wiring diagram.
Page 79 FRONT PANEL NAVIGATION MENU Parameter level Basic display User Level - Opr SP1 or SP2 (editable) dSP readable and editable through bin1 = 2 InP1 or y (only display) Parameter Level - PArA HYS1 , HYS2 , HYS3 Pb1, dt, rt, db, tt Next parameter Main navigation...
Page 80 RWF5 is preset good for 90% of applications. However, you can set or edit parameters as follow: Set-point: set or modification: When the burner is in stand-by, (safety loop open, that is terminals 3-4/T1-T2 on the 7 pole plug open) push the Enter button: on the lower display (green) Opr appears;...
Page 81 Setting the kind of sensor to be connected to the device:  push the Enter button: on the lower display (green) Opr appears. Using the up and down arrows find ConF. Push Enter to confirm.  Now on the green display the group InP appears. Push Enter and InP1 is displaied. Enter to confirm. ...
Page 82 ConF > Cntr Parameter Value Description CtYP 1 = 3-position controller (open-stop-close only RWF50.2) controller type 2 = continuative action controller (only RWF50.3) CACt 1 = heating controller control action 0 = cooling controller least value of the set-point limitation prevents entry of values outside the defined set-point range -1999..0..+9999 range...
Page 83 ConF > OutP (parameter under group only for RWF50.3) Parameter Value Description FnCt 1 = analog input 1 doubling with possibility to convert tipo di controllo (depending on par SiGn) 4 = modulation controller SiGn physical output signal (terminals A+, A-) type of output signal 0 = 0÷20mA 1 = 4÷20mA...
Page 84 Manual control :  in order to manual change the burner load, while firing keep pushing the ESC button for more than 5 s; on the lower green display Hand appears.  using the UP and DOWN arrows, the load varies. ...
Page 85 Electric connection : With 7 pins connector version With terminals version Matches terminals between RWF50.2 and RWF40.0x0...
Page 86 Parameters summarising for RWF50.2x: Conf Conf Navigation menù Inp1 Cntr diSP PArA Types of probe SEn1 OFF1 SCL1 SCH1 Unit dECP Pb. 1 dt HYS1 (*) HYS3 (*) SP1 (*) Siemens QAE2120… needless needless 80 350 (#) 80 °C Siemens QAM2120.. needless needless 80 350 (#)
Page 87 APPENDIX: PROBES CONNECTION To assure the utmost comfort, the control system needs reliable information, which can be obtained provided the sensors have been installed correctly. Sensors measure and transmit all variations encountered at their location. Measurement is taken based on design features (time constant) and according to specific operating conditions.With wiring run in raceways, the sheath (or pipe) containing the wires must be plugged at the sensor's terminal board so that currents of air cannot affect the sensor's measurements.
Page 88 Duct or pipe sensors Installing pressure sensors A - installation on ducts carrying fluids at max. temperature 80°C Installing temperature sensors For measuring outlet air: B - installation on ducts at temperature over 80°C and for refrigerants  after delivery fan or C - installation on ducts at high temperatures: ...
Page 89 Immersion or strap-on sensors Immersion probes installation Sensors must be installed on the stretch of pipe in which fluid circulates all the time. The rigid stem (sensing element doing the measuring) must be inserted by at least 75mm and must face the direction of flow. Recommended locations: on a bend or on a straight stretch of pipe but tilted by 45°...
Page 90 Duct pressure switches and sensors Installing differential pressure probes for air Basic principles Measuring static pressure(i.e. pressure exerted by air on pipe walls) A - Control a filter (clogging) Measuring dinamic pressure B - Control a fan (upstream/downstream) Kg/m , specific weight of air m/s, air speed 9.81 m/s gravity acceleration...
Page 91 Spare parts Description Code Modulator RWF50.2 (uscita a 3 punti - apri, fermo, chiudi) 2570148 2570149 Modulator RWF50.3 (uscita continua 0÷20mA, 4÷20mA, 0÷10V) Temperature probe Siemens QAE2120.010A (30÷130°C) 2560101 2560135 Temperature probe Siemens QAM2120.040 (-15÷+50°C) 2560188 Thermoresistor Pt1000 ø6mm L100mm (30÷130°C) Thermoresistor Pt1000 ø10mm L200mm (0÷350°C) 2560103 2560145...
Page 92 Note: Specifications and data subject to change. Errors and omissions excepted.
Page 93 KM3 Modulator USER MANUAL M12927CA Rel.1.0 10/2020...
Page 94 M12927CA MOUNTING...
Page 95 M12927CA DISPLAY Y AND KEY onsent to the burner is rned off OUTP UT LEDs ON (o out1) - Consen nt to the burne ▲ - (o out2) Output i ncrease ▼ - (o out3) Output d decrease ● - (ou ut4) Modulato r is powered o perator Mode...
Page 96 M12927CA CONNECTIONS DIAGRAM Probe connection: • PT1000/NTC/PTC: between terminal 3 and 2 • PT 100: between terminal 3 and 2 with terminal 1 • Passive pressure probe 0/4-20 mA: between terminal 4 ( + ) e 1 ( - ) Note: out4 must be activated ( IO4F must be setted to ON ) •...
Page 97 M12927CA SETPOINT AND HYSTERESIS CONFIGURATION (SP, AL1, HAL1 parameters) Push the button to enter into the setpoint configuration: SP setpoint value change: increase decrease 2480 Confirm / Next AL1 parameter value change: increase decrease Confirm / Next HAL1 HAL1 parameter value change: increase decrease Confirm / Next Back to the first parameter To return to normal mode, press the key for 3 seconds or wait the 10s timeout...
Page 98 M12927CA LIMITED ACCESS LEVEL Proceed as follows to change some parameters that are not visible in standard user mode: Press the key for Password = 20 3 seconds Access to parameter: Increase the displayed value Decrease the displayed value Confirm and go to next parameter Param Description...
Page 99 M12927CA...
Page 100 M12927CA CONFIGURATION How to access configuration level The configuration parameters are collected in various groups. Every group defines all parameters related with a specific function (e.g.: control, alarms, output functions). Push the button for more than 5 seconds. The upper display will show PASS while the lower display will show 0.
Page 101 M12927CA Safety output value -100... 100 io4.F I/O4 function selection on = Out4 will be ever ON (used as a transmitter power supply) ,out4 = Uscita 4 (Used as digital output 4), dG2c = Digital input 2 for contact closure, dG2U = Digital input 2 driven by 12... 24 diF1 Digital input 1 function oFF = Not used,...
Page 102 M12927CA windows SE.br = Sensor Break LodE = Deviation low alarm (relative) HidE = Deviation high alarm (relative) LHdo = Relative band alarm in alarm out of the band LHdi = Relative band alarm in alarm inside the band Alarm 1 function 0...
Page 103 M12927CA AL3 Group - alarm 3 parameters Param Description Values Liv N° Default AL3t Alarm 3 type nonE = Alarm not used nonE LoAb = Absolute low alarm HiAb = Absolute high alarm LHAo = Windows alarm in alarm outside the windows LHAI = Windows alarm in alarm inside the windows...
Page 104 M12927CA SELF Self tuning enabling no = The instrument does not perform the self- tuning YES = The instrument is performing the self- tuning Proportional band 1... 9999 (E.U.) page 7 Integral time 0 (oFF) ... 9999 (s) page 7 Derivative time 0 (oFF) ...
Page 105 M12927CA AAc = Alarm reset ASi = Alarm acknowledge chSP = Sequential set point selection St.by = Stand by mode. The first press puts the instrument in stand by mode while a second one puts the instrument in Auto mode. Str.t = Timer run/hold/reset P.run = Program run P.rES = Program reset...
Page 106 M12927CA con Group - Consumption parameters Param Description Values N° Default Co.tY Count type oFF = Not used 1 = Instantaneous power (kW) 2 = Power consumption (kW/h) 3 = Energy used during program execution. This measure starts from zero when a program runs end stops at the end of the program.
Page 107 M12927CA OPERATIVE MODES When the instrument is powered, it starts immediately to work according to the parameters values loaded in its memory. The instrument behaviour and its performance are governed by the value of the stored parameters. At power ON the instrument can start in one of the following mode depending on its configuration: Automatic Mode In Automatic mode the instrument drives automatically the control output according to the parameter value set and the set point/measured value.
Page 108 M12927CA Direct set point modification This function allows to modify rapidly the set point value selected by [83] A.SP (selection of the active Set point) or to the set point of the segment group (of the programmer) currently in progress. Push button.
Page 109 M12927CA ERROR MESSAGES The upper display shows the OVER-RANGE and UNDERRANGE conditions with the following indications: Over-range: Under-range The sensor break will be signalled as an out of range: Note: When an over-range or an under-range is detected, the alarms operate as in presence of the maximum or the minimum measurable value respectively.
Page 110 RWF55.5X & RWF55.6X User manual M12926CA Rel.0.1 10/2015...
Page 111 DEVICE INSTALLATION Fixing system Drilling dimensions:...
Page 112 FRONT PANEL Burner release Controlling element CLOSED/stage 1 Controlling element OPEN/stage 2 Operating mode 2-stage Actual value display (red) and parameter value USB led Comunication via interface Operating mode 2-stage Thermal shock protection Alarm function Decrease value Increase value ESC button Enter button...
Page 113 NAVIGATION MENU User Level - Opr Parameter level SP1 or SP2 (editable) dSP readable and editable through bin1 = 2 InP1 or y (only display) Basic display Parameter level - PArA Pb1, dt, rt, db, tt Heating controllerHYS1 , HYS2 , HYS3 Cooling controller HYS4 , HYS5 , HYS6...
Page 114 PID parameters set and modifications (PArA): Push Enter button, on the green display Opr appears; using the down arrow, scroll until group PArA is reached and push Enter. On the green display Pb1 e appears and on the red one the set parameter. Push is sequence the down or up arrow the menu is scrolled. Push Enter to select and the arrows to choose the desired value.
Page 115 Setting the kind of sensor to be connected to the device: Push the Enter button: on the lower display (green) Opr appears. Using the up and down arrows find ConF. Push Enter to confirm. Now on the green display the group InP appears. Push Enter and InP1 is displaied. Enter to confirm.You are inside InP1; the green display shows Sen1 (sensor type), while the red display shows the chosen sensor code Push Enter to enter the Sen1 parameter, then choose the desired sensor using the arrows.
Page 116 ConF > InP >InP2 Input 2 : this input can be used to specify an external setpoint or carry out setpoint shifting Parameter Value Description no function FnC2 external setpoint (display SPE) setpoint shifting (display dSP) angular positioning feedback SEn2 0 ÷...
Page 117 ConF > Cntr Here, the type of controller, operating action, setpoint limits and presettings for self-optimization are selected Parameter Value Description CtYP 3-position controller (open-stop-close) ontroller type continuative action controller (0 ÷10V 4 ÷ 20mA) heating controller CACt control action cooling controller minimum set-point scale -1999..0..+9999...
Page 118 Alarm functionAF The alarm function can be used to monitor the analog inputs. If the limit value is exceeded, multifunctional relay K6 (terminals 6N and 6P) is activated (depending on the switching characteristic) The alarm function can have different switching functions (lk1 to lk8) and can be set to a deviation from the active setpoint or to a fixed limit value Limit value AL relative to setpoint (x) Fixed limit value AL...
Page 119 ConF > AF Parameter Value Description FnCt Without function type of control monitored input Ik1 = InP1 monitored input Ik2 = InP1 monitored input Ik3 = InP1 monitored input Ik4 = InP1 monitored input Ik5 = InP1 monitored input Ik6 = InP1 monitored input Ik7 =...
Page 120 ConF > binF This setting decides on the use of the binary inputsD1, D2, DG Parameter Value Description without function bin1 binary imput terminals set-point changeover (SP1 / SP2) – D1) set-point shift (Opr > dSP parameter = value of set-point modify) 2 = l input alarm changeover of operating mode...
Page 121 ConF > IntF The controller can be integrated into a data network using an optional RS-485 (terminals R+ and R-) interface or an optional Profibus DP interface(only modelRWF55.6x terminalsC1-C2-C3-C4) Parameter Value Description bdrt 0 = 4800 baud baudrate 1 = 9600 baud 2 = 19200 baud 3 = 38400 baud Address in the data network...
Page 122 Display of software version : The software version is shown by pushing Enter + UP arrow on the upper display Weather-compensated setpoint shifting(climatic regulation): The RWF55 can be configured so that weather-compensated setpoint shifting is activated when an LG-Ni1000 outside sensor or a Pt1000 is connected (see parameter InP3).
Page 123 Modbus interface The tables that follow in this chapter specify the addresses of the readable and writable words that the customer is able to access. The customer may read and/or write the values using SCADA programs, PLCs, or similar. The entries under Access have the following meanings: R/O Read Only, value can only be read R/W Read/Write, value can be read and written The number of characters specified under Data type in the case of character strings includes the final \0.
Page 124 Configuration level Address Access Data type Signal reference Parameter 0x3426 Float SCL1 Start of display input 1 0x3428 Float SCH1 End of display input 1 0x3432 Float SCL2 Start value input 2 0x3434 Float SCH2 End value input 2 0x3486 Float Start of setpoint limitation 0x3488...
Page 125 Dati dell’apparecchio Address Access Data type Signal reference Parameter 0x8000 Char12 Software version 0x8006 Char14 VdN number Stato dell’apparecchio Address Access Data type Signal reference Parameter 0x0200 Word Outputs and states Bit 0 Output 1 Bit 1 Output 3 Bit 2 Output 2 Bit 3 Output 4...
Page 126 Electric connections : With 7 pins connector version With terminals version Corrispondences bornes entre RWF55.5x y RWF40.0x0Matches terminals betweenRWF55.5x and RWF40.0x0...
Page 127 Parameters summarising for RWF55.xx : ConF ConF Navigation menù Inp1 Cntr diSP PArA Types of probe SEn1 OFF1 Unit dECP Pb. 1 HYS1 (*) HYS3 (*) SP1 (*) ...
Page 128 APPENDIX: PROBES CONNECTION To assure the utmost comfort, the control system needs reliable information, which can be obtained provided the sensors have been installed correctly. Sensors measure and transmit all variations encountered at their location. Measurement is taken based on design features (time constant) and according to specific operating conditions.With wiring run in raceways, the sheath (or pipe) containing the wires must be plugged at the sensor's terminal board so that currents of air cannot affect the sensor's measurements.
Page 129 Duct or pipe sensors Installing pressure sensors Installing temperature sensors A - installation on ducts carrying fluids at max. temperature 80°C For measuring outlet air: B - installation on ducts at temperature over 80°C and for refrigerants "after delivery fan or C - installation on ducts at high temperatures : "after coil to be controlled, at a distance of at least 0,5 m ·"increase length of siphon...
Page 130 Immersion or strap-on sensors Immersion probes installation Sensors must be installed on the stretch of pipe in which fluid circula- tes all the time. The rigid stem (sensing element doing the measuring) must be inser- ted by at least 75mm and must face the direction of flow. Recommended locations: on a bend or on a straight stretch of pipe but tilted by 45°...
Page 131 Duct pressure switches and sensors Installing differential pressure probes for air Basic principles Measuring static pressure(i.e. pressure exerted by air on pipe walls) A - Control a filter (clogging) Measuring dinamic pressure B - Control a fan (upstream/downstream) Legend Kg/m3, specific weight of air m/s, air speed 9.81 m/s2 gravity acceleration mm C.A., dynamic pressure...
Page 133 Note: Specifications and data subject to change. Errors and omissions excepted.
