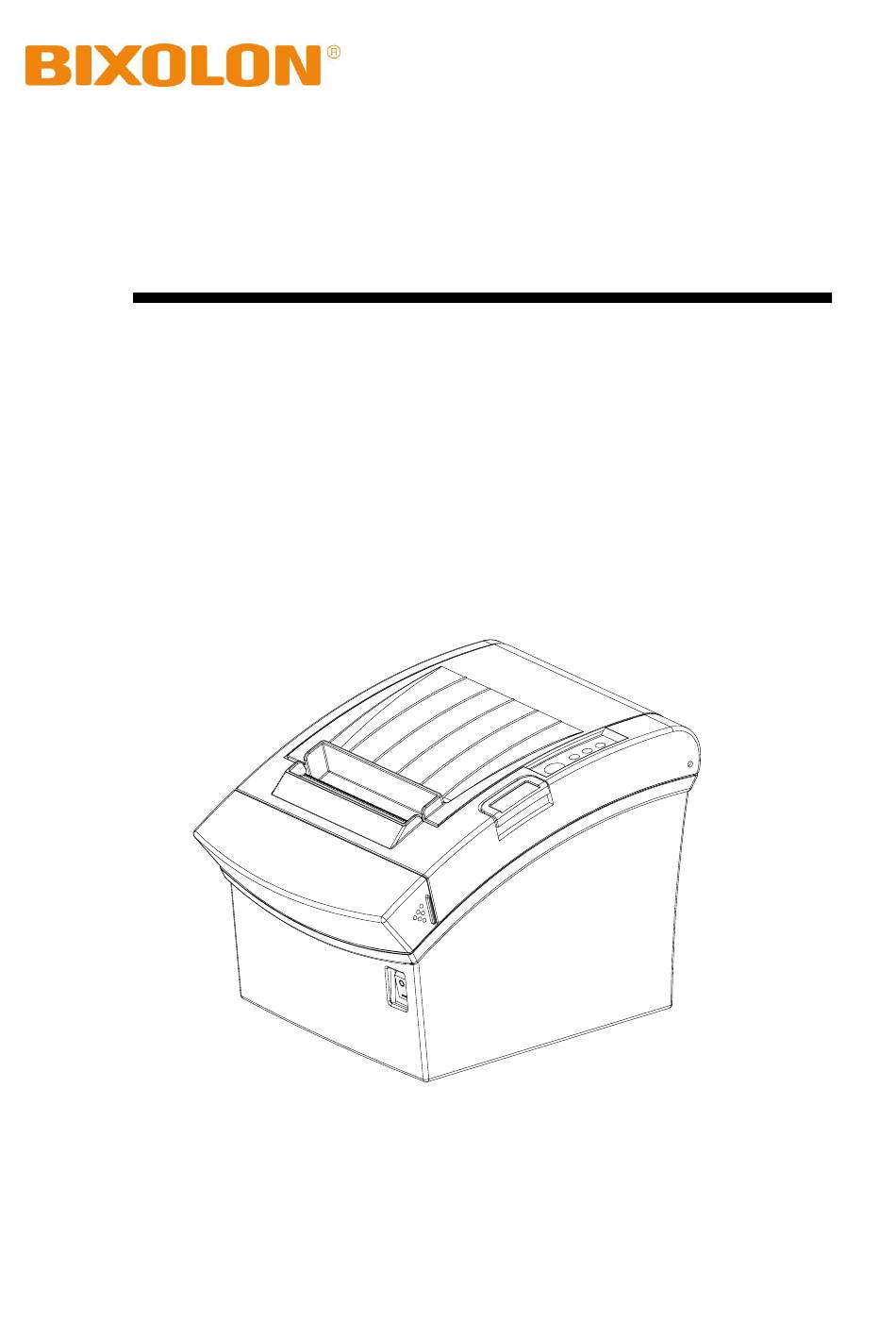

- Page 1 User’s Manual SRP-350/352III Thermal Printer Rev. 1.05 http://www.bixolon.com...
- Page 2 SRP-350/352III ■ Safety Precautions In using the present appliance, please keep the following safety regulations in order to prevent any hazard or material damage. WARNING Violating following instructions can cause serious injury or death. Do not plug several products in one multi-outlet. You must use only the supplied adapter.
- Page 3 SRP-350/352III CAUTION Violating following instructions can cause slight wound or damage the appliance. Keep the desiccant out of children’s reach. If you observe a strange smoke, odor or noise from the printer, unplug it before taking following measures. • If not, they may eat it. •...
- Page 4 SRP-350/352III ■ Warning - U.S.A This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
- Page 5 We do not guarantee the quality and AS for any damage to the printer by using fake supplies (or recycled ones). We at Bixolon Co., Ltd. constantly strive to improve product functions and quality. To do this, the specifications of our product and the contents of the manual may change without prior notice.
- Page 6 SRP-350/352III ■ Table of Contents 1. Setting up Printer ......................7 1-1 Unpacking ......................... 7 1-2 Connecting the Cables ..................... 8 1-2-1 USB Cable ....................8 1-2-2 Serial Cable(RS-232C) ................. 8 1-2-3 Parallel Cable(IEEE1284) ................10 1-2-4 Ethernet Cable .................... 11 1-3 Connecting Drawer ....................
- Page 7 SRP-350/352III 1. Setting up Printer 1-1 Unpacking Your printer box should include these items. If any items are damaged or missing, please contact your dealer for assistance. SRP-350/352III Cable Cover Paper Roll Installation Guide AC/DC Adaptor Power Cord - 7 - Rev.
- Page 8 SRP-350/352III 1-2 Connecting the Cables You can connect the host computer to the printer by using the interface cable fit for the specifications of the printer and the host computer (POS/ECR). You must use the drawer fit for the specifications of the printer. ※...
- Page 9 SRP-350/352III 1-2-2-2 Dual Interface Cash Drawer Serial Cable Connector Connector Connector Power Connector Pin No. Signal Name Direction Function Main Frame GND Frame Ground Output Data Transmission Input Data Reception This signal shows whether the host computer can receive data (hardware flow control). 1) MARK (Logic 1): The host computer can receive data.
- Page 10 SRP-350/352III 1-2-3 Parallel Cable(IEEE1284) Cash Drawer Connector Parallel Cable Connector Power Connector USB Connector Pin No. Source Compatibility Mode Nibble Mode Host nStrobe HostClk Host/Printer Data 0 (LSB) Host/Printer Data 1 Host/Printer Data 2 Host/Printer Data 3 Host/Printer Data 4 Host/Printer Data 5 Host/Printer...
- Page 11 SRP-350/352III 1-2-4 Ethernet Cable Ethernet Cash Drawer Connector Connector Power Connector USB Connector Signal Pin No. Color Function Name White Orange Transmit + Orange Transmit - White Green Receive + Blue White Blue Green Receive - White Brown Brown * For more detailed information, please refer to User Manual for Ethernet on our website. - 11 - Rev.
- Page 12 SRP-350/352III 1-3 Connecting Drawer Connect the cash drawer connecting cable to the cash drawer connection in the rear of the printer. ※ WARNING Use a cash drawer fit for printer specifications. Using an improper cash drawer may cause faults in the cash drawer and the printer. ※...
- Page 13 SRP-350/352III 1-4 Setting Dip Switches 1-4-1 Serial Interface • DIP Switch 1 Function Default Auto Line Feed Enabled Disabled Flow Control XON/XOFF DTR/DSR Data Length 7-bit 8-bit Parity Check Parity Selection EVEN Baud Rate Selection Refer to the following Table 1 (bps) •...
- Page 14 SRP-350/352III • Table 1 – Baud rate (bps) Selection Transmission Speed Default 2400 4800 9600 19200 9600 38400 57600 115200 • Table 2 – Print Density Selection Printing Density Default Level 1 Level 2 - Level 1 is default - Level 4 is darkest Level 3 Level 4 ※...
- Page 15 SRP-350/352III 1-5 Installing & Replacing Paper ※ CAUTION Be sure to use paper rolls that meet the specifications. Do not use paper rolls that have the paper glued to the core because the printer cannot detect the paper end correctly. 1-5-1 Make sure that the printer is not receiving data;...
- Page 16 SRP-350/352III 1-5-5 Be sure to note the correct direction that the paper comes off the roll. 1-5-6 Pull out a small amount of paper, as shown. Then close the cover. ※ CAUTION When closing the cover, press the center of printer cover firmly to prevent paper mis- loading.
- Page 17 SRP-350/352III 1-6 Recommended Papers - TF50KS-E (Paper Thickness: 65μm): Nippon Paper Industries Co., Ltd. - PD 160R (Paper Thickness: 75μm): New Oji Paper Mfg. Co., Ltd. - P350 (Paper Thickness: 62μm): Kansaki Specialty Paper, Inc. (USA) ※ CAUTION Use of papers other than those recommended above may damage TPH or degrade the printing quality and our company is not responsible for the damage caused by non- recommended papers.
- Page 18 SRP-350/352III 1-8 Removing Paper Jam 1-8-1 When a paper jam occurs, turn the printer off and then back on, open the cover and remove the jammed paper. ※ In case of a slight jam, it is possible to return the operating blade to the original position and open the cover only by turning the printer off and then back on.
- Page 19 SRP-350/352III 1-9 Using Printer Functions Control Panel ○ POWER When turning on the power, a green LED will be lit. ○ ERROR When an error occurs, a red LED will be lit. (e.g. no paper, cover ajar, etc.) ○ PAPER Red LED will be lit when the paper roll is running low.
- Page 20 SRP-350/352III 1-11 Connecting Power Supply ※ CAUTION When connecting or disconnecting the power supply from the printer, make sure that the power supply is not plugged into an electrical outlet. Otherwise you may damage the power supply or the printer. If the power supply’s rated voltage and your outlet’s voltage do not match, contact your dealer for assistance.
- Page 21 SRP-350/352III 2. Self-Test The self-test checks whether the printer has any problems. If the printer does not function properly, contact your dealer. The self-test checks the following: 2-1 Make sure paper roll has been installed properly. 2-2 Turn on the power while holding down the FEED button. The self-test begins. 2-3 The self-test prints the current printer status, which provides the control ROM version and the DIP switch setting.
- Page 22 SRP-350/352III 3. Hexadecimal Dumping This function allows experienced users to see exactly what data is coming to the printer. This can be useful in finding software problems. When you turn on the hexadecimal dump function, the printer prints all commands and data in hexadecimal format along with a guide section to help you find specific commands To use the hexadecimal dump function, follow these steps.
- Page 23 SRP-350/352III 4. Specifications Printing Method Thermal transfer printing SRP-350III: 180 dpi (7dots/mm) Dot Density SRP-352III: 203 dpi (8dots/mm) 3 inches 72 mm Printing Width 2 inches 48 mm 3 inches 79.5±0.5 mm Roll Width 2 inches 57.5±0.5 mm SRP-350III : 42 (Font A) ,56 (Font B), 56 (Font C) No.
- Page 24 SRP-350/352III 5. Appendix 5-1 Cleaning Printer Paper dust inside the printer may lower the print quality. In this case clean the printer as follows: 5-1-1 Open the printer cover and remove any paper. 5-1-2 Clean the print head with a cotton swab moistened with alcohol solvent. 5-1-3 Clean the paper sensor and paper roller with a cotton swab and a dry cloth.
