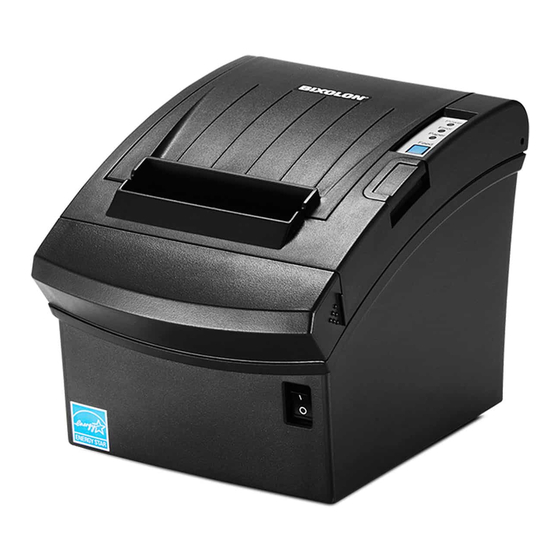

BIXOLON SRP-350 User Manual
  1. Manuals
  2. Brands
  3. BIXOLON Manuals
  4. Printer
  5. SRP-350 PlusA
  6. User manual

BIXOLON SRP-350 User Manual

Hide thumbs Also See for SRP-350:
Table of Contents

Advertisement

Quick Links

See also: Service Manual , User Manual
User's Manual
SRP-350/352III
Thermal Printer
Rev. 1.00
http://www.bixolon.com

Advertisement

Table of Contents
loading

Related Manuals for BIXOLON SRP-350

Summary of Contents for BIXOLON SRP-350

  • Page 1 User’s Manual SRP-350/352III Thermal Printer Rev. 1.00 http://www.bixolon.com...

  • Page 2: Safety Precautions

    SRP-350/352III ■ Safety Precautions In using the present appliance, please keep the following safety regulations in order to prevent any hazard or material damage. WARNING Violating following instructions can cause serious injury or death. Do not plug several products in one multi-outlet.
  • Page 3 SRP-350/352III CAUTION Violating following instructions can cause slight wound or damage the appliance. Keep the desiccant out of children’s reach. If you observe a strange smoke, odor or noise from the printer, unplug it before taking following • If not, they may eat it.

  • Page 4: Label Material

    SRP-350/352III ■ Warning - U.S.A This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 5 We do not guarantee the quality and AS for any damage to the printer by using fake supplies (or recycled ones). We at Bixolon Co., Ltd. constantly strive to improve product functions and quality. To do this, the specifications of our product and the contents of the manual may change without prior notice.

  • Page 6: Table Of Contents

    SRP-350/352III ■ Table of Contents 1. Setting up Printer ......................7 1-1 Unpacking ......................... 7 1-2 Connecting the Cables ..................... 8 1-2-1 USB Cable ....................8 1-2-2 Serial Cable(RS-232C) ................. 8 1-2-3 Parallel Cable(IEEE1284) ................10 1-2-4 Ethernet Cable .................... 11 1-3 Connecting Drawer ....................

  • Page 7: Setting Up Printer

    SRP-350/352III 1. Setting up Printer 1-1 Unpacking Your printer box should include these items. If any items are damaged or missing, please contact your dealer for assistance. SRP-350/352III Cable Cover Paper Roll Installation Guide AC/DC Adaptor Power Cord - 7 -...

  • Page 8: Connecting The Cables

    SRP-350/352III 1-2 Connecting the Cables You can connect the host computer to the printer by using the interface cable fit for the specifications of the printer and the host computer (POS/ECR). You must use the drawer fit for the specifications of the printer.
  • Page 9 SRP-350/352III 1-2-2-2 Dual Interface Cash Drawer Serial Cable Connector Connector Connector Power Connector Pin No. Signal Name Direction Function Main Frame GND Frame Ground Output Data Transmission Input Data Reception This signal shows whether the host computer can receive data (hardware flow control).

  • Page 10: Parallel Cable(Ieee1284)

    SRP-350/352III 1-2-3 Parallel Cable(IEEE1284) Cash Drawer Connector Parallel Cable Connector Power Connector USB Connector Pin No. Source Compatibility Mode Nibble Mode Host nStrobe HostClk Host/Printer Data 0 (LSB) Host/Printer Data 1 Host/Printer Data 2 Host/Printer Data 3 Host/Printer Data 4...

  • Page 11: Ethernet Cable

    SRP-350/352III 1-2-4 Ethernet Cable Ethernet Cash Drawer Connector Connector Power Connector USB Connector Signal Pin No. Color Function Name White Orange Transmit + Orange Transmit - White Green Receive + Blue White Blue Green Receive - White Brown Brown * For more detailed information, please refer to User Manual for Ethernet on our website.

  • Page 12: Connecting Drawer

    SRP-350/352III 1-3 Connecting Drawer Connect the cash drawer connecting cable to the cash drawer connection in the rear of the printer. ※ Warning Use a cash drawer fit for printer specifications. Using an improper cash drawer may cause faults in the cash drawer and the printer.

  • Page 13: Setting Dip Switches

    SRP-350/352III 1-4 Setting Dip Switches 1-4-1 Serial Interface • DIP Switch 1 Function Default Auto Line Feed Enabled Disabled Flow Control XON/XOFF DTR/DSR Data Length 7-bit 8-bit Parity Check Parity Selection EVEN Baud Rate Selection Refer to the following Table 1 (bps) •...
  • Page 14 SRP-350/352III • Table 1 – Baud rate (bps) Selection Transmission Speed Default 2400 4800 9600 19200 9600 38400 57600 115200 • Table 2 – Print Density Selection Printing Density Default Level 1 Level 2 - Level 1 is default - Level 4 is darkest...

  • Page 15: Installing & Replacing Paper

    SRP-350/352III 1-5 Installing & Replacing Paper ※ Caution Be sure to use paper rolls that meet the specifications. Do not use paper rolls that have the paper glued to the core because the printer cannot detect the paper end correctly.
  • Page 16 SRP-350/352III 1-5-5 Be sure to note the correct direction that the paper comes off the roll. 1-5-6 Pull out a small amount of paper, as shown. Then close the cover. ※ Caution When closing the cover, press the center of printer cover firmly to prevent paper mis- loading.

  • Page 17: Removing Paper Jam

    SRP-350/352III 1-6 Removing Paper Jam 1-6-1 When a paper jam occurs, turn the printer off and then back on, open the cover and remove the jammed paper. ※ In case of a slight jam, it is possible to return the operating blade to the original position and open the cover only by turning the printer off and then back on.

  • Page 18: Adjusting Location Of Paper Near-End Sensor

    SRP-350/352III Series each have near-end sensors that give an alarm when the paper has almost run out. SRP-350/352III Series may be locked to a wall or desk. At the time, the location of the paper near-end sensor must be adjusted.

  • Page 19: Connecting A Computer

    SRP-350/352III 1-9 Connecting a Computer Please connect a computer by using the cable provided. 1-9-1 Plug the cable connector securely into the printer’s interface connector. 1-9-2 Tighten the screws on the cable connector. 1-9-3 Attach the other end of the parallel cable to the computer.

  • Page 20: Self-Test

    SRP-350/352III 2. Self-Test The self-test checks whether the printer has any problems. If the printer does not function properly, contact your dealer. The self-test checks the following: 2-1 Make sure paper roll has been installed properly. 2-2 Turn on the power while holding down the FEED button. The self-test begins.

  • Page 21: Hexadecimal Dumping

    SRP-350/352III 3. Hexadecimal Dumping This function allows experienced users to see exactly what data is coming to the printer. This can be useful in finding software problems. When you turn on the hexadecimal dump function, the printer prints all commands and data in hexadecimal format along with a guide section to help you find specific commands To use the hexadecimal dump function, follow these steps.

  • Page 22: Specifications

    SRP-350/352III 4. Specifications Printing Method Thermal transfer printing SRP-350III: 180 dpi (7dots/mm) Dot Density SRP-352III: 203 dpi (8dots/mm) Printing Width 72 mm Roll Width 79.5±0.5 mm SRP-350III : 42 (Font A) ,56 (Font B), 56 (Font C) No. of Characters per Line (Default Value)

  • Page 23: Appendix

    SRP-350/352III 5. Appendix 5-1 Cleaning Printer Paper dust inside the printer may lower the print quality. In this case clean the printer as follows: 5-1-1 Open the printer cover and remove any paper. 5-1-2 Clean the print head with a cotton swab moistened with alcohol solvent.
