iLight SCMR1220 Installation Manual

Installation Guide
SCMR1220
12 x 20A Feed Through Relay Controller
Mounting & Installation
SCMR1220 must be mounted in a suitable enclosure to provide regulatory
protection from electric shock hazard as well as protecting the iCANnet
data network from tampering that could lead to reduced network security.
Ensure selected enclosure provides adequate cooling ventilation.

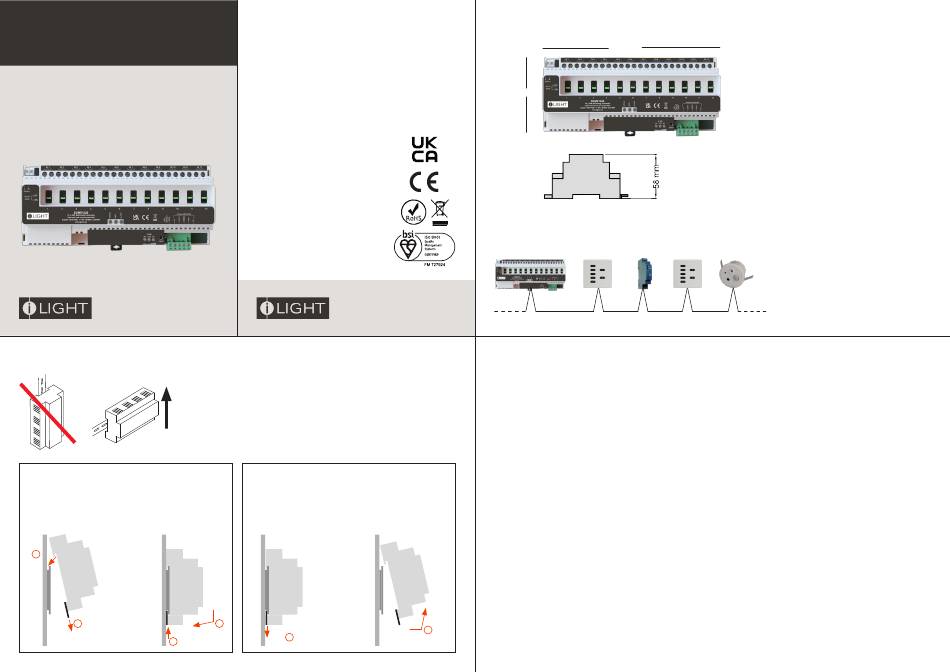

Fixing to DIN rail
1. Fix top clips over DIN rail.
2. Pull down bottom clip using screwdriver.
3. Close module towards DIN rail.
4. Push up bottom clip to fix securely to DIN rail.
1
2
4
iLight
Usk House, Lakeside
Llantarnam Park,
Cwmbran,
NP44 3HD, UK
e: enquiries@iLight.co.uk
www.iLight.co.uk
EU Authorised Representative
Cooper Lighting Netherlands B.V.
High Tech Campus
HTC 48
Eindhoven
5656 AE
E&OE. iLight reserve the right to make
changes to the equipment without
prior notice.
© Signify Holding
Doc No: 9850-001116-00
Removing from DIN rail
1. Pull down bottom clip with screwdriver.
2. Lift module away from DIN rail.
3
1
Dimensions
90mm
Typical Schematic
Control Plate
SCMR1220
iCANnet
Electrical Data
Supply: 100 - 277V AC, 50/60 Hz
Maximum load: 192 Amps @ 50ºc
Maximum switching channel current: 20 Amp
Load Protection: Provided by installer
Control Supply: N/A
(Device does not supply current to iCANnet
Terminal Sizes (Capacity per terminal):
Supply/Load screw terminals: 2x1mm
Input screw terminals: 0.2mm
iCANnet™ input/output screw terminals: 5 x 1mm
Terminal Torque Settings:
Supply, input, iCANnet terminals: 0.5Nm
Load (Relay) terminals: 2Nm
Input Cable Length: 30m MAX
Installation: Installation must be carried out by a suitably
qualified electrician.
Load Data
Relay outputs: Volt free contacts, capable of switching
inductive, capacitive and resistive loads
12 x 20A relays, 100 - 277V AC, 50/60 Hz, volt free
Note: Any phase on any output
Inrush current:
Inrush current I (150 µs) < 600 A
peak
Inrush current I (230 µs) < 480 A
peak
2
Inrush current I (600 µs) < 300 A
peak
212mm
15V PSU Control Plate
Network Sensor
Control Data
Control: Via iLight network connection
Recommended Network Cable: iCANnet
Programming: Via Device Editor software or latest iLight
commissioning tool
)
TM
Mechanical Data
or 1x 2.5mm Weight: 0.8kg
2 2
2 to 1mm 2 Operating temperature: +2ºC to +50ºC
Note: All enclosures must be adequately ventilated
2
Max storage temperature: +60ºC
Humidity: +5 to 95% non-condensing
Environmental protection: IP20
Network Cable
TM
