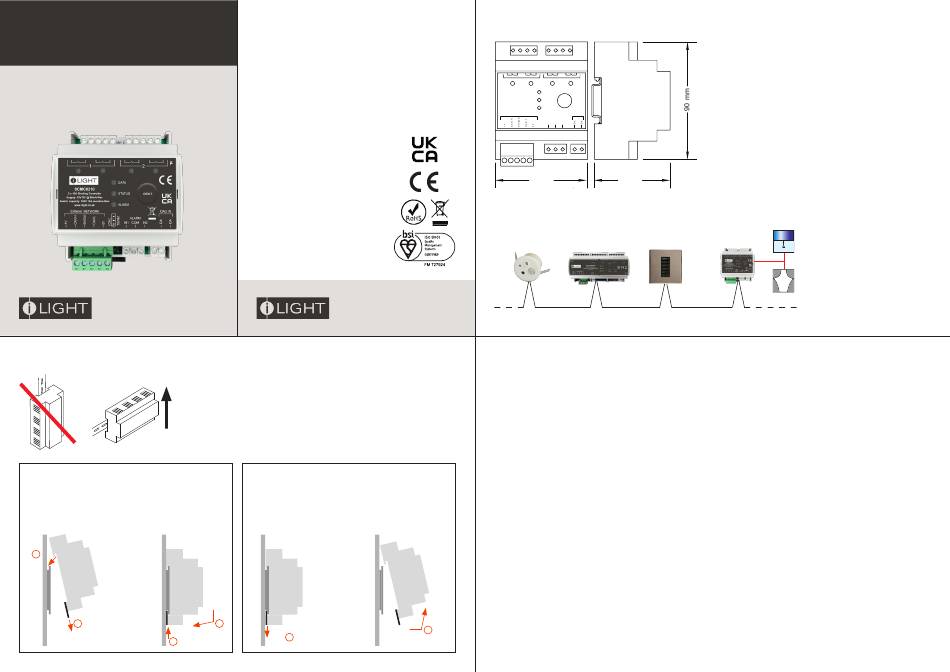

iLight SCMC0210 Installation Manual

Installation Guide
SCMC0210
2 Channel 10 Amp Shading Controller
Mounting & Installation
SCMC0210 must be mounted in a suitable enclosure to provide regulatory
protection from electric shock hazard as well as protecting the iCANnet
data network from tampering that could lead to reduced network security.
Ensure selected enclosure provides adequate cooling ventilation.
Fixing to DIN rail
1. Fix top clips over DIN rail.
2. Pull down bottom clip using screwdriver.
3. Close module towards DIN rail.
4. Push up bottom clip to fix securely to DIN rail.
1
2
4
iLight
Usk House, Lakeside
Llantarnam Park,
Cwmbran,
NP44 3HD, UK
t: +44 (0)1923 495495
e: enquiries@iLight.co.uk
www.iLight.co.uk
EU Authorised Representative
Cooper Lighting Netherlands B.V.
High Tech Campus
HTC 48
Eindhoven
5656 AE
E&OE. iLight reserve the right to make
changes to the equipment without
prior notice.
© Signify Holding
Doc No: 9850-000822-02
Removing from DIN rail
1. Pull down bottom clip with screwdriver.
2. Lift module away from DIN rail.
3
1
Dimensions
DATA
SCMC0210
STATUS IDENT
ALARM
iCANnet Network DALI
ALARM
IN1 COM IN2
73 mm
Typical Schematic
Lighting Source
Network Sensor
Controller
Technical Data
Maximum Load: 20 Amp @ 50ºc
Maximum Channel Current: 10 Amp
Load Protection: Provided by installer.
Control Supply: 90mA quiescent current. (Recommended: 200mA 15V DC Supply)
Terminal Sizes: Channel screw terminals: 8 x 2.5mm
iCANnet™ input/output screw terminals: 5 x 1mm
DALI input screw terminals: 2 x 1.5mm
Alarm input screw terminals: 3 x 2.5mm
Installation: Installation must be carried out by a suitably qualified electrician.
Load Data: 2 x 10A relay pairs, 3 wire shade control - 120 – 250V AC +/-10%, 50/60 Hz
3 wire shade control - Volt free (No minimum load)
DC switching - Max 24V DC - 10A
Control: Via iLight network connection or a compatible DALI controller
(0% = RLY1 & 2 = OFF, 1-50% = RLY2 ON, 51-100% = RLY1 ON).
Recommended Network Cable: iCANnet
Programming: Via Device Editor software.
Weight: 0.25kg
Operating temperature: +2ºC to +50ºC
Max storage temperature: +60ºC
Humidity: +5 to 95% non-condensing
2
Environmental protection: IP20
60 mm
Control Plate SCMC0210
iCANnet
2
2
2
2
Network Cable
TM
