Installation Guide

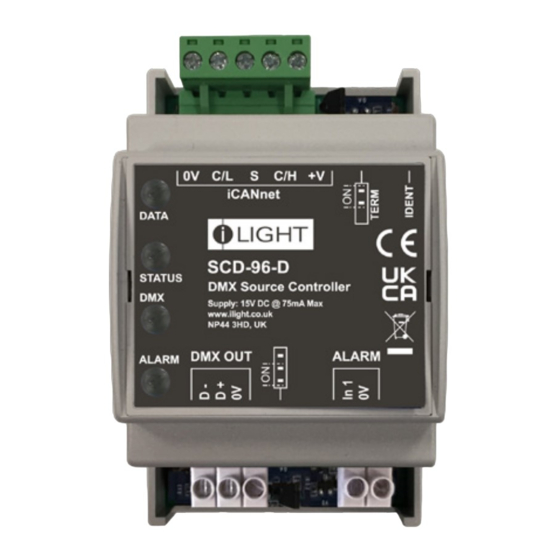

SCD-96-D
96 Channel DMX Source Controller

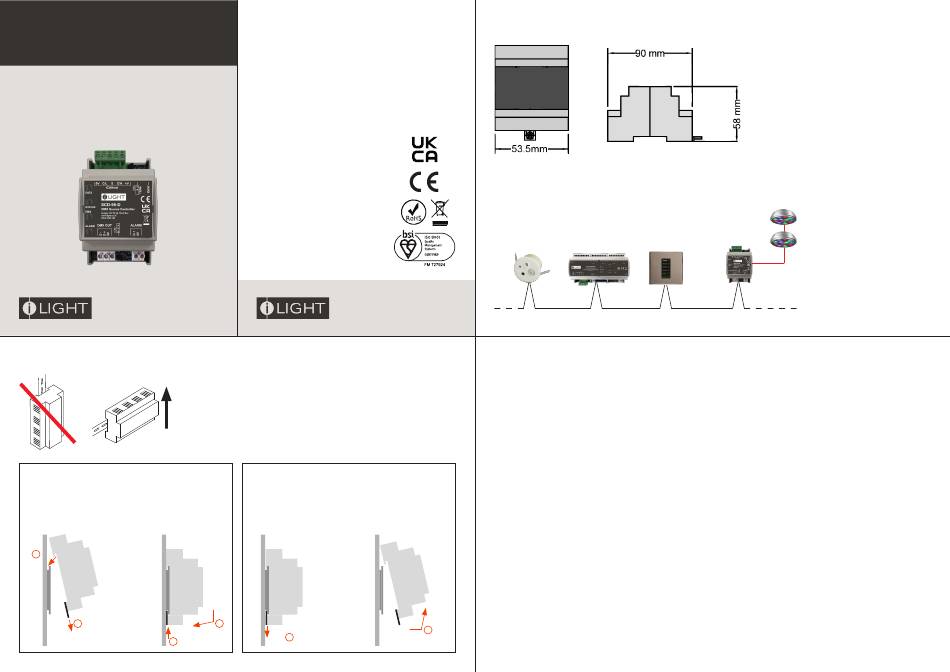

Mounting & Installation
SCD-96-D must be mounted in a suitable enclosure to provide regulatory
protection from electric shock hazard as well as protecting the iCANnet
data network from tampering that could lead to reduced network security.
Ensure selected enclosure provides adequate cooling ventilation.
Fixing to DIN rail
1. Fix top clips over DIN rail.
2. Pull down bottom clip using screwdriver.
3. Close module towards DIN rail.
4. Push up bottom clip to fix securely to DIN rail.
1
2
4
iLight
Usk House, Lakeside
Llantarnam Park,
Cwmbran,
NP44 3HD, UK
t: +44 (0)1923 495495
e: enquiries@iLight.co.uk
www.iLight.co.uk
EU Authorised Representative
Cooper Lighting Netherlands B.V.
High Tech Campus
HTC 48
Eindhoven
5656 AE
E&OE. iLight reserve the right to make
changes to the equipment without
prior notice.
© Signify Holding
Doc No: 9850-000857-01
Removing from DIN rail
1. Pull down bottom clip with screwdriver.
2. Lift module away from DIN rail.
3
1
Dimensions
Typical Schematic
Lighting Source
Network Sensor
Controller
Technical Data
Electrical Data
Supply: 15VDC (12-18V) via iCANnet
Network termination: Screw terminals within two part connectors
Load Types: DMX controlled loads (96 DMX addresses total)
32 connected devices maximum, for more devices utilise DMX Splitter/Repeater or employ multiple SCD-96-Ds
Terminal Sizes:
iCANnet
TM
network cable size: 5 x 1mm²
DMX output: 3 x 1mm²
Alarm Input: 2 x 1mm
2
Memory: FLASH memory to be able to upgrade software
EEPROM for 128 scene memory
Fade Times: 0.1 seconds to 60 minutes
Control Connection:
iCANnet
TM
network x 2 (Suitable for iCANnet Cable)
CAN termination link
DMX terminals (DMX-512A)
DMX termination link
Alarm input x 1
Mechanical Data
Weight: 0.1 kg (0.22lb)
Operating temperature: 0ºC to +50ºC
Max storage temperature: +60ºC
2
Humidity: +5 to 95% non-condensing
Environmental protection: IP20
SCD-96-D
Control Plate
iCANnet
TM
