Installation Guide

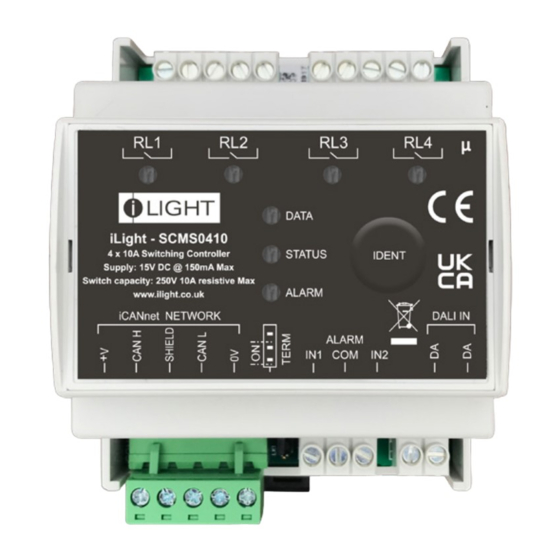

SCMS0410
4 Channel x 10 Amp Switching Controller
Mounting & Installation
SCMS0410 must be mounted in a suitable enclosure to provide regulatory
protection from electric shock hazard as well as protecting the iCANnet
data network from tampering that could lead to reduced network security.
Ensure selected enclosure provides adequate cooling ventilation.

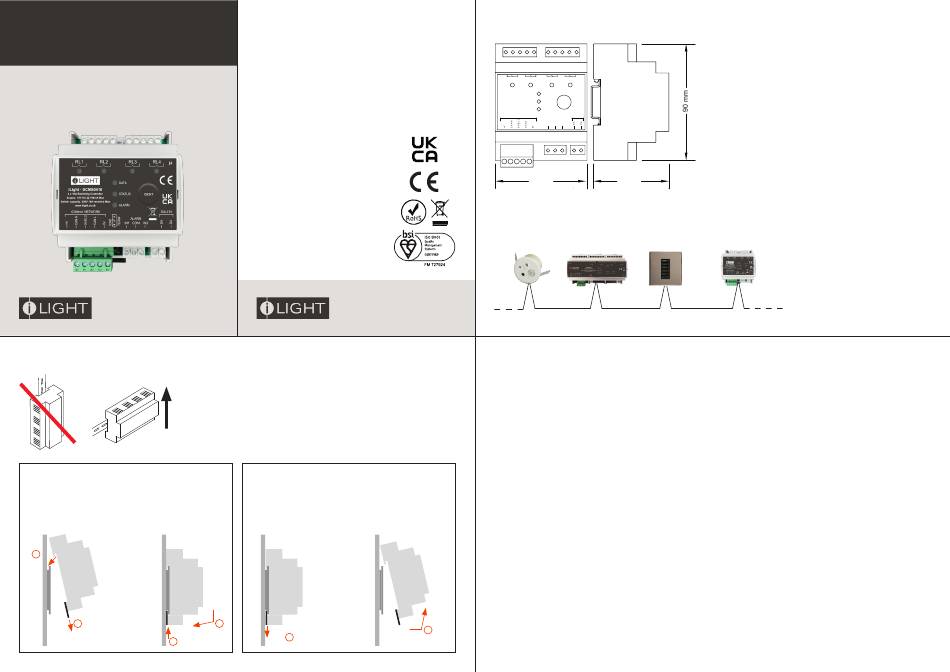

Fixing to DIN rail
1. Fix top clips over DIN rail.
2. Pull down bottom clip using screwdriver.
3. Close module towards DIN rail.
4. Push up bottom clip to fix securely to DIN rail.
1
2
4
iLight
Usk House, Lakeside
Llantarnam Park,
Cwmbran,
NP44 3HD, UK
t: +44 (0)1923 495495
e: enquiries@iLight.co.uk
www.iLight.co.uk
EU Authorised Representative
Cooper Lighting Netherlands B.V.
High Tech Campus
HTC 48
Eindhoven
5656 AE
E&OE. iLight reserve the right to make
changes to the equipment without
prior notice.
© Signify Holding
Doc No: 9850-000821-01
Removing from DIN rail
1. Pull down bottom clip with screwdriver.
2. Lift module away from DIN rail.
3
1
Dimensions
DATA
SCMS0410
STATUS
IDENT
ALARM
iCANnet Network
DALI
ALARM
IN1 COM IN2
73 mm
Typical Schematic
Lighting Source
Network Sensor
Controller
Technical Data
Maximum Load: 40 Amp @ 50ºc
Maximum Channel Current: 10 Amp
Load Protection: Provided by installer
Control Supply: 150mA quiescent current. (Recommended: 200mA 15V DC Supply)
Terminal Sizes:
Channel screw terminals: 8 x 2.5mm
iCANnet™ input/output screw terminals: 5 x 1mm
DALI input screw terminals: 2 x 1.5mm
Alarm input screw terminals: 3 x 2.5mm
Installation: Installation must be carried out by a suitably qualified electrician
Load Data:
Load types - this unit is designed to work with most lighting load types. Please consult with the iLight
help desk for guidance on true load calculations. Care should be taken when specifying discharge
lighting sources with power factor capacitors.
4 x 10A relays, 120 – 250V AC +/-10%, 50/60 Hz, Volt free
DC switching - Max 24V DC - 10A
Control: Via iLight network connection or a compatible DALI controller
Recommended Network Cable: iCANnet
Programming: Via Device Editor software
Weight: 0.25kg
Operating temperature: +2ºC to +50ºC
Max storage temperature: +60ºC
Humidity: +5 to 95% non-condensing
2
Environmental protection: IP20
60 mm
Control Plate
SCMS0410
iCANnet
2
2
2
2
Network Cable
TM
