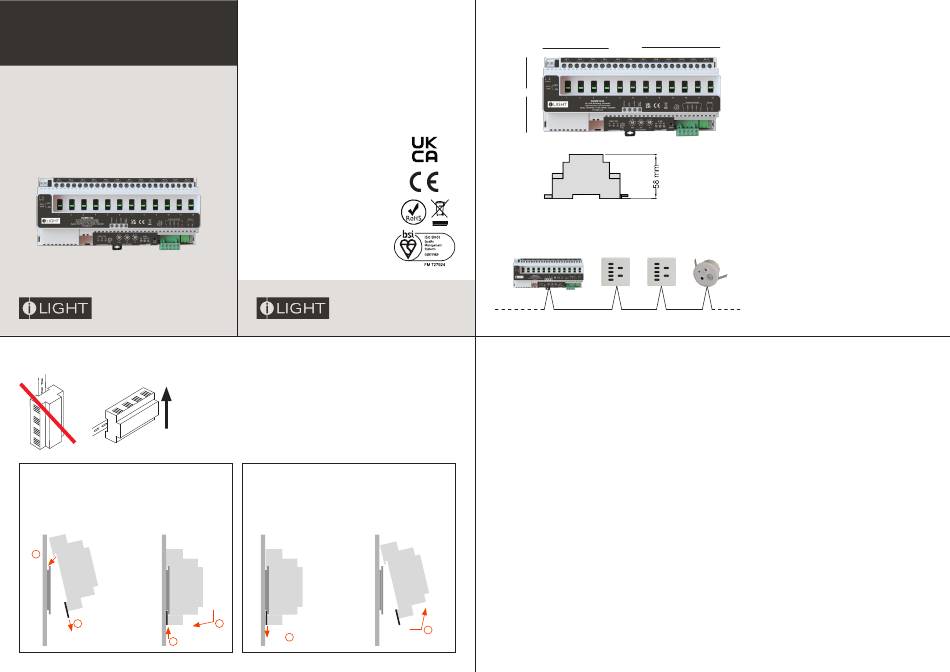

iLight SCMR1232 Installation Manual

Installation Guide
SCMR1232
12 x 32A Relay Controller
Mounting & Installation
SCMR1232 must be mounted in a suitable enclosure to provide regulatory
protection from electric shock hazard as well as protecting the iCANnet
data network from tampering that could lead to reduced network security.
Ensure selected enclosure provides adequate cooling ventilation.
Fixing to DIN rail
1. Fix top clips over DIN rail.
2. Pull down bottom clip using screwdriver.
3. Close module towards DIN rail.
4. Push up bottom clip to fix securely to DIN rail.
1
2
4
iLight
Usk House, Lakeside
Llantarnam Park,
Cwmbran,
NP44 3HD, UK
t: +44 (0)1923 495495
e: enquiries@iLight.co.uk
www.iLight.co.uk
EU Authorised Representative
Cooper Lighting Netherlands B.V.
High Tech Campus
HTC 48
Eindhoven
5656 AE
E&OE. iLight reserve the right to make
changes to the equipment without
prior notice.
© Signify Holding
Doc No: 9850-000782-03
Removing from DIN rail
1. Pull down bottom clip with screwdriver.
2. Lift module away from DIN rail.
3
1
Dimensions
90mm
Typical Schematic
Control Plate
SCMR1232
iCANnet
Technical Data
Electrical & Mechanical
Control: Via iLight network connection
iCANnet™ output current: 100mA Max @ nominal 15V
Rating: 32A* per channel @ 40ºC
Protection: Provided by installer
Output channel current: Maximum 12 x 32A*
(Total unit load not to exceed 192A)
Note: Fully loaded channels should be spaced every other channel to prevent heat buildup
Relay outputs: Volt free capable of switching inductive and resistive loads
Terminal Sizes: Loads - maximum cable size: 1 x 10mm
Ambient temperature: 2°C – 40°C
Relative humidity: 5% - 95% max, non-condensing
IP rating: IP20
Installation: Installation must be carried out by a suitably qualified electrician and installed
in a suitable DINrail enclosure.
Dimensions: 212mm (w) x 90mm (h) x 58mm (d)
Weight: 0.8kg
Software
For programming SCMR1232, Device Editor V2.11.1 is required
(Packaged with iCANsoft V3.1.7 or later)
2
* 32A resistive per channel @ 40 0 C
212mm
Control Plate Network Sensor
per circuit
2
- 20A capacitive per channel @ 40 0 C
