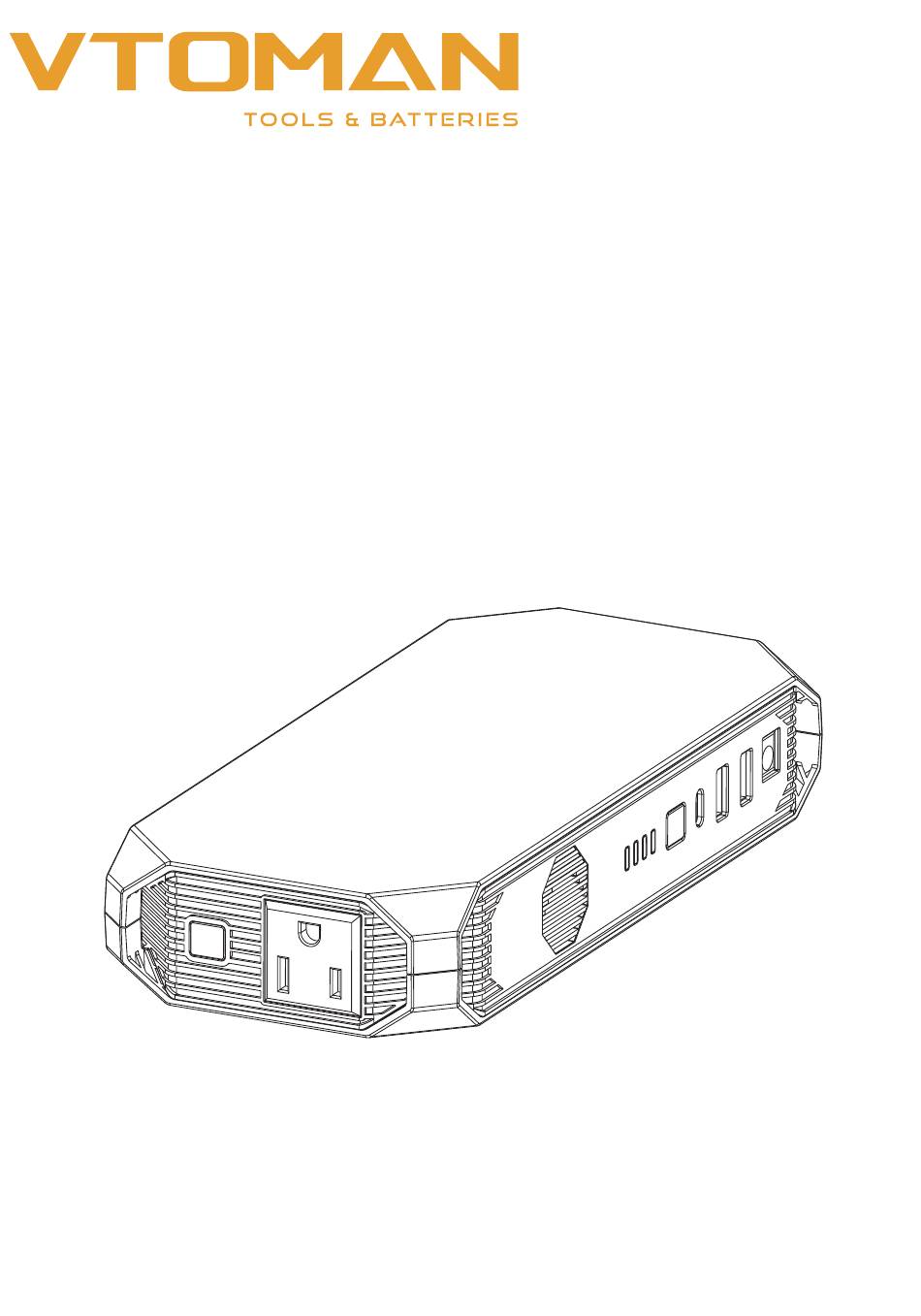

- Page 1 User Manual Jump Starter Model No.: Epower-183...
- Page 2 TABLE OF CONTENTS WELCOME PACKAGE & CONTENTS PRODUCT PARTS AND FUNCTIONS DESCRIPTION BASIC OPERATION PRODUCT HIGHLIGHTS JUMP STARTING A VEHICLE CHARGING THE DIVICES DC OUTPUT CHARGING THE V12 SPECIFICATIONS TROUBLESHOOTING WARNING WARRANTY AND SUPPORT...
- Page 3 Please charge it first! While reading the manual, you could start to charge your V12. Warning! This device can be applied to cars and equipment with 12V batteries. It can be dangerous to be used with other types...
- Page 4 PACKAGE & CONTENTS Host 12V Jumper Cable User Manual Jump Starter Model No.: Epower-183 User Manual USB-A to USB-C Cable Carring Bag PAGE 2...
- Page 5 PRODUCT PARTS AND FUNCTIONS DESCRIPTION ① ⑨ ⑧ ⑦ ⑥ ⑤ ④ ② ③ 1. 12V Jump Start Output 2. AC Power Button 3. AC Output Port (100W, 110V-60HZ) 4. Power Indicators 5. Power Button 6. USB-C In Port (18W Max) 7.
- Page 6 BASIC OPERATION Indicators Press the switch to check the charge level of V12: Short Press Indicator Unlit 1 solid 2 solid 3 solid 4 solid 100% V12 Power level The V12 will automatically power itself off to save power when not in use.
- Page 7 PRODUCT HIGHLIGHTS Super 3500A Peak Current: VTOMAN V12 car battery charger jump starter with the super 3500A peak current. Jump starter can easy to jump start (up to 10l gas and 8l diesel) 12v cars less than 1 to 2 seconds in extreme weather from -4℉~131℉(-20℃~55℃).
- Page 8 ABS material, and all-copper material, which is durable and has good insulation. 24 Months Long Standby Time: V12 portable jump starter will automatic shutdown after 10 seconds jump starters & battery chargers will automatically shout down to save power standby for 24 months.
- Page 9 JUMP STARTING A VEHICLE How to Start a Vehicle Make sure this unit is over 50% charged (check the battery indicator≥2 bars). If this unit has not been used in more than two months, you should charge it first. How to Use the Smart Cable 1.First, plug the blue connector of the intelligent battery clamp into the main unit, ensuring that the clamp's indicator light is off.
- Page 10 JUMP STARTING A VEHICLE Solid green light: This indicates that the connection is correct and powered on. You can now proceed with the emergency jump-start. Solid red light: This indicates that the positive and negative terminals are incorrectly connected. Please reconnect them correctly, and once the green light turns solid, proceed with the emergency jump-start.
- Page 11 How to charge laptops (via the AC output port): Insert the AC power plug of the laptop (or other electronic devices with a rated power of 100W and below) into V12’s AC output port. Press the AC power switch. The indicator of the battery will light up when charging.
- Page 12 2.Short press the power button to turn V12 on. It is now ready to power your devices. TIPS & TRICKS Be sure to check the power of the device you are trying to power as this port is limited to a 10A draw.Anything above that will cause...
- Page 13 CHARGING THE V12 The battery life indicators will keep flashing while V12 is charged. The number of long-on lights indicates the actual remaining battery life of the product. When all four indicators are off, it indicates that the charging process is suspended or ended.
- Page 14 SPECIFICATIONS Dimensions: 224*101*40mm Weight: 808g Battery capacity： 66.6Wh Start current: 550A Peak current: 3500A USB-A1 output: 5V/2.1 A USB-A2 output: QC3.0 (5V/3A, 9V/2A, 12V/1.5 A) USB-C input/output: 18W Max AC output: 100W, 110V-60Hz DC output: 15V/10A Operating temperature:-20℃-55℃/-4 -131 Number of charge and discharge cycles: ≥ 1000 Full charging time: about 5 hours PAGE 12...
- Page 15 Please contact us at charged. The first or device deficiencies. indicator keeps flashing. V12 is extremely Excessive discharging Please contact us at hot or swells. or device deficiencies In case of any problem with the device itself, please contact us at .
- Page 16 Q1:How to turn off the portable power source? A:The product has a smart detection function. Once there is no load or the charging process is over, it will automatically switch to the sleep mode to reserve power. Q2: What is the operating temperature of this unit and how to store it? A: This unit is lithium polymer battery, operating temp is -20-55 °C/ -4-131ºF.If the ambient temperature is higher than 55°C/131°F, the internal construction of the polymer lithium-ion cells...
- Page 17 Q8: How often should I charge the jump starter? A: It would be best to recharge it every 3 months. Q9: After I charge V12 to the full, how long can I put it on shelf before using it again to start a car? A: The circuit design of V12 is very scientific.
- Page 18 WARNING 1. Please read the User Manual carefully before using this appliance. 2. Please use this device in accordance with the instructions, or you could damage the device or your car’s battery. 3. Please do not let those without proper knowledge or ability to operate this device without supervision.
- Page 19 WARNING 13. Do not start the vehicle more than four times in a row within 10 minutes. If the engine fails to start within 3 seconds after the initial start, stop the start and wait at least 30 seconds before trying again. 14.
- Page 20 MAINTENANCE AND SUPPORT Your Warranty Includes 18 Months of Online After-Sales Service Within 18 months, we will provide timely and effective online after-sales service after you purchase this device. 30 Days to 18 Months We will replace defective equipment due to manufacturing problems with a new piece within 18 months after your purchase.
- Page 21 Thank You for Choosing Us! Made in China...
