Vo lt S m a r t, P ow e r S t r o n g
User Manual
Jump Starter with Air Compressor
X7
Model No.:Epower-325

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X7 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for VTOMAN X7

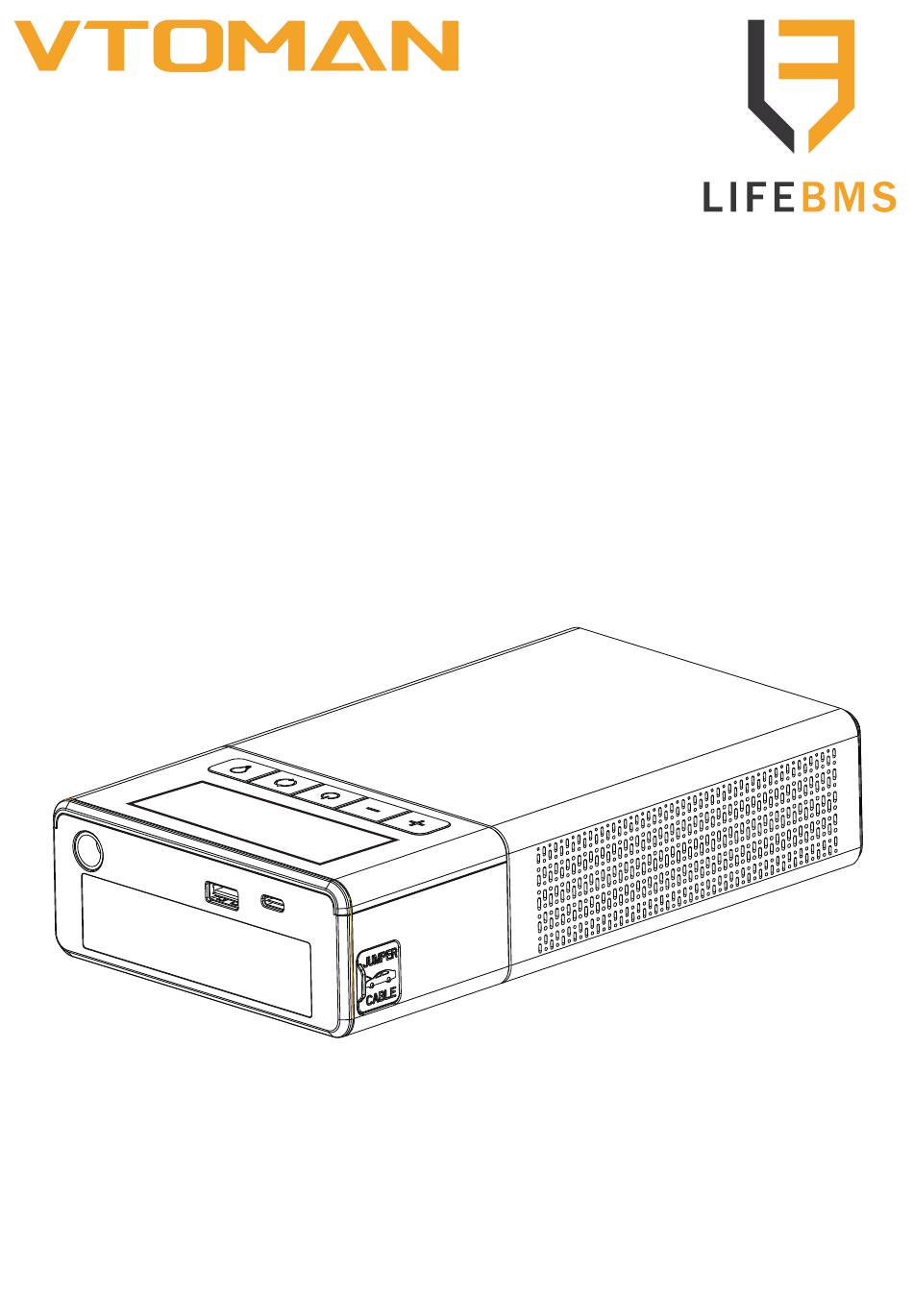

  • Page 1 Vo lt S m a r t, P ow e r S t r o n g User Manual Jump Starter with Air Compressor Model No.:Epower-325...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS WELCOME COMPONENTS AND FUNCTIONS PRODUCT HIGHLIGHTS BUTTONS AND DISPLAY SCREEN OPERATION GUIDANCE TECHNICAL SPECIFICATIONS FAQS TROUBLESHOOTING REMINDERS MAINTENANCE AND SUPPORT...
  • Page 3: Welcome

    WELCOME Thank you for choosing vtoman jump starter.To ensure a good user experience,personal safety,and property security, please read all of the instructions carefully before using this product,please keep this manual for reference. Charge it first! While reading through the manual,you can start to charge your X7.
  • Page 4: Components And Functions

    COMPONENTS AND FUNCTIONS ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ 6. Air inflating port 1. Pressure adjustment 7. LED flashlight 2. Power switch / Inflating (distress signal light) pump starting button 8. 5V/9V/12V output port 3. Settings 9. USB-C 9V/2A input port 4.
  • Page 5: Product Highlights

    4250A and a large battery capacity, especially professional for heavy-duty vehicles like trucks boats. The X7 battery starter is able to start all 12V vehicles (10L Gas/10L Diesel engines) up to 70 times at once. Additionally, our X7 battery jump starter is equipped with BOOST FUNCTION for TOTALLY DEAD BATTERY.
  • Page 6 X7 car battery booster to obtain more powerful heat dissipation performance, so the safety performance of the X7 car starter is Enhanced by 30%, and its service life is promoted by 50%. MORE THAN A JUMP STARTER:X7 is not only jump box, power bank, Tire Inflator, LED flashlight, but it also supports 18W Type-c fast charging.
  • Page 7: Buttons And Display Screen

    BUTTONS AND DISPLAY SCREEN 1. Long press the switch button for 2 seconds so that the starter displays information on the electrical configuration , and the charger will enter the to-be-inflated mode. (1), Battery states (2), Preset tire pressure value (3), Static air pressure value (4), BAR, PSI &...
  • Page 8 BUTTONS AND DISPLAY SCREEN 4. When the product is in the standby mode or working normally, press the "Set" key to enter the inflating pump editing mode, after which the SUV icon will display; at the same time, preset the tire pressure value (unit: BAR), where you can short press the "+"...
  • Page 9 BUTTONS AND DISPLAY SCREEN SUVs: 2.5 BAR Cars: 2.4 BAR Bicycles: 45 PSI Basketballs: 8PSI Please switch the unit accordingly on the left. Only one unit can be displayed for each item. 6. While charging, the bars at the battery icon will flash in accordance with the actual level of remaining battery life.
  • Page 10: Operation Guidance

    OPERATION GUIDANCE Charging the host machine of the jump starter How to Use the Smart Cable 1.First, plug the blue connector of the intelligent battery clamp into the main unit, ensuring that the clamp's indicator light is off. 2.Next, correctly connect the battery clamp to the positive and negative terminals of the car battery.
  • Page 11 OPERATION GUIDANCE Solid red light: This indicates that the positive and negative terminals are incorrectly connected. Please reconnect them correctly, and once the green light turns solid, proceed with the emergency jump-start. Flashing green light: This indicates that the battery voltage is too low. Press the BOOST button, and once the green light turns solid, complete the jump-start within 30 seconds.
  • Page 12: Technical Specifications

    TECHNICAL SPECIFICATIONS Switch LED light modes Name of the accessory Quantity Host Machine Inflating Pump Smartphone Adapter Cable Intelligent Battery Clip User Manual Multifunctional Air Cock Carrying Bag PAGE 10...
  • Page 13 TECHNICAL SPECIFICATIONS Technical specifications: Size: 223*123*63mm Weight: 1548 ±5g Capacity: 88.8Wh Output: Fast charging (5V 3A,9V 2A,12V 1.5A); 12V car starting Input: 9V 2A Time taken to charge to the full: Around 7 hours Starting current: 800A (3S) Peak current: 4250A Temperature: -4~140°F PAGE 11...
  • Page 14: Faqs

    FAQS 1. Q: How to turn off the jump starter? A: (a) The product has an automatic detection function. Once it has no loading or the charging process is finished, the starter will automatically go dormant to save electricity. (b) Press the switch button for 2 seconds to turn it off. 2.
  • Page 15: Troubleshooting

    TROUBLESHOOTING Please stop using the product and contact the seller if the instructions below cannot solve the problems you have encountered. Phenomenon Reason Instruction Tap the switch button The EPOWER’s voltage is Insert the charging and EPOWER does excessively low that the low- plug into the 5V input not react.
  • Page 16: Reminders

    REMINDERS 1. Please carefully read through the user manual before using this product. 2. This product can only be used to start 12V cars. It can cause danger if used on other cars. It is prohibited on airplanes or ships. 3.
  • Page 17 REMINDERS 11. Please remove the product from the car battery within 30 seconds after starting, otherwise it may cause damage. 12. Please connect the positive/negative polar of the clip correctly. 13. Please make sure that 3-4 indicators are on before starting. 14.
  • Page 18 REMINDERS 27. In case of liquid leakage from the host machine, restore the leaked liquid immediately with proper containers. 28. Under extreme conditions, battery leakage can occur. If the liquid is coming out of the product, it cannot be handled directly by hand.
  • Page 19: Maintenance And Support

    Avoid Extreme Temperatures   Do Not Place Near or Into Fire Overcharge/discharge Fuse Protection Against-revers Protection Plug Customer Service 18-Month Limited Warranty Service Lifetime Technical Service Feel Free to Contact Us Support@vtoman.com For FAQ and More Information Support@vtoman.com 1-888-818-9811 (US) PAGE 17...
  • Page 20 Thank You for Choosing Us! LIF E BM S Made in China...
