Summary of Contents for VTOMAN V X1

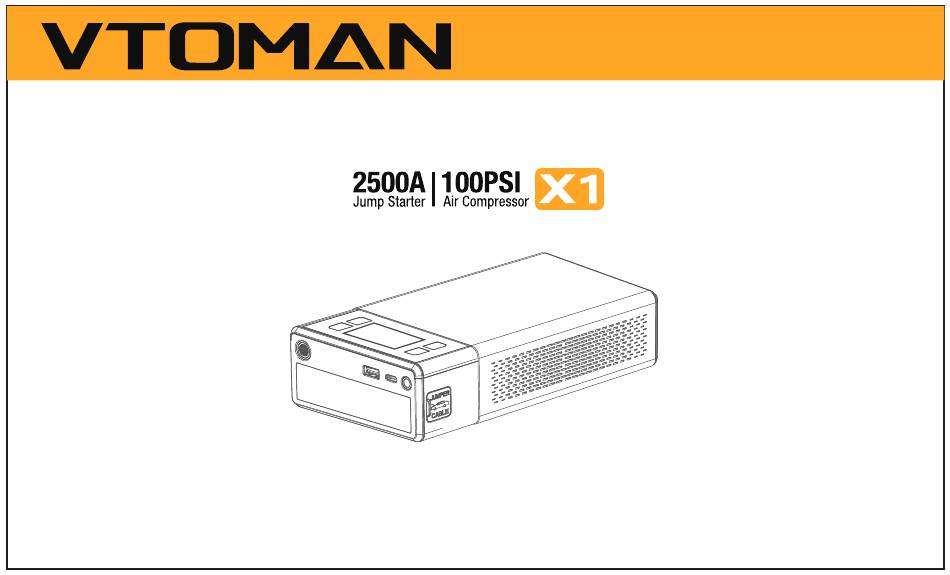

- Page 1 User Manual Model: V X1...
- Page 2 Charge It First ! While reading through the manual, you can start to charge your V X1 with the wall charger and type-c cable provided. Warning This unit is for vehicle (equipment) with 12V batteries.

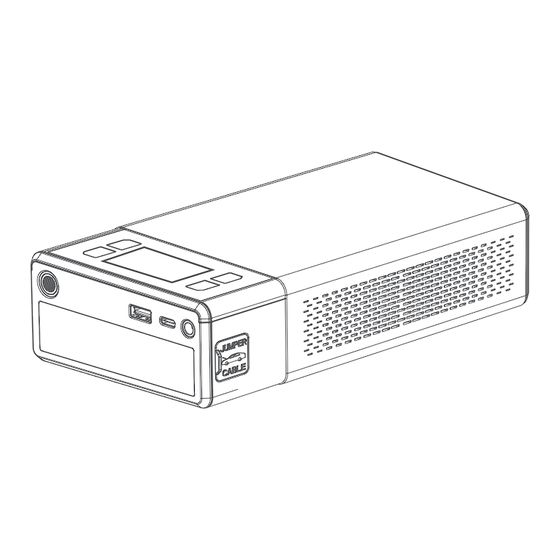

- Page 3 Product Parts and Functions Description Power Button LCD Display Setting Button Air Inflator Button Aerated 5V/2.4A USB Ouput Jump Start Socket LED Flashlight 1, Up and Down to Select 2, Pressure Increase or Intelligent Jumper Cable Decrease USB-A 5V/2.4A Output Jump Cable Socket USB-C 5V/2A Input 1, 15V/10A DC Output...
- Page 4 The battery icon will blink one by one during the period of charging. Different bars of battery icon show different battery power, the battery icon becomes 4 bars when the charging process was finished. How to Charge the V X1 This unit can be charged with the type-c cable and 5V/2A wall charger we provided.
- Page 5 How to Start a 12V Vehicle ( Make sure the battery power≥2 bars Note: Do not press the “BOOST” button on the jumper cable before connecting the vehicle battery correctly. 1. Connect the vehicle battery 2. Green LED illuminates (solid) 3. Start the vehicle engine...
- Page 6 Stop starting your vehicle, safe mode will disappear after 10 mins. If any problem persists, stop using the jump starter and contact our service team directly at support@vtoman.com, we will do our best to solve the problem within 24 hours.
- Page 7 Steps to Use the Air Inflator Preset Tire Pressure Value 2.2BAR 0.7BAR 2.5BAR 2.1BAR Power on, short press the "M" key to start to set the air in ator. Note: The data only for reference. 1. Press the "M" key once, the icon on the far left flashes, and then press the "+" or "-" keys to switch between “basketball”, “bicycle”, “car”...
-
Page 8: Toxic And Harmful Substances
How to Turn On/Off the LED Flashlight Power on, then press power button for 2-3s to turn on the LED light. There are 3 modes of LED light (Normal, Strobe, SOS, Off) if you press lightly. How to turn off this unit ? This unit will be turned off automatically in 30s when it's not used (no load) or press power button again to turn it off . -
Page 9: Package Content
Package Content Technical Specification Capacity 66.6Wh Part Name Quantity Starting Current 400A (3s) Host Peak Current 2500A Smart Jumper Cable USB-C In 5V/2A USB-A to USB-C Cable USB-A Out 5V/2.4A 5V/2A Wall Charger Carrying Bag DC In 12V DC Input for Air Inflator Pump Tube DC Out 15V/10A... - Page 10 Q1: What is the operating temperature of this unit and how to store it? A: This unit is lithium polymer battery, operating temp is -20-60 ºC/ -4-140ºF. If the ambient temperature is higher than 60ºC/140ºF, the internal construction of the battery cells may be damaged, it may swell and become unsafe.
- Page 11 A: Recharge this unit fully, and try to press the “BOOST” button on the jumper cable after connecting the vehicle battery correctly, the LED indicator illuminates steady green light , then start the vehicle within 30s. If it still does not work, contact us at: support@vtoman.com (Attach your order ID).
- Page 12 Q8: Can this product charge other devices while starting a vehicle? A: No. Q9: How often does this unit need to be recharged? A: It would be best to recharge it every 3 months. Q10: Why it shuts off in 30s when charging other devices? A.
- Page 13 Warning 1. Please read this user manual carefully before using this machine. 2. Please be careful when using this machine. If you do not follow the instructions, you may injure yourself or damage the equipment or vehicle battery. 3. Do Not allow people who do not have proper knowledge or ability to operate the device without supervision.
- Page 14 10. Don't over-discharge the unit (don't let the battery run out), charge it regularly, it would be best to recharge it every 3 months. 11. Make sure the blue plug of the jumper cable is plugged fully into the battery clamps output port, otherwise, the blue plug could be melt.
- Page 15 17. Do Not let the product be immersed in water 18. Do not operate this product in an explosive environment, such as a place where flammable liquid, gas or dust exists. 19. Do not modify or disassemble this machine. Only service technicians can repair this equipment.
- Page 16 Your Warranty Includes 18 Months Online After- Sales Service Within 18 months, we will provide timely and effective online after- sales service after your purchase. 30 Days Money Back Guarantee Within the first 30 days after your purchase, you can apply return for it through Amazon when you have any product issue.
- Page 17 C. We are not responsible for any accidental or indirect damage caused by incorrect use or misuse of this product. D. All warranty claims are limited to repair or replacement of the defective product and at the sole discretion of vtoman.
- Page 18 Attention Do Not Submerge In Water Do Not Disassemble Do Not Drop Avoid Extreme Temperatures Do Not Place Near or Into Fire...
-
Page 19: Customer Service
Customer Service 18 Months Limited Warranty Service Lifetime Technical Service Feel Free to Contact Us Support@vtoman.com For FAQ and More Information Support@vtoman.com... - Page 20 Thank You for Choosing Us Made in China...
