FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN DAMAGE TO
Master Lock Company LLC and its af liates

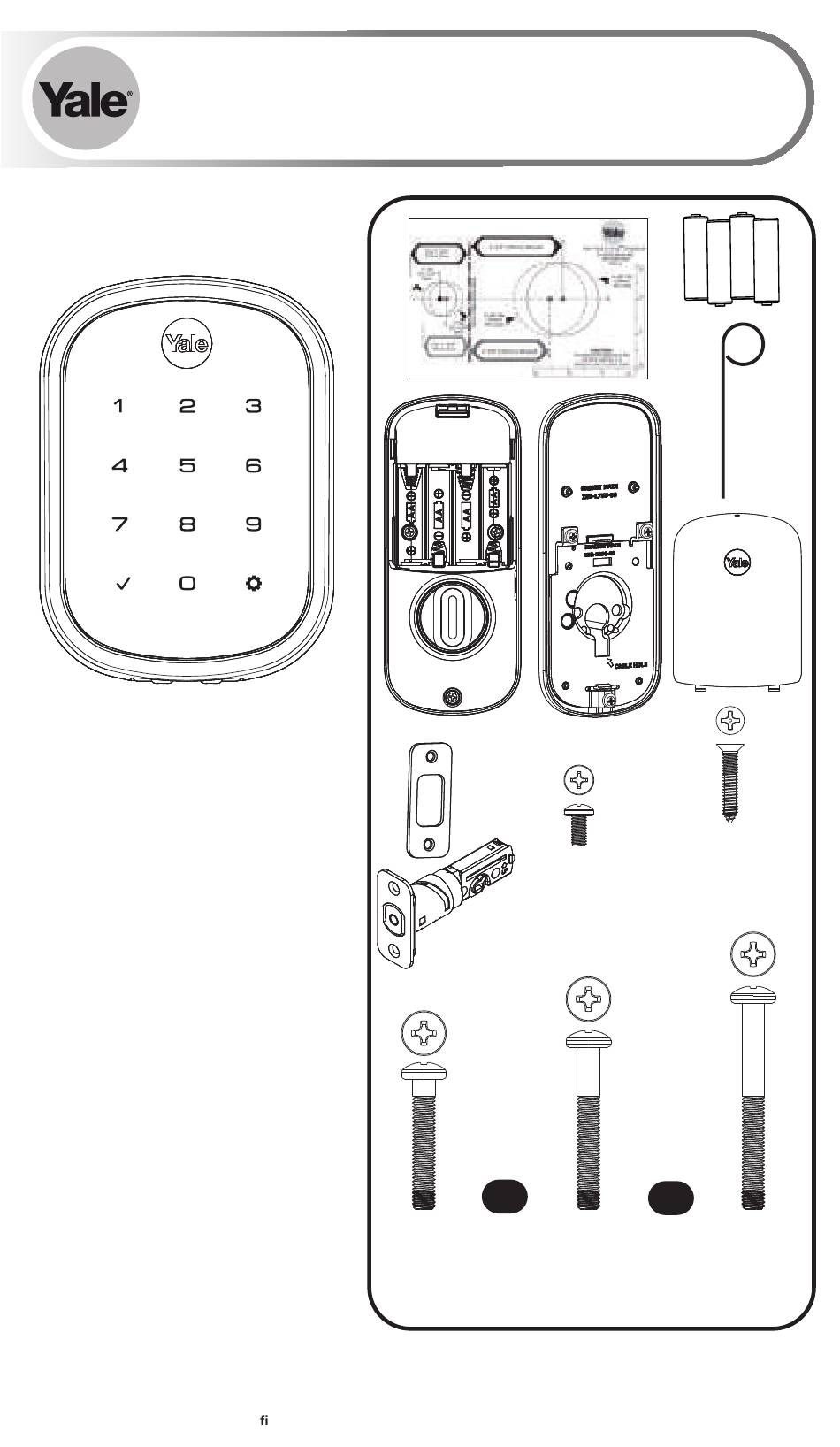

Yale Code™ SL
Key-Free Touchscreen Deadbolt (YRD157)
Installation and Programming Instructions
THE PRODUCT AND VOID THE FACTORY WARRANTY
P/N YRD157-MNL-0001 REV A
#8-32 x 5/16"
Machine screws
OR
x2 Teal
x2 Black
M6x36mm
PPHMS
(1-3/8")
(Standard 1-3/4" - 2")
x3
#7 wood & #8-32
machine x 20mm
Combination screws
OR
x2 Silver
M6x44mm
PPHMS
x4
M6x55mm
PPHMS
(2-1/4")
Advertisement
Related Manuals for Yale Code SL
Summary of Contents for Yale Code SL
- Page 1 Yale Code™ SL Key-Free Touchscreen Deadbolt (YRD157) Installation and Programming Instructions #7 wood & #8-32 #8-32 x 5/16" machine x 20mm Machine screws Combination screws x2 Silver x2 Teal x2 Black M6x55mm M6x36mm M6x44mm PPHMS PPHMS PPHMS (2-1/4") (1-3/8") (Standard 1-3/4" - 2")
- Page 2 Preparing Door and Touchscreen Escutcheon Cup must be removed from escutcheon if bore hole is less than 2-1/8". 2-1/8" Application <2-1/8" Application...
- Page 3 Installing Latch & Strike Plate 2-3/8" position default 2-3/4" position optional Rotate Bolt must be in retracted (unlocked) position. UP arrow must be facing upwards.
- Page 4 Installing Touchscreen Escutcheon If bore hole is less than 2-1/8", remove cup by gently compressing two tabs while pulling. Outside of Door Ensure cable is routed under the deadbolt.
- Page 5 Installing Interior Mounting Plate Choose through bolt appropriate for your door thickness.
- Page 6 Attaching the Cable Assembly...
- Page 7 Installing Interior Escutcheon Thumbturn should be in vertical position.
- Page 8 Testing Operation Deadbolt should extend and retract smoothly. If not, go back to step 2. Bolt must be in retracted (unlocked) position before installing AA batteries.
- Page 9 Initial Programming Press to wake lock Press 1 Press Enter a 4-8 digit Mater PIN code Lock will not operate until gear is pressed and Master PIN code is set. After entering the Master PIN code, press any key to complete handing.
- Page 10 Installing Cover Congratulations, you've installed the Yale Code™ SL Key-Free Touchscreen Deadbolt (YRD157)! Turn sheet over for Programming Instructions to customize your product.
- Page 11 Programming Instructions Touchscreen Wake-Up All Code Lockout Mode Rapidly beeps 5 times Low Batter y Warning Flashes RED Failsafe 9 Volt Batter y Connection (Use Alkaline battery) Master PIN Code must be created before any further programming. Max User Codes = 25 in network Warning: Changes or modifications to this device, not expressly approved by Master Lock Company LLC and its affiliates could void the user's authority to operate the equipment.
- Page 12 Changing Master PIN Code Enter Master PIN code Press Press Press Press Enter 4-8 digit Master PIN Code. Press...
- Page 13 Creating User PIN Codes Master PIN code must be created first. *Max User Codes = 25 in network Press Enter Master PIN code Press Press Press Press Enter 4-8 digit PIN code Press Press...
- Page 14 Unlocking Door with PIN Code Press Enter PIN Press "Unlock" Code Chart Duplicate if necessary PIN Code Management - Up to 25 Pin Codes User Name PIN Code...
- Page 15 Resetting Lock to Factory Default When lock is reset to factory defaults all user codes (including the Master PIN code*) are deleted and all programming features are reset to original default settings (see "Factory Default Settings"). 1. Remove the battery cover. 2.
- Page 16 Definitions All Code Lockout Mode: This feature is enabled by the Master code. When enabled, it restricts all user (except Master) PIN code access. When attempting to enter a code while the unit is in Lockout, the lock rapidly beeps 5 times. Audio Mode: Choosing Disable (3) in Audio mode shuts off the code confirmation tone play-back for use in quiet areas.
- Page 17 Feature Programming Through Menu Mode Using Master PIN code* 1. Wake the lock by pressing the key. 2. Enter the 4-8 digit Master PIN code followed by the 3. Enter digit corresponding to the function to be performed followed by the key.
- Page 18 Programming Troubleshooting Symptom Suggested Action...
- Page 19 Warning: Changes or modifications to this device, not expressly approved by Master Lock Company LLC and its affiliates could void the user's authority to operate the equipment. THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS.
- Page 20 Yale Home Product Support Tel 1-855-213-5841 • www.shopyalehome.com Yale® is a registered trademark of Master Lock Company LLC and its af liates. Yale Code™ is a trademark of Master Lock Company LLC and its af liates. Other products’ brand names may be trademarks or registered trademarks of their respective owners and are mentioned for reference purposes only.
