UltraPro 41092 Manual

41092
24-HOUR MECHANICAL
IN-WALL TIMER
OPERATION

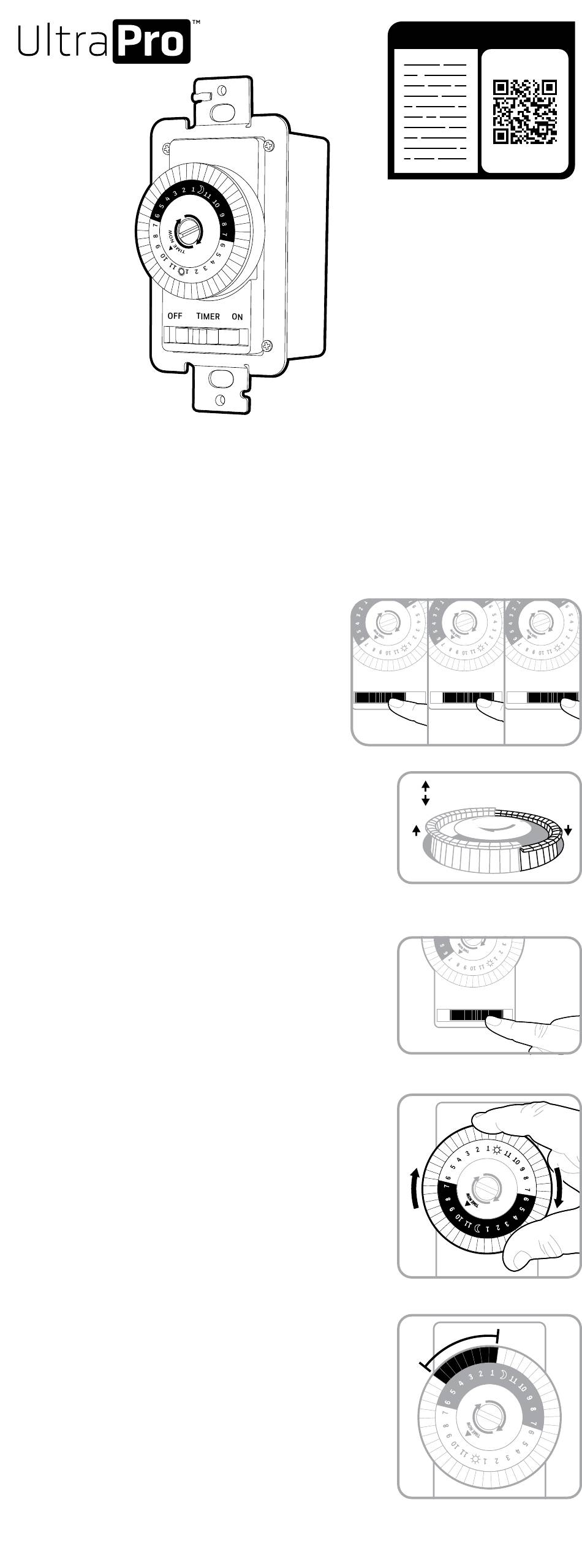

The timer has three settings, OFF, TIMER
and ON (See Figure 1).
OFF - Turns connected load off.
TIMER - Connected load turns on and off
based on timer's settings.
ON - Turns connected load on.
TIMER SETUP
1. The segments around the outer edge of the
timer's dial represent 30 minute periods.
Be sure all segments are pulled up before
programming (See Figure 2).
2. Place the slide switch in the TIMER position
(See Figure 3).
3. Rotate the timer's dial clockwise until the
pointer on the face of the dial points to the
current time (See Figure 4). Nighttime hours
(from 6:30PM to 6:30AM) are highlighted with
a gray background.
4. Select a time period (or periods) you want the
appliance turned on, then push down ALL the
segments that fall on or within that period. For
example, to have the timer turn an appliance on at
1AM and off at 5AM, push down the segments
representing 1AM and 5AM, and ALL the
segments in between (See Figure 5). You may
need to turn the dial clockwise to access the
desired segments. The setting(s) above the
current time setting cannot be moved.
READ IT OR WATCH IT
Read instructions or watch easy-to-follow video.
Scan QR code or visit http://bit.ly/2JecLp7
OFF TIMER ON OFF TIMER
Slide switch to Slide switch to
OFF position TIMER position
Figure 1
Segments up = Device off
Segments down = Device on
Be sure all segments are pulled
up before programming.
OFF TIMER
Slide switch to TIMER position.
OFF
Figure 4
Rotate timer's dial clockwise.
OFF
Timer is set to turn on at 1:00AM
and off at 5:00AM. Timer shows
10:00PM time of day.
ON OFF TIMER ON
Slide switch to
ON position
Figure 2
ON
Figure 3
TIMER ON
TIMER ON
Figure 5
