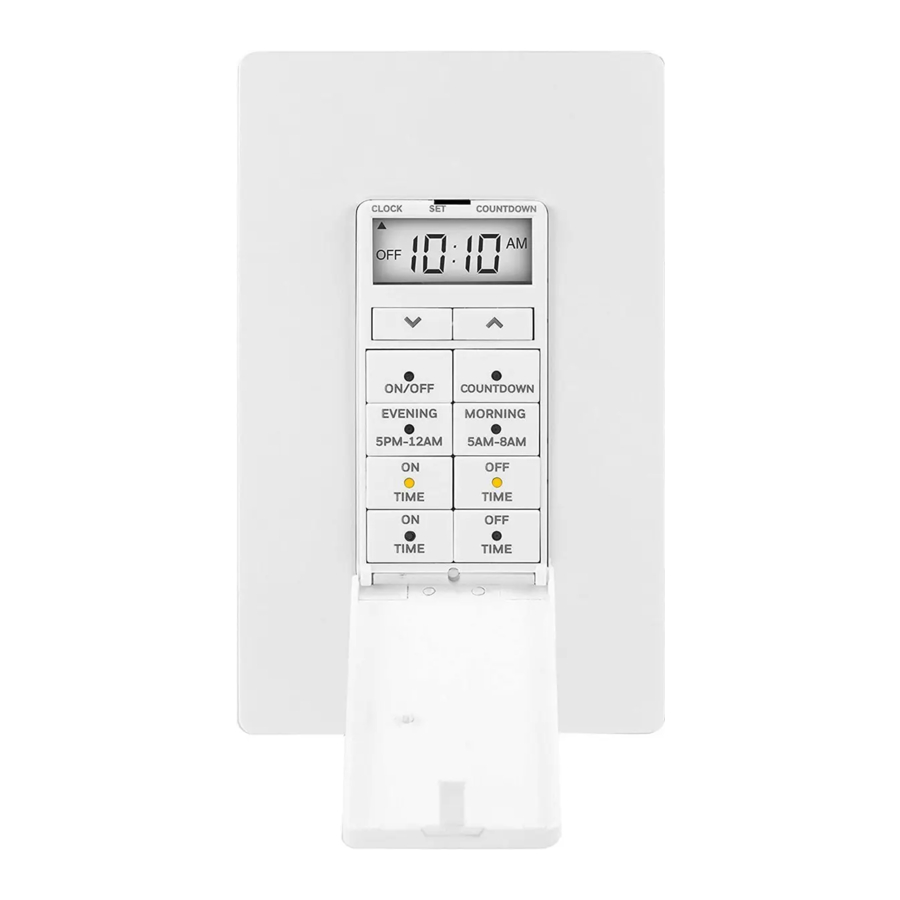

UltraPro 40955 - 24-Hour Digital In-Wall Timer Manual

AFTER INSTALLATION

Use a pencil or toothpick to press and release the reset button behind the door between the ON TIME and the OFF TIME buttons.

SET THE TIME

Use up () and down () arrows to select time. Take note of the AM/PM setting.

CHOOSE YOUR PROGRAM

Note: If no button is pushed for 5 seconds, the timer returns to clock mode indicated by an arrow under "CLOCK."
There are three preset times that run individually or simultaneously. Choose from the following:
COUNTDOWN
EVENING (5PM - 12AM)
MORNING (5AM – 8AM)
When a schedule is chosen, the amber LED indicator light will turn on. You may run multiple schedules.

CHOOSE YOUR CUSTOM ON/OFF TIMES

Press and release ON TIME, then use up () and down () arrows to set on time. Press and release OFF TIME, then use up () and down () arrows to set off time. If the amber LED is off, the program will not operate. Repeat for the other ON TIME or OFF TIME buttons. All programmed times will run simultaneously in a 24-hour day.

ADDITIONAL FEATURES

COUNTDOWN - This feature turns the light on for a set period and turns it off when time expires. Press and release COUNTDOWN, then use up () and down () arrows to set from 1 minute to 24 hours. Once you reach your desired time setting, simply walk away and the timer begins counting down. Your last time setting will be remembered the next time you use the COUNTDOWN feature.

MANUAL/OVERRIDE - Press and release ON/OFF button or the closed door to manually control lighting.
Note: When daylight saving time occurs, use up () and down () arrows to adjust the time by one hour.

SPECIFICATIONS

120VAC 60Hz
15A General/Resistive
1200W Tungsten
1200VA Standard Ballast
1/2HP
5A or 600W Electronic Ballast/LED
Works with LED, CFL, incandescent and halogen bulbs.

WARNING

RISK OF ELECTRICAL SHOCK

• SHUT OFF POWER AT FUSE BOX OR CIRCUIT BREAKER BEFORE INSTALLATION
• DO NOT USE IN WET LOCATIONS
• USE INDOORS ONLY

RISK OF FIRE

• DO NOT USE TO CONTROL APPLIANCES THAT CONTAIN HEATING ELEMENTS (COOKING APPLIANCES, HEATERS, IRONS, ETC.)
• DO NOT EXCEED ELECTRICAL RATINGS
• DO NOT USE TO CONTROL RECEPTACLES
• USE COPPER WIRE ONLY WITH THIS DEVICE
• TIGHTEN ALL CONNECTIONS TO 1-1.4 N-M (8.85 TO 12.39 LBF-IN.)
• FOR SUPPLY CONNECTIONS, USE 14AWG OR LARGER WIRE RATED AT LEAST 75°C
• FOR GROUNDING LEAD, USE 12AWG OR LARGER WIRE RATED AT LEAST 75°C
