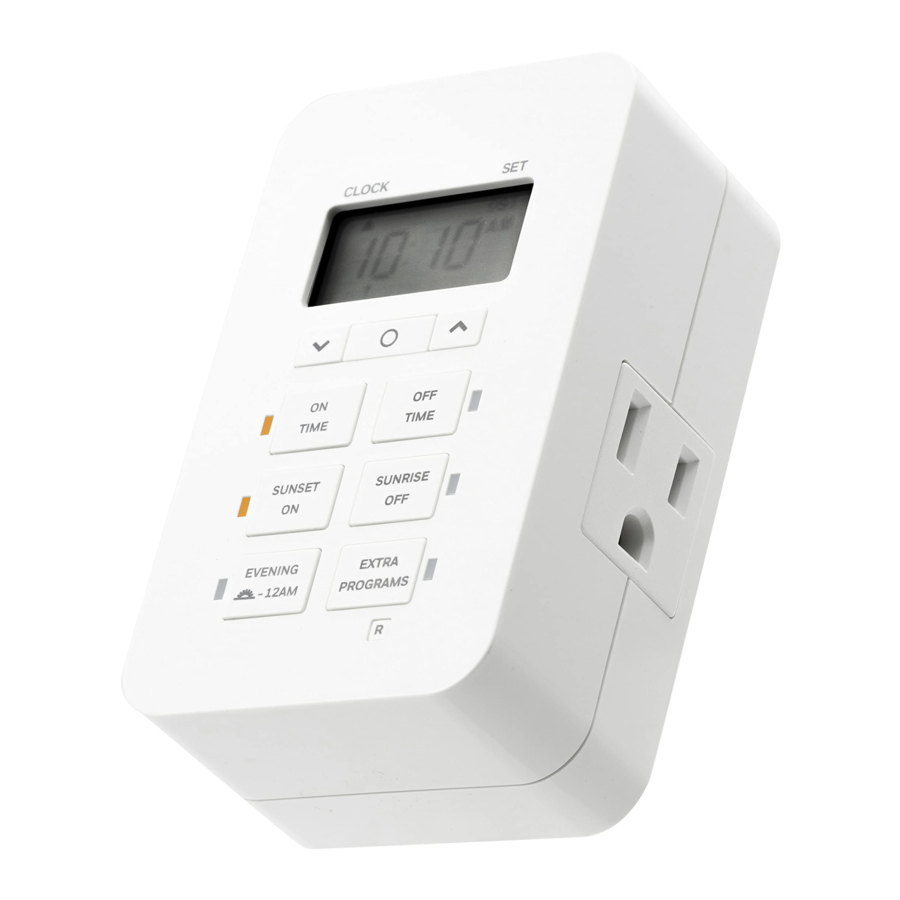

UltraPro 40958 - Daysmart Indoor 7-Day Plug-in Digital Timer Manual

SETUP

1. If no numbers are visible on-screen, plug timer into an outlet and charge for 1 hour. Once charged, press the reset ( ) button in the lower-right corner using a toothpick or pencil.

2. Press and hold set button ( ) for 3 seconds. Use up ( ) and down ( ) arrows to set current time, take note of AM or PM time and press set button ( ).

3. "YEAR" will flash on the screen. Use ( ) to select the current year and press set button ( ).
4. "MONT" will flash on the screen. Use ( ) to select the current month and press set button ( ).
5. "DAY" will flash on the screen. Use ( ) to select the current day and press set button ( ).
6. "ZONE" will flash on the screen. Use ( ) to select current zone (see figure below). Zone is used to determine sunrise/sunset times. Press set button ( ).

7. "DST" (daylight saving time) will flash on the screen. Use ( ) to select "ON" if you would like the timer to automatically adjust for daylight saving time or "OFF" if you would not like the timer to adjust automatically. Press set button ( ).
   Note: Choose DST ON if your area observes daylight saving time. The timer will automatically adjust backward and forward an hour. Choose DST OFF if your area does not observe daylight saving time.

PROGRAMMING OPTIONS

Note: An illuminated LED beside a button indicates the program is active. To deactivate program, press the button again and the LED will turn off. LED will illuminate when plugged in.

On time: Press ON TIME button and the clock will begin flashing. Use arrows to set the desired on time ( ) and press set button ( ). Default is 6PM for all days. Days of the week will flash on-screen. Use arrows ( ) to select the correct day options and press set button ( ).

Off time: Press OFF TIME button and the clock will begin flashing. Select desired off time and press set button ( ). Default is 10PM for all days. Days of the week will flash onscreen. Use arrows ( ) to select the correct day options and press set button ( ).

Sunset on: Press SUNSET ON button and the sunset time will flash on the screen. Use arrows ( ) to adjust time up to 1 hour in either direction and press set button ( ). Days of the week will flash on-screen. Use arrows ( ) to select the correct day options and press set button ( ).

Sunrise off: Press SUNRISE OFF button and the sunrise time will flash on the screen. Use arrows ( ) to adjust time up to 1 hour in either direction and press set button ( ). Days of the week will flash on-screen. Use arrows ( ) to select the correct day options and press set button ( ).

PRESET SCHEDULE

Evening - Sunset to 12AM: Press EVENING button and the sunset time will flash on the screen. Use arrows ( ) to adjust time up to 1 hour in either direction and press set button ( ). Days of the week will flash on the screen. Use arrows ( ) to select the correct day options and press set ( ).

EXTRA PROGRAMS

This option offers seven additional ON/OFF programs. Press EXTRA PROGRAMS button, "ON 1" will flash on-screen and "--:--" displays. Press set button ( ) to select program "ON 1" and the "--:--" will flash on-screen. Use arrows ( ) to select time and press set button ( ). Days of the week will flash onscreen. Use arrows ( ) to select the desired days of the week and press set button ( ). Program ON 1 is now set. To create more schedules, use the arrows ( ) and press set button ( ) on the next program. Repeat these steps to program OFF 1, ON 2, OFF 2, etc.

To skip through without setting, stop pressing buttons and the display will revert to clock mode after 10 seconds or press set button ( ). You can also use the arrows ( ) to scroll through the options without setting a time. After program OFF 7, the menu starts over with program ON 1. The LED indicator light will remain on if any of the additional programs are set.

To delete one of the extra programs, use arrows ( ) to choose the program and press set button ( ). Use arrows ( ) to scroll time to between 11:59PM and 12:00AM. The display will show "--:--" to confirm the program has been deleted. No additional steps are needed. The display will revert back to clock mode after 10 seconds or when the set button ( ) is pressed.

Note: When program on is set to "--:--," "DELE" flashes to confirm program has been deleted.

DAYS OF THE WEEK OPTIONS ORDER

Days of the week options will display in the following order when using the up ( ) arrow unless you are using the settings in extra programs. In this case, they will begin with the last on time set.

M thru Su — all days of the week
M thru F
Sa, Su
Su thru Th
F, Sa
Su thru Sa — each day of the week separately

ON/OFF OVERRIDE BUTTON

Using ON/OFF override with no scheduled programs:

• If the device is off, press & release the ON/OFF override to turn the device on.

• If the device is on, press & release the ON/OFF override to turn the device off.

Using the ON/OFF override with scheduled programs:

• If a scheduled program is running and the device is on, press & release the ON/OFF override to turn the device off. It will remain off until the next scheduled program turns the device on.
• If a scheduled program is running and the device is off, press & release the ON/OFF override to turn the device on. It will remain on until the next scheduled program turns the device off.

SPECIFICATIONS

125V 50/60Hz
15A 1875W General/Resistive
10A 1250W Tungsten
1/2HP
Works with LED, CFL, incandescent and halogen bulbs

RISK OF ELECTRICAL SHOCK

• PLUG DIRECTLY INTO AN ELECTRICAL OUTLET
• DO NOT USE IN WET LOCATIONS
• USE INDOORS ONLY
• UNPLUG TIMER BEFORE CLEANING
• KEEP CHILDREN AWAY

RISK OF FIRE

• DO NOT USE TO CONTROL APPLIANCES THAT CONTAIN HEATING ELEMENTS (COOKING APPLIANCES, HEATERS, IRONS, ETC.)
• DO NOT EXCEED ELECTRICAL RATINGS

Distributed by Jasco Products Company LLC, 10 E. Memorial Rd., Oklahoma City, OK 73114.
Questions? Contact our U.S.-based Consumer Care at 1-800-654-8483 between 7AM—8PM M-F, Central Time.
