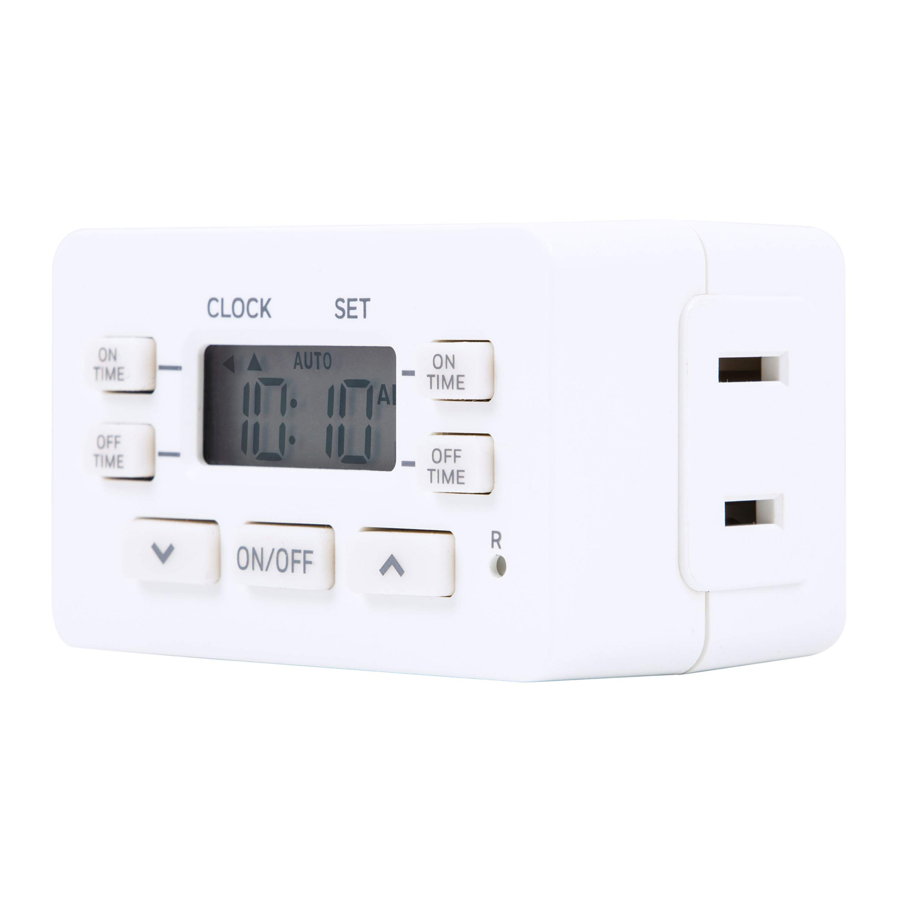

UltraPro 45184 - Plug-in Single-Outlet Digital Timer Manual

SETUP

1. If numbers are difficult to read or not visible onscreen, plug timer into an outlet to charge for 1 hour. Once charged, press the reset (R) button in the lower right corner using a toothpick or pencil — time flashes.

   Note: After timer is charged, it can be removed from the outlet for easy programming. Return to outlet when finished.
2. Use up ( ) and down ( ) arrows to set current time. Take note of the AM/PM setting.


PROGRAMMING OPTIONS

DEFAULT TIMER

There are two ON/OFF times available with preset default times. To activate default times, simply press ON TIME or OFF TIME button so the arrow ( ) next to the button is visible on the display. To deactivate the default timer, press and release the button. The arrow next to the button will disappear.

CUSTOMIZED TIMER

On time: Press and release either ON TIME button to enter custom setting mode.

The default on time flashes. Use arrow buttons () to set the desired on time. Press the ON TIME button or wait 5 seconds to set. If no button is pressed within 5 seconds, the default timer will be set and the display will return to clock mode. If you set the on time earlier than the current time, it will not turn on until the next day at the scheduled time.

Note: Mode indicator () will move under SET while programming, then back to CLOCK if it times out or after on time is set.

Off time: Press and release either OFF TIME button to enter custom setting mode.

The default off time flashes. Use arrow buttons ( ) to set the desired off time. If no button is pressed within 5 seconds, the default timer will be set and the display will return to clock mode. Press the OFF TIME button or wait 5 seconds to set.

Note: When an on time or off time is set, the active program indicator (or) will appear on the screen beside the button. Programs may run individually or simultaneously.

ON/OFF OVERRIDE BUTTON

Using ON/OFF override with no scheduled programs:

• If the timer is off, press & release the ON/OFF override to turn the timer on.

• If the timer is on, press & release the ON/OFF override to turn the timer off.

Using the ON/OFF override with scheduled programs:

• If a scheduled program is running and the timer is on, press & release the ON/OFF override to turn the timer off. It will remain off until the next scheduled program turns the timer on.
• If a scheduled program is running and the timer is off, press & release the ON/OFF override to turn the timer on. It will remain on until the next scheduled program turns the timer off.

SPECIFICATIONS

125VAC, 60Hz
15A 1875W general/resistive
5A 625W tungsten
1/2HP motor
Works with dimmable LED and CFL bulbs

RISK OF ELECTRICAL SHOCK

• PLUG DIRECTLY INTO AN ELECTRICAL OUTLET
• DO NOT USE IN WET LOCATIONS
• USE INDOORS ONLY
• UNPLUG TIMER BEFORE CLEANING

RISK OF FIRE

• DO NOT USE TO CONTROL APPLIANCES THAT CONTAIN HEATING ELEMENTS (COOKING APPLIANCES, HEATERS, IRONS, ETC.)
• DO NOT EXCEED ELECTRICAL RATINGS
