UltraPro 41081 - 60 Minute Spring Wound In-Wall Timer Manual

OPERATION

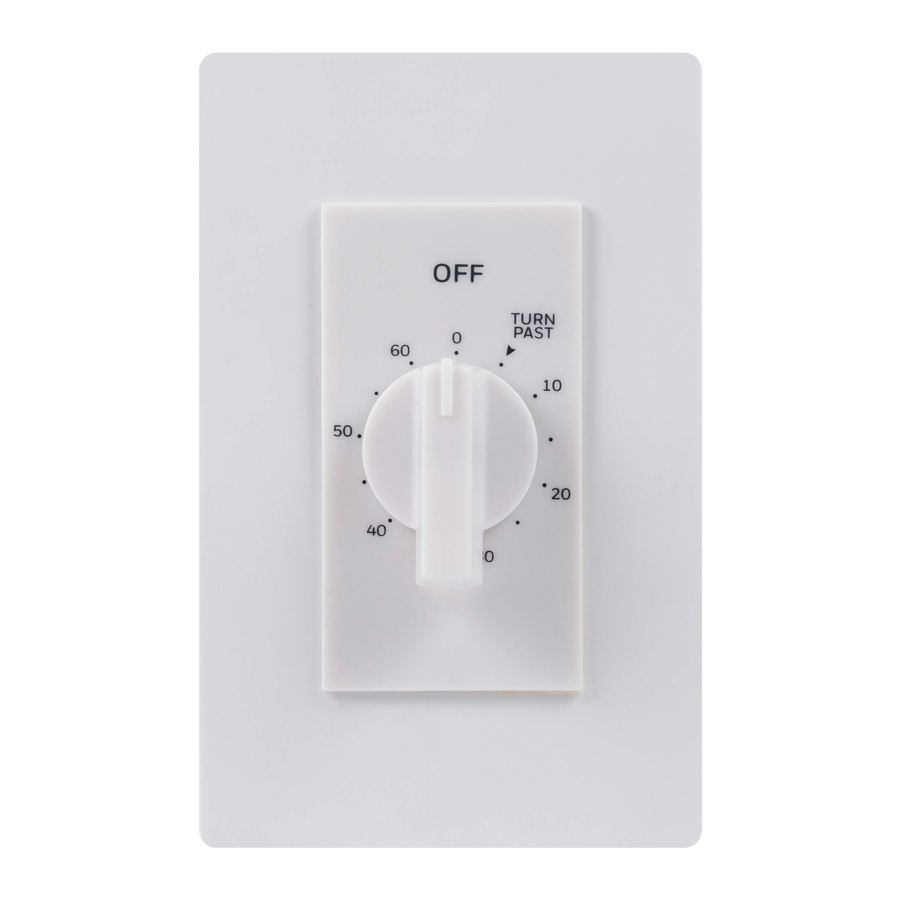

Turn knob clockwise to desired period. Make sure to turn past the 5 minute marker. (See Figure 1)

Timer will automatically turn off at end of period.

INSTALLATION

Note: If you are unsure or unclear about this installation or if the wires in your box do not match the manual (not all switch boxes have neutral wires), contact a qualified, licensed electrician.

1. Turn OFF the main power at the circuit breaker or fuse box.
2. Remove the existing switch. Determine which wires are line (hot), load and ground. Label wires and disconnect.
   1. GROUND - Green/bare
   2. LOAD - Black (connected to lighting)
   3. LINE (HOT) - Black (connected to power)
3. Carefully remove the knob, nut and faceplate from the timer. (See Figure 2).

4. Attach the bare ground wire from the timer to the green or bare ground wire in the wire box using wire nut.
5. Loosen the LINE1 and LOAD1 screws (see Figure 3) with a Phillips-head screwdriver. When loosening screws, stop when you feel resistance.

6. Insert the line wire from the lighting into the hole marked LINE1 and tighten the screw. Note: Tightening torque should be 12lbf-in (14kgf-cm)
7. Insert the load wire from the electrical service panel into the hole marked LOAD1 and tighten the screw.
8. Tuck the wires into the wall box, leaving room for the timer.
9. Use the supplied screws to mount the timer to the wall box, being careful not to crush any wires.
10. Reinstall your wallplate. Reinstall timer dial and center.
11. Turn the main power on at the circuit breaker.
12. If the timer does not turn on, disconnect the power at the circuit breaker or fuse box and check connections.

SPECIFICATIONS

125VAC, 50/60Hz
20A general/resistive
7A tungsten 1HP motor
250VAC, 50/60Hz
10A general/resistive 2HP motor
277VAC, 50/60Hz
10A general/resistive

RISK OF ELECTRICAL SHOCK

• INSTALLATION BY A LICENSED ELECTRICIAN IS RECOMMENDED
• INSTALLATION AND USE OF THIS EQUIPMENT SHOULD BE IN ACCORDANCE WITH PROVISIONS OF THE U.S. NATIONAL ELECTRICAL CODE, APPLICABLE LOCAL CODES AND PERTINENT INDUSTRY STANDARDS
• SHUT OFF POWER AT THE FUSE BOX OR CIRCUIT BREAKER BEFORE INSTALLATION
• DO NOT USE IN WET LOCATIONS
• FOR INDOOR USE ONLY UNLESS INSTALLED IN A NEMA TYPE 3R ENCLOSURE

RISK OF FIRE

• USE COPPER WIRE ONLY WITH THIS DEVICE
• DO NOT EXCEED ELECTRICAL RATINGS
• DO NOT USE TO CONTROL RECEPTACLES
• DO NOT USE TO CONTROL APPLIANCES WITH HEATING ELEMENTS (COOKING APPLIANCES, HEATERS, IRONS, ETC.)
