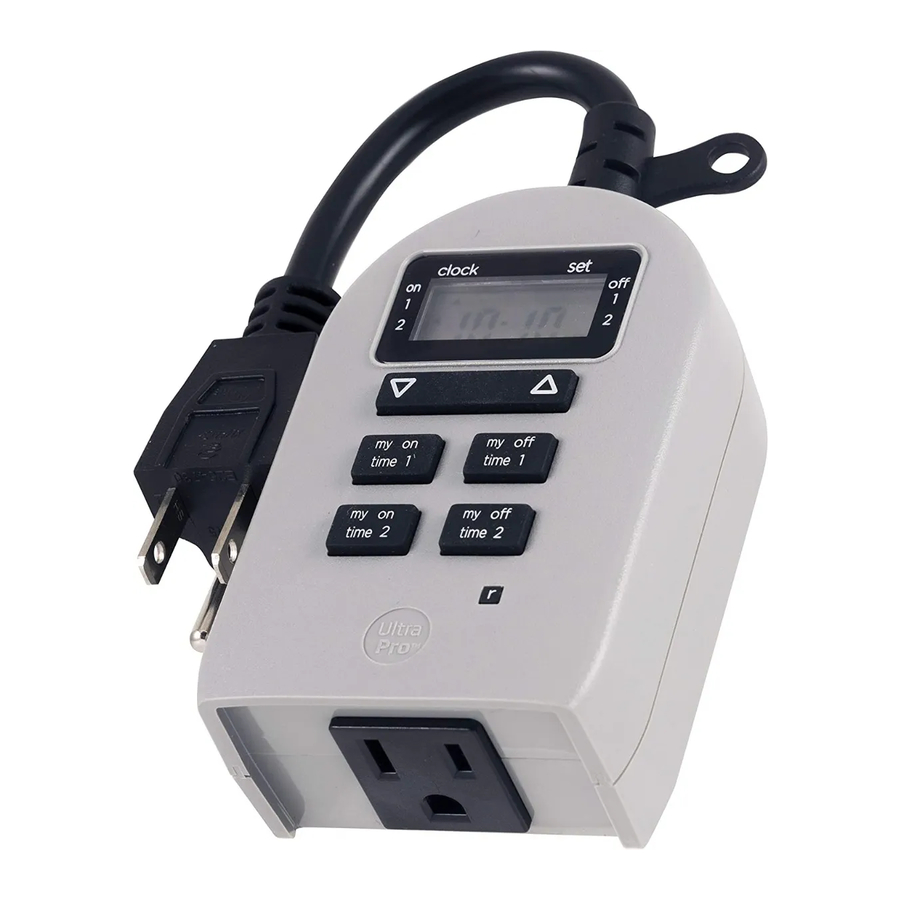

UltraPro 54850 - Outdoor Simple-Set Plug-In Grounded Outlet Timer Manual

IF MOUNTING OUTDOORS

1. Mount the timer on a wall near a GFCI receptacle using a screw or nail. Install timer as far above ground level as possible with receptacle facing downward. Do not install where timer can be immersed or where water will splash or drip onto receptacle. Screw or nail head must extend at least 3/16in. from the wall (nail or screw not included).
2. Hang the timer from the hole at the top of the unit.

SETUP

1. If numbers are difficult to read or not visible on-screen, plug timer into an outlet and let timer charge for 1 hour. Once charged, press the reset (R) button in the lower right corner using a toothpick or pencil.

2. Use up () and down () arrows to set current time. Take note of the AM/PM setting.


Note: When daylight saving time occurs use the up () and down () arrows to adjust the time by 1 hour.

PROGRAMMING OPTIONS

DEFAULT TIMER

There are two ON/OFF times available with preset default times. To activate default times, simply press ON TIME or OFF TIME button so the arrow ( ) next to the setting is visible on the display. To deactivate the default timer, press and release the button. The arrow next to the setting will disappear.

CUSTOMIZED TIMER

On time: Press and release either ON TIME button to enter custom setting mode.

The default on time flashes. Use arrow buttons () to set the desired on time.

Press the ON TIME button or wait 5 seconds to set.

If no button is pressed within 5 seconds, the default timer will be set and the display will return to clock mode. If you set the on time earlier than the current time, it will not turn on until the next day at the scheduled time.

Note: Mode indicator () will move under SET while programming, then back to CLOCK if it times out or after on time is set.

Off time: Press and release either OFF TIME button to enter custom setting mode. The default off time flashes. Use arrow buttons () to set the desired off time. If no button is pressed within 5 seconds, the default timer will be set and the display will return to clock mode. Press the OFF TIME button or wait 5 seconds to set.

Note: When an on time or off time is set, the active program indicator (or) will appear on the screen beside the setting. Programs may run individually or simultaneously.

SPECIFICATIONS

125VAC, 50/60Hz
10A 1250W general/resistive
5A 625W tungsten
1/4HP motor type 3R
Works with dimmable LED and CFL bulbs
