USER MANUAL
Steel 4-wheeled rollator
Product code: TGR-R RS 880
1. Characteristics
The folding 4-wheeled rollator is made of a powder-coated steel frame. It
features an upholstered seat, a soft backrest, and a removable basket. The
rollator is equipped with height-adjustable handles with anatomical handgrips,
as well as brakes with a locking mechanism. It comes with 8" diameter wheels
with a narrow cross-section.
The set includes: handles with
brakes, frame with seat, backrest,
basket.

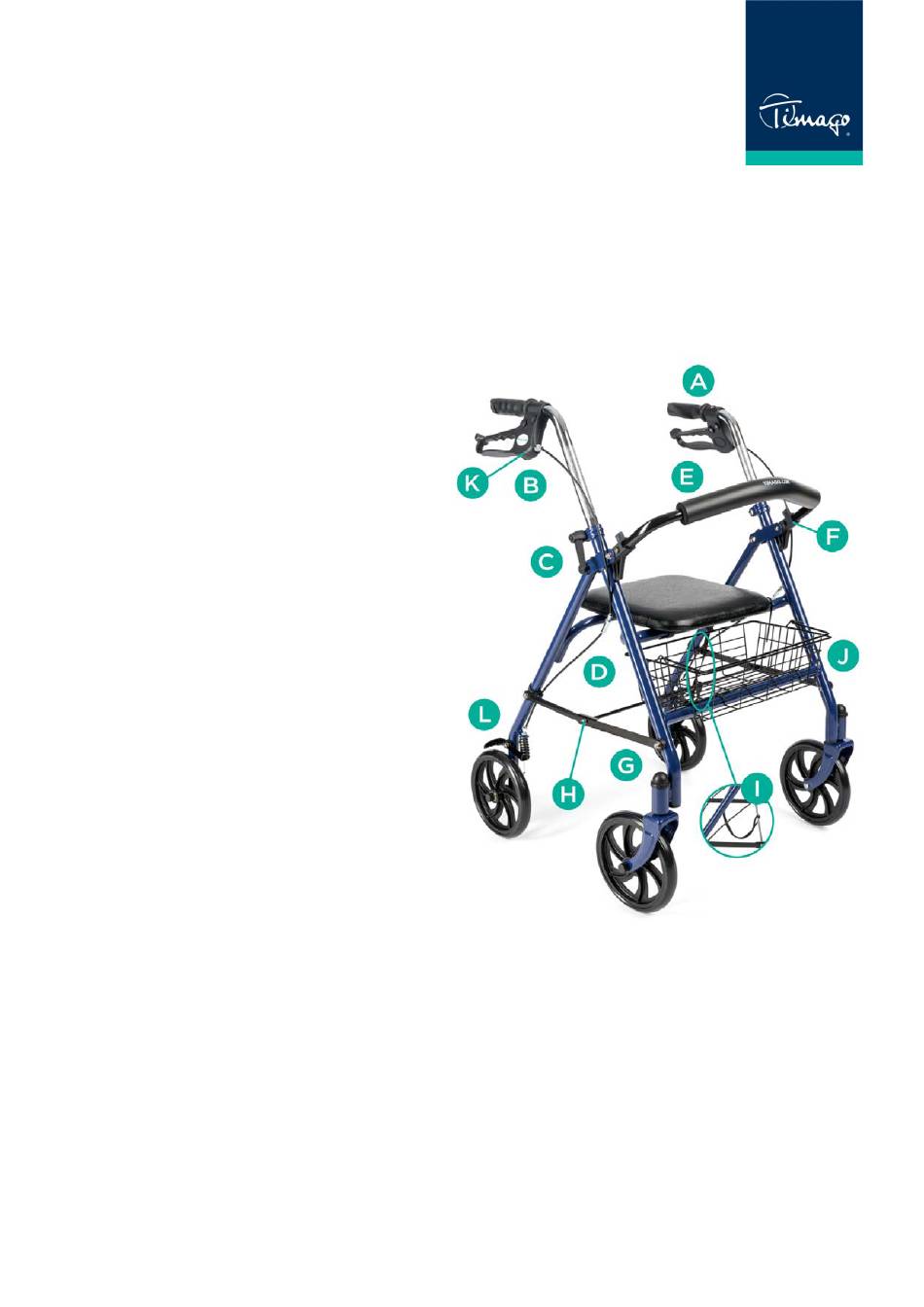

Elements of the rollator:
A.
Push handle
B.
Brake
C. Locking lever
D. Brake cables
E. Backrest
F. Locking pin
G.
Side crossbar
H.
Hinge of side crossbar
I. Strap for folding rollator
J. Basket
K. Upper adjustment of brake
L. Lower adjustment of brake
2. Application
The rollator is designed for patients with reduced mobility who need stable
support and help while walking. It is also recommended to the elderly as an aid
in keeping balance, improving walking comfort and ensuring safety from falling.
The use of the rollator affects positively on the return to activity of the people
with locomotion and tilting to erect position problems. It guarantees better
stabilization, support and security while walking.
3. Assembly
UNFOLDING AND FOLDING THE ROLLATOR
