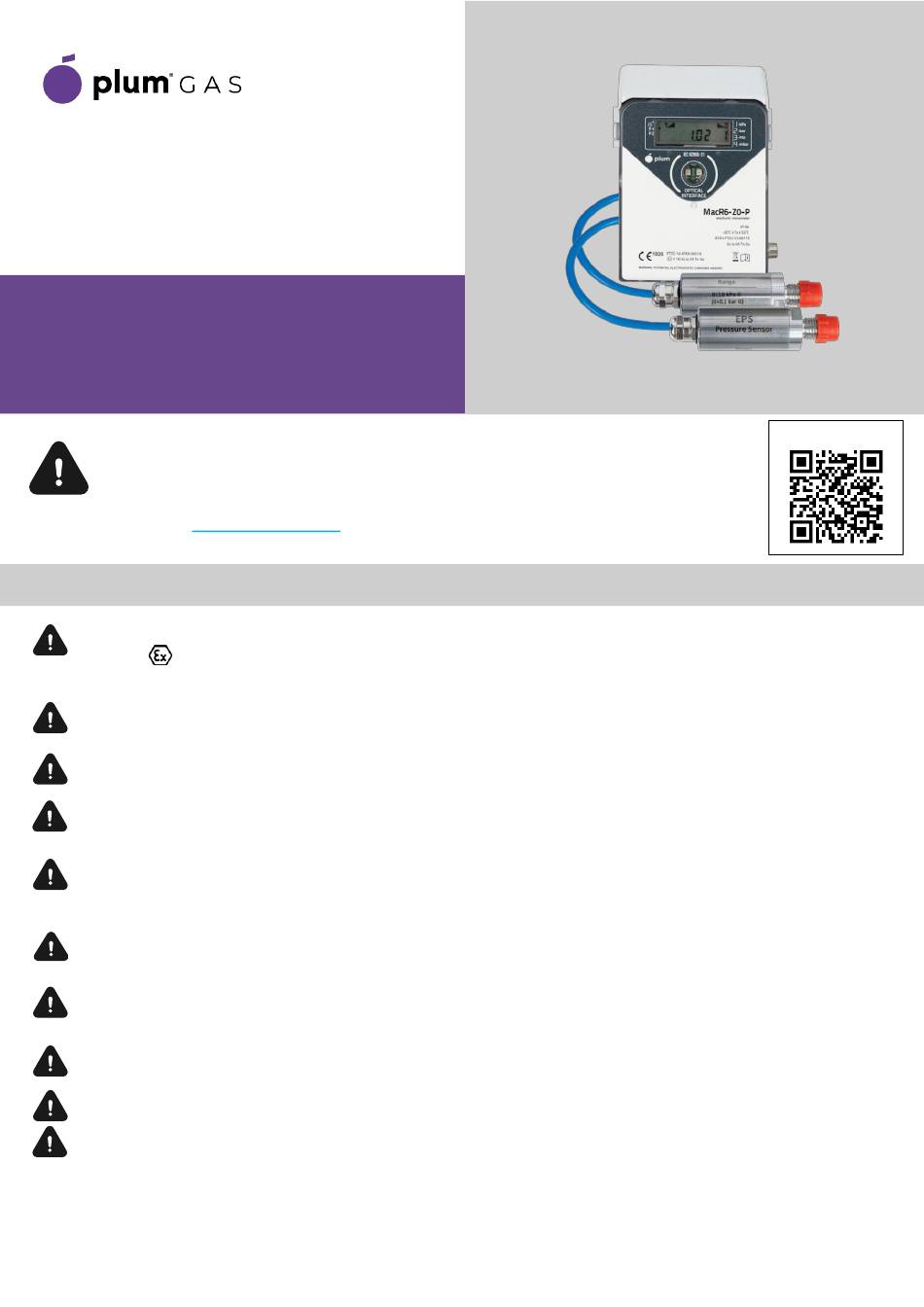

MacR6-Z0-P
Gas pressure logger
Installation manual
Product codes: Z0_311_xxx_0x2, Z0_311_xxx_1x_0x2
Modem: LTE-M/NB-IoT/2G
Communication protocol: Gaz-Modem2/3 (GM)
Transmission protocol: TCP/IP / UDP
Applies to the following firmware: Program series: S013.xx
Implicitly read the user manual, which contain all necessary information about appliance, including
safety information. This is only a supporting document, which includes only selected information,
useful during device installation. Installation manual is only an annex to the main document.
User manual along with information regarding safety and a template of EU conformity declaration is
available on website
https://gas.plum.pl/en/
section (direct link in QR code).
Safety - preliminary information
MacR6-Z0-P data logger is an 'ia' intrinsically safe, explosion proof device and can be installed in 0,1 or 2 explosion zone
of gases and vapors which are placed in IIA explosive group and temperature class T1, T2, T3, T4.
Ex mark
II 1G
applicable regulations.
Minimum requirements for improving the safety and health protection of workers potentially at risk from explosive
atmospheres are prescribed in Directive 1999/92/EC of the European Parliament and of the Council of 16 December 1999
(ATEX 137 'Worker Protection Directive').
Use of the device is only possible in areas where the GSM module in operation does not cause interference with other
equipment (e.g. medical equipment).
Under certain extreme circumstances, the plastic enclosure may store an ignition-capable level of electrostatic charge.
The device should not be installed in a location where the external conditions are conducive to the build-up of
electrostatic charge. The equipment shall only be cleaned with a damp cloth.
Internal intrinsically safe circuits, including pressure sensors internal circuits, do not stand 500V test given in EN60079-
11 to earthed or isolated metal parts of its enclosure. The type of protection does not depend on the separation. Metal
bushings of product and metal parts of its pressure sensors are galvanically connected. It must be considered during
installation.
The device has a built-in pressure sensor PS type. Metal enclosure of sensor must be grounded. Product must be taken
as grounded. It must be considered during installation.
The device is powered by a lithium-thionyl battery with a nominal voltage of 3.6V, size D, conforming to IEC 60086-1.
Only the battery types and manufacturers listed below should be used:
1) LS33600, manufactured by Saft Specialty Battery Group.
There is a danger of explosion if the battery is replaced by an incorrect type.
Replacement of the battery, installation of the SIM card and connection of the external antenna cable are only permitted
outside the hazardous area.
The function and parameters of some inputs/outputs depend on the product version, details are given in user manual of
the device.
To ensure safety, it is essential to read the following instructions before installing the device.
under Products / Flow and pressure loggers / MacR6-Z0-P
Ex ia IIA T4 Ga . Device installation in explosion hazard areas must comply with requirements of
QR code link:
