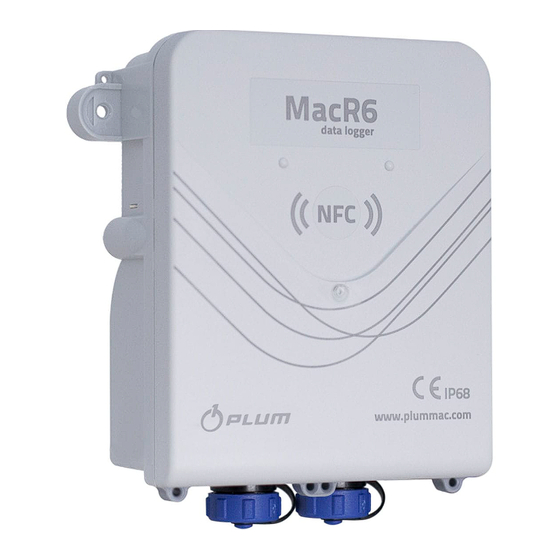

Plum MacR6 N Installation Manual

6.33
• 1 - Set of package
• MacR6 N
• 6 Torx T10 M12 screws
• 2 plastic tack rivets
• 2 - Necessary accessories
• Torx T10 screwdriver
• Smartphone or tablet with NFC support
• Data Loggers Configurator NFC application
– QR code redirects to Google Play store
• MicroSIM card

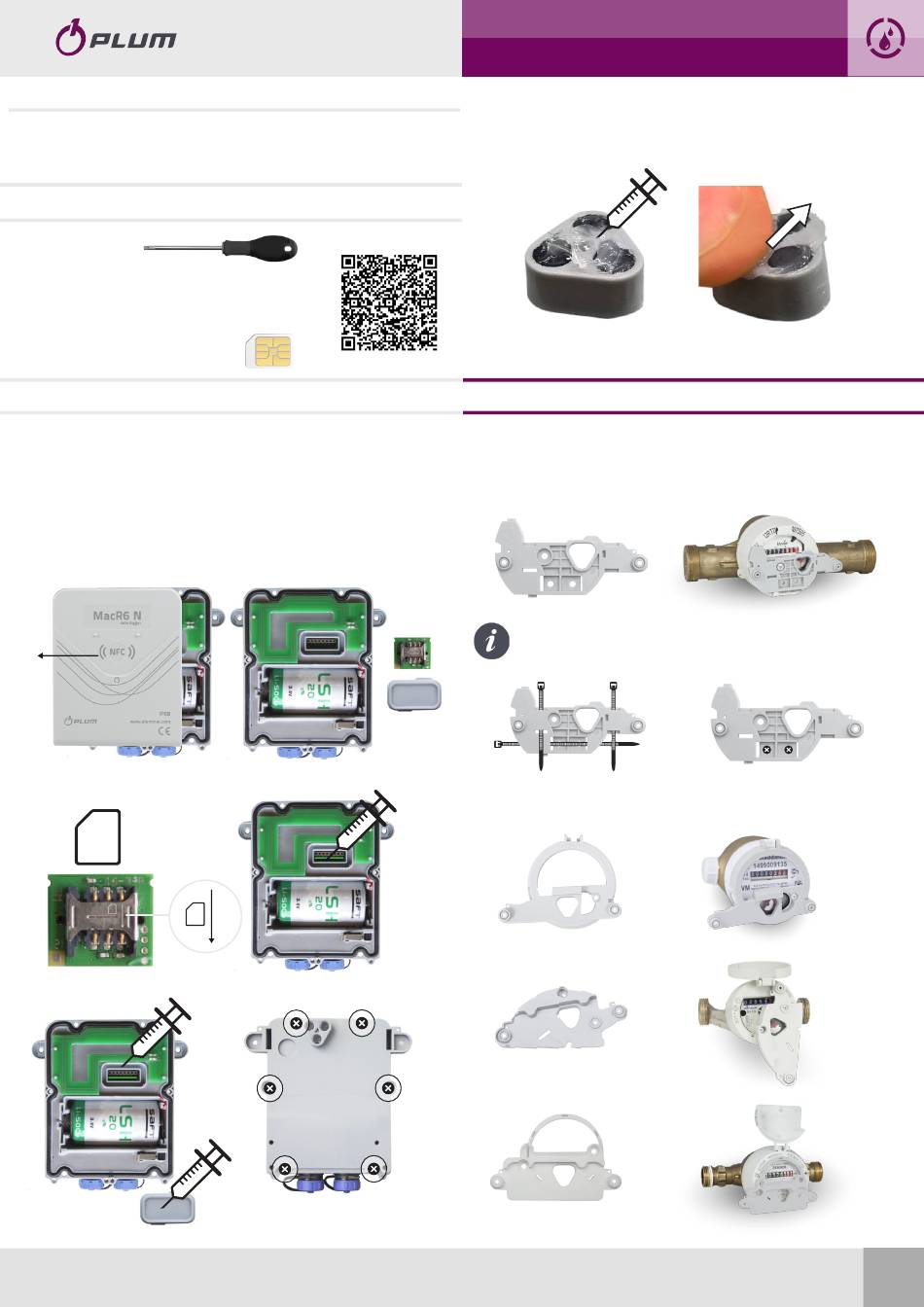

• 3 - SIM card assembly and slot sealing
1. Dismantle the front cover (fig. 3.1).
2. Dismantle the SIM card cap, take off the SIM holder (fig. 3.2).
3. Install the SIM card according to fig. 3.3. Insert the SIM holder inside
the socket.
4. Using the syringe seal the surface of the SIM holder and the cap inside
– fig. 3.4 & 3.5.
5. Put the cap on the socket. Tighten the front cover using included Torx
screws (fig. 3.6.).
Fig. 3.1.
SIM
Fig. 3.3.
Fig. 3.5.
• H-type silicone gel in syringe
• Watermeter adapter kit
Fig. 3.2.
Fig. 3.4.
Fig. 3.6.
MacR6 N
installation manual
6.
Using the syringe put the gel on the front of the head of coils and spread
it carefully on the whole surface using finger or soft tool – fig. 3.7 & 3.8.
Fig. 3.7
• 4 - Watermeter assembly
1. Choose the adapter dedicated to the watermeter.
2. Install the adapter using included screws.
3. Instal the MacR6 N on the adapter using tack rivets (fig. 4.3.).
• ITRON
ITRON adapter is also designed as the pipe holder using cable ties –
fig. 4.1 or wall holder using pegs – fig. 4.2.
Fig. 4.1.
• MADDALENA
• SENSUS
• ZENNER
Fig. 3.8.
Fig. 4.2.
