Plum MacR6 N Installation Manual

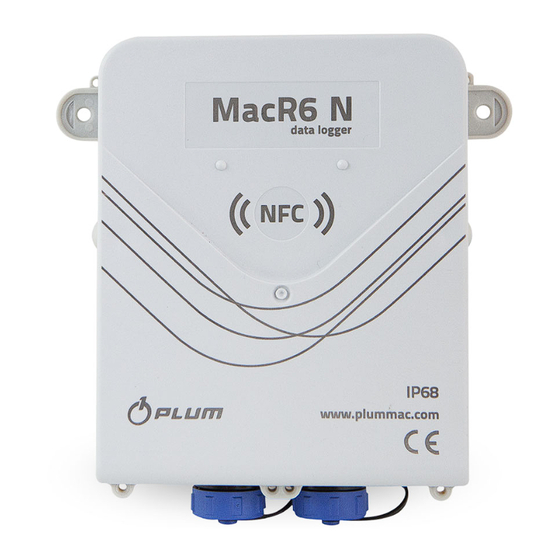

MacR6 N
Installation manual EN v4.0
Information on safety
Implicitly read the user manual. User manual along with information regarding safety
is available on website www.plummac.com
https://plummac.com/project/macr6-n/, link with QR code:
Using the device is possible only in places where working GSM module does not
interfere other instruments (e.g. medical).
Do not install the device in surroundings of electromagnetic fields.
Always use the updated documentation, which is provided by manufacturer. Pay special attention if
documentation can be applied to the device's version, considering version and series of the firmware.
1.

Contents of package:

• MacR6 N
•
6 Torx T10 M12 screws
•
H-type silicone gel in syringe
•
2 plastic tack rivets
• Watermeter adapter kit
2.

Necessary accessories:

• Torx T10 screwdriver
• Smartphone or tablet with Android and NFC
• Free ConfIT! Data loggers application available in Google Play store (QR code to
the right)
• Micro SIM card
3.

SIM card assembly, slot sealing, closing the housing

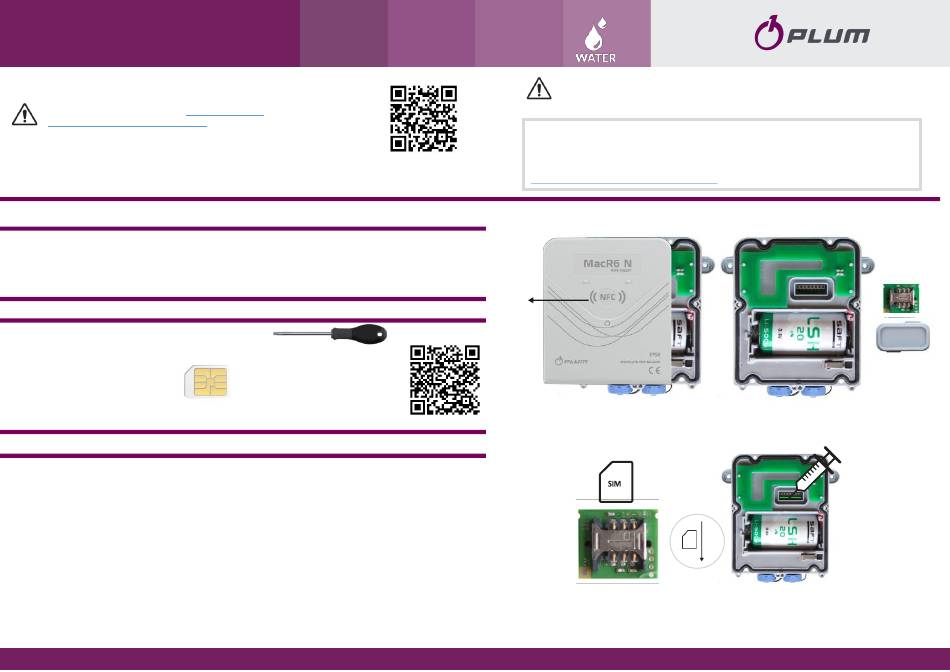

3.1. Take off front cover of the housing (Fig. 3.1.).
3.2. Take off SIM card cap, take out the SIM holder (Fig. 3.2.).
3.3. Install the SIM card according to the figure (Fig. 3.3.). Place SIM holder with card installed in
the socket.
3.4. Using the syringe, seal the Surface of the SIM holder with a gel tightly (Fig. 3.4), its plastic
groove around the holder and the cap (Fig. 3.5.).
3.5. Put the cap onto the socket and screw the front of the housing with 6 Torx T10 M12 type
screws attached (Fig. 3.6.).
(corresponds to firmware: MacR6_N_H1.1.0_S010.13)
under following link
Design of the device's housing, ensures dust-proof protection and protection against
continuous water immersion (IP68 protection level). IP68 protection level will be provided
only when installer fulfil all below mounting requirements.
Simplified version of EU declaration of conformity
Plum Sp. z o.o. hereby declares, that the radio equipment type MacR6 N is in compliance with
Directive 2014/53/EU.
The full text of EU declaration of conformity is available under following Internet address:
https://plummac.com/en/project/macr6-n_en/
Fig. 3.1.
Fig. 3.3.
6.43
Fig. 3.2.
Fig. 3.4.
1 / 4
