Incorporated in this document are the following:

• Declaration of conformity

• Technical manual

• Dimensional drawing

Multiple instructions:

Consult the specific part

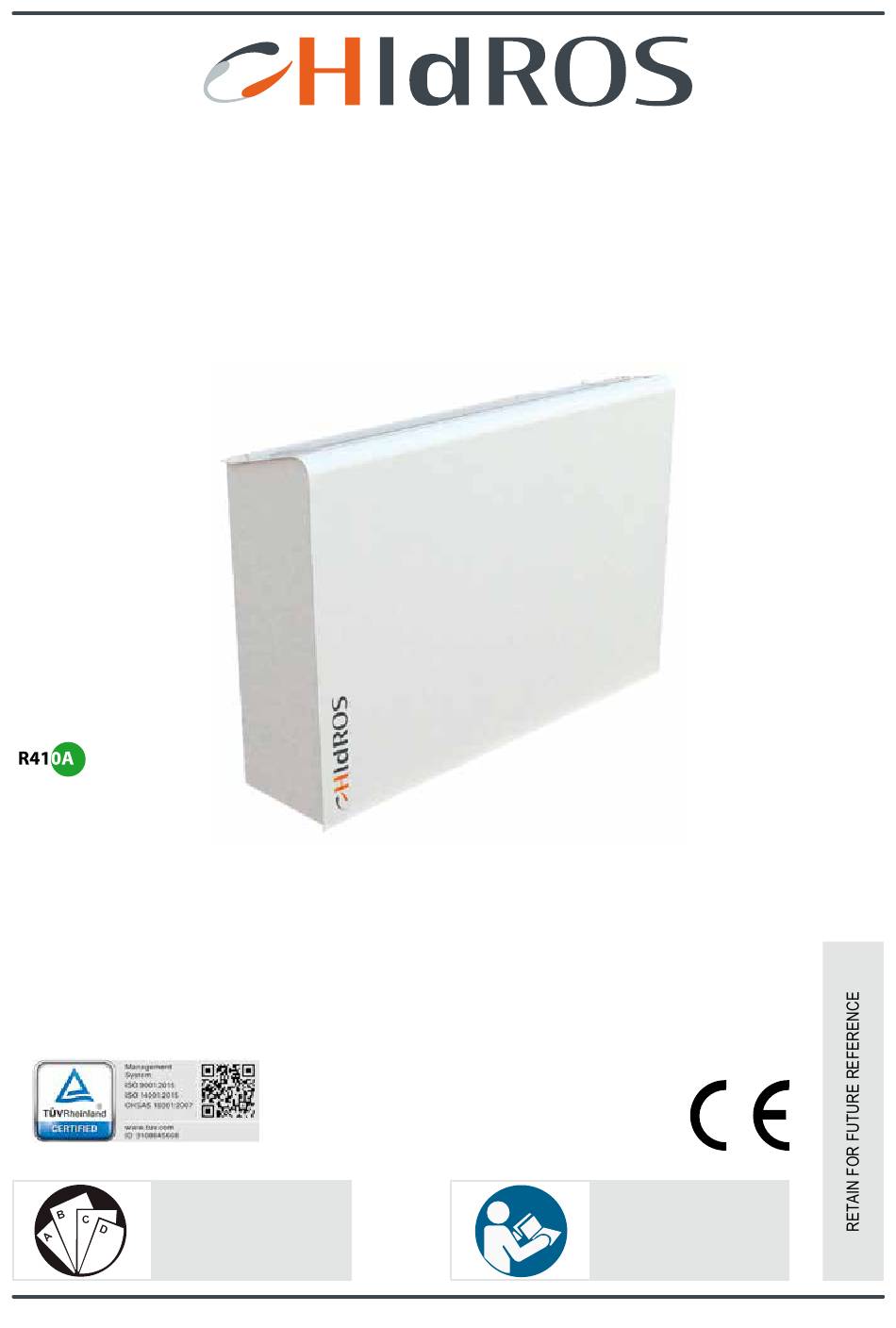

MTEC.4510.GB-I-1 Operation and maintenance manual SBA series English Rev. I 06-2019

SWIMMING POOL DEHUMIDIFIERS

SBA

SERIES

TECHNICAL MANUAL

Read and understand

the instructions before

undertaking any work on

the unit

Original instructions

Need help?

Do you have a question about the SBA Series and is the answer not in the manual?

Questions and answers

Summary of Contents for HIdRos SBA Series

Page 1 • Declaration of conformity • Technical manual • Dimensional drawing Read and understand Multiple instructions: the instructions before Consult the specific part undertaking any work on the unit MTEC.4510.GB-I-1 Operation and maintenance manual SBA series English Rev. I 06-2019 Original instructions...
Page 2 We declare under our own responsibility that the below equipment complies in all parts with the CEE and EN directives. The declaration of conformity is enclosed to the technical booklet enclosed with the unit. The unit contains fluorinated greenhouse gases. MTEC.4510.GB-I-1 Operation and maintenance manual SBA series English Rev. I 06-2019...
Page 3 4.22 How to connect the power supply ............................ 4.23 Electric connections ................................. 4.24 Basic refrigerant circuit layout ............................5. UNIT START UP ...................................... 5.1 Preliminary checks ................................5.2 Description of the control panel ............................MTEC.4510.GB-I-1 Operation and maintenance manual SBA series English Rev. I 06-2019...
Page 4 8.1 Disconnect the unit ................................8.2 Disposal, recovery and recycling ............................8.3 RAEE Directive (only UE) ..............................9. DIAGNOSIS AND TROUBLESHOOTING .............................. 9.1 Fault finding ..................................10.DIMENSIONAL DRAWINGS .................................. MTEC.4510.GB-I-1 Operation and maintenance manual SBA series English Rev. I 06-2019...
Page 5 In these instructions symbols have been used (described in the following paragraphs) to draw the attention of operators and users to the operations that have a higher risk and which must be performed safely. MTEC.4510.GB-I-1 Operation and maintenance manual SBA series English Rev. I 06-2019...
Page 6 (special anchors or seismic vibrations to prevent disasters or earthquake. breakages or accidental falls ). MTEC.4510.GB-I-1 Operation and maintenance manual SBA series English Rev. I 06-2019...
Page 7 A white symbol inserted in a blue circle indicates an action that must be done to avoid a risk. Safety symbols combined in accordance with ISO 3864-2: The graphic symbol “warning” is qualified with additional safety information (text or other symbols). MTEC.4510.GB-I-1 Operation and maintenance manual SBA series English Rev. I 06-2019...
Page 8 The unit is not suitable for operations in environments: • excessively dusty or potentially explosive atmospheres; • where there are vibrations; • where there are electromagnetic fields; • where there are aggressive atmospheres MTEC.4510.GB-I-1 Operation and maintenance manual SBA series English Rev. I 06-2019...
Page 9 Contiene gas fluorurati ad effetto serra disciplinati dal protocollo di Kyoto Contains fluorinated greenhouse gasses covered by the Kyoto protocol The product label should never be removed from the unit. MTEC.4510.GB-I-1 Operation and maintenance manual SBA series English Rev. I 06-2019...
Page 10 Users and maintenance personnel must be adequately informed about the possible risks of handling potentially toxic substances. Failure to follow such instructions can cause damage to personnel or to the unit. MTEC.4510.GB-I-1 Operation and maintenance manual SBA series English Rev. I 06-2019...
Page 11 In case of contact with skin, wash immediately with lukewarm water. Thaw tissue using water. Remove contaminated clothing. Clothing may stick to the skin in case of frostbite. If irritation, swelling or blisters appear, seek medical assistance. MTEC.4510.GB-I-1 Operation and maintenance manual SBA series English Rev. I 06-2019...
Page 12 3.1.6 Air filter It is made of synthetic filtering media, ondulated type, without electro-static charge; they are all removable for differential disposal. Efficiency class G2, accordino to EN 779:2002. MTEC.4510.GB-I-1 Operation and maintenance manual SBA series English Rev. I 06-2019...
Page 13 To be used for “P” version to direct inlet/outlet air from/to swimming pool and vice versa. Galvanized steel made, coated with polyuretha- ne powder to grant best resistance to weathering and operation in harsh environments. MTEC.4510.GB-I-1 Operation and maintenance manual SBA series English Rev. I 06-2019...
Page 14 The refrigerant data may change without notice. It is therefore necessary to refer always to the silver label placed on the unit. 3.4.1 Hot water coil (Accessory)(HOWA) Models SBA Hot water coil capacity 11,5 11,8 Waterflow 1029 1041 Water pressure drops 40,09 24,93 25,06 13,11 13,42 MTEC.4510.GB-I-1 Operation and maintenance manual SBA series English Rev. I 06-2019...
Page 15 The graphic below shows the pressure drops of the hydraulic circuit that includes the hot water coil and the 3 way ON-OFF valve. 75-100 150-200 1000 1100 1200 1300 1400 1500 Heating coil waterflow (l/h) MTEC.4510.GB-I-1 Operation and maintenance manual SBA series English Rev. I 06-2019...
Page 16 If there is the necessity to operate in different conditions, please contact our technical office. Units are designed to operates with hot water temperatures variables from 35°C to 80°C MTEC.4510.GB-I-1 Operation and maintenance manual SBA series English Rev. I 06-2019...
Page 17 (according to set parameters), switches the compressor off, while the fan remains in operation. At the end of the defrost cycle, it is waited for the dripping time to allow the complete cleaning of the coil. MTEC.4510.GB-I-1 Operation and maintenance manual SBA series English Rev. I 06-2019...
Page 18 4.3 Personal protective equipment When operating and maintaining the unit, use the following personal protective equipment listed below as required by law. Protective footwear. Eye protection. Protective gloves. Respiratory protection. Hearing protection. MTEC.4510.GB-I-1 Operation and maintenance manual SBA series English Rev. I 06-2019...
Page 19 It is important to keep the unit horizontal at all time to avoid damage to the internal components. MTEC.4510.GB-I-1 Operation and maintenance manual SBA series English Rev. I 06-2019...
Page 20 In the main european markets, the minimum distance of electric appliances from water sources (basins, showers, pools, whirlpools) is 2 meters! Before the installation of the unit it is compulsory to check the national or local norms. MTEC.4510.GB-I-1 Operation and maintenance manual SBA series English Rev. I 06-2019...
Page 21 To install the units use M8 screws. 4.9.1 Template SBA 50 BASE - 180 mm minimum from the floor 4.9.2 Template SBA 75 - 100 1010 BASE - 180 mm minimum from the floor MTEC.4510.GB-I-1 Operation and maintenance manual SBA series English Rev. I 06-2019...
Page 22 BASE - 180 mm minimum from the floor 99.5 1221 43.5 43.5 Connection with PLENUM Unit with feet Galvanized steel hood Internal structure Wall fixing points Pipes inlet Power inlet Condensate discharge MTEC.4510.GB-I-1 Operation and maintenance manual SBA series English Rev. I 06-2019...
Page 23 Unit with supply and discharge plenum. Both the unit and the plenum are arranged with some holes for the fastening screws, as showed in the picture. Insert and shift the plenum towards right till alignement of the screw holes. MTEC.4510.GB-I-1 Operation and maintenance manual SBA series English Rev. I 06-2019...
Page 24 The electronic control is located underneath discharge grill, on the right side of the unit; this grill is fixed with magnetic strips to the unit cabinet. Lift up the grill to access to the control panel. MTEC.4510.GB-I-1 Operation and maintenance manual SBA series English Rev. I 06-2019...
Page 25 Discharge pipe Condensate discharge on ø 20 mm modd. 75÷200 the rear panel. ø 16 mm mod. 50 MTEC.4510.GB-I-1 Operation and maintenance manual SBA series English Rev. I 06-2019...
Page 26 To install the hot water coil it is necessary to remove the pre-knock out holes on the back panel of the unit; fix the water coil connections to the hot water coil. The hot water coil connections are 3/8” diameter for models 75-100 and ¾’’ for models 150-200. Hot water coil power inlet MTEC.4510.GB-I-1 Operation and maintenance manual SBA series English Rev. I 06-2019...
Page 27 4.19.1 Return air grille Mod. 75 - 100 150 - 200 4.19.2 Supply air grille Mod. 75 - 100 150 - 200 4.19.3 Case Mod. 75 - 100 150 - 200 MTEC.4510.GB-I-1 Operation and maintenance manual SBA series English Rev. I 06-2019...
Page 28 If opened, the main switch cuts the power off to any electric heater and antifreeze device supplied with the unit, in- cluding the compressor crankcase heaters. The main switch should only be disconnected for cleaning, maintenance or unit reparation. MTEC.4510.GB-I-1 Operation and maintenance manual SBA series English Rev. I 06-2019...
Page 29 4.22 How to connect the power supply Remove the cabinet; use the appropriate conduit present in the electric panel to connect the power cable directly to the main switch. MTEC.4510.GB-I-1 Operation and maintenance manual SBA series English Rev. I 06-2019...
Page 30 The ventilation openings must not be blocked. ELECTRIC HEATERS (Models 50 - 75 - 100) Heater 1, connected to the terminals N1-53 Heater 2, connected to the terminals N1-52 MTEC.4510.GB-I-1 Operation and maintenance manual SBA series English Rev. I 06-2019...
Page 31 Charging plug 1/4 sae Centrifugal fan Charging plug 5/16 sae High pressure pressostat Condenser 3-Way water valve Evaporator Water modulating valve Termostatic valve Starter by-pass solenoid valve Liquid line filter MTEC.4510.GB-I-1 Operation and maintenance manual SBA series English Rev. I 06-2019...
Page 32 • Before start up check that all panels are replaced in the proper position and locked with fastening screws. Do not modify internal wiring of the unit as this will immediately invalidate the warranty. MTEC.4510.GB-I-1 Operation and maintenance manual SBA series English Rev. I 06-2019...
Page 33 In programming mode allows to scroll through the parameter codes or increases the values If press ed down for 5 seconds, it makes it possible to switch the unit on or off. MTEC.4510.GB-I-1 Operation and maintenance manual SBA series English Rev. I 06-2019...
Page 34 Temperature set, in the bottom line will appear the label SETH. Press for 3 seconds and release in the main display: makes it possible to modify the set points; MTEC.4510.GB-I-1 Operation and maintenance manual SBA series English Rev. I 06-2019...
Page 35 If there is damage to the remote control or there is a faulty connection, failure of communication will be indicated in the display with the message “noL” (no link). MTEC.4510.GB-I-1 Operation and maintenance manual SBA series English Rev. I 06-2019...
Page 36 Icon ON: the unit is on. Counter between two defrost cycles. Icon ON: the display shows the room temperature or hu- Not used. miditiy. Icon blinking: high pressure alarm is active. MTEC.4510.GB-I-1 Operation and maintenance manual SBA series English Rev. I 06-2019...
Page 37 Unit equipped with electronic sensor Unit equipped with mechanical thermostat/hygrostat Unit in drip time after defrost Unit in drip time after defrost Unit equipped with electronic sensor Unit equipped with mechanical thermostat/hygrostat MTEC.4510.GB-I-1 Operation and maintenance manual SBA series English Rev. I 06-2019...
Page 38 The units are supplied with a very sophisticated control system with many other parameters that are not adjustable by the end user; these parameters are protected by a manufacturer password. MTEC.4510.GB-I-1 Operation and maintenance manual SBA series English Rev. I 06-2019...
Page 39 RST label appears on the upper part of the display. In this case press the key to reset. Non reset alarms: The nO label appears on the upper part of the display. In this case the alarm is permanent; contact the Company. MTEC.4510.GB-I-1 Operation and maintenance manual SBA series English Rev. I 06-2019...
Page 40 In any case, the taps must remain closed as less as possible. MTEC.4510.GB-I-1 Operation and maintenance manual SBA series English Rev. I 06-2019...
Page 41 Aluminium coil fins are very sharp and can cause serious wounds. Care must be taken when working in their surroundings. After servicing, replace the cover panels, fixing them with locking screws. MTEC.4510.GB-I-1 Operation and maintenance manual SBA series English Rev. I 06-2019...
Page 42 “Obligations regarding the containment, use, recovery and destruction of fluorinated greenhouse gases used in sta- tionary refrigeration, air conditioning and heat pump equipment”. It can be carried out with a higher frequency (also weekly) depending on the ∆t. MTEC.4510.GB-I-1 Operation and maintenance manual SBA series English Rev. I 06-2019...
Page 43 • When replacing the compressor following a burn out, it is advisable to wash the cooling system with appropriate products including a filter for acid. • When under vacuum do not switch on the compressor. MTEC.4510.GB-I-1 Operation and maintenance manual SBA series English Rev. I 06-2019...
Page 44 Read the instructions carefully before using the unit for the first time. It is recommended not to use the product for any purpose other than that for which it was designed, as there is a risk of electric shock if used improperly. MTEC.4510.GB-I-1 Operation and maintenance manual SBA series English Rev. I 06-2019...
Page 45 Atdf Defrost time too long. Warning (Reporting only) Atlo Low room temperature. Replace faulty sensor Contact the Company Athi Hight room temperature. Replace faulty sensor Contact the Company MTEC.4510.GB-I-1 Operation and maintenance manual SBA series English Rev. I 06-2019...
Page 46 Swimmingpool dehumidifiers 10.DIMENSIONAL DRAWINGS SBA 50 (A) Dimensional drawing SBA 50 (Version A) MTEC.4510.GB-I-1 Operation and maintenance manual SBA series English Rev. I 06-2019...
Page 47 Swimmingpool dehumidifiers SBA 50 (P) Dimensional drawing SBA 50 (Version P) MTEC.4510.GB-I-1 Operation and maintenance manual SBA series English Rev. I 06-2019...
Page 48 Swimmingpool dehumidifiers SBA 75 - 100 (A) Dimensional drawing SBA 75 - 100 (Version A) MTEC.4510.GB-I-1 Operation and maintenance manual SBA series English Rev. I 06-2019...
Page 49 Swimmingpool dehumidifiers SBA 75 - 100 (P) MTEC.4510.GB-I-1 Operation and maintenance manual SBA series English Rev. I 06-2019...
Page 50 Swimmingpool dehumidifiers SBA 150 - 200 (A) MTEC.4510.GB-I-1 Operation and maintenance manual SBA series English Rev. I 06-2019...
Page 51 Swimmingpool dehumidifiers SBA 150 - 200 (P) MTEC.4510.GB-I-1 Operation and maintenance manual SBA series English Rev. I 06-2019...
Page 52 Swimmingpool dehumidifiers MTEC.4510.GB-I-1 Operation and maintenance manual SBA series English Rev. I 06-2019...
Page 53 Swimmingpool dehumidifiers MTEC.4510.GB-I-1 Operation and maintenance manual SBA series English Rev. I 06-2019...
Page 54 Swimmingpool dehumidifiers MTEC.4510.GB-I-1 Operation and maintenance manual SBA series English Rev. I 06-2019...
Page 55 Sede operativa: Via E.Mattei, 20 ▪ cap 35028 ▪ Piove di Sacco (Pd) Italy Tel. +39 049 9731022 ▪ Fax +39 049 5806928 Info@hidros.it ▪ www.hidros.it P.IVA e C.F 04297230403 ▪ R.E.A. FO 337725 Technical data shown in this booklet are not binding.
