- Page 5 Swimming pool dehumidifiers INDEX Declaration of conformity page 3 Aim and contents of this manual page 6 How to keep this manual page 6 Graphyc symbols page 6 Safety laws page 7 General safety guidelines page 7 Worker’s health and safety page 8 Protective equipment page 8...
-
Page 6: Graphic Symbols
The customer shall store any updated copy of the manual or parts of it delivered by the manufacturer as an attachment to this manual. HIDROS SRL is available to give any detailed information about this manual and to give information regarding the use and the maintenance of its own units. -
Page 7: Safety Laws
Swimming pool dehumidifiers SAFETY LAWS The units single components or the complete units produced by HIDROS have been designed according to the actual CE and national Directives. For the detailed list of the project technical Directives, refer to the CE declaration enclosed. -
Page 8: Workers' Health And Safety
Swimming pool dehumidifiers WORKERS’ HEALTH AND SAFETY The European Community has emanated some Directives about worker’s safety and health which the employers have to respect and make the others respect. For the detailed list, see the CE declaration enclosed. Do not tamper with or replace parts of the equipment without the specific consent of the manufacturer. The manufacturer shall have no responsibility whatsoever in case of unauthorised operations. -
Page 9: Technical Description

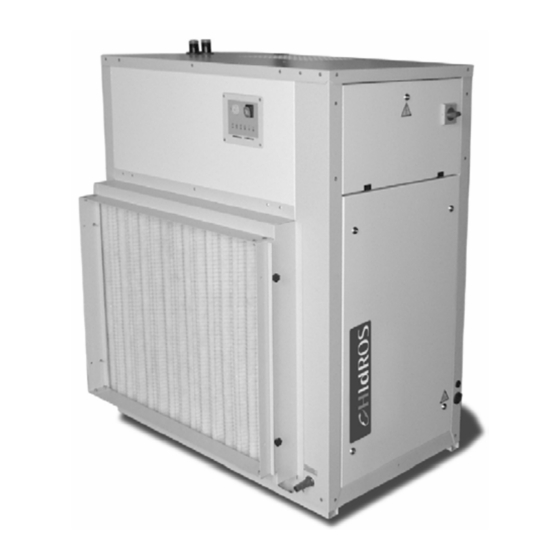

Swimming pool dehumidifiers TECHNICAL DESCRIPTION SHH dehumidifiers series are high-performances units especially designed for swimming pool applications or where humidity level should be controlled or water vapour condensation should be prevented. Frame All SHH units are made from hot-galvanised thick sheet metal, painted with polyurethane powder enamel at 180°C to ensure the best resistance against the atmospheric agents. - Page 10 Swimming pool dehumidifiers Control and protection devices All units are supplied with the following control and protection devices: defrost thermostat, who signals to the microprocessor control that a defrost cycle is needed and controls its termination, high pressure switch with manual reset, low pressure switch with automatic reset, high pressure safety valve, compressor thermal overload protection, fans thermal overload protection Test All the units are fully assembled and wired at the factory, carefully evacuated and dried after leak tests under pressure and then...
-
Page 11: Technical Data
Swimming pool dehumidifiers TECHNICAL DATA Mod. Refrigerant R407C R407C R407C R407C R407C Dehumidification capacity l/24h 329,9 414,8 564,1 738,5 937,3 Cooling capacity Compressor input power 11,7 15,6 Maximum input power 12,8 17,1 Partial heat recovery 10,5 13,5 Hot water coil 21,8 21,8 36,2... -
Page 12: Performance Tables
Swimming pool dehumidifiers SHH 330 PERFORMANCE TABLES Dehumidification capacity Input Power Air temperature increase Thermal load in the room [l/24h] [kW] [°C] [kW] Relative humidity 50% 10°C 47,3 15°C 58,0 20°C 84,8 25°C 122,3 30°C 158,4 35°C 190,1 10,9 Dehumidification capacity Input Power Air temperature increase Thermal load in the room... - Page 13 Swimming pool dehumidifiers SHH 400 PERFORMANCE TABLES Dehumidification capacity Input Power Air temperature increase Thermal load in the room [l/24h] [kW] [°C] [kW] Relative humidity 50% 10°C 60,8 15°C 74,5 20°C 108,4 25°C 155,4 30°C 200,4 11,9 35°C 240,4 13,6 Dehumidification capacity Input Power Air temperature increase...
- Page 14 Swimming pool dehumidifiers SHH 560 PERFORMANCE TABLES Dehumidification capacity Input Power Air temperature increase Thermal load in the room [l/24h] [kW] [°C] [kW] Relative humidity 50% 10°C 83,0 15°C 101,5 20°C 147,2 10,8 25°C 210,7 13,4 30°C 271,3 16,0 35°C 324,2 10,1 18,2...
- Page 15 Swimming pool dehumidifiers SHH 740 PERFORMANCE TABLES Dehumidification capacity Input Power Air temperature increase Thermal load in the room [l/24h] [kW] [°C] [kW] Relative humidity 50% 10°C 113,5 10,5 15°C 138,2 11,6 20°C 198,0 14,2 25°C 280,5 17,6 30°C 358,5 20,9 35°C 427,9...
- Page 16 Swimming pool dehumidifiers SHH 940 PERFORMANCE TABLES Dehumidification capacity Input Power Air temperature increase Thermal load in the room [l/24h] [kW] [°C] [kW] Relative humidity 50% 10°C 146,0 13,7 15°C 178,0 15,2 20°C 254,4 18,5 25°C 359,7 11,0 22,8 30°C 458,3 12,5 27,2...
- Page 17 Swimming pool dehumidifiers HOT WATER COIL (ACCESSORY) Mod. Hot water coil capacity 21,8 21,8 36,2 55,7 Water flow 1920 1920 3110 3960 4800 Water pressure drops Nominal data are referred to room temperature 32°C and water temperature 80/70°C . Thermal difference water inlet temperature – room temperature °C The hot water coil capacity in different conditions can be obtained multiplying the nominal capacity (See above), by the correction factor indicated in the table.
- Page 18 Swimming pool dehumidifiers PARTIAL HEAT RECOVERY (ACCESSORY) Mod. Partial heat recovery nominal capacity 10,5 13,5 Water flow 1000 1380 1810 2320 Water pressure drops The nominal value refers to an ambient temperature of 30°C and outlet water temperature of 32°C (Dt 5°C). The heat recovery capacity in different conditions can be obtained multiplying the nominal capacity (See above), by the correction factor indicated in the table.
-
Page 19: Operation Limits
Swimming pool dehumidifiers OPERATION LIMITS 100% Standard operation Air temperature (°C) Ambient temperatures SHH units are designed to operate with ambient temperatures from 10°C to 36°C, relative humidity from 50% to 99% WARNING: The units MUST be used within the operation limit indicated in the diagrams (see above). the warranty will be invalidated if the units are used in ambient conditions outside the limits reported. -
Page 20: Safety Devices
Swimming pool dehumidifiers SAFETY DEVICES DEFROSTING The frost on the coil, obstructs the air flow, reduces the available exchange area and consequently the unit performances and can seriously damage the system. All the units are supplied, standard, with a control which defrost automatically the heat exchanger if necessary. -
Page 21: Lifting And Handling
After receiving the unit, immediately check its integrity. The unit left the factory in perfect condition; any eventual damage must be questioned to the carrier and recorded on the Delivery Note before it is signed. HIDROS must be informed, within 8 days, of the extent of the damage. -
Page 22: Condensate Draining Connections
Swimming pool dehumidifiers WARNING: All the maintenance operation must be done by TRAINED PEOPLE only. WARNING: Before every operation of servicing on the unit, be sure that the electric supply is disconnected. WARNING: Inside the unit some moving components are present. Be very careful when operating in their surroundings even if the electric supply is disconnected. -
Page 23: Duct Connection
Swimming pool dehumidifiers DUCT CONNECTION All the units are provided with a centrifugal fan that can be ducted. If supply only should be ducted, a flanged connection with overall dimensions larger than discharge hole located on the top of the unit should be used (please refer to unit dimensional drawing). In case also the suction side should be ducted it is necessary to connect the return duct with a flange having the same dimensions of the filter frame (See next picture). - Page 24 Swimming pool dehumidifiers REFRIGERANT LAY-OUT Condenser Liquid line filter Pressure plug Manual valve Expansion valve Centrifugal fan Evaporator Liquid receiver High pressure switch Hot gas by pass valve ◊ Optional MTSHHGB REV.072008...
-
Page 25: Electrical Connections
Swimming pool dehumidifiers ELECTRICAL CONNECTIONS The power supply must correspond to the electric nominal data (tension, phases, frequency) reported on the label in the front panel of the unit. Power connections must be made in accordance to the wiring diagram enclosed with the unit and in accordance to the norms in force. -
Page 26: Control Panel
Swimming pool dehumidifiers CONTROL PANEL Units are provided with signalling lighting led that indicate unit operational status. Below is reported a brief description of their meaning. Optional ATTENTION: the hygrostat and the thermostat are accessories. They have to be ordered. They can be built-in (as in drawing above) or installed remote. - Page 27 Swimming pool dehumidifiers REFRIGERANT CHARGE CHECKING • After few hours the unit is working, check that sight glass shows a green colour core: if the core is yellow moisture would be present in the circuit. In this case it is necessary circuit dehydration to be carried out by qualified people only. Check that at the sight glass there is no continuous vapour bubbles presence.
-
Page 28: Fault Finding
Swimming pool dehumidifiers UNIT UNDER ALARM When red led is lighted up the unit is stopped and set under alarm condition. WARNING: the reset of the operation mode can happen only after removing the cause of the alarm and resetting the unit through the main switch ON/OFF. In case the red alarm is blinking, please contact the Company. - Page 53 Swimming pool dehumidifiers MTSHHGB REV.072008...
- Page 54 Swimming pool dehumidifiers MTSHHGB REV.072008...
- Page 55 Swimming pool dehumidifiers MTSHHGB REV.072008...
- Page 56 Via dell’Industria 5 35020 Brugine (Pd) Tel.+390-49-9731022 Fax.+390-49-5806928 www.hidros.it Technical data shown in this booklet are not binding. HIDROS SRL shall have the right to introduce at any time whatever modifications necessary to the improvement of the product. MTSHHGB REV.072008...
