Incorporated in this document are the following:
• Declaration of conformity
• Technical manual
• Dimensional drawing
Multiple instructions:
MTEC.6800.GB-H-1 Operation and maintenance manual SMA series English Rev. H 11-2021

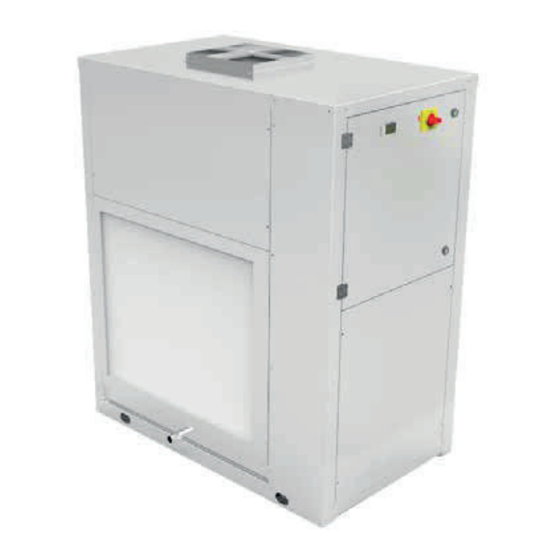

SWIMMING POOL DEHUMIDIFIERS
SMA
SERIES
TECHNICAL MANUAL
Read and understand
the instructions before
undertaking any work on
the unit
Original instructions
