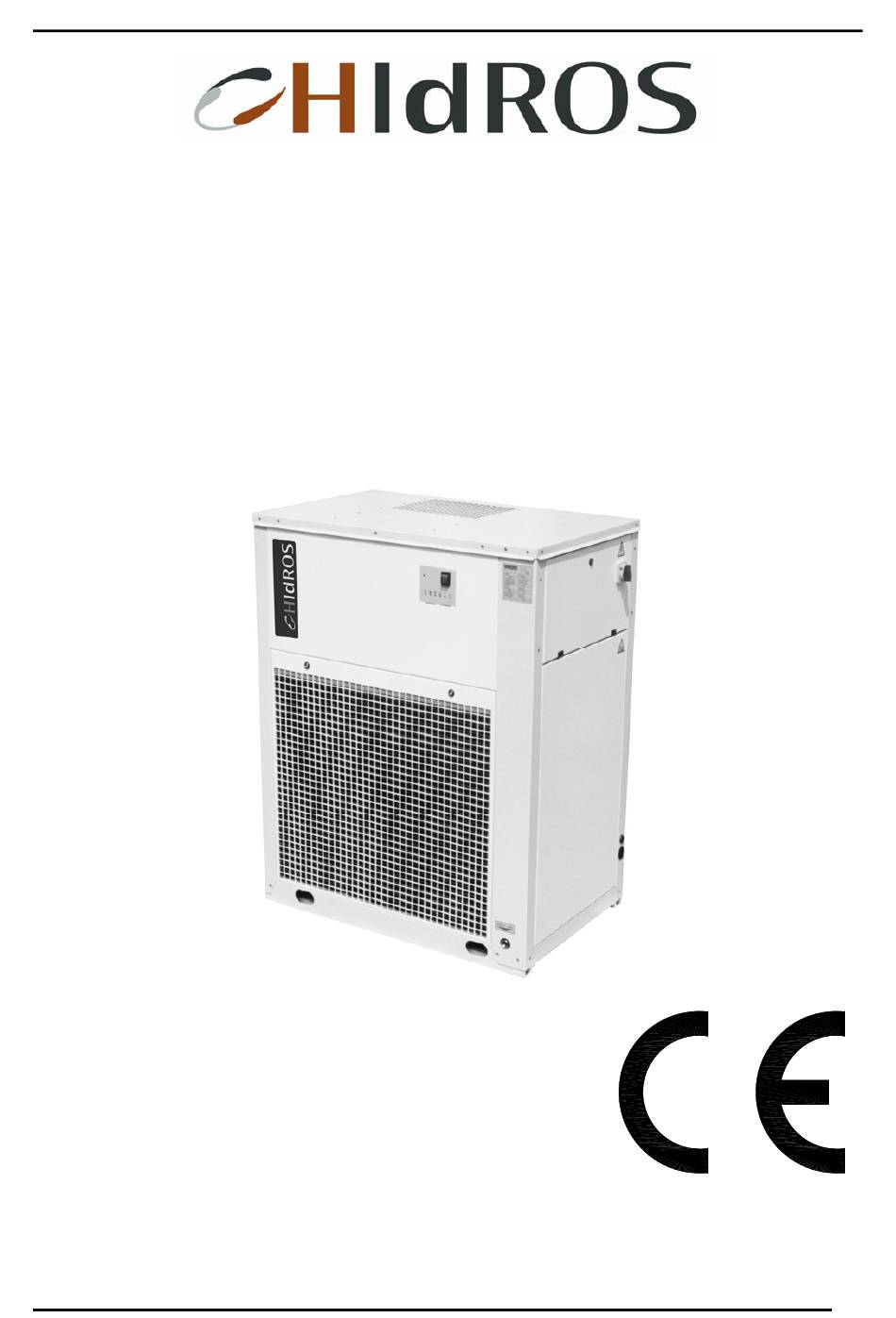

- Page 1 LOW TEMPERATURE DEHUMIDIFIERS ITMBT SERIES TECHNICAL MANUAL...
- Page 2 ITMBT Low temperature dehumidifiers MTITMBTGB REV.112008...
- Page 3 ITMBT Low temperature dehumidifiers MTITMBTGB REV.112008...
- Page 4 ITMBT Low temperature dehumidifiers MTITMBTGB REV.112008...
- Page 5 ITMBT Low temperature dehumidifiers INDEX Declaration of conformity page Aim and contents of this manual page How to keep this manual page Graphyc symbols page Safety laws page General safety guidelines page Worker’s health and safety page Protective equipment page Safety signs page Unit description...
- Page 6 HIDROS SRL is available to g ive any detailed information about this manual a nd to give information regarding the use and the maintenance of its own units.
-
Page 7: Safety Laws
Low temperature dehumidifiers SAFETY LAWS The units single components or the complete units produced by HIDROS have been designed according to the actual CE and national Directives. For the detailed list of the project technical Directives, refer to the CE declaration enclosed. -
Page 8: Workers' Health And Safety
ITMBT Low temperature dehumidifiers WORKERS’ HEALTH AND SAFETY The European Community has emanated some Directives about worker’s safety and health which the employers have to respect and make the others respect. For the detailed list, see the CE declaration enclosed. Do not tamper with or replace parts of the equipment without the specific consent of the manufacturer. -
Page 9: Unit Description
ITMBT Low temperature dehumidifiers UNIT DESCRIPTION ITMBT low temp erature dehumidifiers series are high performances units especially designed for cold room applications where th e humidity level should be controlled during pr oduct storage treatment. All units are s upplied with hot gas defrost system and antifreeze heater on condensate drip tray. -
Page 10: Other Versions
ITMBT Low temperature dehumidifiers Control and protection devices All units are supplied with the following control and protection devices: defrost thermostat, who signals to the microprocessor control that a defrost c ycle is needed and controls its termination, high pressure swi tch with manual reset, low p ressure switch with automatic reset, high pressure safety valve, compressor thermal overload protection, fans thermal overload protection Test... -
Page 11: Technical Data
ITMBT Low temperature dehumidifiers TECHNICAL DATA Mod. 330Z 400Z Refrigerant R407C R407C R407C R407C Dehumidification capacity l/24h 155,8 155, 8 189, 414,8 Cooling capacity --- 10,1 --- 12,4 Compressor input power 5,3 6,0 6,6 6,6 Maximum input power 7,0 7,4 8,0 7,9 Nominal input current 16,0... -
Page 12: Operation Limits
ITMBT Low temperature dehumidifiers OPERATION LIMITS 100% Standard operation Room temperature (°C) Ambient temperatures ITMBT units are designed to operate with ambient temperatures from 1°C to 18°C, relative humidity from 50% to 99% WARNING: The units MUST be used within the operation limit indicated in the diagrams (see above). the warranty will be invalidated if the units are used in ambient conditions outside the limits reported. -
Page 13: Safety Device
ITMBT Low temperature dehumidifiers SAFETY DEVICE The frost on the coil, obstructs t he air flow, redu ces the available exchange area and conseque ntly the unit performances and c an seriously damage the system. All the unit s are supplied, standar d, with a control which defrost a utomatically the heat exchanger if necessary. -
Page 14: Lifting And Handling
After r eceiving the unit , immediately check its integrity. The unit left the factory in perfect condition; any eventual damage must be questioned to the carrier and recorded on the Delivery Note before it is signed. HIDROS must be informe d, within 8 da ys, of the extent of the damage. -
Page 15: Condensate Draining Connections
ITMBT Low temperature dehumidifiers WARNING: All the maintenance operation must be done by TRAINED PEOPLE only. WARNING: Before every operation of servicing on the unit, be sure that the electric supply is disconnected. WARNING: Inside the unit some moving components are present. Be very careful when operating in their surroundings even if the electric supply is disconnected. -
Page 16: Standard Unit
ITMBT Low temperature dehumidifiers DUCTWORK UNIT CONNECTION All the ITMBT units are supplied with ductable centrifugal fan. If it’s necessary to duct only th e discharge side, use a flange with overall dimensions larger than the mouth of the fan, on t he superior part of the unit (refer to the dimensional drawing of the unit). - Page 17 ITMBT Low temperature dehumidifiers REFRIGERANT CONNECTIONS FOR Z VERSIONS Inspection The Z version units are supp lied of a remote condenser and t hey need to be connected with th e dehumidifier t hrough refrigerant lines. The rem ote condenser is equipped of a main swit ch and a fan speed control. Ple ase refer to th e following paragraphers for the regrigerant connections and to the next chapter for the electrical ones.
- Page 18 ITMBT Low temperature dehumidifiers REFRIGERANT LAY-OUT VERSION ITM/BT REFRIGERANT LAY-OUT VERSION ITMZ/BT Condenser Liquid line filter Charging plug Manual valve Expansion valve Centrifugal fan Evaporator Liquid receiver High pressure switch One way valve Solenoid valve Solenoid valve...
-
Page 19: Electrical Connections
ITMBT Low temperature dehumidifiers ELECTRICAL CONNECTIONS The power supply must correspond to the electric nominal data (tension, phases, frequency) reported on the label in the front p anel of the unit. Power connections must be made in accordance to the wiring diagram enclosed with the unit and in accordance to the norms in force. -
Page 20: Control Panel
ITMBT Low temperature dehumidifiers Before proceeding to start up close the main switch. All the units are provided with microprocessor control that manages all the various functions of the unit. The functions described below are applied both for local board control and remote panel control. To start the unit turn the green switch ON (the inner led will light up). - Page 21 ITMBT Low temperature dehumidifiers Compressor led (green): indicates compressor status with the following meanings: led ON: compressor running; led blinking: compressor time delay to start; Alarm led (red): indicates the unit alarm status according to the following meanings: red led ON: high pressure alarm; red led blinking: low pressure alarm;...
-
Page 22: Energy Savings
ITMBT Low temperature dehumidifiers ENERGY SAVINGS To reduce power consumption it is advisable to refer to the following notes : - Be sure that room in which unit should operate, has doors and windows firmly closed; - Set the humidit y control switch to the proper value: lower set values than nece ssary (even few points) may cau se great capacity loss with consequently longer operating periods: it is advisable to set humidity values below 60% only if strictly necessary. -
Page 23: Unit Alarm
ITMBT Low temperature dehumidifiers UNIT ALARM When red led is lighted up the unit is stopped and set under alarm condition. Concerning the solutions, it is necessary to take an extreme care on the actions to adopt: an excessive confidence may cause serious accidents to unexperienced people. It is advisable, once the cause is detected, to contact our servicing people or trained people only. - Page 40 HIDROS srl Via dell’Industria 5 35020 Brugine (Pd) Tel.+390-49-9731022 Fax.+390-49-5806928 www.hidros.it Technical data shown in this booklet are not binding. HIDROS SRL. shall have the right to introduce at any time whatever modifications necessari to the improvement of the product.
