RME Audio M-32 AD Pro II User Manual

RME Audio M-32 AD Pro II User Manual

32-channel 192 khz a/d converter with madi & avb
Hide thumbs Also See for M-32 AD Pro II:

Advertisement

Quick Links

Download this manual
High-end Converter
M-32 AD Pro II
32-Channel 192 kHz A/D Converter
with MADI & AVB
User's Guide

Advertisement

loading
Need help?

Need help?

Do you have a question about the M-32 AD Pro II and is the answer not in the manual?

Questions and answers

Related Manuals for RME Audio M-32 AD Pro II

Summary of Contents for RME Audio M-32 AD Pro II

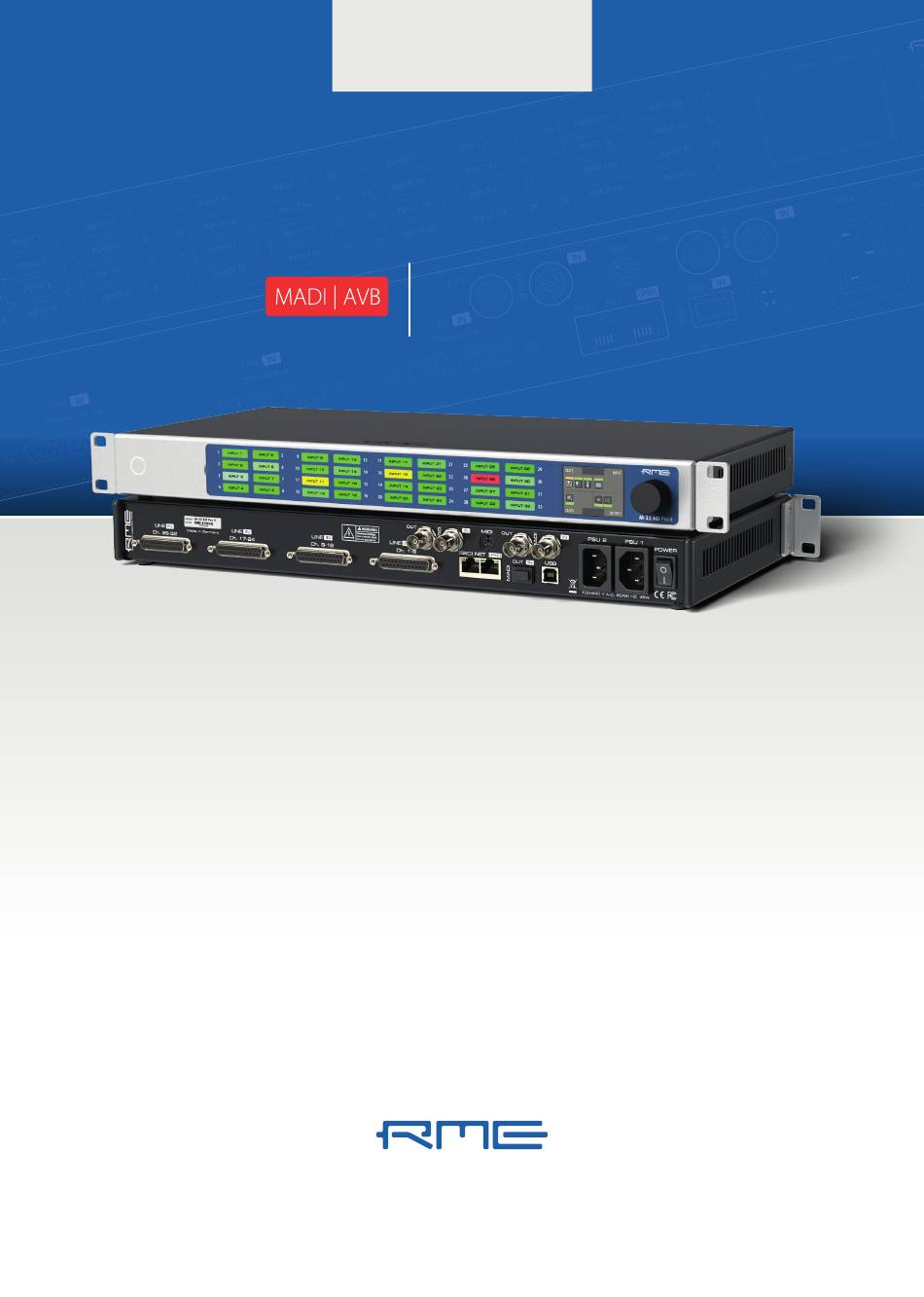

  • Page 1 High-end Converter M-32 AD Pro II 32-Channel 192 kHz A/D Converter with MADI & AVB User’s Guide...
  • Page 2 RME M-32 AD Pro II User’s Guide RME M-32 AD Pro II User’s Guide Table of Contents 1. Safety Precautions..............
  • Page 3 RME M-32 AD Pro II User’s Guide 8.2.1. Saving Presets ............. .
  • Page 4 RME M-32 AD Pro II User’s Guide 11.4. Set Word Clock Output to Single Speed ..........
  • Page 5 RME M-32 AD Pro II User’s Guide  WARNING DO NOT OPEN DEVICE - RISK OF ELECTRIC SHOCK The unit has non-isolated live parts inside. No user serviceable parts inside. Refer service to qualified service personnel.  WARNING MAGNETIC FIELD The device uses magnets that can be harmful to pacemaker wearers.
  • Page 6 2. Introduction Thank you for purchasing the M-32 AD Pro II. The M-32 AD Pro II is a versatile multichannel format converter with exceptional audio quality across each of its channels. State-of-the art components from audiophile grade converters have been carefully aligned to fit into a compact, 1 HU 19"...
  • Page 7 The unit retains all settings, including presets, when the firmware is upgraded. 2.3. Use of the Display and Encoder The M-32 AD Pro II can be controlled directly at the unit. For this purpose, a display and an encoder provide access to all features.
  • Page 8 RME M-32 AD Pro II User’s Guide 2.3.2. Tabs The STATE, INPUT and OUTPUT sections are further divided into tabs, which are shown when the section is opened. Upon opening one of the four sections, a white cursor with a surrounding blue line is shown to navigate between tabs and settings.
  • Page 9 RME M-32 AD Pro II User’s Guide 3. Hardware Section 3.4, “Standby Switch” Section 3.6, “Channel Labels with Integrated Metering” Section 3.9, “Control Section” Section 3.17, “Word Clock” Section 3.16, “MIDI Connector” Section 3.14, “MADI Coaxial and SFP” Section 3.11, “Analog Line Input Connectors”...
  • Page 10 3.3. Power On The M-32 AD Pro II has a power off switch at the rear and a standby switch at the front. Perform the following steps to power on the M-32 AD Pro II: 1. Ensure either or both power inlets are properly connected to a power source.
  • Page 11 RME M-32 AD Pro II User’s Guide 3.4. Standby Switch The standby switch is used to power off the device when it is not in use. While in standby mode, the device is completely powered down except for a red ring illumination. No signals are processed or passed on.
  • Page 12 The use of customized channel labels helps in recurring and permanent installations. They inform the user where the analog connections terminate. The M-32 AD Pro II features 32 fields on the front panel, one for each analog output. Integrated backlight in shades of green, yellow, and red represents the current level for each channel.
  • Page 13 3.10. Power Supplies The M-32 AD Pro II has two internal power supplies (PSUs) that are connected via IEC C14 inlets labeled "PSU 1" and "PSU 2" at the rear of the device. The power supplies are designed with a wide- input voltage range, accommodating a variety of power sources.
  • Page 14 3.11. Analog Line Input Connectors The rear of the M-32 AD Pro II features four 25-pin D-sub connectors labeled "LINE IN" with Tascam®-pinout. These analog inputs are servo-balanced, allowing balanced and unbalanced signals to be connected without a difference in level.
  • Page 15 When set to +24, analog outputs comply with RP 155:2014 - SMPTE Recommended Practice. 3.14. MADI Coaxial and SFP The rear of the M-32 AD Pro II features coaxial and SFP MADI (AES10-2003) I/O. Each input receives up to 64 audio channels. Auto Input (see Section 9.2.2, “Connecting Two Identical MADI Signals for Redundancy”) can be activated to treat both inputs as one.
  • Page 16 • remote status/control with ATDECC, and • remote status/control with HTTP over IP routed networks. The current link state is also shown on the display of the M-32 AD Pro II. Two network port icons in the menu reveal the following states:...
  • Page 17 MIDI over MADI signal. A MIDI breakout cable is included with the device. MIDI Breakout Cable Wiring Diagram The M-32 AD Pro II does not serve as a MIDI to/from MIDI over MADI converter. It does ...
  • Page 18 3.18. USB 2.0 Type B Jack The USB jack at the rear of the M-32 AD Pro II provides an alternative connection method for web remote control when a network connection is not available.
  • Page 19 RME M-32 AD Pro II User’s Guide Never insert the screws without the rack adapter bracket. This could damage of the  device! 3.19. Mounting the Rack Adapter Brackets | 18...
  • Page 20 RME M-32 AD Pro II User’s Guide 4. Accessories RME offers several optional components for the M-32 AD Pro II: Part Number Description Analog breakout cables AI25-8XPro3 Analog breakout cable 25-pin D-sub to 8 x XLR female, 3 m (9.9 ft) AI25-8XPro5 Analog breakout cable 25-pin D-sub to 8 x XLR female, 5 m (16.4 ft)
  • Page 21 Audio Streaming The M-32 AD Pro II has nine outgoing and nine incoming stream ports. Eight ports can be configured to contain 1-8, 12 (at up to 96 kHz) or 16 (at up to 48 kHz) audio channels in AAF or AM824 format.
  • Page 22 AVTP Audio Format (AAF). Additionally, they may support the Clock Reference Format (CRF), which contains only clock information, but no audio. The M-32 AD Pro II supports a total of eight incoming audio streams and eight outgoing audio 5.2. Changing the Device Name | 21...
  • Page 23 RME M-32 AD Pro II User’s Guide streams with up to 16 channels in each, and an additional clock reference format stream for clocking that does not contain any audio channels. 5.4. AVB Network Latency All devices in an AVB network share the same time. This allows the sending device (talker) to specify the precise point of time when its audio samples should be played out at any receiver (listener).
  • Page 24 RME M-32 AD Pro II User’s Guide 6. Quick Start (MADI) Follow this procedure to get running quickly! 1. Load Preset 16 (Factory settings) from the STATE section 2. In the CLOCK section, choose a sample rate and verify that the device is set to internal clock reference or that the chosen clock source is in sync.
  • Page 25 The distributor does not accept claims for damages of any kind, especially consequential damage. Liability is limited to the value of the M-32 AD Pro II. The general terms of business drawn up by the distributor apply at all times.
  • Page 26 RME M-32 AD Pro II User’s Guide 7.3. Support Contacts The following global service centers can provide support assistance: Europe Germany Audio AG support@rme-audio.com U.K. Synthax Audio U.K. info@synthax.co.uk Asia/Australia Hong Kong RME Trading Ltd. support@rme-trading.hk Americas U.S.A. Synthax Inc.
  • Page 27 RME M-32 AD Pro II User’s Guide 8. STATE Section The STATE section contains states and settings that are unrelated to audio I/O and clock. It can be used to configure power supply warnings, presets, dark mode, level meters, and remote control.
  • Page 28 Any change in the device configuration is persistent. After a power loss, the device will revert back to its last state. Additionally, the M-32 AD Pro II can save fifteen states in presets numbered 1-15. After a preset is loaded, any change in the configuration will result in an unsaved changes state.
  • Page 29 3. Press the Save button 8.2.2. Loading Presets Up to 15 custom presets can be loaded from the internal storage of the M-32 AD Pro II. Loading a preset cannot be undone. Ensure that any important configuration has been ...
  • Page 30 STATE section. 8.3. Device Lock The M-32 AD Pro II can be secured against both accidental and intentional changes to its configuration. Locking the device, with or without code, protects against changes on the device itself.
  • Page 31 RME M-32 AD Pro II User’s Guide In order to lock the device, proceed with the following steps: 1. Open the lock tab in the STATE section (see Section 2.3, “Use of the Display and Encoder”). 2. (optional) Set Code: enter a four to six digit code with the encoder.
  • Page 32 RME M-32 AD Pro II User’s Guide Status Indicator State of Visual Feedback Front Panel Dark Mode Global Metering Options Peak/Over Hold Reset 2. Use the corresponding toggle switches on the web remote to switch off device lighting. 8.4.2. Changing the Meters to Peak or RMS Mode Depending on the application, instantaneous peak level metering or a slower, averaged RMS metering may be preferred.
  • Page 33 RME M-32 AD Pro II User’s Guide 2. Locate the visual feedback tab in the STATE section. 3. Push the button in the global metering settings.  Peak   RMS  This is a global setting which affects both the front panel level meters and the remote ...
  • Page 34 When opening the ports, larger levelmeters are shown with precise levels for Peak and RMS values. 8.5. Remote Control Overview The M-32 AD Pro II can be remote controlled. Remote control is activated by default and is not affected by preset changes or device lock.
  • Page 35 1610 Pro, M-1620 Pro (D). Ethernet After connecting the primary or secondary port of the M-32 AD Pro II to a network, an IP address will be automatically assigned by a DHCP server that is present on that network. If there is no DHCP server on the network, the device assigns itself a link local address (in the 169.254.0.0/16 subnet) on...
  • Page 36 5. Changes are applied when leaving the tab. 8.5.3. Web Remote An integrated web server provides an easy-to-use remote control interface for the M-32 AD Pro II. It requires a network connection from a desktop or tablet computer with a current browser version.
  • Page 37 Control protocol. Detailed background information on the underlying technology can be found on the Sennheiser® website. The M-32 AD Pro II can be remote controlled with HTTP POST requests. Each request carries a data payload that contains a JSON object modeled after the open sound control (OSC) protocol.
  • Page 38 RME M-32 AD Pro II User’s Guide Request: curl --header "Content-Type: application/json" --request POST --data '{"osc":{"schema":null}}' m32-ad-pro.local/api/v2/self Response:   "osc": {   "schema": {   "osc": {   "version": null,   "schema": []     "device": {   "entity_id": null,  ...
  • Page 39 It is recommended to first improve overall ambient temperature and airflow around the unit, especially at its bottom and sides, to minimize fan noise. When using the M-32 AD Pro II in a hot environment, the Cool fan profile can be used to improve air flow. In silent environments, the Off profile can be used to only start the fans when the device is overheating.
  • Page 40 By default, the M-32 AD Pro II employs a sharp filter with short delay at standard sampling rates (44.1 kHz and 48 kHz) and a slow filter with short delay at higher sampling rates (88.2 kHz, 96 kHz, and above).
  • Page 41 RME M-32 AD Pro II User’s Guide 1. Open the STATE section (see: Section 2.3, “Use of the Display and Encoder”) 2. Use the encoder to open the filter tab: 3. Select the preferred aliasing filter. To change the current aliasing filter on the web remote: 1.
  • Page 42 RME M-32 AD Pro II User’s Guide It shows the current firmware version and gPTP grandmaster IDs. The information tab is only available on the device itself. 8.8. Device Information | 41...
  • Page 43 9.1. Analog Inputs The line level inputs of the M-32 AD Pro II accept levels of up to +24 dBu. Each individual channel has its own line level setting of +13/+19/+24 dBu which can also be adjusted remotely. Additionally, the AD converters can be globally set to standby (mute).
  • Page 44 3. Press one of the buttons for +13 dBu, +19 dBu or +24 dBu below the selection. The selected value is shown within the level meter. 9.2. MADI Inputs The M-32 AD Pro II accepts up to two MADI signals, one electrical (BNC input) and one optical via optional SFP module (LC input). To connect a MADI signal: 1.
  • Page 45  SYNC and LOCK states are evaluated to confirm the current input state. It is therefore possible to send two different signals to the M-32 AD Pro II as long as they are in sync. To create MADI redundancy: 1. Switch on "enable MADI redundancy" in the coaxial tab of the INPUT section. The port will be renamed to MADI Auto Input.
  • Page 46 RME M-32 AD Pro II User’s Guide 9.3. AVB Input Streams The AVB streams received by the M-32 AD Pro II are referred to as "input streams". For these streams, the device acts as an AVB Listener. To establish a connection between a talker and a listener, an ATDECC Controller is required. The M- 32 AD Pro II does not include an ATDECC Controller.
  • Page 47 RME M-32 AD Pro II User’s Guide 2. Move the cursor to highlight the corresponding AVB stream size and press the encoder. 3. Rotate the encoder to configure a new stream size and format, then confirm by pressing the encoder again.
  • Page 48 In the OUTPUT section, MADI Optical 1-12 is chosen as source for AVB Stream 2. The M-32 AD Pro II is clock master, but the incoming MADI signal is not correctly synchronized. This causes a warning in the INPUT section. If MADI Optical is not routed to any output, an invalid or missing signal does not cause a warning.
  • Page 49 10.2. MADI Outputs The MADI outputs of the M-32 AD Pro II are always active. If no routing is configured, an empty stream is sent that can be used for clocking. The state without routing is represented with a light-...
  • Page 50  The latency of the MADI I/O is four samples. The M-32 AD Pro II creates an entirely new output signal and does not pass on any  embedded information. One exception are SysEx messages (incl. MIDI over MADI) that...
  • Page 51 AVB latency. The output streams of the M-32 AD Pro II are by default empty, containing a clock signal but no audio signal. To send audio with AVB, a routing must be created for each outgoing stream.
  • Page 52 RME M-32 AD Pro II User’s Guide 10.3.2. Adjusting the Network Latency The default presentation time offset of 2 ms for outgoing streams can be changed when lower latencies are required. Reducing the offset to a lower value can prevent audio to be played out depending on ...
  • Page 53 Intelligent Clock Control (ICC) automatically changes the clock source when the chosen clock reference input does not detect a valid signal. Using the feedback of SyncCheck™, the M-32 AD Pro II will change to another source signal that can be used as a clock reference. If no other source is available, the device will fall back to its internal clock until the chosen clock reference has recovered.
  • Page 54 RME M-32 AD Pro II User’s Guide clock reference is likely to be performed without losing a sample in the outgoing audio signal. ICC switches the clock source between word clock, MADI optical, MADI coaxial, and internal, seamlessly, when the MADI optical, coaxial or word clock inputs fail and the ...
  • Page 55 1. In the Clock panel, locate the button for the corresponding clock and click it. 2. Within the dropdown, press  Set as Clock Source  11.3. Sample Rates Overview The M-32 AD Pro II supports the following sample rates: Supported sample rates Single speed 44.1 kHz, 48 kHz Double speed 88.2 kHz, 96 kHz...
  • Page 56 RME M-32 AD Pro II User’s Guide Intelligent Clock Control (ICC) Input Clock at input Selected Sample Rate Resulting Sample Rate MADI 44.1 44.1 44.1 MADI 44.1 44.1 with warning MADI 44.1 88.2 88.2 MADI 44.1 88.2 with warning MADI 44.1...
  • Page 57 RME M-32 AD Pro II User’s Guide There is no ICC mechanism necessary for AVB; the device will always use the exact clock from the corresponding AVB stream. It is not recommended to synchronize devices with a higher sample rate than the ...
  • Page 58 11.3.4. Effects of Sample Rate Changes on Existing Routing The M-32 AD Pro II saves one routing table per preset, regardless of sample rate. A change of sample rate or MADI frame mode can reduce the number of input and output channels available for routing.
  • Page 59 RME M-32 AD Pro II User’s Guide 12. Annex Trademarks and Copyright All trademarks, registered or otherwise, are the property of their respective owners. RME is a registered trademark of RME Intelligent Audio Solutions. SyncCheck, SteadyClock, ICC, Intelligent Clock Control and Digiface are trademarks of RME Intelligent Audio Solutions.
  • Page 60 RME M-32 AD Pro II User’s Guide 12.1.2. Message Types Value Name Request value Set value Value response Request Value Format: F0 00 20 0D 32 (bank no. / dev ID) 10 F7 This string triggers a complete dump of all value response data bytes including the level meter data.
  • Page 61 RME M-32 AD Pro II User’s Guide No. Name Val. Data bytes Val. Resp. level ch 14   (see below) level ch 15   (see below) level ch 16   (see below) level ch 17   (see below) level ch 18  ...
  • Page 62 RME M-32 AD Pro II User’s Guide No. Name (Bit) Value settings byte 1 MSB / 7           madi input: 0 = BNC, 1 = opt         madi frame: 0 = 48k, 1 = 96k  ...
  • Page 63 RME M-32 AD Pro II User’s Guide No. Name (Bit) Value info byte 2 MSB / 7           WCK lock         WCK Input 192k         WCK Input 96k    ...
  • Page 64 RME M-32 AD Pro II User’s Guide No. Name (Bit) Value       LSB / LSB / (temperature) No. Name (Bit) Value preset MSB /7 operations preset modified (response only) MSB /1 operation: 0=load, 1=save, 2=delete LSB /0 MSB /3...
  • Page 65 RME M-32 AD Pro II User’s Guide 12.2. Glossary 96k frame MADI sources with a sample rate of 88.2kHz or 96kHz can be configured to use the so-called 96k frame. If this frame is used, a sample rate of 88.2 or 96 kHz can be detected on the receiver side automatically.
  • Page 66 Responsible Party in USA: Synthax United States, 6600 NW 16th Street, Suite 10, Ft Lauderdale, FL 33313 T.:754.206.4220 Trade Name: RME, Model Number: M-32 AD Pro II 12.3.3. Note on Disposal According to the guide line RL2002/96/EG (WEEE – Directive on Waste Electrical and Electronic Equipment), valid for all european countries, this product has to be recycled at the end of its lifetime.
