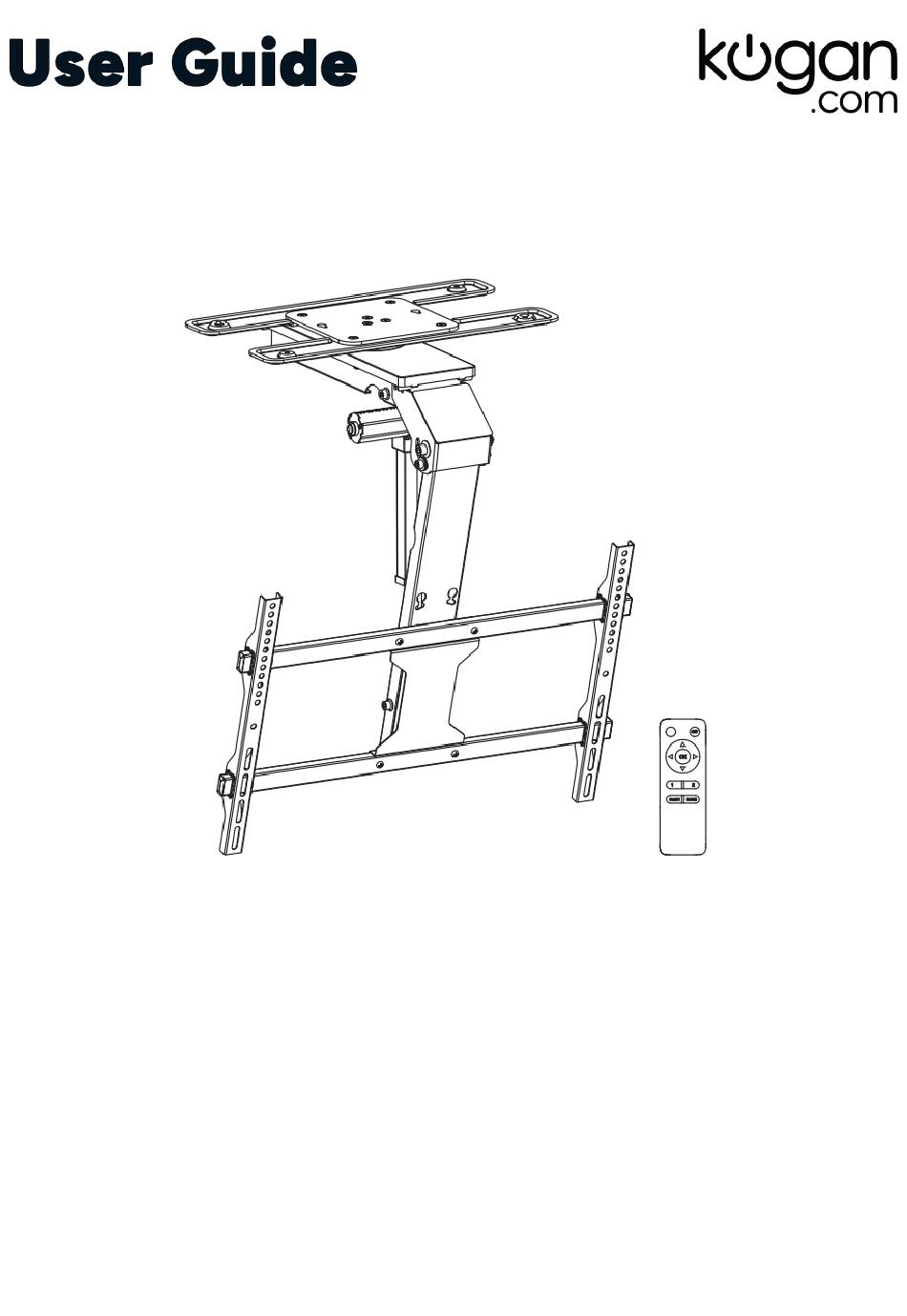

- Page 1 Kogan SmarterHome™ Motorised Flip Down TV Ceiling Mount (Suitable for 37" - 75" TVs) KATVSWC75LB...
-
Page 2: Table Of Contents
Safety & Warnings Components Overview Pairing the Remote Installation Connect to the SmarterHome Google Home Amazon Alexa Operation Troubleshooting Notes... -
Page 3: Safety & Warnings
Never exceed the rated weight capacity, as this may lead to instability and potential injury. • Do not disassemble or modify the electronic components in any way. • Ensure all components are accounted for before installation. If anything is missing, contact help.Kogan.com for support. - Page 4 Do not disassemble or alter the power cord. • If the power cord or plug becomes damaged, discontinue use immediately and contact help.Kogan.com. • Do not use the product in wet or humid environments or if the electrical components have come into contact with liquids.
-
Page 5: Components
Components A Ceiling Mount B TV Bracket C TV Bracket (Short) (x2) (Long) (x2) E Ceiling Mount D Centre F Template Bracket (x2) Bracket G Remote Control H Cable Tie (x4) I Power Adaptor J Cable Guide (x3) K M4x8 Screw (x4) L M6x10 Grub Screw (x4) M M6x10... - Page 6 W-A ST6.3x55 Screw (x4) W-B Wall Anchor (x4) W-C D6 Washer (x2) M-A M6x14 M-B M8x16 M-C M6x30 Screw (x4) Screw (x4) Screw (x4) M-D M8x35 M-E D8 M-F Small Spacer (x4) Screw (x4) Washer (x4) M-G Large Spacer (x4) User Guide Tools Required Pencil...
-
Page 7: Overview
Overview Remote Set button Directional buttons OK button Position 1 button Position 2 button Memory 1 button Memory 2 button... -
Page 8: Pairing The Remote
Pairing the Remote Insert x2 AAA batteries (not included) into the remote (G). Connect the power adaptor (I) to the ceiling mount (A) and then using a pin or other small item (such as a paperclip) press the ‘Code’ button located on the side of the TV mount. -
Page 9: Installation
Installation Step 1: WARNING: • Ensure the mounting surface will safely support the combined weight of the ceiling mount and all attached hardware. • Do not exceed the maximum load capacity of 45kg. • If you are not confident in installing this product or unsure as to what additional hardware you require, consult a licensed trade professional before proceeding. - Page 10 Step 2: • Connect the TV Mount (A) into the electrical outlet using the Power Adaptor (I). • Refer to the ‘Button Control’ instructions in the ‘Operation’ section to unfold the TV Mount (A) using the Remote Control (G) and then disconnect the power.
- Page 11 Step 3: Using a pencil and the Template (F), mark the desired holes position for the mount on your ceiling. If mounting on dry wall or plaster-board, use a stud finder first to check positions of studs and ensure the position is free from electrical wiring. Using a drill, create the pilot holes.
- Page 12 Step 4a: Drywall / Plaster • Attach x2 ST6.3x55 screws (W-A) to the ceiling, in the positions shown below. Ensure a 3mm excess is left between the head of the screw and the ceiling surface. Do not use wall anchors. •...
- Page 13 Step 4b: Masonry / Concrete • Attach x2 ST6.3x55 screws (W-A) to the ceiling, in the positions shown below. Ensure a 3mm excess is left between the head of the screw and the ceiling surface. • Attach the ceiling mount to the screws and secure it in place using the x2 remaining ST6.3x55 screws (W-A) and x2 D6 washers (W-C).
- Page 14 Step 5: Attach the centre bracket (D) to the x2 long TV brackets (B) using x4 M6x25 screws (N), x4 D6 washers (O) and the x4 M6 nuts (P). Step 6: • Loosen the x2 upper screws but do not remove from the assembly. •...
- Page 15 Step 7: Slide the x2 short TV brackets (C) onto the long TV brackets and attach x4 M4x8 screws (K) in the positions shown.
- Page 16 Step 8: Align the brackets (C) with your TV’s VESA holes and secure using the supplied Screws (‘M-‘ set), Washer (M-E) and spacers (M-F, M-G) depending on required length. Too Long Too Short...
- Page 17 Step 9: • With the support of a second person, hold the TV in place against the ceiling mount. Tighten the x2 upper screws to secure the TV in place. • Once in place, fasten the previously removed screws (D1) to secure the brackets in place.
- Page 18 Step 10: Peel the backing from the x3 cable guides (J) and secure the cables to the ceiling mount as shown below. WARNING: Ensure the cables are kept clear from the moving parts and will not be damaged when the ceiling mount it closed. Note: Ensure there is enough slack left in the cables to allow for movement.
- Page 19 Step 11: Connect the power adaptor (I) to the electrical outlet. Use the remote to adjust the position of the TV. Step 12: Adjust the screws as shown to level the display. WARNING: Do not operate the mount until it has been fully mounted and installed.
-
Page 20: Connect To The Smarterhome App
Connect to the SmarterHome™ App Install the App Download the Kogan SmarterHome™ app from the Apple App Store (iOS) or the Google Play Store (Android). Play Store (Android) App Store (iOS) Log In or Sign Up If you already have a SmarterHome account, tap ‘Log In’. To register a new account, tap ‘Sign Up’. - Page 21 Enable the permissions and tap ‘Go to App’.
- Page 22 Tap the ‘+’ icon in the top right corner of the screen and then tap ‘Add Device’. Tap ‘Add’ when the device appears. Alternatively, select the product type from the list of options in the app (Other > Kogan Swivelling Flip Down TV Ceiling Mount). Follow the prompts to add your device to the app.
-
Page 23: Google Home
Google Home Ensure you are logged into the Kogan SmarterHome™ app. Open the Google Home app. Go to the devices tab and tap the ‘+ Add’ button in the lower right corner. Tap ‘Works with Google Home’. Search for ‘Smarter Home’ in the search bar and select ‘Smarter Home’ from the... - Page 24 Tap the ‘Agree and link’ button. Search for ‘Smarter Home’ in the search bar and select ‘Smarter Home’ from the results. Once linked, a ‘Smarter Home is linked’ pop-up will appear at the bottom of the screen. Tap your device and then tap the ‘Next’ button.
- Page 25 10. Select the home you wish to add the device to and tap the ‘Next’ button. 11. Select the room your device is in and tap the ‘Next’ button. Google Home Voice Control Controls Voice Commands Upward movement Ok Google, set <device name> to up. Downward movement Ok Google, set <device name>...
-
Page 26: Amazon Alexa
Amazon Alexa Ensure you are logged into the Kogan SmarterHome™ app. Open the Amazon Alexa app. Go to the ‘More’ tab and tap ‘Skills & Games’. Search for ‘Smarter Home’ in the search bar and select ‘Smarter Home’ from the results. - Page 27 Tap the ‘Agree and link’ button. Once linked, tap ‘Next’. Alexa will search for any compatible devices.
- Page 28 Once your device has been found, tap ‘Next’. Rename the device to your desired name and tap ‘Update Name’. 10. Select the room your device is in and tap ‘Add To Group’ 11. Once the device has been successfully added to your desired room, tap ‘Continue’. 12.
- Page 29 Amazon Alexa Voice Control Controls Voice Commands Upward movement Alexa, set <device name> to up. Downward movement Alexa, set <device name> to down. Turn left Alexa, set <device name> to left. Turn right Alexa, set <device name> to right. Stop movement Alexa, set <device name>...
-
Page 30: Operation
Operation Button Controls Upward/Downward Movement: • Press the ‘ ’ button. The TV mount will move upward to the lowest-profile position against the ceiling. • Press the ‘ ’ button. The TV mount will move downward to the maximum tilt angle position (75°... - Page 31 Resetting the Unit If the TV mount can't be adjusted to the highest position (0° against the ceiling) or the lowest position (maximum tilting position) or the maximum left/right swivelling position, disconnect and reconnect the power adaptor. Press and hold the ‘OK’ button for 5 seconds. The mount will firstly retract to the highest position, secondly extend to the lowest position, thirdly turn to the maximum left/right swivelling position and finally return to the centre position.
-
Page 32: Troubleshooting
This Troubleshooting section will help you identify and solve the minor problems caused by unusual operation of the electric system of the electric TV mount. These simple procedures can solve most issues encountered in everyday use. If the problem persists, contact help.Kogan.com for support. Problem Possible Cause... -
Page 33: Notes
Notes... - Page 36 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.Kogan.com.
