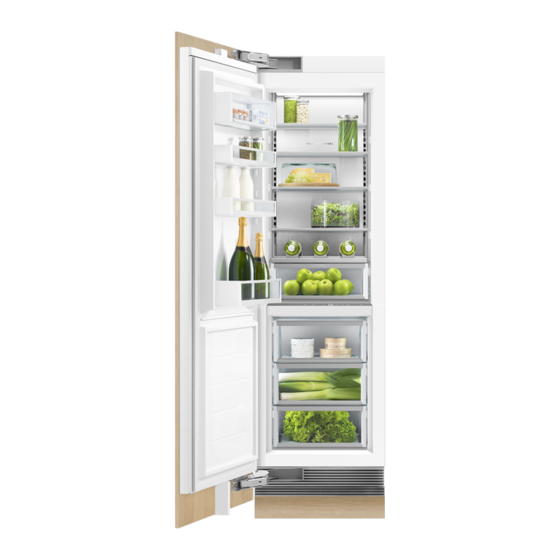

Fisher & Paykel RS2484S User Manual
Integrated refrigerator & freezer
Hide thumbs
Also See for RS2484S:
- Installation manual (64 pages) ,
- Manual (65 pages) ,
- Installation manual (48 pages)
Subscribe to Our Youtube Channel
Related Manuals for Fisher & Paykel RS2484S
Summary of Contents for Fisher & Paykel RS2484S
- Page 1 INTEGRATED REFRIGERATOR & FREEZER INTEGRATED REFRIGERATOR RS2484S, RS2484SH, RS3084SH & RS3084S INTEGRATED FREEZER RS1884F, RS2484F & RS3084F USER GUIDE US CA...
-
Page 3: Table Of Contents
CONTENTS Safety and warnings Integrated refrigerator & freezer Before you begin Control panel — Refrigerator Control panel — Freezer Food modes Storage features Special features WIFI connection Using your appliance Care and cleaning Food care User warnings and sounds Troubleshooting Service &... -
Page 4: Safety And Warnings
SAFETY AND WARNINGS WARNING! Electric Shock Hazard Failure to do so can result in death, electric shock, fire or injury to persons. • Read and follow the safety and warnings outlined in this user guide before operating this appliance. WARNING! This appliance contains flammable refrigerant isobutane (R600a). - Page 5 SAFETY AND WARNINGS READ AND SAVE THIS GUIDE WARNING! Read entire manual. Failure to follow all guides and rules could cause personal injury or property damage. When using this appliance, always exercise basic safety precautions including the following: General Use This product has been designed for use in a normal domestic (residential) environment. Children should be supervised to ensure that they do not play with the appliance.
- Page 6 SAFETY AND WARNINGS WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer. When positioning the appliance, ensure the power cord is not trapped or damaged. Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
- Page 7 SAFETY AND WARNINGS WARNING: Risk of child entrapment. Before you throw away your old refrigerator or freezer, the doors and panels should be removed and the racks left in place so that children may not easily climb inside. Consult your local energy authority or local codes as to the best way to dispose of your old appliance.
- Page 8 SAFETY AND WARNINGS Ice making Avoid contact with the moving parts of the ice maker ejector mechanism, and do not place your fingers on the automatic ice- making mechanism while the appliance is in operation. At first use or after water filter has been replaced, there may be discolouration in the first bin of ice cubes.
-
Page 9: Integrated Refrigerator & Freezer
INTEGRATED REFRIGERATOR & FREEZER 18" Freezer 24" Freezer 30" Freezer RS1884F RS2484F RS3084F 24" Refrigerator 30" Refrigerator RS2484S & RS2484SH RS3084S & RS3084SH All models available in Left and Right door hinges... -
Page 10: Before You Begin
BEFORE YOU BEGIN Ensure the installer has completed the final checklist in the installation instructions. Read this guide, taking special note of the Safety and Warnings section. Remove all packaging and dispose of it responsibly. Recycle items that you can. Refrigerator features 1 Dairy compartment 2 Door shelves... -
Page 11: Control Panel - Refrigerator
CONTROL PANEL — REFRIGERATOR Allows you to unlock the control panel and enable compartment selection. Press 4 seconds to activate your appliance for the first time. The control panel will automatically lock when inactive for more than 10 seconds or when the door is closed. To unlock, press for 2 seconds. Lights illuminate to show which compartment is selected. -
Page 12: Control Panel - Freezer
CONTROL PANEL — FREEZER Allows you to unlock the control panel and enable compartment selection. Press 4 seconds to activate your appliance for the first time. The control panel will automatically lock when inactive for more than 10 seconds or when the door is closed. To unlock, press for 2 seconds. Lights illuminate to show which compartment is selected. -
Page 13: Food Modes
FOOD MODES Variable temperature zones Separate food modes, in both fridge and freezer, allow you adjust the temperature independently for optimal storage. Refrigerator FOOD DESCRIPTION TYPES OF FOOD TO STORE MODES Pantry Pantry mode provides a cool, dark place Bananas, avocados, tomatoes. (12°C/54°F) for a wide variety of foods that perish Dry food items such as grains, flours,... - Page 14 FOOD MODES Freezer FOOD DESCRIPTION TYPES OF FOOD TO STORE MODES Soft Freeze Soft Freeze mode is an extension of your Meats, seafood, soups, sauces, pureed (-9°C/16°F) refrigerator, extending the shelf life of foods, bread, desserts and pastries. perishable items while maintaining the quality.
-
Page 15: Storage Features
STORAGE FEATURES REFRIGERATOR Fruit and vegetable bins/Slim bin Separate fruits and vegetables to prevent the ethylene-sensitive with humidity control lids produce from ripening too quickly-helps to extend their storage life. Also used for storing deli items and beverages, or for defrosting foods. -
Page 16: Special Features
SPECIAL FEATURES Max Cool Boosts the cooling speed of your refrigerator by dropping the refrigerator to its coldest temperature for a set time (Pantry - 6 hours, Fridge - 6 hours, Chill - 4 hours) dependent on the food mode in use. Fast Freeze Boosts the freezing speed by dropping the freezer to its coldest temperature for a set time dependent on the food mode in use. -
Page 17: Wifi Connection
WIFI CONNECTION Your appliance can be connected to your home wireless network and operated remotely using the app. FISHER & PAYKEL Getting started Ensure your home WiFi network is turned on. You will be given step by step guidance on both your appliance and mobile device. It may take up to 10 minutes to connect your appliance. -
Page 18: Using Your Appliance
USING YOUR APPLIANCE Once you turn on your refrigerator for the first time, the compartments will automatically default to the recommended temperature setting. The control panel enables you to change and control the temperature of all compartments accurately and independently. For best storage of general household food items, we recommend to use the appliance at its factory default temperature and configuration settings. - Page 19 USING YOUR APPLIANCE Bottle Chill (Freezer only) When activated, an alarm will sound, BOTTLE will flash and will illuminate after the CHILL elapsed time to remind you to remove your beverage. To silence the alarm:: Press once. The time taken to chill depends on the size of your beverage.
- Page 20 USING YOUR APPLIANCE Alarm mute To activate: To activate, press once. The will illuminate to indicate the refrigerator is muted. will deactivate after 20 minutes. ALARM MUTE Press To deactivate manually, Closing the door also deactivates the ALARM MUTE Sabbath mode To activate: Press , together for 4 seconds.
- Page 21 USING YOUR APPLIANCE Water filter The water supplied to your appliance is filtered to remove impurities through a filter located the bottom front of your appliance. Replace your filter cartridge every 6 months. A replacement indicator icon on the control panel illuminates to indicate the filter needs to be replaced.
- Page 22 USING YOUR APPLIANCE Automatic ice maker (Freezer only) Before turning on your automatic ice maker, the water filter must be installed (refer to your installation guide) and flushed to remove any impurities or trapped air in the filter system. To activate the ice maker, press to scroll and select from the list.
-
Page 23: Care And Cleaning
CARE AND CLEANING Exterior cleaning The condenser coils of your Integrated Column require periodic cleaning by a Fisher & Paykel trained service technician. Toe kick grilles and filter Your Integrated Column is fitted with a toe kick grille to protect the internal working components. - Page 24 CARE AND CLEANING Removing the top bin The runners are pre-lubricated to help open and close the bins. Do not remove the grease from the runners to maintain its smooth function. To remove a bin, extend the bin on its runners, and empty the bin.
- Page 25 CARE AND CLEANING To return the bin, extend the runners and place the bin on top of the runners. Push the bin slowly onto the securing tabs until you feel it clip onto the runners. Ensure the bin tabs are clipped securely onto the runners before use.
-
Page 26: Food Care
FOOD CARE For best food care Store only high-quality, fresh food in your appliance. Store perishable foods in the appliance immediately after purchase. Storing at room temperature increases the rate of deterioration and can allow harmful microbial growth. Foods such as meat, poultry and seafood should be well wrapped or sealed in suitable packaging to prevent dehydration, color deterioration, loss of flavor, and transfer of odor. -
Page 27: User Warnings And Sounds
USER WARNINGS AND SOUNDS Faults In the unlikely event a fault occurs, 4 rapid beeps will be heard and the fault will be displayed on the control panel. Record the fault code displayed on the control panel and contact a Fisher & Paykel trained and supported service technician in order to repair the fault. You can do this by going online to fisherpaykel.com or by contacting our Customer Care Center. -
Page 28: Troubleshooting
TROUBLESHOOTING If there is a problem with your appliance, please check the following points before contacting your local Fisher & Paykel trained and supported service technician or the Customer Care Center. Product parts and accessories can be purchased through the Fisher & Paykel Customer Care Center, or online at fisherpaykel.com (this service is available to selected markets only). - Page 29 TROUBLESHOOTING PROBLEM POSSIBLE CAUSES WHAT TO DO When the appliance Record the code on the control panel door is opened 4 rapid and contact Customer Care Center. beeps sound and a code is displayed on the control panel Water in the vegetable Condensation is formed by the A small amount of condensation bins...
- Page 30 TROUBLESHOOTING PROBLEM POSSIBLE CAUSES WHAT TO DO Automatic ice maker Ice maker has not been turned Switch on ice maker, see ‘Automatic ice does not work maker (Freezer only)’ section. Water supply turned off or not Connect the water supply. connected. Freezer compartment Contact Customer Care Center.
-
Page 31: Service & Warranty
SERVICE & WARRANTY For details of your manufacturer’s warranty and contacts for servicing, refer to your separate service and warranty book provided with your appliance. This product has been designed for use in a normal domestic (residential environment). This product is not designed for any commercial use. Any commercial use by the customer will affect this products manufacturer’s warranty. - Page 32 FISHERPAYKEL.COM © Fisher & Paykel Appliances 2020. All rights reserved. The models shown in this guide may not be available in all markets and are subject to change at any time. The product specifications in this guide apply to the specific products and models described at the date of issue.
