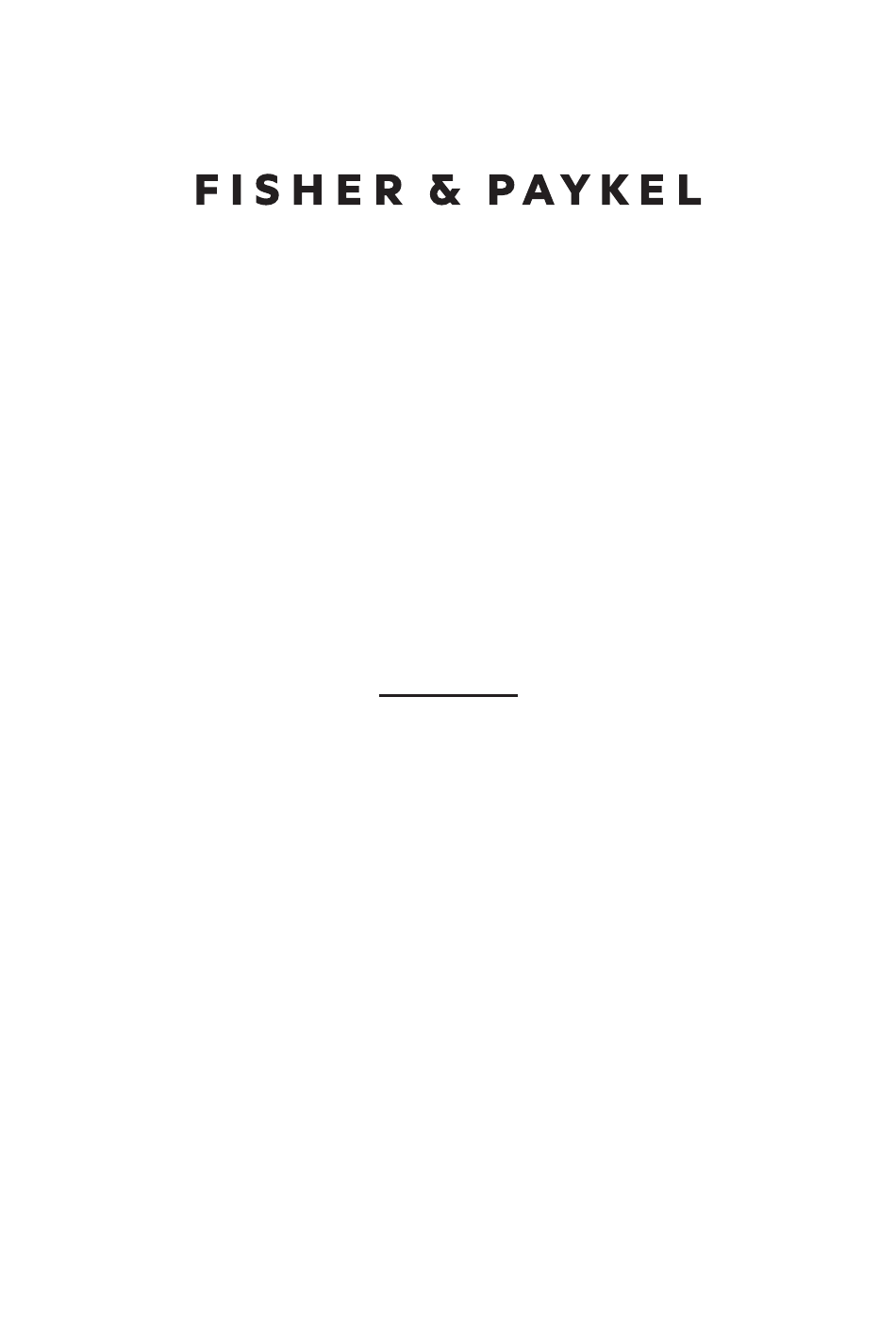

- Page 1 MODULAR COOKTOP FLUSH AND PROUD INSTALLATION MULTIPLE PRODUCT WITH DOWNDRAFT VENTILATION CI365DTTB1, CI304DTTB1, CI244DTTB1, CI152DTTB1, CI152DB1, CI122DB1, CIT122DX1, CIT152DX1, CD5DB1 models INSTALLATION GUIDE US CA...
- Page 2 SAFETY AND WARNINGS WARNING! Electric Shock Hazard Failure to follow this advice may result in electric shock or death. • Do not cook on a broken or cracked cooktop. If the cooktop surface should break or crack, switch the appliance off immediately at the mains power supply (wall switch) and contact a qualified technician.
- Page 3 SAFETY AND WARNINGS WARNING! Hot Surface Hazard Failure to follow this advice may result in death. • DO NOT TOUCH SURFACE UNITS OR AREAS NEAR UNITS – Surface units may be hot even though they are dark in color. • During use, accessible parts of this appliance will become hot enough to cause burns.
- Page 4 SAFETY AND WARNINGS WARNING! Health Hazard Failure to follow this advice may result in death. • This appliance complies with electromagnetic safety standards. However, persons with cardiac pacemakers or other electrical implants (such as insulin pumps) must consult with their doctor or implant manufacturer before using this appliance to make sure that their implants will not be affected by the electromagnetic field.
- Page 5 SAFETY AND WARNINGS Use proper pan size — This appliance is equipped with one or more surface units of different size. Always place small pans in the centre of the cooking zone. Select utensils having flat bottoms large enough to cover the surface unit heating element. The use of undersized utensils will expose a portion of the heating element to direct contact and may result in ignition of clothing.
- Page 6 SAFETY AND WARNINGS Standard Requirements This induction cooktop generates and uses ISM frequency energy that heats cookware by using an electromagnetic field. It has been tested and complies with Part 18 of the FCC Rules for ISM equipment. This induction cooktop meets the FCC requirements to minimize interference with other devices in residential installation.
- Page 7 COMPONENTS REQUIRED Supplied: Induction Cooktop and Teppanyaki Communication cable (1) Clamp screws (4) Shims (6) Joiner kit (supplied with auxiliary modules only) T spacer (2) Securing brackets (4) Supplied: Downdraft Ventilation Backing plate T spacer (2) Outlet to suit 2.25" x 12" metal Securing brackets (4) ducting* Clamp screws (4)
- Page 8 ACCESSING YOUR PRODUCT SPECIFICATIONS For full product, cabinetry and service specifications, refer to the Planning Guide. To access the Planning Guide, scan the QR code or visit fisherpaykel.com/specify. Search by appliance type, product name or model code. IMPORTANT NOTE Modular Ventilation cannot be used alongside a gas cooktop. Refer to the planning guide for more information.
- Page 9 CHECK CLEARANCES IMPORTANT NOTE Ensure clearances are achieved for the product with the greater clearance requirements. INDUCTION AND CABINETRY CLEARANCE DIMENSIONS TEPPANYAKI MODELS Minimum clearance from side edges of cutout to nearest combustible surface 1 3/16 Minimum clearance from rear edge of cutout to nearest combustible surface Minimum clearance from countertop to: Overhead cabinet centered above the cooktop (unprotected) Overhead cabinet centered above the cooktop (protected)
- Page 10 CHECK CLEARANCES VENTILATION OVERVIEW The Induction and Tepanyaki modules require ventilation to allow cooling of the electronic components within the chassis. When multiple products are installed their individual ventilation requirements must also be combined. For detailed ventilation guidance, refer to the planning guide. VENTILATION OPTION 1 INTAKE VIA SERVICE CHANNEL Air is drawn up from the kick cavity through service channel at rear...
- Page 11 PRIOR TO INSTALLATION 1. Ensure cabinetry and servicing specifications have been met and clearances have been considered. Refer to the Planning Guide for details. fisherpaykel.com/specify 22 7/16" (570mm) 2. Create a 22 7/16" x 15 3/8" (570 x 390mm) cutout in the base of the cavity for the external blower.
- Page 12 UNPACK ALL PRODUCTS 1. Ensure all products and accessories are present. 2. Carefully remove products from cartons. Set aside on a protected surface. Dispose of packaging responsibly. 3. Test electrical connections of all products before proceeding with installation.
- Page 13 PREPARE PRODUCTS 1. Remove foam tape backing before attaching the downdraft outlet and backing plate using the supplied nuts and washers. Ensure ducting orientation has been considered. 2. If required, lift the inner box out of the chassis. Remove both downdraft alignment guides and refit on the opposite side.
- Page 14 INSTALL IN CUTOUT Note: both flush and proud installations are possible. Refer to the planning guide for details. 1. Gently lower the first product into the cutout. If a downdraft unit is being installed at the edge of the cutout, we recommend installing this first.
- Page 15 INSTALL IN CUTOUT 4. Gently lower additional products and joining strips into cutout as required.
- Page 16 ALIGN PRODUCTS 1. Slot the T spacers between the products. Adjust positioning to ensure even spacing between products is achieved. 2. Flush installations: Place the shims around the outer edges of the cutout. Adjust positioning to ensure even spacing around the product set is achieved.
- Page 17 SECURE TO CUTOUT 1. Fit the securing brackets to the base of each cooktop. A minimum of two brackets per cooktop is recommended. 2. Tighten all clamp screws to secure the cooktops to the cutout and joiner strips. 3. Tighten the front and rear clamping bracket screws to secure the downdraft to the cutout.
- Page 18 CONNECT POWER Before connecting to the mains power supply check that: The domestic wiring system is suitable for the power drawn by the cooktop. The voltage corresponds to the value given on the rating plate. The power supply cable sections can withstand the load specified on the rating plate. Refer to the Planning Guide for full service information.
- Page 19 CONNECT POWER CD5DB1 MODELS These models are supplied with a power cable. The power cable should only be removed or replaced by a Fisher & Paykel trained and supported service technician or qualified person. CI122D, CI152D, CIT122D, CIT152D MODELS 3 wire cable from power supply 4 wire cable from power supply CI244D, CI304D, CI365D MODELS 3 wire cable from power supply...
- Page 20 INSTALL DUCTING* Ducting shown is for reference only. Ducting must be purchased separately. 1. Place the external blower into the cutout and connect power cord. 2. Prepare ducting* to required lengths. Secure and seal as required.
- Page 21 LINK PRODUCTS 1. Link each product to the adjacent product using the supplied communication cables. Ensure 8-pin plugs are only connected to 8-pin sockets and 6-pin plugs connected to 6-pin sockets. 2. Connect the downdraft unit to the external blower via the central communication cable.
- Page 22 SEAL PRODUCTS INTO CAVITY (FLUSH INSTALLATIONS) Some silicone products may cause discoloration of the glass, in most cases this will fade as the silicone cures. Avoid applying too much silicon during installation. 1. Mask the area to be siliconed ensuring all products and the countertop are protected.
- Page 23 INSTALLER CHECKLIST TO BE COMPLETED BY THE INSTALLER GENERAL … Specified clearances have been maintained. … Products are level – front to back and side to side. … All packaging materials have been removed. … There is constant flow of cool air from the cabinetry to the base of the products. …...
- Page 25 FISHERPAYKEL.COM © Fisher & Paykel Appliances 2024. All rights reserved. The models shown in this guide may not be available in all markets and are subject to change at any time. The product specifications in this guide apply to the specific products and models described at the date of issue.
