Hangzhou Ruideng Technology Co., Ltd.
OPERATING MANUAL
DPS5015 Digital Power Supply Upper Computer
1 Communication Board Connetion

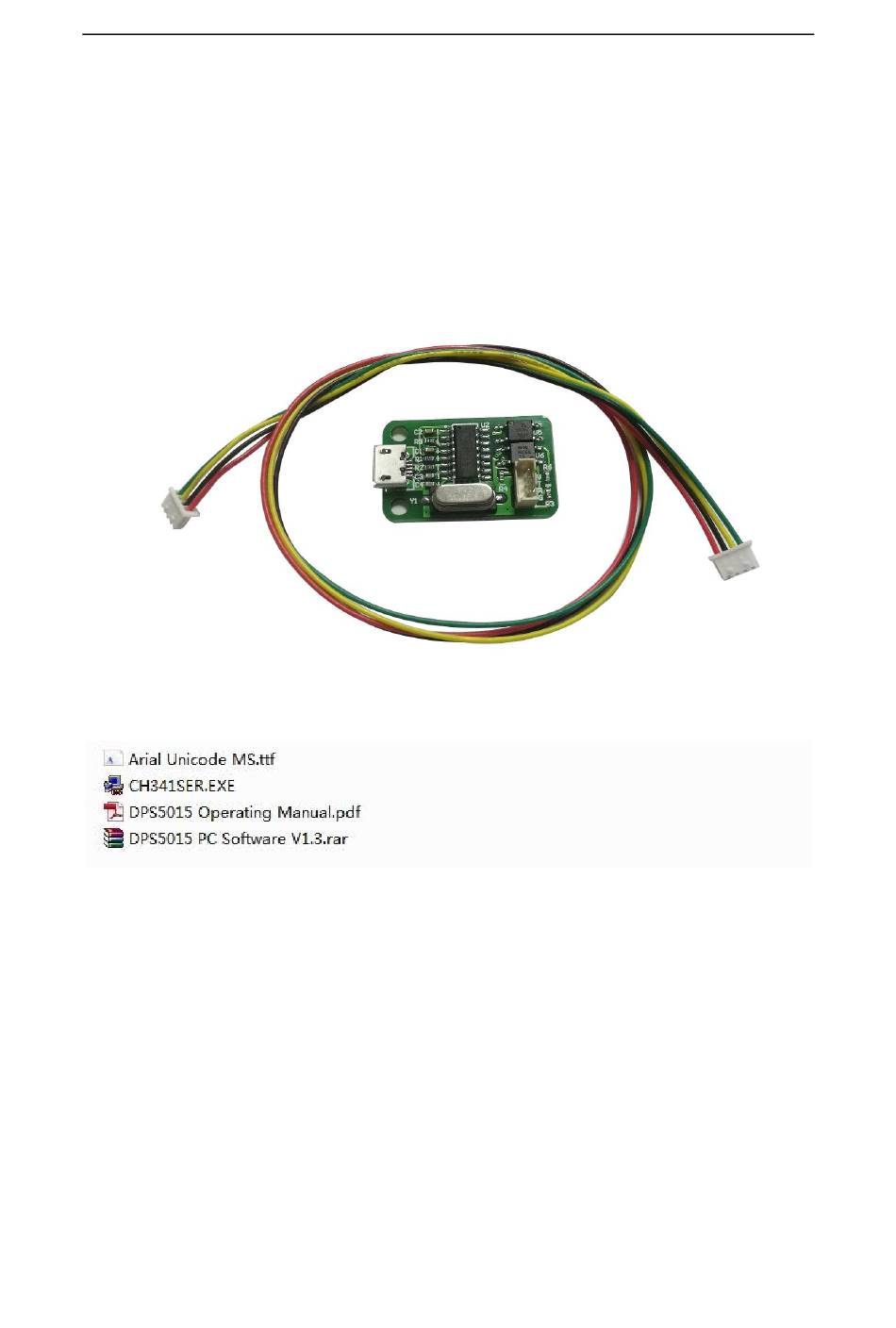

1.1 Wire Communication Board Connection
Open data package, double click CH341SER.EXE and install drive
program of communication board.
After installation, please use the attach cable to connect digital power
supply with communication board, and use USB cable to connect Micro UBB
port with PC.
Digital power supply communication data setting:
Keep pressing ↑button to power on, then enter into data setting interface.
Press ↑or↓ to choose data, then press knob to adjust the value. After
adjustment, press twice shortly SET key to exist data setting, and those data
are stored automatically.
COMM: Communication stitch setting, ON represents opening
communication, OFF represents closing communication.
ADDR: Digital power supply address code, range 001-255.
BAUD: Communication baud rate, 2400,4800,9600,19200 adjusting.
BPIN: Bluetooth PIN Code Pairing, 0000-9999, useless for wire
communication.
(For Win7 and above)
Advertisement
Related Manuals for RuiDeng DPS5015
Summary of Contents for RuiDeng DPS5015
- Page 1 Hangzhou Ruideng Technology Co., Ltd. OPERATING MANUAL DPS5015 Digital Power Supply Upper Computer (For Win7 and above) 1 Communication Board Connetion 1.1 Wire Communication Board Connection Open data package, double click CH341SER.EXE and install drive program of communication board. After installation, please use the attach cable to connect digital power supply with communication board, and use USB cable to connect Micro UBB port with PC.
- Page 2 Hangzhou Ruideng Technology Co., Ltd. 1.2 Bluetooth communication board Bluetooth communication board is Bluetooth 2.0 protocol. Please use the attached cable to connect digital power supply with bluetooth communication board. After power on, the LED on the board will blink; so the bluetooth is in the state of searching.
- Page 3 Hangzhou Ruideng Technology Co., Ltd. After searching, the bluetooth device will show and the last 3 bit 001 of name represent address code of digital power supply. When connect bluetooth device, please enter pairing code, the default password is 1234.
- Page 4 Hangzhou Ruideng Technology Co., Ltd.
- Page 5 Hangzhou Ruideng Technology Co., Ltd. After connecting, the system will download and install Virtual serial port driver of bluetooth automatically. The smaller number COM is what we use, eg COM3, we need to choose COM3 on upper computer. If we need to adjust communication data, the operation is similar as wire communication.
- Page 6 Hangzhou Ruideng Technology Co., Ltd. Double click the Arial Unicode MS Font Pack and click Install to install the Font Pack. Open data package, unzip DPS5015 PC Software V1.3. Double click setup.exe and install DPS5015 PC Software. Select installation directory, and click next.
- Page 7 Hangzhou Ruideng Technology Co., Ltd. Click next to install, and wait installation to complete.
- Page 8 Hangzhou Ruideng Technology Co., Ltd. 3 Software operating Double click short-cut icon on the desk to open upper computer software. After opening software, select serial port(In Bluetooth communication, select the serial port, when the red LED from flashing to long bright,...
- Page 9 Hangzhou Ruideng Technology Co., Ltd.
